- Pipe diameter Liquid : 9.52 mm (3/8")
- Gas pipe diameter: 25.4 mm (1")
- Maximum piping length: 100 m
- Maximum height difference Indoor Unit / Outdoor Unit: 30 m
Dimensions and weight
- Internal Unit Dimensions (HxWxD): 470x1370x1120 mm
- Indoor Unit Weight: 87 Kg
- External Unit Dimensions (HxWxD): 1338x1050x330 mm
- Weight of Outdoor Unit: 138 Kg

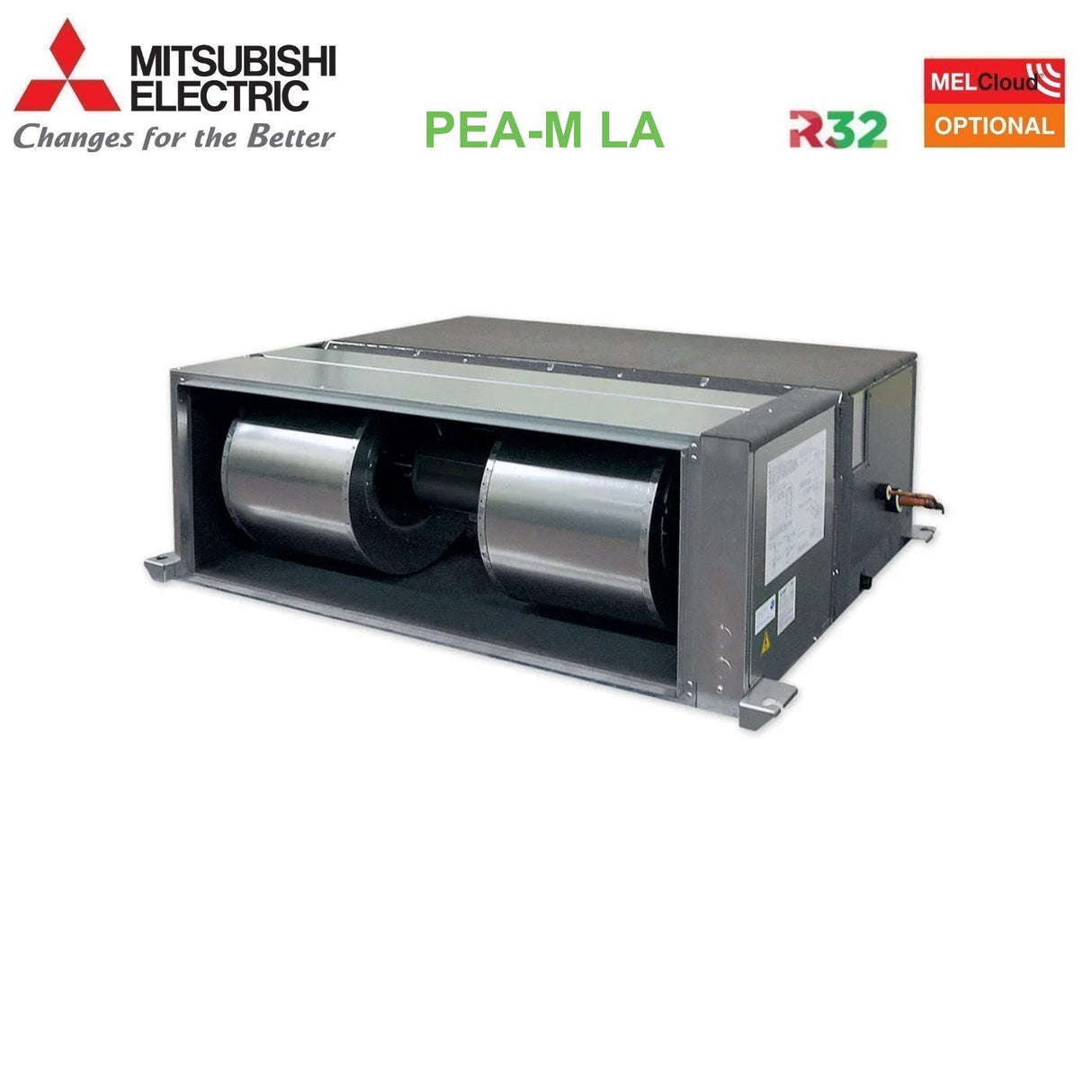

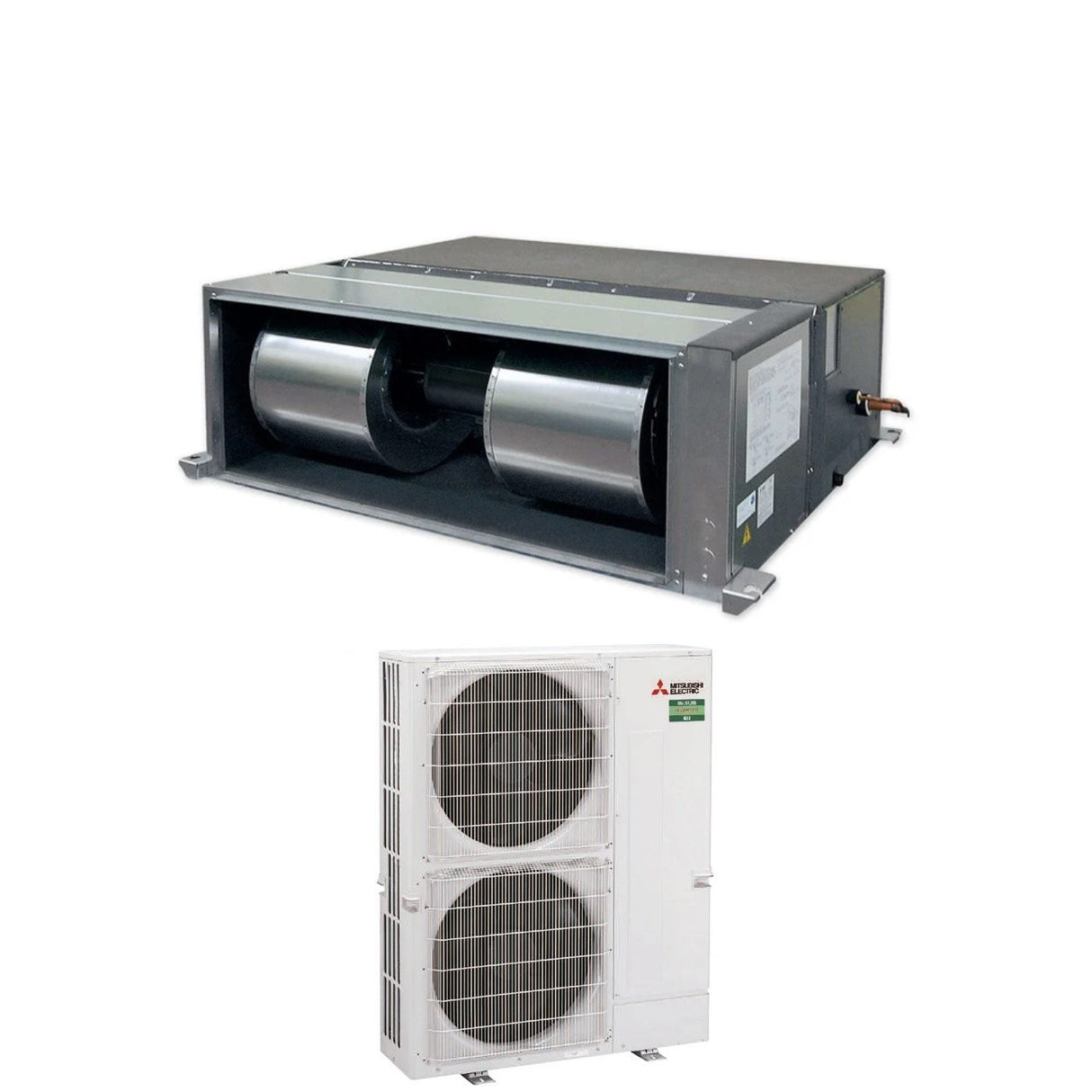

Mitsubishi Electric Ducted High Head PEA-M LA
Compact Outdoor Unit
While delivering a nominal power of up to 25 kW in cooling, the PEA-M LA ducted units have an outdoor unit in double fan configuration, avoiding the overall dimensions of traditional high-power condensing units in top-flow configuration
![Caldaiemurali.it Unita Esterna Compatta](https://www.climaconvenienza.it/pimages/FCKeditorFiles/Image/UnitaEsternaCompatta.jpg)
DC Inverter fan motor
In compliance with the ErP 2018 directive, the new PEA-M LA indoor units feature a DC Inverter motor that allows continuous adjustment of the rotation speed
![Caldaiemurali.it Motore Inverter](https://www.climaconvenienza.it/pimages/FCKeditorFiles/Image/MotoreInverter.jpg)
High static pressure of the internal fan
The static pressure up to 150 Pa allows a wide choice in the sizing of the ducts in order to position the air diffusers in the most suitable way
![Caldaiemurali.it Esempio Installazione](https://www.climaconvenienza.it/pimages/FCKeditorFiles/Image/EsempioInstallazione.jpg)
MELCloud, the Wi-Fi control
MELCloud is the new Wi-Fi control for your Mitsubishi Electric system. Taking advantage of the support of the cloud, the "Cloud", to transmit and receive information and the optional dedicated MAC-567IF-E Wi-Fi interface, you can easily control your system wherever you are via PC, tablet or smartphone ; all you need is an internet connection. The MELCloud service was created to have maximum compatibility with PCs, tablets and smartphones thanks to dedicated apps or via a web browser.
One word is enough for you!
MELCloud is compatible with Google Home. Saying «Hey Google!», or «Ok Google!» you have full control of the climate system. MELCloud is compatible with Amazon Alexa. A word will be enough to freely manage your air conditioning units
![Caldaiemurali.it MelCloud HR](https://www.climaconvenienza.it/pimages/FCKeditorFiles/Image/MelCloudHR.jpg.pagespeed.ce.rMGdEIeSmZ.jpg)
R32 Power Inverter outdoor units
The new R32 Power Inverter Commercial range outdoor units offer numerous advantages.
High seasonal efficiency : The use of R32 refrigerant guarantees an increase in seasonal efficiency in cooling
![Caldaiemurali.it Elevata Efficienza](https://www.climaconvenienza.it/pimages/FCKeditorFiles/Image/ElevataEfficienza.jpg)
Increased piping length : Increased installation flexibility for sizes 60-140 thanks to increased piping length
![Caldaiemurali.it Lunghezza Tubazioni](https://www.climaconvenienza.it/pimages/FCKeditorFiles/Image/LunghezzaTubazioni.jpg)
Nominal heating capacity down to -3°C : Nominal capacity is maintained down to -3°C, making it easier to use in cold climates
![Caldaiemurali.it Capacita Nominale](https://www.climaconvenienza.it/pimages/FCKeditorFiles/Image/CapacitaNominale.jpg)
• Compatibility with fan motor for head
• MelCloud energy monitoring
Power Inverters
Energy efficiency finds its maximum expression in the Power Inverter series. The wide operating range and maximum installation flexibility, thanks to particularly long refrigerant lines and the possibility of reusing existing pipes, complete the offer. The Power Inverter Units are equipped with innovative Power Receiver technology and rotary compressors to obtain maximum efficiency
Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
