icon Air Conditioner Mitsubishi Electric Ducted Ducted Inverter Medium Prevalence 48000 Btu Pead-M140ja + Puz-M140vka Single-phase R-32 Wi-Fi Optional | CaldaieMurali

Air Conditioner Mitsubishi Electric Ducted Ducted Inverter Medium Prevalence 48000 Btu Pead-M140ja + Puz-M140vka Single-phase R-32 Wi-Fi Optional

Description

The product is available on order


Technical features

  • Indoor unit catalog code : PEAD-M140JA
  • Outdoor unit catalog number : PUZ-M140VKA
  • Power: 48000 btu
  • Optional Wi-Fi card : MAC-567IF-E
  • Optional remote control : PAR-FL32MA-E
  • Optional Infrared Receiver: PAR-FA32MA-W
  • Optional Simplified Wired Control : PAC-YT52CRA-K
  • Optional Deluxe Wire Control : PAR-40MAA
Energy efficiency
  • SEER : 192.1%
  • SCOP: 145.4%
  • Energy Efficiency Class in Cooling : -
  • Heating Energy Efficiency Class : -
  • Annual Energy Consumption in Cooling : -
  • Annual Energy Consumption in Heating : -
Performance
  • Cooling Capacity: 13.4 kW
  • Heating Capacity: 15 kW
  • Cooling absorption: 4.76 kW
  • Heating absorption: 4.15 kW
  • Treated Air Indoor Unit : 32~46 m 3 /min
  • Sound Power Level Indoor Unit : 67 dB(A)
  • External Unit Sound Power Level: 73 dB(A)
  • Sound Pressure Level Indoor Unit : 34~43 dB(A)
  • Sound Pressure Level Outdoor Unit : 55 dB(A)

Electrical data

  • Power supply (V,Hz, Ø) : 220~240/50/1
  • Refrigerant gas : R32
  • Operating range
  • - Cooling: -15° ~ 46° C
  • - Heating: -15° ~ 21° C
Installation data
  • Pipe diameter Liquid : 9.52 mm (3/8")
  • Gas pipe diameter: 15.88 mm (5/8")
  • Maximum piping length: 65 m
  • Maximum height difference Indoor Unit / Outdoor Unit: 30 m

Dimensions and weight

  • Internal Unit Dimensions (HxWxD): 250x1600x732 mm
  • Indoor Unit Weight: 44 Kg
  • External Unit Dimensions (HxWxD): 981x1050x330 mm
  • Weight of Outdoor Unit: 84 Kg

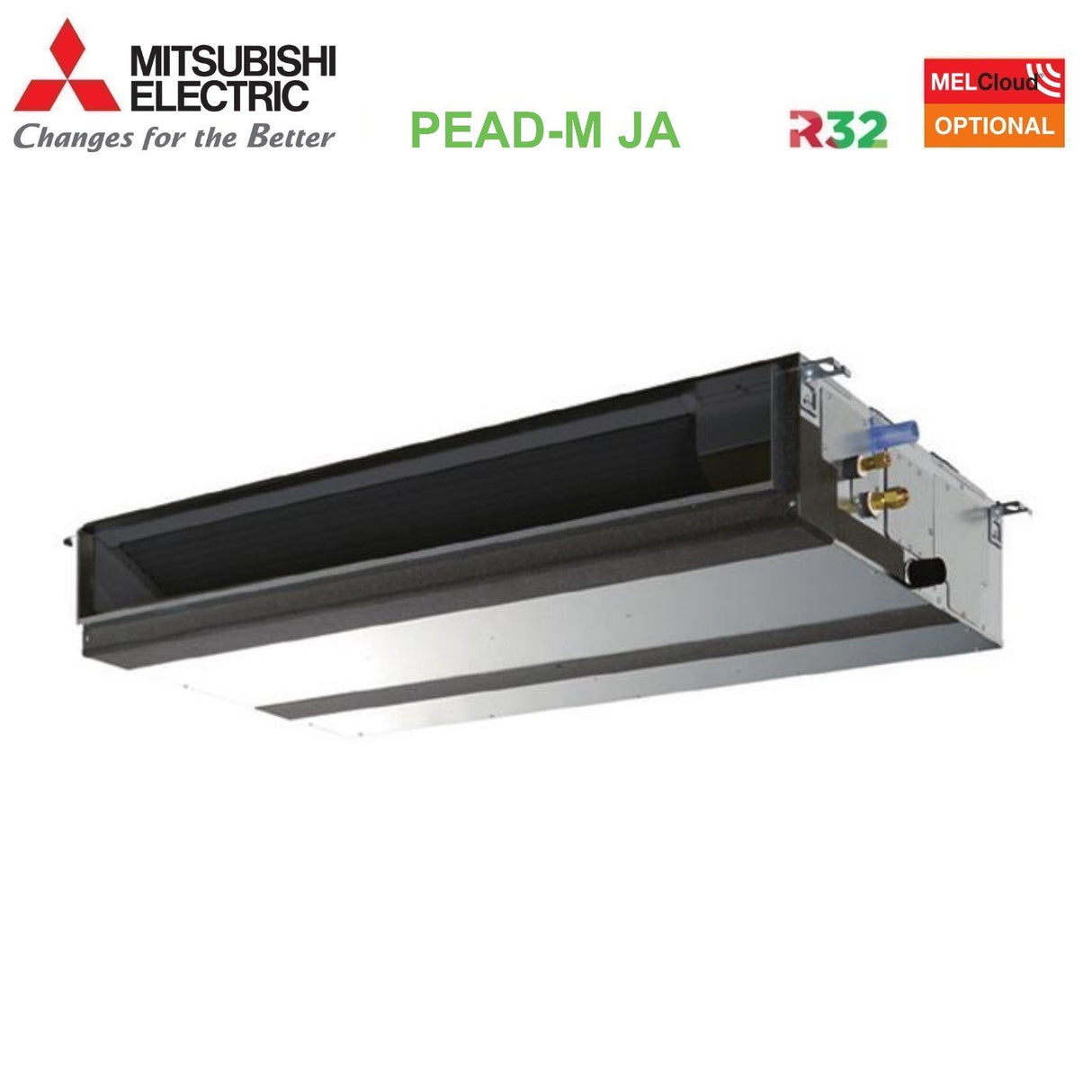

Mitsubishi Electric Ducted Medium Head PEAD-M JA

Cost-effectiveness and installation flexibility

The indoor units of this series of air conditioners, with low profile and concealed in the ceiling, are the perfect answer for the air conditioning requirements in the presence of very small ceiling installation space and external static pressure values ​​subject to wide variations. Energy efficiency has been optimised, electricity consumption is reduced and the operating costs of the appliance are therefore lower.

The ultra-slim indoor unit is characterized by particularly quiet operation. It is equipped with a direct expansion coil. It is suitable for concealed ductable installation. A height of only 250 mm guarantees cost-effectiveness and installation flexibility


Extremely Quiet Operation

In addition to the innovative silent features already present on other Mitsubishi Electric air conditioners, the PEAD series employs a sirocco-type fan with extremely silent operation


Condensate Drain Pump Included

The HDPE series units are not only easy to install but also The provision of a drain pump with a head of 550 mm facilitates the drainage of condensate water even in critical conditions

Pompa Condensa


DC Inverter fan

The HDPE units are equipped with a DC Inverter fan which allows the modulation of the number of revolutions ensuring, in addition to silence, optimal comfort and energy saving

DC Inverter


Static Pressure Settable

External static pressure can be adjusted to suit system configuration and installation conditions. Static pressure settings can be increased to suit all duct types, having 5 steps available from 35 Pa up to 150 Pa


Various Installation Possibilities

HDPE series units are not only easy to install but also very versatile. It is possible to vary the position for the air intake, rear or lower , to optimize the space available

Possiblita Installazione


MELCloud, the Wi-Fi control

MELCloud is the new Wi-Fi control for your Mitsubishi Electric system. Taking advantage of the support of the cloud, the "Cloud", to transmit and receive information and the optional dedicated MAC-567IF-E Wi-Fi interface, you can easily control your system wherever you are via PC, tablet or smartphone ; all you need is an internet connection. The MELCloud service was created to have maximum compatibility with PCs, tablets and smartphones thanks to dedicated apps or via a web browser.

One word is enough for you!

MELCloud is compatible with Google Home. Saying «Hey Google!», or «Ok Google!» you have full control of the climate system. MELCloud is compatible with Amazon Alexa. A word will be enough to freely manage your air conditioning units

MelCloud HR


Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Air Conditioner Mitsubishi Electric Ducted Ducted Inverter Medium Prevalence 48000 Btu Pead-M140ja + Puz-M140vka Single-phase R-32 Wi-Fi Optional

Product form

The product is available on order Technical features Indoor unit catalog code : PEAD-M140JA Outdoor unit catalog number : PUZ-M140VKA... Read more

€3.831,00 Incl. VAT

    Description

    The product is available on order


    Technical features

    • Indoor unit catalog code : PEAD-M140JA
    • Outdoor unit catalog number : PUZ-M140VKA
    • Power: 48000 btu
    • Optional Wi-Fi card : MAC-567IF-E
    • Optional remote control : PAR-FL32MA-E
    • Optional Infrared Receiver: PAR-FA32MA-W
    • Optional Simplified Wired Control : PAC-YT52CRA-K
    • Optional Deluxe Wire Control : PAR-40MAA
    Energy efficiency
    • SEER : 192.1%
    • SCOP: 145.4%
    • Energy Efficiency Class in Cooling : -
    • Heating Energy Efficiency Class : -
    • Annual Energy Consumption in Cooling : -
    • Annual Energy Consumption in Heating : -
    Performance
    • Cooling Capacity: 13.4 kW
    • Heating Capacity: 15 kW
    • Cooling absorption: 4.76 kW
    • Heating absorption: 4.15 kW
    • Treated Air Indoor Unit : 32~46 m 3 /min
    • Sound Power Level Indoor Unit : 67 dB(A)
    • External Unit Sound Power Level: 73 dB(A)
    • Sound Pressure Level Indoor Unit : 34~43 dB(A)
    • Sound Pressure Level Outdoor Unit : 55 dB(A)

    Electrical data

    • Power supply (V,Hz, Ø) : 220~240/50/1
    • Refrigerant gas : R32
    • Operating range
    • - Cooling: -15° ~ 46° C
    • - Heating: -15° ~ 21° C
    Installation data
    • Pipe diameter Liquid : 9.52 mm (3/8")
    • Gas pipe diameter: 15.88 mm (5/8")
    • Maximum piping length: 65 m
    • Maximum height difference Indoor Unit / Outdoor Unit: 30 m

    Dimensions and weight

    • Internal Unit Dimensions (HxWxD): 250x1600x732 mm
    • Indoor Unit Weight: 44 Kg
    • External Unit Dimensions (HxWxD): 981x1050x330 mm
    • Weight of Outdoor Unit: 84 Kg

    Mitsubishi Electric Ducted Medium Head PEAD-M JA

    Cost-effectiveness and installation flexibility

    The indoor units of this series of air conditioners, with low profile and concealed in the ceiling, are the perfect answer for the air conditioning requirements in the presence of very small ceiling installation space and external static pressure values ​​subject to wide variations. Energy efficiency has been optimised, electricity consumption is reduced and the operating costs of the appliance are therefore lower.

    The ultra-slim indoor unit is characterized by particularly quiet operation. It is equipped with a direct expansion coil. It is suitable for concealed ductable installation. A height of only 250 mm guarantees cost-effectiveness and installation flexibility


    Extremely Quiet Operation

    In addition to the innovative silent features already present on other Mitsubishi Electric air conditioners, the PEAD series employs a sirocco-type fan with extremely silent operation


    Condensate Drain Pump Included

    The HDPE series units are not only easy to install but also The provision of a drain pump with a head of 550 mm facilitates the drainage of condensate water even in critical conditions

    Pompa Condensa


    DC Inverter fan

    The HDPE units are equipped with a DC Inverter fan which allows the modulation of the number of revolutions ensuring, in addition to silence, optimal comfort and energy saving

    DC Inverter


    Static Pressure Settable

    External static pressure can be adjusted to suit system configuration and installation conditions. Static pressure settings can be increased to suit all duct types, having 5 steps available from 35 Pa up to 150 Pa


    Various Installation Possibilities

    HDPE series units are not only easy to install but also very versatile. It is possible to vary the position for the air intake, rear or lower , to optimize the space available

    Possiblita Installazione


    MELCloud, the Wi-Fi control

    MELCloud is the new Wi-Fi control for your Mitsubishi Electric system. Taking advantage of the support of the cloud, the "Cloud", to transmit and receive information and the optional dedicated MAC-567IF-E Wi-Fi interface, you can easily control your system wherever you are via PC, tablet or smartphone ; all you need is an internet connection. The MELCloud service was created to have maximum compatibility with PCs, tablets and smartphones thanks to dedicated apps or via a web browser.

    One word is enough for you!

    MELCloud is compatible with Google Home. Saying «Hey Google!», or «Ok Google!» you have full control of the climate system. MELCloud is compatible with Amazon Alexa. A word will be enough to freely manage your air conditioning units

    MelCloud HR


    Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

    Data sheetData sheet
    • peso: 130.0 kg
    • gas: R-32
    • marca: MITSUBISHI ELECTRIC
    • metri quadri : 160 - 180 m2
    • modello: PEAD-M140JA + PUZ-M140VKA
    • potenza btu: 48000
    • superficie riscaldabile mq: 140
