ATTENTION THE PRODUCT IS NEW AND CHECKED BY OUR TECHNICIANS, IT HAS TRANSPORT DEFECTS:
- SMALL DENTS LOWER PART
- REAR COOLANT FINS FOLDED
- LIGHT REAR DENT
- WORN PACKAGING

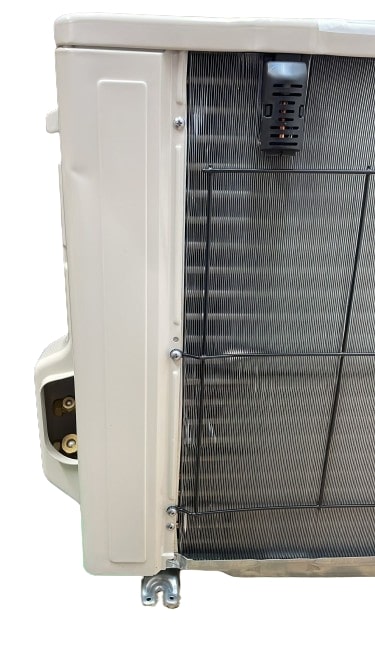

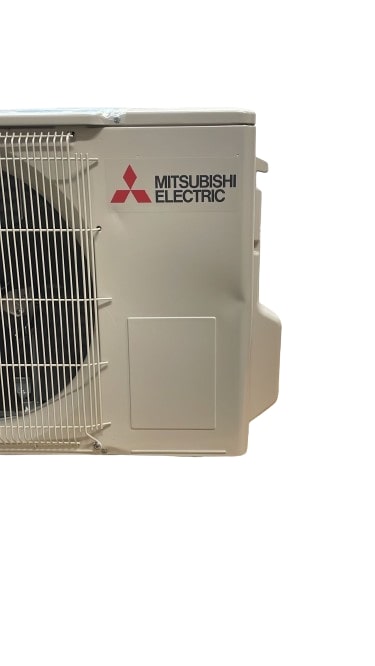

(FOR MORE DETAILS VIEW THE PHOTOS NEXT TO THE MAIN IMAGE).
Technical Features
Model:
- Indoor Unit Catalog Code: MSZ-DW25VF
- External Unit Catalog Code: MUZ-DW25VF
- Power: 9000 Btu
- Wi-Fi Optional : MAC-587IF-E
Energy Efficiency:
- SEER : 6.2
- SCOP : 4.3
- Energy Efficiency Class in Cooling: A++
- Energy Efficiency Class in Heating: A+
- Annual energy consumption in Cooling: 141 kWh/a
- Annual energy consumption in heating: 616 kWh/a
Performance
- Cooling capacity: 2.5 kW
- Heating capacity: 3.15 kW
- Cooling Power Consumption: 0.80 kW
- Heating Power Consumption: 0.85 kW
- Treated Air Indoor Unit: 4.0 ~ 12.0 m 3 /min
- Sound power indoor unit: 57 dB(A)
- Sound power of outdoor unit: 63 dB(A)
- Indoor unit sound pressure : 21 ~ 43 dB(A)
- External unit sound pressure: 50 dB(A)
Electrical data
- Power supply (V,Hz,Ø) : 220~240/50/1
- Refrigerant gas: R-32
- Operating range :
- Cooling: -10° ~ +46° C
- Heating: -10 ~ +24° C
Installation Data
- Liquid Pipe Diameter: 6.35mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Maximum length of pipes: 20 m
- Maximum height difference between internal unit and external unit: 12 m
Dimensions and Weight
- Internal Unit Dimensions (HxWxD): 290x799x232 mm
- Internal Unit Weight: 9 Kg
- External Unit Dimensions (HxWxD): 538x699x249 mm
- External Unit Weight: 23 kg
Mitsubishi Electric Smart DW Series Simplicity in its most beautiful form
DC Inverter
The Inverter system is an electronic device that allows you to efficiently vary the speed of the compressor and, consequently, the power supplied by the air conditioner based on the cooling or heating request. Compared to traditional fixed-speed air conditioners (On/Off), inverter air conditioners reach the required temperature sooner and keep it stable, without annoying changes, to the advantage of comfort and electricity consumption.
R-32
The refrigerant gas R32 complies with European directives on the reduction of the greenhouse effect, having a lower GWP than R410A and not damaging the ozone layer. The advantages?
- High energy efficiency
- Reduction of the amount of refrigerant gas used
- Reduced environmental impact
- Easily chargeable and recoverable as a pure gas
- Low toxicity and flammability
A compact line designed for small spaces
The MSZ-DW units guarantee comfort and low electricity consumption, with minimal noise emissions without sacrificing compact dimensions.
Optional V Blocking air purifying filter
V Blocking is a new purifying filter that improves the previous silver ion filtering system, adding an anti-viral action capable of inhibiting viruses, bacteria, mold and allergens.
Optional Quad Connect Plasma Filter
The Plasma Quad Connect system is an active filtration system capable of inhibiting up to 99% of viruses, bacteria, mold and PM2.5 present in the air, up to 98% of allergens and pollen and up to 99.7% of mites and dust.
Standard purifying filter supplied
The standard purifying filter ensures the removal of coarse polluting particles such as dust and impurities from the air with an additional antibacterial, anti-mold and odor-catching effect.
Compact internal units
The dimensions of the internal units of the entire range are particularly compact. This allows installation even in rooms where the available space is limited.
Easy to use timer
The 12-hour timer is especially suitable for use during nighttime rest hours. Automatic on and off operations can be easily set in hourly intervals.
Maximum silence for maximum comfort
The quality of the environment in which we stay also depends on the perceived noise level. Mitsubishi Electric air conditioners help maintain the highest acoustic comfort by reducing noise emissions to a minimum.
MELCloud, the Wi-Fi control
MELCloud is the new Wi-Fi control for your Mitsubishi Electric system. Using the cloud (the “Cloud”) to transmit and receive information and the optional dedicated Wi-Fi interface (MAC-587IF-E), you can easily control your system wherever you are via your PC, tablet or smartphone; all you need is an internet connection. The MELCloud service has been designed to have maximum compatibility with PCs, Tablets and Smartphones thanks to dedicated Apps or via Web Browser.
Above class A++/A+
Economy of operation is the great advantage of Mitsubishi Electric air conditioners.
Thanks to the careful design of all components and the use of cutting-edge technologies, energy efficiency reaches extraordinary levels even on a seasonal basis.
In particular, the Smart Line obtains SEER and SCOP values (seasonal efficiency indices) that allow it to reach values above Class A++/A+ across the entire range .
Product Warranty: All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
