Midea
Garanzia Italiana 24 mesi
Classe energetica di riscaldamento: A+
Classe energetica di raffreddamento: A++
SKU: MSMADU-24HRFN8

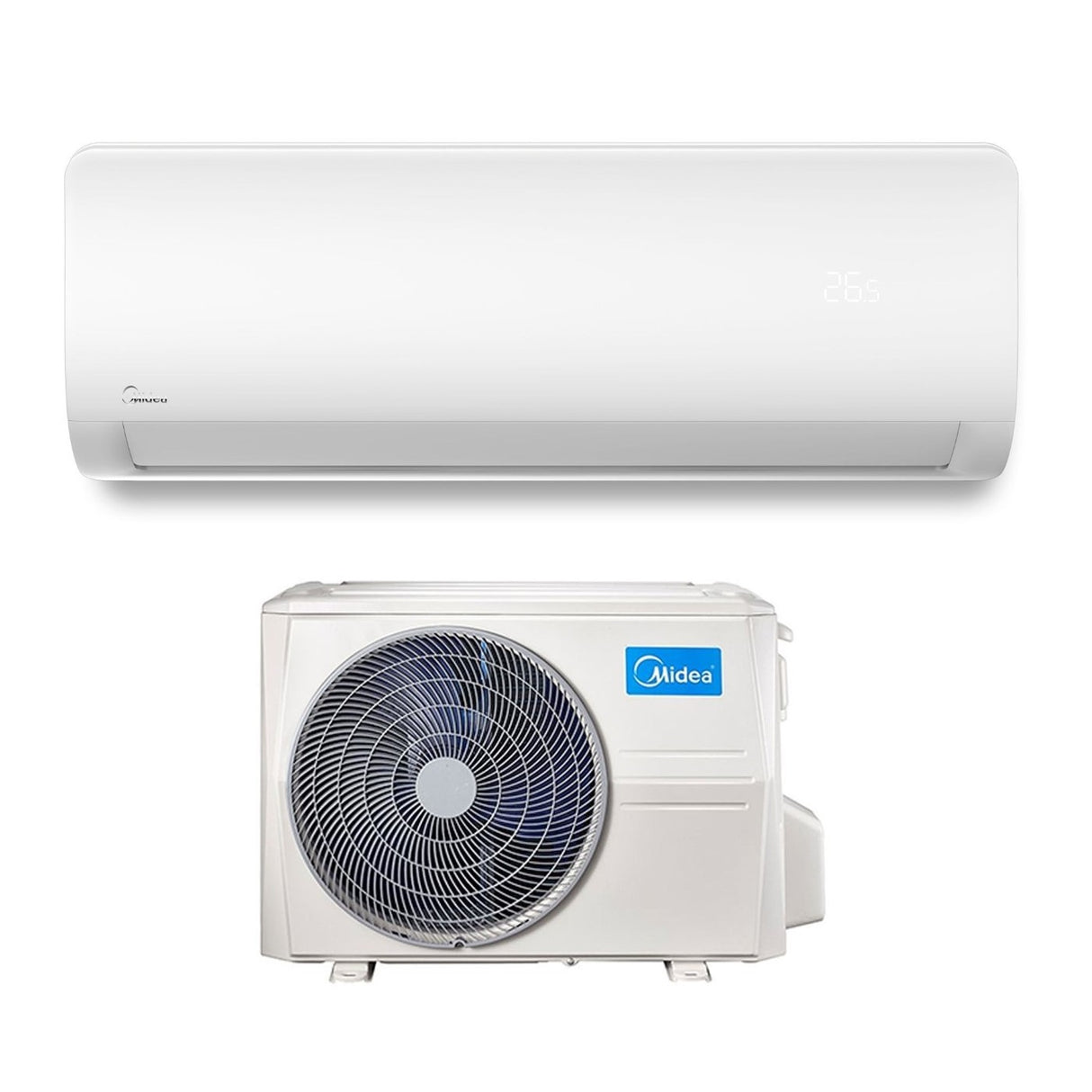

Midea Inverter Air Conditioner Offer Right Series 24000 Btu Msmadu-24hrfn8 R-32 A++ Wi-Fi Optional - New

€660,00 VAT included
Tax included Shipping calculated at checkout.

How shipping works

Shipping costs vary depending on the weight and shipping method of your order. Our shipping services:

  • Standard Shipping: Estimated delivery within 2 to 5 business days
  • Premium Shipping: Guaranteed delivery within 24 business hours
  • Premium Shipping + Home Delivery: Guaranteed delivery within 24 business hours

    See the tables for standard shipping prices for Italy and the Minor Islands and Disadvantaged Areas.

    For more details on Premium Shipping, please visit the Premium Shipping page.

Customer service

Our customer service team is dedicated to providing support to our customers with any issues or questions they may have before or after purchasing our products.

Use the direct communication channel to speak with one of our representatives, or send us an email at one of the addresses listed on the contact us page.

Our customer service team is made up of highly qualified professionals who are always ready to help customers resolve any issue or answer any question quickly and efficiently. We are committed to ensuring maximum customer satisfaction and providing the highest quality after-sales service. So, if you need assistance, don't hesitate to contact us; we'll be happy to help in any way we can.

Description

Technical features

  • Indoor Unit Catalog No. : MSMADU-24HRFN8, EAN: 8052705161014
  • Outdoor Unit Catalog No. : MOCA02-24HFN8, EAN: 8052705161021
  • Power : 24000 Btu
  • Optional Wi-Fi CE-SK 103

Energy efficiency

  • SEER : 6.1
  • SCOP : 4.0
  • Energy Efficiency Class in Cooling : A++
  • Heating Energy Efficiency Class: A+
  • Annual Energy Consumption in Cooling : 402 kWh/a
  • Annual Energy Consumption in Heating: 1645 kWh/a
Performance
  • Cooling Capacity: 7.03 kW
  • Heating Capacity: 7.33 kW
  • Cooling absorption: 2.43 kW
  • Heating absorption: 2.46 kW
  • Treated Air Internal Unit: 14.3 m 3 /min
  • Sound Power Level Indoor Unit : 56 dB(A)
  • External Unit Sound Power Level: 68 dB(A)
  • Sound Pressure Level Indoor Unit : 22~47 dB(A)
  • Sound Pressure Level Outdoor Unit : 60 dB(A)

Electrical data

  • Power supply (V,Hz, Ø) : 220~240/50/1
  • Refrigerant gas : R32
  • Operating range
  • - Cooling: -15° ~ 50°C
  • - Heating: -25° ~ 30° C
Installation data
  • Pipe diameter Liquid : 6.35 mm (1/4")
  • Gas pipe diameter: 15.88 mm (5/8")
  • Maximum piping length: 50 m
  • Maximum height difference Indoor Unit / Outdoor Unit: 25 m

Dimensions and weight

  • Internal Unit Dimensions (LxWxH): 1038x235x325 mm
  • Indoor Unit Weight: 12.8 Kg
  • External Unit Dimensions (LxWxH): 845x363x702 mm
  • Weight of Outdoor Unit: 51.2 Kg

Midea Right
The design of the Right range is made up of pure and simple geometries. The lines that accompany the body, both frontally and on the sides, recall the waves of the ocean. A real work of art, enhanced by the presence of a display ingeniously hidden under the front plastics, which is revealed to the user only when the unit is switched on.
Right

Control your climate with your voice

The Right series air conditioner is compatible with Amazon Echo, Google Home, Apple HomeKit.

Controlling comfort in your own home has never been easier. Thanks to the integration with the latest generation technologies Echo Voice Command by Amazon Alexa, Google Home and Apple HomeKit you can "ask" your air conditioner to do the best for you, with Midea.

Controllo Vocale


Remote Control (Smart Kit)

The indoor units can be equipped with Midea Smart Kit (optional) in order to be controlled remotely via the Midea AIR app wherever you are

Controllo Midea


supercool

The First series uses high-frequency start-up technology, capable of generating a very high flow of fresh air in an extremely short time (about 30 seconds).

Super Cool


Hassle-free installation

Installazione

• Long piping length and height difference

• Sturdy installation plate suitable for application on pre-arrangement boxes

• Up to 10 minutes of time saved with each installation


Simple connection

Connessione

The space between the wall and the body is very large and allows you to house the pipes in a comfortable and simple way. The solidity of the fixing hooks of the chassis to the plate guarantees perfect adhesion of the product to the wall.


Mono and Multi Indoor Units

The indoor units are multipurpose so that they can be connected in both Mono and Multi configurations. You can therefore decide to install a Mono and add more units in the future.

Mutisplit


Speed ​​linear regulation

Regolazione

The rotation speed of the internal fan, beyond the usual predefined levels of activity, can be adjusted within the values ​​1-100%.


Sophisticated design

The design of the Right range is made up of pure and simple geometries. The lines that accompany the body, both frontally and on the sides, recall the waves of the ocean. A real work of art, enhanced by the presence of a display ingeniously hidden under the front plastics, which is revealed to the user only when the unit is switched on.

Design


Diamond Design

Innovative diamond cut shape with no sharp edges and no visible screws. The air outlet grille contains a newly designed fan to minimize noise.

Diamond


Anti-corrosion

Thanks to a special anti-corrosion treatment, the heat exchanger of the external unit is made resistant to salt air and external pollutants/atmospheric agents.

Anticorrosione


Functions and Features

ECO function : Allows electricity savings of up to 60% in 8 hours compared to traditional air conditioners.

1W Stand-by : Complete removal of the power supply to the outdoor unit during a prolonged stand-by phase

• Eco-friendly R32

• Emergency function

• Quietness

• Leak alarm


Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase

Technical Data Sheet

  • peso: 50.0 kg
  • classe energetica raffreddamento: A++
  • classe energetica riscaldamento: A+
  • gas: R-32
  • marca: Midea
  • metri quadri : 60 - 80 m2
  • modello: MSMADU-24HRFN8
  • potenza btu: 24000
  • superficie riscaldabile mq: 70
