- Pipe diameter Liquid : 9.52 mm (3/8")
- Gas pipe diameter: 15.88 mm (5/8")
- Maximum piping length: 65 m
- Maximum difference in height indoor unit / outdoor unit: 30 m
Dimensions and weight
- Internal Unit Dimensions (LxWxH): 1200x865x300 mm
- Indoor Unit Weight: 45 Kg
- External Unit Dimensions (LxWxH): 938x392x1369 mm
- Weight of Outdoor Unit: 102 Kg

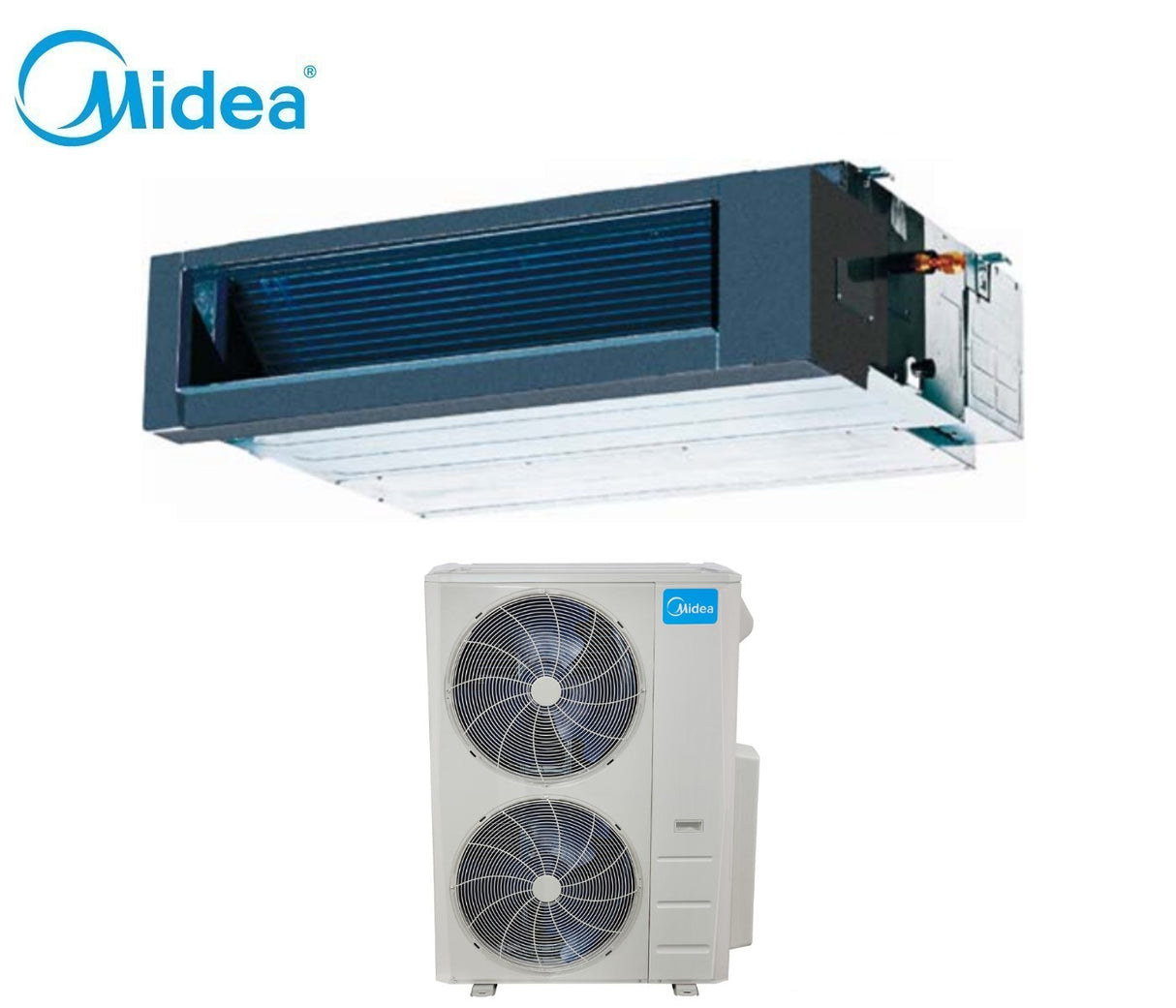

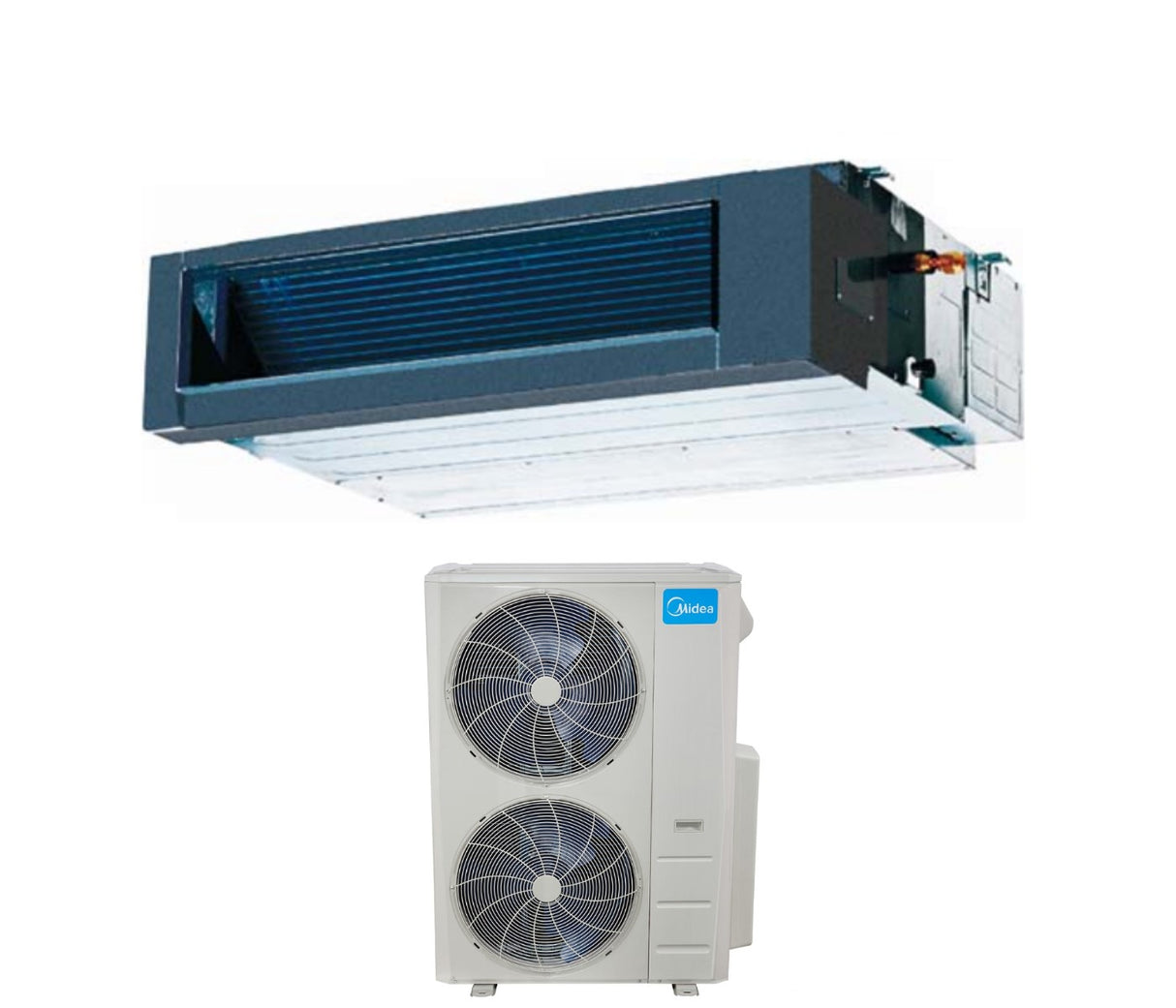

Channeled Midea
Flexible Air Return
Rear air inlet is standard and bottom air inlet is optional. The dimension of the bottom plate and from the back flange are the same, so it is easy for the installer to change the air inlet from the back to the bottom
“Fresh Air” intake
The "Aria Fresca" intake is standard, it is easy to connect it to the external air passage hole
“Twin” combination
The internal cassette units can be installed in "Twin" mode: a single external unit can connect with two internal units, expanding the scenario of possible installations. Available in combinations: 18k+18k, 24k+24k, 30k+30k
Integrated Drain Pump
The drain pump is able to lift the condensed water up to 750mm
Features and Functions
Automatic restart
All Midea products are equipped with a special memory: in the event of a power cut (blackout), once the power returns, the devices set themselves to the last settings
Sleep
The "Sleep" function allows the air conditioner to gradually increase (in cooling) and decrease (in heating) the temperature, to then switch off after 5 hours. Ideal for the night
Timer
A daily timer inserted in the remote control allows Midea air conditioners to turn on and off automatically with an accuracy of 30min/1h over 24 hours
5 External Ventilation Speeds
Thanks to the Inverter technology, the speed steps of the external ventilation motor go from 2 to 5. A more precise control of the ventilation speed brings enormous advantages in terms of energy absorption
Technical rooms air conditioning
A special technology allows all Midea Splits to be able to operate in "cooling" mode even with external temperatures down to -15°. Ideal for designing Server Rooms and/or technical rooms
Follow Me
Midea remote controls are equipped with a temperature sensor, which the unit considers as "ambient temperature". The air conditioner therefore works by "following" the real temperature perceived by the user
Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
