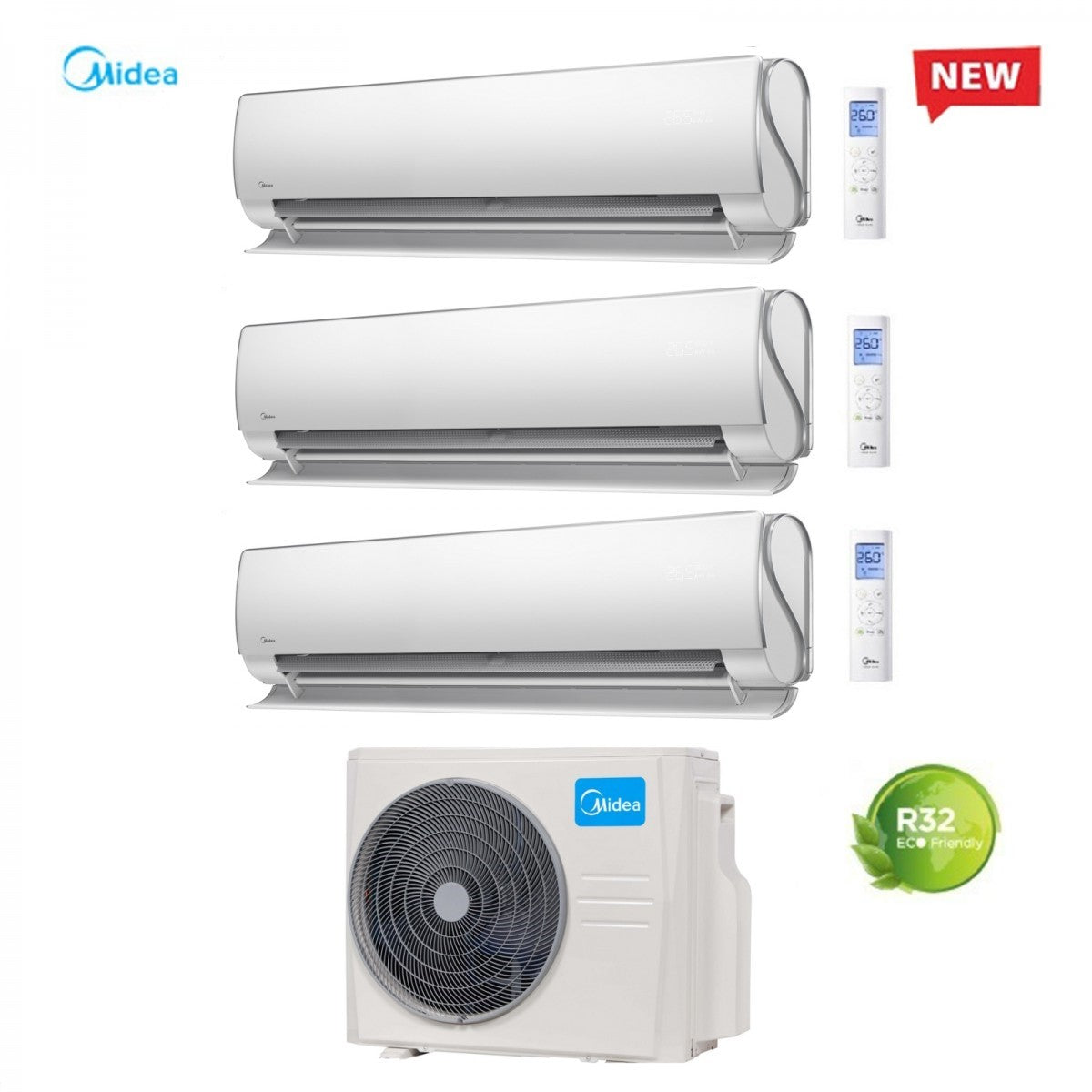

icon Midea Trial Split Inverter Air Conditioner Ultimate Comfort Series 12+12+12 With M3o-27fn8-Q R-32 Wi-Fi 12000+12000+12000 | CaldaieMurali

Midea Trial Split Inverter Air Conditioner Ultimate Comfort Series 12+12+12 With M3o-27fn8-Q R-32 Wi-Fi 12000+12000+12000

Description

IN CASE OF ABSENCE OF THE PRODUCT THE NEXT BREEZELESS+ MODEL WILL BE SHIPPED

Technical features

Indoor Units

1) Model:

Model: 3 x MSMTAU-12HRFN8
Power: 12000 btu/h

Performance:

Cooling Capacity (kW): 3.52
Heating Capacity (kW): 3.81
Air Flow (min-med-max) m3/min 6.3-8.0-10.0
Sound pressure (Silent-Min-Med-Max) dB(A) 19.5-26-32-40.5
Sound power (Hi) dB(A) 54

Dimensions:

Connection tube (liquid): 6.35mm (1/4”)
Connection tube (gas): 9.52mm (3/8”)
Indoor Unit WxDxH (mm):886x188x315 ; 10.3kg

Outdoor Unit

Model:

Catalog number: M3O-27FN8-Q
Gases: R-32
Max indoor units that can be combined: 3
Power (V/Hz/Φ) : 220~240/50/1

Capacity:

Cooling down

Nominal Capacity kW: 7.91
Absorbed power (Max): W 2460
SEER Seasonal Energy Efficiency: 6.6
Energy Efficiency Class: A++
Annual energy consumption KWh/A: 425

Heating

Nominal Capacity kW: 8.21
Absorbed power (Max): W 2250
SCOP Seasonal Energy Efficiency (W/W): 4.0
Energy Efficiency Class: A+
Annual energy consumption KWh/A: 1960

Performance:

Outdoor Unit Air Flow: m3/h 2700
External Unit Sound Pressure Max (dB(A)): 59
Sound power (Max) dB(A): 65
Cooling/Heating operation range (°C): -15°~50°/-15°~24°
Operating limit temperature (Tol) °C -15

Dimensions:

Outdoor Unit (LxDxH) (mm): 845x363x702 ; 53 kgs
Max. Total length/ each IU m 30/20
Piping length (min per unit): 3 m
Max. height difference (each IU) m 10

General characteristics

MIDEA Multi Line

The range of Midea MULTI systems is one of the most complete and extensive on the market, and covers all the user's installation needs, starting from Dual systems up to Penta combinations. The depth of the range also extends to the indoor units, available in all the main categories, such as Split, Ducted, 4-way cassettes, and Floor consoles: all air conditioning systems characterized by very high efficiency, both in cooling and in heating mode. To broaden the scenario of possible installations, all the Midea MULTI Line is " Free Match ": internal units of different types can be connected to each outdoor unit.

Relevant Features:

"Diamond" outdoor unit

Midea outdoor units are made with the innovative diamond cut shape, with no sharp edges and no visible screws on the front panel. The air expulsion grille, inspired by the Archimedean screw, contains a newly designed fan to reduce noise to a minimum. The T-shaped rib on the top panel achieves greater strength and stability.

High efficiency HSS compressors

The compressors used by Midea are characterized by a robust and reliable structure designed to operate at high temperatures and pressures in order to ensure maximum reliability over time.

Facilitated installation

MULTI Midea condensing units allow the connection of up to 5 indoor units of any type. Each individual indoor unit can be controlled totally independently.

Energy saving

Precise control of the inverter sine wave and active PFC technology guarantee minimum energy absorption and the maximum level of silence.



The Midea group was among the first companies to introduce the use of low GWP (Global Warming Potential) index refrigerants in its products to counter the effects of atmospheric overheating and the dreaded «Greenhouse Effect»

Low GWP Index

Thanks to the reduced value of the GWP index (675), the R32 refrigerant is characterized by CO2 equivalent emissions significantly lower than those of other HFC refrigerants.

Energy saving

Comparative tests show that, under equal conditions, the new R32 refrigerant guarantees a specific efficiency 2% higher than R410A

Simplicity of Installation

Midea has developed a range of indoor units that can be applied both to outdoor units that use R32 refrigerant and to outdoor units that use R410A refrigerant. In this way, warehouse logistics and the association of indoor and outdoor units are very simple and intuitive.

MIDEA Ultimate Comfort

Ultimate Comfort by Midea represents the extreme evolution of domestic air conditioning systems: thanks to the exclusive Silky Cool technology, in fact, the air flow emitted by the air conditioner is channeled through hundreds of tiny holes, which transform the "classic" jet of air, often the cause of stiff necks and colds, in a delicate and pleasant flow.

Midea - Ultimate Comfort

The result for the user? All the comfort of a Midea air conditioning system without the inconvenience caused by a continuous jet of air on our body.

In fact, sheltered from direct air flows, the Ultimate Comfort air conditioning will be particularly comfortable even in those situations in which one stays for a prolonged period of time in the immediate vicinity of the split, during sleep (thanks also to a "record" ” of only 18 dB ), or again for those particularly delicate subjects such as children and the elderly.

Four inverters

All without affecting the diffusion of cold and/or heat: on the contrary, Ultimate Comfort guarantees air propagated at angles much higher than those allowed by traditional air conditioners. Vertically, the new Midea air conditioner reaches an angle of 110° (against the 80° of the more common products) which rises to 120° (against 90°) horizontally: the air thus arrives more uniformly even in the most remote points of the room , bringing benefits to every corner of the house.

The new Ultimate Comfort air conditioner, thanks to the exclusive Inverter Quattro technology , allows an intelligent and modulated use of energy resources, with minimum electricity consumption guaranteed by class A++/A++ , while ensuring excellent performance and "top of the range" functions: from possibility of cooling the house despite external temperatures of 60°C, up to the instant cooling function, which thanks to the use of a high-frequency compressor satisfies any immediate cooling needs in the rooms of the house.

All obviously controllable remotely via the Midea Air App installed on your smartphone , which allows you to take advantage of additional functions such as the weekly programming of the desired temperatures, as well as to monitor the daily, weekly and monthly consumption of Ultimate Comfort.

Equipped with an intelligent sensor, Ultimate Comfort also guarantees control of the humidity level of the environment: in fact, the desired degree of humidity can be set, in a range between 30% and 90%.

Equipped with self-cleaning technology, which allows for simplified maintenance , the Ultimate Comfort air conditioner also stands out for its Air Magic filtration system , which in addition to eliminating microbes and other harmful substances, offers all the advantages of ionisation, which intercepts and eliminates bacteria present suspended in the air, in order to make it not only fresh and/or warm, but also healthy, thus helping to contain any allergies to dust, pollen and other inhalable substances.

Integrated Wi-Fi control

Thanks to the presence of a special Smart Kit and the App available for both iOS and Android applications, it is possible to control the operation of Midea air conditioners in any situation: using the remote control, or directly from a smartphone. Furthermore, the App has been designed to offer even more functionality and ease of use.



Midea Air allows you to use some exclusive functions.

Smart diagnosis Thanks to the diagnostic program present in the application, the reference values ​​of over 100 operating parameters present in the product can be verified to evaluate the correct functioning of the system peripherals.

Weekly timer The switching on and off of the product can be set on a weekly basis from the App to program the use of the product even remotely.

Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Midea Trial Split Inverter Air Conditioner Ultimate Comfort Series 12+12+12 With M3o-27fn8-Q R-32 Wi-Fi 12000+12000+12000

Product form

IN CASE OF ABSENCE OF THE PRODUCT THE NEXT BREEZELESS+ MODEL WILL BE SHIPPED Technical features Indoor Units 1) Model:... Read more

€1.720,00 Incl. VAT

    Description

    IN CASE OF ABSENCE OF THE PRODUCT THE NEXT BREEZELESS+ MODEL WILL BE SHIPPED

    Technical features

    Indoor Units

    1) Model:

    Model: 3 x MSMTAU-12HRFN8
    Power: 12000 btu/h

    Performance:

    Cooling Capacity (kW): 3.52
    Heating Capacity (kW): 3.81
    Air Flow (min-med-max) m3/min 6.3-8.0-10.0
    Sound pressure (Silent-Min-Med-Max) dB(A) 19.5-26-32-40.5
    Sound power (Hi) dB(A) 54

    Dimensions:

    Connection tube (liquid): 6.35mm (1/4”)
    Connection tube (gas): 9.52mm (3/8”)
    Indoor Unit WxDxH (mm):886x188x315 ; 10.3kg

    Outdoor Unit

    Model:

    Catalog number: M3O-27FN8-Q
    Gases: R-32
    Max indoor units that can be combined: 3
    Power (V/Hz/Φ) : 220~240/50/1

    Capacity:

    Cooling down

    Nominal Capacity kW: 7.91
    Absorbed power (Max): W 2460
    SEER Seasonal Energy Efficiency: 6.6
    Energy Efficiency Class: A++
    Annual energy consumption KWh/A: 425

    Heating

    Nominal Capacity kW: 8.21
    Absorbed power (Max): W 2250
    SCOP Seasonal Energy Efficiency (W/W): 4.0
    Energy Efficiency Class: A+
    Annual energy consumption KWh/A: 1960

    Performance:

    Outdoor Unit Air Flow: m3/h 2700
    External Unit Sound Pressure Max (dB(A)): 59
    Sound power (Max) dB(A): 65
    Cooling/Heating operation range (°C): -15°~50°/-15°~24°
    Operating limit temperature (Tol) °C -15

    Dimensions:

    Outdoor Unit (LxDxH) (mm): 845x363x702 ; 53 kgs
    Max. Total length/ each IU m 30/20
    Piping length (min per unit): 3 m
    Max. height difference (each IU) m 10

    General characteristics

    MIDEA Multi Line

    The range of Midea MULTI systems is one of the most complete and extensive on the market, and covers all the user's installation needs, starting from Dual systems up to Penta combinations. The depth of the range also extends to the indoor units, available in all the main categories, such as Split, Ducted, 4-way cassettes, and Floor consoles: all air conditioning systems characterized by very high efficiency, both in cooling and in heating mode. To broaden the scenario of possible installations, all the Midea MULTI Line is " Free Match ": internal units of different types can be connected to each outdoor unit.

    Relevant Features:

    "Diamond" outdoor unit

    Midea outdoor units are made with the innovative diamond cut shape, with no sharp edges and no visible screws on the front panel. The air expulsion grille, inspired by the Archimedean screw, contains a newly designed fan to reduce noise to a minimum. The T-shaped rib on the top panel achieves greater strength and stability.

    High efficiency HSS compressors

    The compressors used by Midea are characterized by a robust and reliable structure designed to operate at high temperatures and pressures in order to ensure maximum reliability over time.

    Facilitated installation

    MULTI Midea condensing units allow the connection of up to 5 indoor units of any type. Each individual indoor unit can be controlled totally independently.

    Energy saving

    Precise control of the inverter sine wave and active PFC technology guarantee minimum energy absorption and the maximum level of silence.



    The Midea group was among the first companies to introduce the use of low GWP (Global Warming Potential) index refrigerants in its products to counter the effects of atmospheric overheating and the dreaded «Greenhouse Effect»

    Low GWP Index

    Thanks to the reduced value of the GWP index (675), the R32 refrigerant is characterized by CO2 equivalent emissions significantly lower than those of other HFC refrigerants.

    Energy saving

    Comparative tests show that, under equal conditions, the new R32 refrigerant guarantees a specific efficiency 2% higher than R410A

    Simplicity of Installation

    Midea has developed a range of indoor units that can be applied both to outdoor units that use R32 refrigerant and to outdoor units that use R410A refrigerant. In this way, warehouse logistics and the association of indoor and outdoor units are very simple and intuitive.

    MIDEA Ultimate Comfort

    Ultimate Comfort by Midea represents the extreme evolution of domestic air conditioning systems: thanks to the exclusive Silky Cool technology, in fact, the air flow emitted by the air conditioner is channeled through hundreds of tiny holes, which transform the "classic" jet of air, often the cause of stiff necks and colds, in a delicate and pleasant flow.

    Midea - Ultimate Comfort

    The result for the user? All the comfort of a Midea air conditioning system without the inconvenience caused by a continuous jet of air on our body.

    In fact, sheltered from direct air flows, the Ultimate Comfort air conditioning will be particularly comfortable even in those situations in which one stays for a prolonged period of time in the immediate vicinity of the split, during sleep (thanks also to a "record" ” of only 18 dB ), or again for those particularly delicate subjects such as children and the elderly.

    Four inverters

    All without affecting the diffusion of cold and/or heat: on the contrary, Ultimate Comfort guarantees air propagated at angles much higher than those allowed by traditional air conditioners. Vertically, the new Midea air conditioner reaches an angle of 110° (against the 80° of the more common products) which rises to 120° (against 90°) horizontally: the air thus arrives more uniformly even in the most remote points of the room , bringing benefits to every corner of the house.

    The new Ultimate Comfort air conditioner, thanks to the exclusive Inverter Quattro technology , allows an intelligent and modulated use of energy resources, with minimum electricity consumption guaranteed by class A++/A++ , while ensuring excellent performance and "top of the range" functions: from possibility of cooling the house despite external temperatures of 60°C, up to the instant cooling function, which thanks to the use of a high-frequency compressor satisfies any immediate cooling needs in the rooms of the house.

    All obviously controllable remotely via the Midea Air App installed on your smartphone , which allows you to take advantage of additional functions such as the weekly programming of the desired temperatures, as well as to monitor the daily, weekly and monthly consumption of Ultimate Comfort.

    Equipped with an intelligent sensor, Ultimate Comfort also guarantees control of the humidity level of the environment: in fact, the desired degree of humidity can be set, in a range between 30% and 90%.

    Equipped with self-cleaning technology, which allows for simplified maintenance , the Ultimate Comfort air conditioner also stands out for its Air Magic filtration system , which in addition to eliminating microbes and other harmful substances, offers all the advantages of ionisation, which intercepts and eliminates bacteria present suspended in the air, in order to make it not only fresh and/or warm, but also healthy, thus helping to contain any allergies to dust, pollen and other inhalable substances.

    Integrated Wi-Fi control

    Thanks to the presence of a special Smart Kit and the App available for both iOS and Android applications, it is possible to control the operation of Midea air conditioners in any situation: using the remote control, or directly from a smartphone. Furthermore, the App has been designed to offer even more functionality and ease of use.



    Midea Air allows you to use some exclusive functions.

    Smart diagnosis Thanks to the diagnostic program present in the application, the reference values ​​of over 100 operating parameters present in the product can be verified to evaluate the correct functioning of the system peripherals.

    Weekly timer The switching on and off of the product can be set on a weekly basis from the App to program the use of the product even remotely.

    Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
    Data sheetData sheet
    • peso: 75.0 kg
    • classe energetica raffreddamento: A++
    • classe energetica riscaldamento: A+
    • gas: R-32
    • marca: Midea
    • modello: CLIMAT_02700
    • potenza btu: 12000+12000+12000
    • superficie riscaldabile mq: 35/35/35
    Icon for coinShipping cost

    Shipping costs vary according to the weight of the order.

    Consult the tables with the weights for Italy and for the smaller islands and disadvantaged areas.
