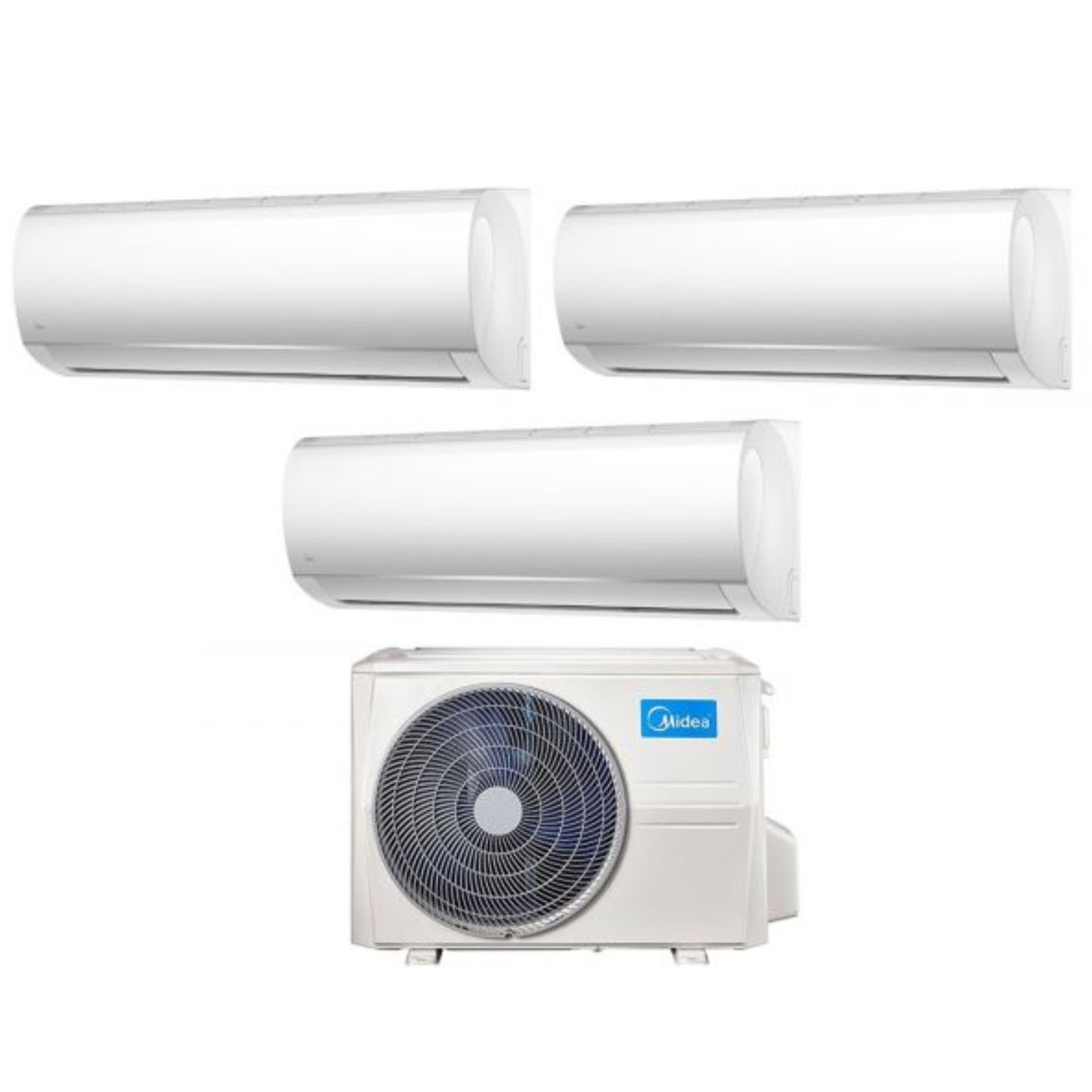

Midea Trial Split Inverter Air Conditioner Right 9+12+12 Series With M3of-27hfn8-Q R-32 Wi-Fi Optional 9000+12000+12000 - New

Description

Technical features

Indoor Units

1) Model
  • Indoor Unit Catalog Code: 1x MSMABU-09HRDN8
  • Power : 9000 Btu
  • Cooling Capacity: 2.64 kW
  • Heating Capacity: : 2.93 kW
  • Air flow: 8.3 m 3 /min
  • Sound pressure level : 22 ~ 28 ~ 34 ~ 38 dB(A)
  • Pipe diameter Liquid : 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (WxHxD): 805x282x205 mm
  • Indoor Unit Weight: 7.9 Kg
  • Wi-Fi Optional : CE-SK 103 code
2) Model
  • Indoor Unit Catalog Code : 2x MSMABU-12HRDN8
  • Power : 12000 Btu
  • Cooling Capacity: 3.52 kW
  • Heating Capacity: : 3.81 kW
  • Air flow: 7.7 m 3 /min
  • Sound pressure level : 21 ~ 26 ~ 30 ~ 36 dB(A)
  • Pipe diameter Liquid : 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (WxHxD): 805x282x205 mm
  • Indoor Unit Weight: 7.9 Kg
  • Wi-Fi Optional : CE-SK 103 code
Outdoor Unit
  • Outdoor Unit Catalog Code: M3OF-27HFN8-Q
  • Connectable Indoor Units : 3

Energy efficiency:

  • SEER : 6.1
  • SCOP : 4
  • Energy Efficiency Class (Cooling) : A++
  • Energy Efficiency Class (Heating) : A+
  • Annual energy consumption Cooling/Heating : 453/1993 kWh/a

Performance:

  • Cooling Capacity: 7.91 kW
  • Heating Capacity: 8.21 kW
  • Std Cooling Absorption : 2450 W
  • Heating Std Absorption: 2200 W
  • Sound power level : 67 dB(A)
  • Sound pressure level : 54 dB(A)

Characteristics:

  • Power (V/Hz/Φ) : 220~240/50/1
  • Refrigerant gas : R-32
  • Pipe diameter Liquid : 6.35 mm (1/4") x3
  • Gas pipe diameter : 9.52 mm (3/8") x3
  • Guaranteed temperature range:
  • - Cooling: -15° ~ 50°C
  • - Heating: -15° ~ 24°C

Dimensions:

  • External Unit Dimensions (WxHxD): 800x702x363 mm
  • Weight of Outdoor Unit: 51.1 Kg

Midea Right
The design of the Right range is made up of pure and simple geometries. The lines that accompany the body, both frontally and on the sides, recall the waves of the ocean. A real work of art, enhanced by the presence of a display ingeniously hidden under the front plastics, which is revealed to the user only when the unit is switched on.
Right

Control your climate with your voice

The Right series air conditioner is compatible with Amazon Echo, Google Home, Apple HomeKit.

Controlling comfort in your own home has never been easier. Thanks to the integration with the latest generation technologies Echo Voice Command by Amazon Alexa, Google Home and Apple HomeKit you can "ask" your air conditioner to do the best for you, with Midea.

Controllo Vocale


Remote Control (Smart Kit)

The indoor units can be equipped with Midea Smart Kit (optional) in order to be controlled remotely via the Midea AIR app wherever you are

Controllo Midea


supercool

The First series uses high-frequency start-up technology, capable of generating a very high flow of fresh air in an extremely short time (about 30 seconds).

Super Cool


Hassle-free installation

Installazione

• Long piping length and height difference

• Sturdy installation plate suitable for application on pre-arrangement boxes

• Up to 10 minutes of time saved with each installation


Simple connection

Connessione

The space between the wall and the body is very large and allows you to house the pipes in a comfortable and simple way. The solidity of the fixing hooks of the chassis to the plate guarantees perfect adhesion of the product to the wall.


Mono and Multi Indoor Units

The indoor units are multipurpose so that they can be connected in both Mono and Multi configurations. You can therefore decide to install a Mono and add more units in the future.

Mutisplit


Speed ​​linear regulation

Regolazione

The rotation speed of the internal fan, beyond the usual predefined levels of activity, can be adjusted within the values ​​1-100%.


Sophisticated design

The design of the Right range is made up of pure and simple geometries. The lines that accompany the body, both frontally and on the sides, recall the waves of the ocean. A real work of art, enhanced by the presence of a display ingeniously hidden under the front plastics, which is revealed to the user only when the unit is switched on.

Design


Diamond Design

Innovative diamond cut shape with no sharp edges and no visible screws. The air outlet grille contains a newly designed fan to minimize noise.

Diamond


Anti-corrosion

Thanks to a special anti-corrosion treatment, the heat exchanger of the external unit is made resistant to salt air and external pollutants/atmospheric agents.

Anticorrosione


Functions and Features

ECO function : Allows electricity savings of up to 60% in 8 hours compared to traditional air conditioners.

1W Stand-by : Complete removal of the power supply to the outdoor unit during a prolonged stand-by phase

• Eco-friendly R32

• Emergency function

• Quietness

• Leak alarm


Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase

Midea Trial Split Inverter Air Conditioner Right 9+12+12 Series With M3of-27hfn8-Q R-32 Wi-Fi Optional 9000+12000+12000 - New

Product form

Technical features Indoor Units 1) Model Indoor Unit Catalog Code: 1x MSMABU-09HRDN8 Power : 9000 Btu Cooling Capacity: 2.64 kW... Read more

€1.133,00 Incl. VAT

    Description

    Technical features

    Indoor Units

    1) Model
    • Indoor Unit Catalog Code: 1x MSMABU-09HRDN8
    • Power : 9000 Btu
    • Cooling Capacity: 2.64 kW
    • Heating Capacity: : 2.93 kW
    • Air flow: 8.3 m 3 /min
    • Sound pressure level : 22 ~ 28 ~ 34 ~ 38 dB(A)
    • Pipe diameter Liquid : 6.35 mm (1/4")
    • Gas pipe diameter: 9.52 mm (3/8")
    • Internal Unit Dimensions (WxHxD): 805x282x205 mm
    • Indoor Unit Weight: 7.9 Kg
    • Wi-Fi Optional : CE-SK 103 code
    2) Model
    • Indoor Unit Catalog Code : 2x MSMABU-12HRDN8
    • Power : 12000 Btu
    • Cooling Capacity: 3.52 kW
    • Heating Capacity: : 3.81 kW
    • Air flow: 7.7 m 3 /min
    • Sound pressure level : 21 ~ 26 ~ 30 ~ 36 dB(A)
    • Pipe diameter Liquid : 6.35 mm (1/4")
    • Gas pipe diameter: 9.52 mm (3/8")
    • Internal Unit Dimensions (WxHxD): 805x282x205 mm
    • Indoor Unit Weight: 7.9 Kg
    • Wi-Fi Optional : CE-SK 103 code
    Outdoor Unit
    • Outdoor Unit Catalog Code: M3OF-27HFN8-Q
    • Connectable Indoor Units : 3

    Energy efficiency:

    • SEER : 6.1
    • SCOP : 4
    • Energy Efficiency Class (Cooling) : A++
    • Energy Efficiency Class (Heating) : A+
    • Annual energy consumption Cooling/Heating : 453/1993 kWh/a

    Performance:

    • Cooling Capacity: 7.91 kW
    • Heating Capacity: 8.21 kW
    • Std Cooling Absorption : 2450 W
    • Heating Std Absorption: 2200 W
    • Sound power level : 67 dB(A)
    • Sound pressure level : 54 dB(A)

    Characteristics:

    • Power (V/Hz/Φ) : 220~240/50/1
    • Refrigerant gas : R-32
    • Pipe diameter Liquid : 6.35 mm (1/4") x3
    • Gas pipe diameter : 9.52 mm (3/8") x3
    • Guaranteed temperature range:
    • - Cooling: -15° ~ 50°C
    • - Heating: -15° ~ 24°C

    Dimensions:

    • External Unit Dimensions (WxHxD): 800x702x363 mm
    • Weight of Outdoor Unit: 51.1 Kg

    Midea Right
    The design of the Right range is made up of pure and simple geometries. The lines that accompany the body, both frontally and on the sides, recall the waves of the ocean. A real work of art, enhanced by the presence of a display ingeniously hidden under the front plastics, which is revealed to the user only when the unit is switched on.
    Right

    Control your climate with your voice

    The Right series air conditioner is compatible with Amazon Echo, Google Home, Apple HomeKit.

    Controlling comfort in your own home has never been easier. Thanks to the integration with the latest generation technologies Echo Voice Command by Amazon Alexa, Google Home and Apple HomeKit you can "ask" your air conditioner to do the best for you, with Midea.

    Controllo Vocale


    Remote Control (Smart Kit)

    The indoor units can be equipped with Midea Smart Kit (optional) in order to be controlled remotely via the Midea AIR app wherever you are

    Controllo Midea


    supercool

    The First series uses high-frequency start-up technology, capable of generating a very high flow of fresh air in an extremely short time (about 30 seconds).

    Super Cool


    Hassle-free installation

    Installazione

    • Long piping length and height difference

    • Sturdy installation plate suitable for application on pre-arrangement boxes

    • Up to 10 minutes of time saved with each installation


    Simple connection

    Connessione

    The space between the wall and the body is very large and allows you to house the pipes in a comfortable and simple way. The solidity of the fixing hooks of the chassis to the plate guarantees perfect adhesion of the product to the wall.


    Mono and Multi Indoor Units

    The indoor units are multipurpose so that they can be connected in both Mono and Multi configurations. You can therefore decide to install a Mono and add more units in the future.

    Mutisplit


    Speed ​​linear regulation

    Regolazione

    The rotation speed of the internal fan, beyond the usual predefined levels of activity, can be adjusted within the values ​​1-100%.


    Sophisticated design

    The design of the Right range is made up of pure and simple geometries. The lines that accompany the body, both frontally and on the sides, recall the waves of the ocean. A real work of art, enhanced by the presence of a display ingeniously hidden under the front plastics, which is revealed to the user only when the unit is switched on.

    Design


    Diamond Design

    Innovative diamond cut shape with no sharp edges and no visible screws. The air outlet grille contains a newly designed fan to minimize noise.

    Diamond


    Anti-corrosion

    Thanks to a special anti-corrosion treatment, the heat exchanger of the external unit is made resistant to salt air and external pollutants/atmospheric agents.

    Anticorrosione


    Functions and Features

    ECO function : Allows electricity savings of up to 60% in 8 hours compared to traditional air conditioners.

    1W Stand-by : Complete removal of the power supply to the outdoor unit during a prolonged stand-by phase

    • Eco-friendly R32

    • Emergency function

    • Quietness

    • Leak alarm


    Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase

    Data sheetData sheet
    • peso: 75.0 kg
    • classe energetica raffreddamento: A++
    • classe energetica riscaldamento: A+
    • gas: R-32
    • marca: Midea
    • modello: Right 9+12+12 27
    • potenza btu: 9000+12000+12000
    • superficie riscaldabile mq: 25/35/35
