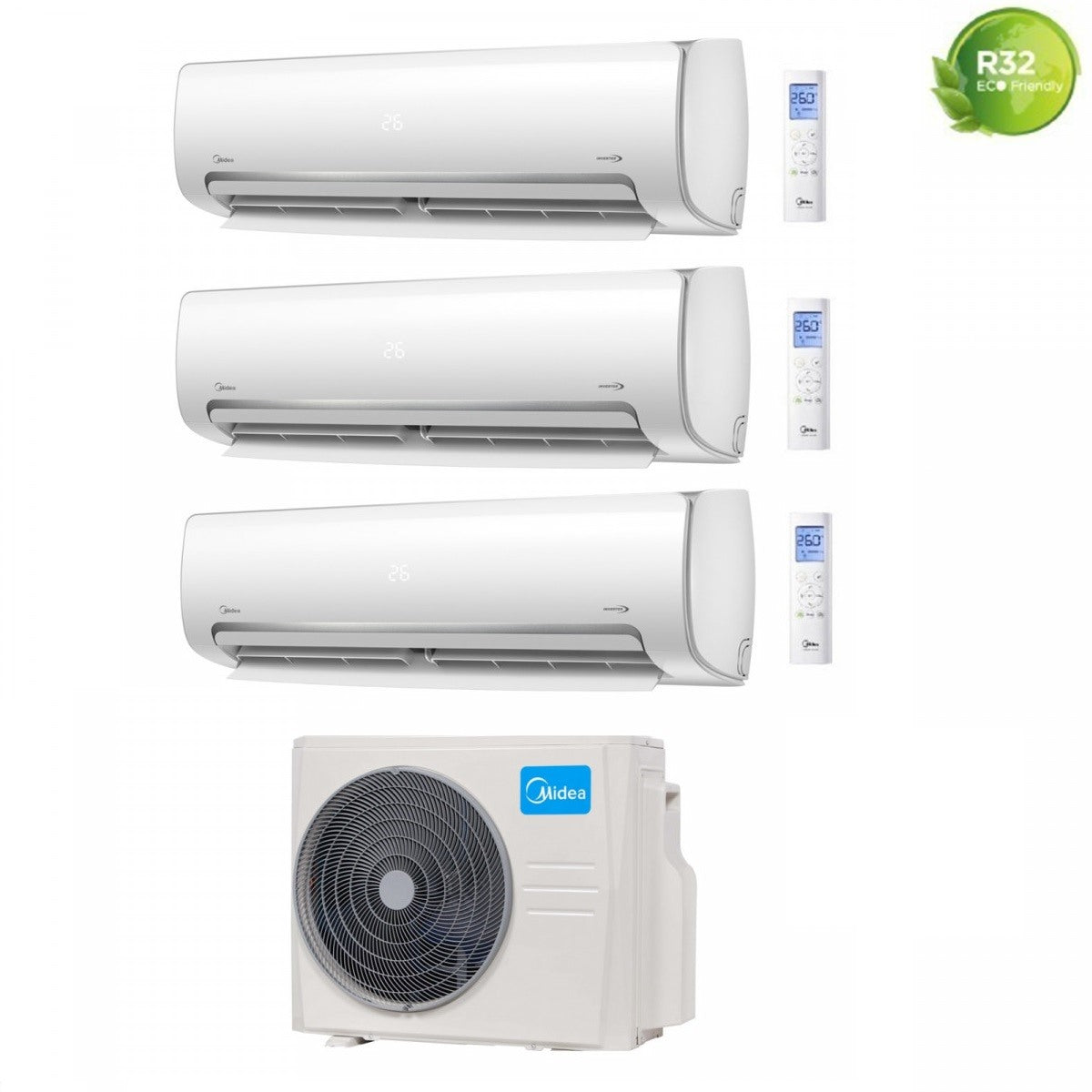

Midea Trial Split Inverter Air Conditioner Mission Pro Series 9+9+12 With M3of-21hfn8-Q R-32 Wi-Fi Optional 9000+9000+12000

Description

MIDEA TRIAL SPLIT INVERTER AIR CONDITIONER AIR CONDITIONER MISSION PRO 9+9+12 series with M3OF-21HFN8-Q R-32 Wi-Fi OPTIONAL 9000+9000+12000


1) Model:

  • Model: 2 x Mission Pro MSMBAU-09HRFN8
  • Power: 9000 btu/h

Performance:

  • Cooling Capacity (kW): 2.64
  • Heating capacity (kW): 2.93
  • Air Flow (min-med-max) m3/min 4.0-6.2-7.3
  • Sound pressure (Silent-Min-Med-Max) dB(A) 19-24-31-39
  • Sound power (Hi) dB(A) 55

Dimensions :

  • Connection tube (liquid): 6.35mm (1/4”)
  • Connection tube (gas): 9.52mm (3/8”)
  • Indoor Unit WxDxH (mm): 730×198×293 ; 7.4kg

2) Model:

  • Model: Mission Pro MSMBBU-12HRFN8
  • Power: 12000 btu/h

Performance:

  • Cooling Capacity (kW): 3.52
  • Heating Capacity (kW): 3.81
  • Air Flow (min-med-max) m3/min 4.0-6.2-8.3
  • Sound pressure (Silent-Min-Med-Max) dB(A) 19-24-32-40
  • Sound power (Hi) dB(A) 56

Dimensions:

  • Connection tube (liquid): 6.35mm (1/4”)
  • Connection tube (gas): 9.52mm (3/8”)
  • Indoor Unit WxDxH (mm): 810×200×300 ; 8.5kg
OUTDOOR UNIT:
  • Catalog number: M3OF-21HFN8-Q
  • Gases : R-32
  • Minimum-max number of connectable indoor units: 3

Energy efficiency

- Cooling down

  • Nominal Capacity kW: 7.91
  • Absorbed power (Max): W 2460
  • SEER Seasonal Energy Efficiency: 6.6
  • Energy Efficiency Class: A++
  • Annual energy consumption KWh/A: 425

- Heating

  • Nominal Capacity kW: 8.21
  • Absorbed power (Max): W 2250
  • SCOP Seasonal Energy Efficiency (W/W): 4.0
  • Energy Efficiency Class: A+
  • Annual energy consumption KWh/A: 1960

Performance

  • Outdoor Unit Air Flow: m3/h 2700
  • External Unit Sound Pressure Max (dB(A)): 59
  • Sound power (Max) dB(A): 65
  • Cooling/Heating operation range (°C): -15°~50°/-15°~24°
  • Operating limit temperature (Tol) °C -15

Characteristics

  • Max. Total length/ each IU m 30/20
  • Piping length (min per unit): 3 m
  • Max. height difference (each IU) m 10

Dimensions

  • Indoor Unit WxDxH (mm): 730×198×293 ; 7.4kg
  • Outdoor Unit (LxDxH) (mm): 845x363x702 ; 53 kgs

MIDEA Mission Pro

Series features:

  • Self-diagnosis In the event of a breakdown, a system of fault codes allows users to report defects in a simple and clear way in order to quickly activate the assistance service.


  • Four inverters The quattro inverter technology consists in the adoption of linear regulation systems of the speed of the internal fan (selectable between 1% and 100%) of regulation of the temperature required in the room in units of 0.5 °C and step-less linear modulation of outdoor unit compressor and fan.


  • 1W Stand By The internal units, in the event of a prolonged stop, completely remove the power supply to the external unit, decreasing the electricity consumption in the Stand By phase.


  • Refrigerant leak alarm If the temperatures of the refrigerant circuit are irregular due to refrigerant gas leaks, a specific fault code (EC) allows to identify this condition.


  • GEAR function The MISSION-PRO units are equipped with the GEAR function which makes it possible to limit the maximum rotation speed of the compressor and the consequent capacity supplied, significantly improving the specific efficiency of the product.


  • Follow me function The room temperature can be detected by a special sensor placed in the infrared control, in order to obtain a more precise detection.


  • Do Not Disturb function By pressing a button on the remote control it is possible to silence all the audible alarms, turn off the display of the internal unit and reduce the speed of the internal fan to a rotation speed lower than the minimum, normally selectable.


  • Condensation control The MISSION-PRO units can work in cooling mode even with a low outside temperature to air-condition technical rooms.


  • ECO function This function makes it possible to limit the rotation frequency of the compressor to reduce the capacity supplied and significantly increase the specific efficiency of the product during use in cooling mode.


  • Hydrophillic Aluminum The heat exchanger of the outdoor unit is treated with a special coating to improve resistance to weathering corrosion. Suitable for installations in coastal areas or in particularly humid areas. Under the same environmental conditions, the new coating of the Midea condensers guarantees them a longevity up to over 7 times higher than traditional models.


  • Mono and Multi Split Multipurpose Indoor Units The MISSION-PRO indoor units can be connected to the outdoor units for Mono Split (R32) or to the outdoor units of the multi range (R410A).

Wi-Fi Control (Optional)

Thanks to the presence of a special Smart Kit and the App available for both iOS and Android applications, it is possible to control the operation of Midea air conditioners in any situation: using the remote control, or directly from a smartphone. Furthermore, the App has been designed to offer even more functionality and ease of use.

Midea Air allows you to use some exclusive functions.

  • Smart diagnosis Thanks to the diagnostic program present in the application, the reference values ​​of over 100 operating parameters present in the product can be verified to evaluate the correct functioning of the system peripherals.
  • Weekly timer The switching on and off of the product can be set on a weekly basis from the App to program the use of the product even remotely.

Midea Trial Split Inverter Air Conditioner Mission Pro Series 9+9+12 With M3of-21hfn8-Q R-32 Wi-Fi Optional 9000+9000+12000

Product form

MIDEA TRIAL SPLIT INVERTER AIR CONDITIONER AIR CONDITIONER MISSION PRO 9+9+12 series with M3OF-21HFN8-Q R-32 Wi-Fi OPTIONAL 9000+9000+12000 1) Model:... Read more

€1.075,00 Incl. VAT

    Description

    MIDEA TRIAL SPLIT INVERTER AIR CONDITIONER AIR CONDITIONER MISSION PRO 9+9+12 series with M3OF-21HFN8-Q R-32 Wi-Fi OPTIONAL 9000+9000+12000


    1) Model:

    • Model: 2 x Mission Pro MSMBAU-09HRFN8
    • Power: 9000 btu/h

    Performance:

    • Cooling Capacity (kW): 2.64
    • Heating capacity (kW): 2.93
    • Air Flow (min-med-max) m3/min 4.0-6.2-7.3
    • Sound pressure (Silent-Min-Med-Max) dB(A) 19-24-31-39
    • Sound power (Hi) dB(A) 55

    Dimensions :

    • Connection tube (liquid): 6.35mm (1/4”)
    • Connection tube (gas): 9.52mm (3/8”)
    • Indoor Unit WxDxH (mm): 730×198×293 ; 7.4kg

    2) Model:

    • Model: Mission Pro MSMBBU-12HRFN8
    • Power: 12000 btu/h

    Performance:

    • Cooling Capacity (kW): 3.52
    • Heating Capacity (kW): 3.81
    • Air Flow (min-med-max) m3/min 4.0-6.2-8.3
    • Sound pressure (Silent-Min-Med-Max) dB(A) 19-24-32-40
    • Sound power (Hi) dB(A) 56

    Dimensions:

    • Connection tube (liquid): 6.35mm (1/4”)
    • Connection tube (gas): 9.52mm (3/8”)
    • Indoor Unit WxDxH (mm): 810×200×300 ; 8.5kg
    OUTDOOR UNIT:
    • Catalog number: M3OF-21HFN8-Q
    • Gases : R-32
    • Minimum-max number of connectable indoor units: 3

    Energy efficiency

    - Cooling down

    • Nominal Capacity kW: 7.91
    • Absorbed power (Max): W 2460
    • SEER Seasonal Energy Efficiency: 6.6
    • Energy Efficiency Class: A++
    • Annual energy consumption KWh/A: 425

    - Heating

    • Nominal Capacity kW: 8.21
    • Absorbed power (Max): W 2250
    • SCOP Seasonal Energy Efficiency (W/W): 4.0
    • Energy Efficiency Class: A+
    • Annual energy consumption KWh/A: 1960

    Performance

    • Outdoor Unit Air Flow: m3/h 2700
    • External Unit Sound Pressure Max (dB(A)): 59
    • Sound power (Max) dB(A): 65
    • Cooling/Heating operation range (°C): -15°~50°/-15°~24°
    • Operating limit temperature (Tol) °C -15

    Characteristics

    • Max. Total length/ each IU m 30/20
    • Piping length (min per unit): 3 m
    • Max. height difference (each IU) m 10

    Dimensions

    • Indoor Unit WxDxH (mm): 730×198×293 ; 7.4kg
    • Outdoor Unit (LxDxH) (mm): 845x363x702 ; 53 kgs

    MIDEA Mission Pro

    Series features:

    • Self-diagnosis In the event of a breakdown, a system of fault codes allows users to report defects in a simple and clear way in order to quickly activate the assistance service.


    • Four inverters The quattro inverter technology consists in the adoption of linear regulation systems of the speed of the internal fan (selectable between 1% and 100%) of regulation of the temperature required in the room in units of 0.5 °C and step-less linear modulation of outdoor unit compressor and fan.


    • 1W Stand By The internal units, in the event of a prolonged stop, completely remove the power supply to the external unit, decreasing the electricity consumption in the Stand By phase.


    • Refrigerant leak alarm If the temperatures of the refrigerant circuit are irregular due to refrigerant gas leaks, a specific fault code (EC) allows to identify this condition.


    • GEAR function The MISSION-PRO units are equipped with the GEAR function which makes it possible to limit the maximum rotation speed of the compressor and the consequent capacity supplied, significantly improving the specific efficiency of the product.


    • Follow me function The room temperature can be detected by a special sensor placed in the infrared control, in order to obtain a more precise detection.


    • Do Not Disturb function By pressing a button on the remote control it is possible to silence all the audible alarms, turn off the display of the internal unit and reduce the speed of the internal fan to a rotation speed lower than the minimum, normally selectable.


    • Condensation control The MISSION-PRO units can work in cooling mode even with a low outside temperature to air-condition technical rooms.


    • ECO function This function makes it possible to limit the rotation frequency of the compressor to reduce the capacity supplied and significantly increase the specific efficiency of the product during use in cooling mode.


    • Hydrophillic Aluminum The heat exchanger of the outdoor unit is treated with a special coating to improve resistance to weathering corrosion. Suitable for installations in coastal areas or in particularly humid areas. Under the same environmental conditions, the new coating of the Midea condensers guarantees them a longevity up to over 7 times higher than traditional models.


    • Mono and Multi Split Multipurpose Indoor Units The MISSION-PRO indoor units can be connected to the outdoor units for Mono Split (R32) or to the outdoor units of the multi range (R410A).

    Wi-Fi Control (Optional)

    Thanks to the presence of a special Smart Kit and the App available for both iOS and Android applications, it is possible to control the operation of Midea air conditioners in any situation: using the remote control, or directly from a smartphone. Furthermore, the App has been designed to offer even more functionality and ease of use.

    Midea Air allows you to use some exclusive functions.

    • Smart diagnosis Thanks to the diagnostic program present in the application, the reference values ​​of over 100 operating parameters present in the product can be verified to evaluate the correct functioning of the system peripherals.
    • Weekly timer The switching on and off of the product can be set on a weekly basis from the App to program the use of the product even remotely.

    Data sheetData sheet
    • peso: 75.0 kg
    • classe energetica raffreddamento: A++
    • classe energetica riscaldamento: A+
    • gas: R-32
    • marca: Midea
    • modello: 9+9+12missionpro+21
    • potenza btu: 9000+9000+12000
    • superficie riscaldabile mq: 25/25/35
