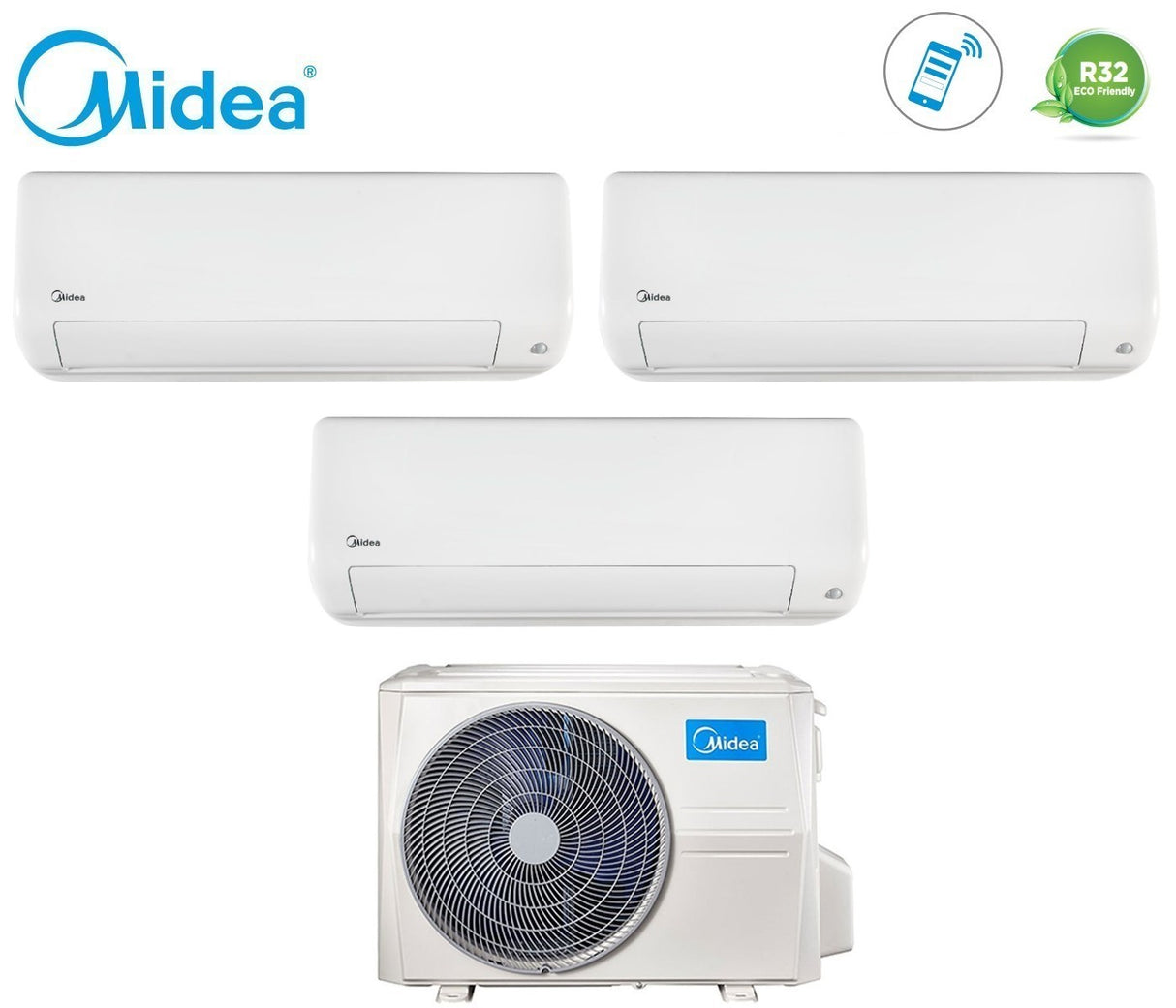

Midea Trial Split Inverter Air Conditioner Air Conditioner All Easy Pro 9+9+12 Series With M3of-27hfn8-Q R-32 Integrated Wi-Fi 9000+9000+12000

Description

Technical features

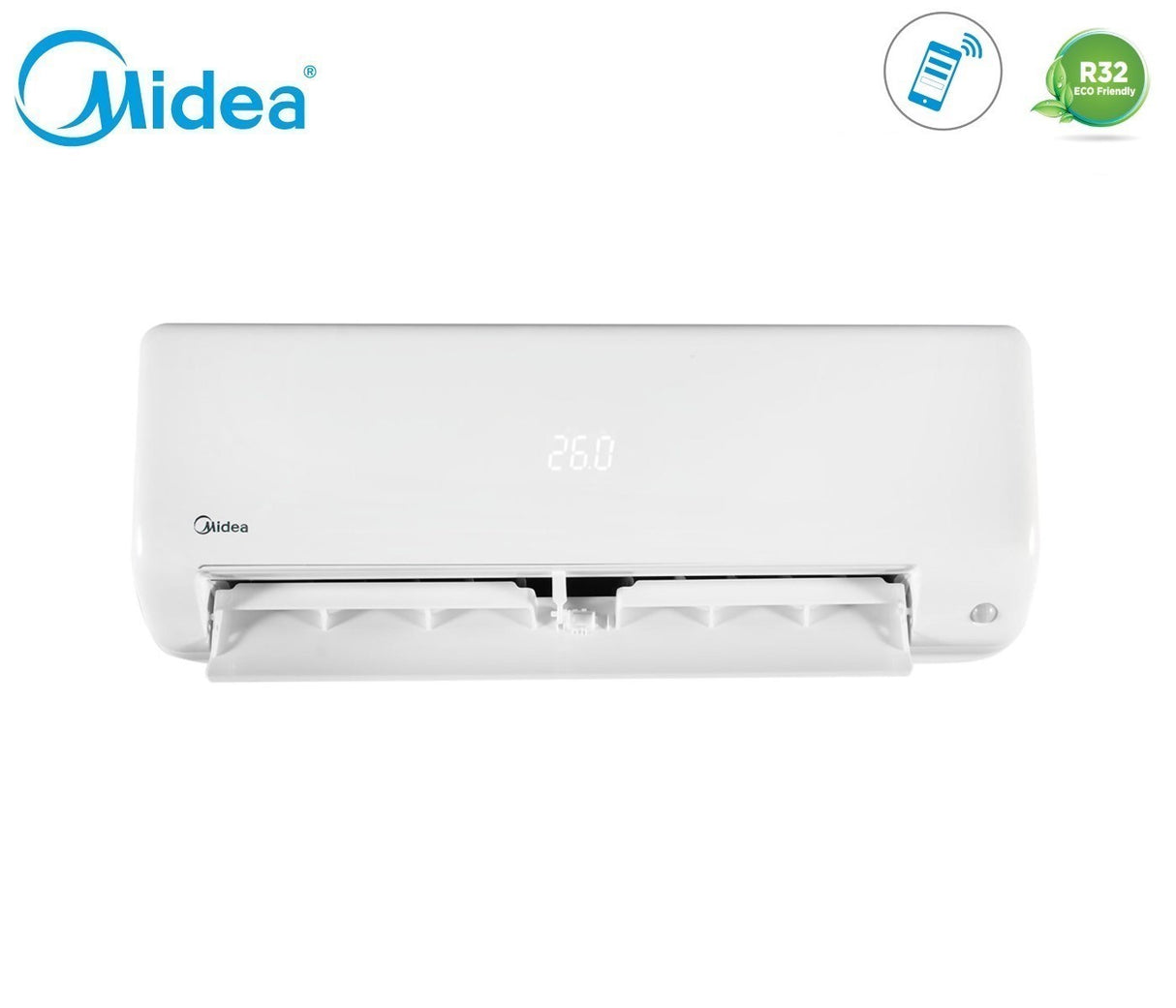

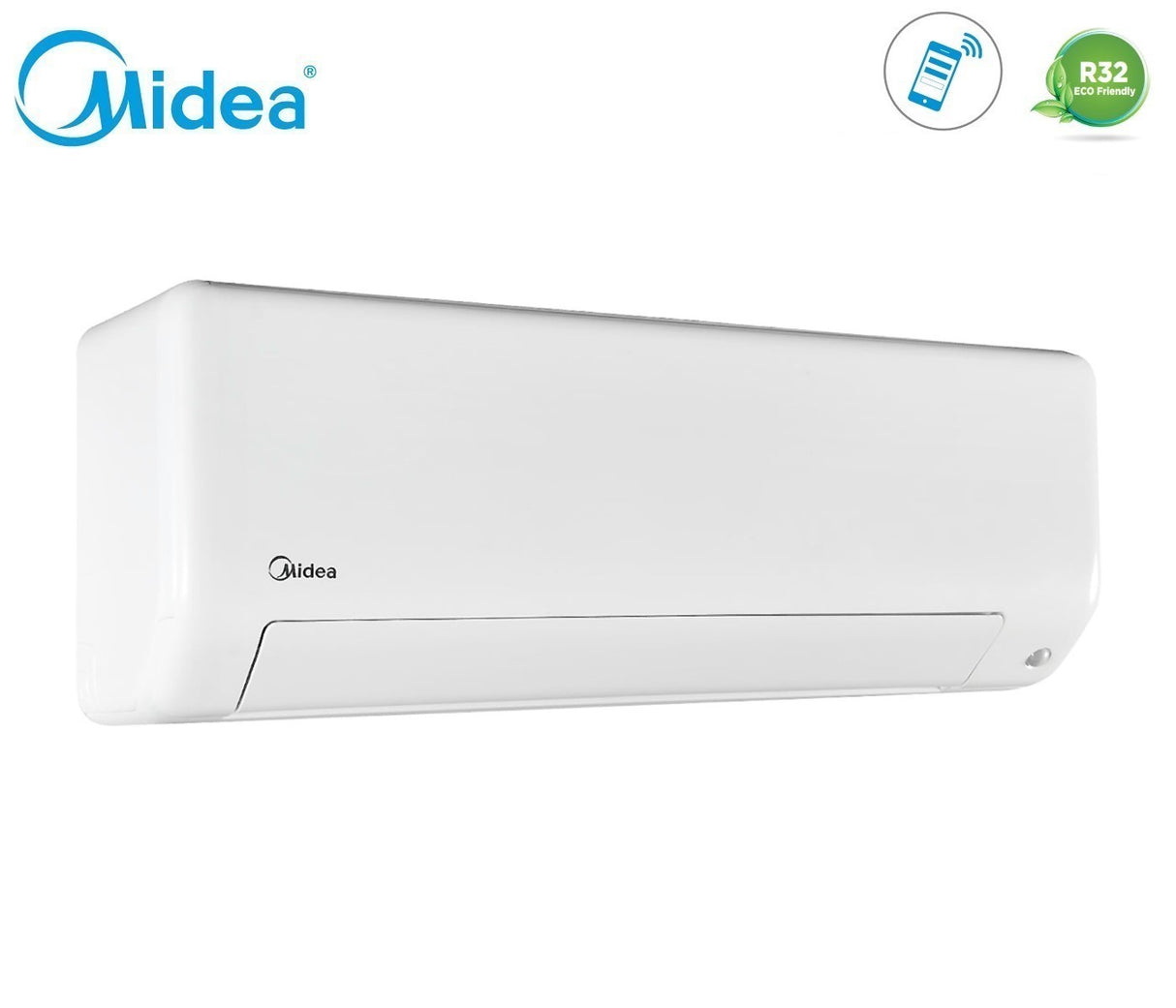

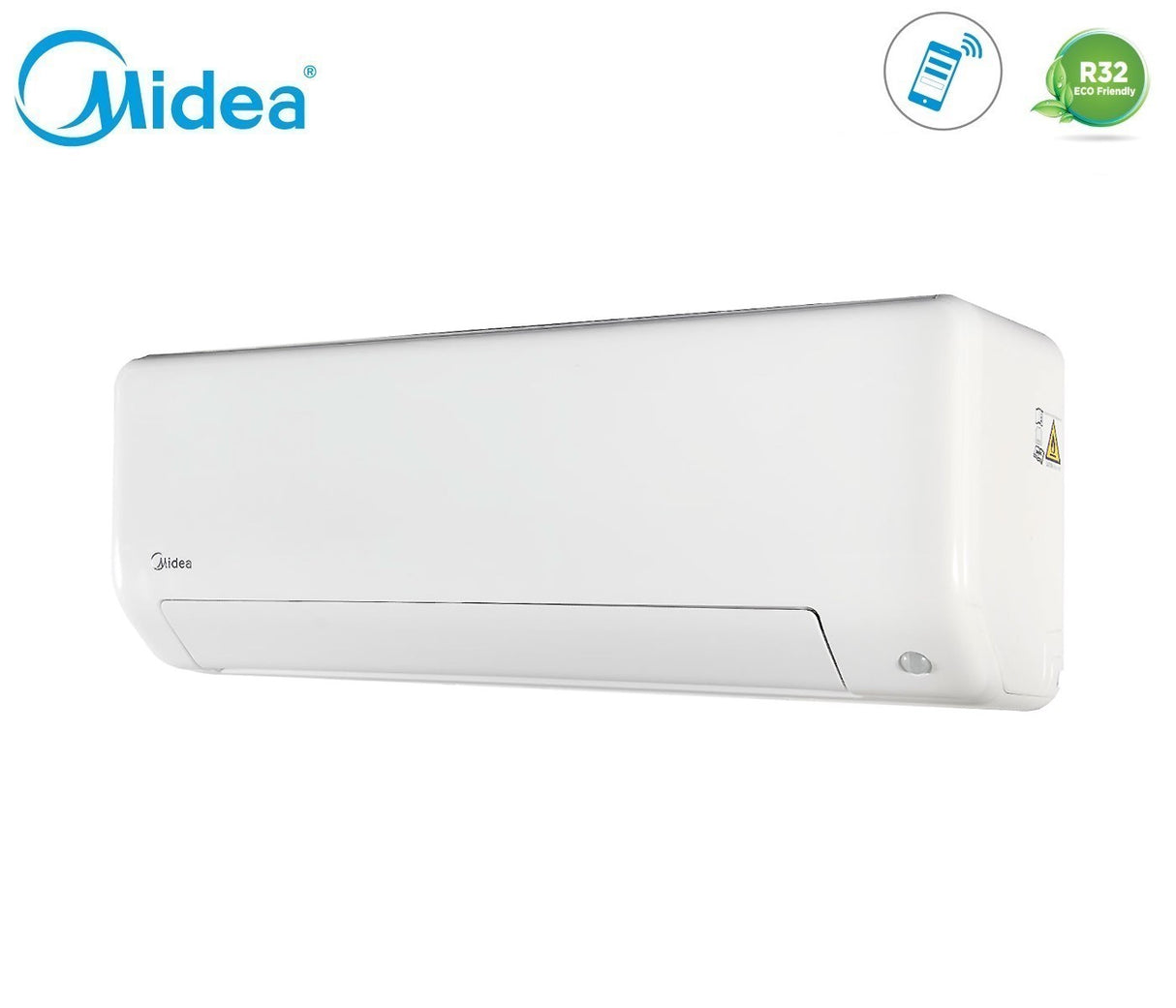

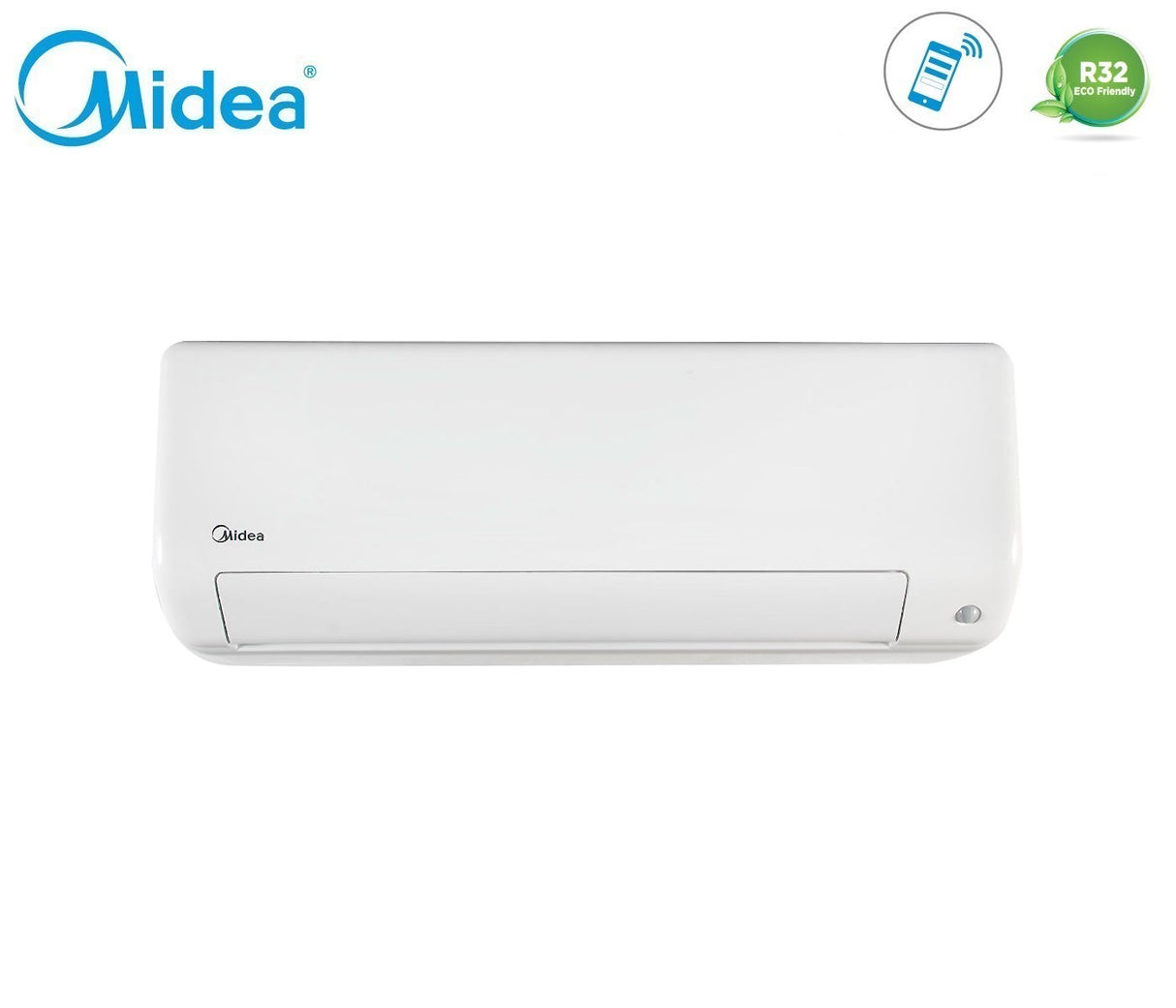

Indoor Units

1) Model
  • Indoor Unit Catalog Code : 2x MSEPBU-09HRFN8
  • EAN: 8052705161830
  • Power : 9000 Btu
  • Cooling Capacity: 2.60 kW
  • Heating Capacity: : 2.80 kW
  • Air flow: 290~560 m 3 /h
  • Sound Power Level : 59 dB(A)
  • Sound pressure level : 22~40 dB(A)
  • Pipe diameter Liquid : 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (LxWxH): 795x225x295 mm
  • Indoor Unit Weight: 10.2 Kg
  • Integrated Wi-Fi
2) Model
  • Indoor Unit Catalog Code : 1x MSEPBU-12HRFN8
  • EAN: 8052705161854E12
  • Power : 12000 Btu
  • Cooling Capacity: 3.50 kW
  • Heating Capacity: : 3.80 kW
  • Air flow: 290~560 m 3 /h
  • Sound Power Level : 59 dB(A)
  • Sound pressure level : 22~40 dB(A)
  • Pipe diameter Liquid : 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (LxWxH): 795x225x295 mm
  • Indoor Unit Weight: 10.2 Kg
  • Integrated Wi-Fi
Outdoor Unit
  • Outdoor Unit Catalog Code: M3OF-27HFN8-Q
  • EAN : 8052705160116
  • Connectable Indoor Units : 3

Energy efficiency:

  • SEER : 6.1
  • SCOP : 4
  • Energy Efficiency Class in Cooling : A++
  • Heating Energy Efficiency Class: A+
  • Annual energy consumption in Cooling : 453 kWh/a
  • Annual energy consumption in Heating : 1993 kWh/a

Performance:

  • Cooling Capacity: 7.91 kW
  • Heating Capacity: 8.21 kW
  • Std Cooling Absorption : 2450 W
  • Heating Std Absorption: 2200 W
  • Sound power level : 67 dB(A)
  • Sound pressure level : 54 dB(A)

Characteristics:

  • Power (V/Hz/Φ) : 220~240/50/1
  • Refrigerant gas : R-32
  • Guaranteed temperature range:
  • - Cooling: -15° ~ 50°C
  • - Heating: -15° ~ 24°C
Installation data:
  • Pipe diameter Liquid : 6.35 mm (1/4") x3
  • Gas pipe diameter : 9.52 mm (3/8") x3
  • Maximum piping length: 30 m
  • Indoor unit / outdoor unit maximum height difference: 10 m Outdoor unit in position above indoor units
  • Indoor unit / outdoor unit maximum height difference: 15 m Outdoor unit in lower position than indoor units

Dimensions:

  • External Unit Dimensions (LxWxH): 845x363x702 mm
  • Weight of Outdoor Unit: 51.1 Kg

Midea All Easy Pro

Installing the indoor units is quick and easy, thanks to the graduated installation plate with integrated spirit level and support bracket. The functional components can be disassembled in less than 1 minute. All Easy Pro is equipped with the Eco Eye function which allows you to check the presence of people in the rooms, activating an energy-saving work cycle when they are not occupied, to contain energy consumption. When using the product in dehumidification mode, it is possible to set a desired relative humidity value for the environment, so as not to dry the air excessively

Simplified installation and maintenance

A series of functions that allow you to install the product in less time. All functional parts of the unit can be removed with a few simple operations to facilitate cleaning and maintenance of the product

Intelligent eye

By pressing a button on the remote control, a sensor checks for the presence of people in the room and, if no movement is detected in the room, a low energy consumption work cycle is activated

Smart drying

In dehumidification mode, it is possible to set the desired level of relative humidity in the room, in order to avoid excessive drying of the air


Quick installation and easy maintenance

With Alle Easy Pro everything is easy, just 1 screw and 1 minute. Save 80% maintenance time compared to standard indoor units

Quick Installation


Fast installation

  • With All Easy Pro, 6' 47 is enough
  • Traditional system 11' 33"

Fast installation


Fan disassembly

  • With All Easy Pro 1' 12" is enough
  • Traditional system 17' 37"

Fan disassembly


PCB replacement

  • 1' 3" is enough for assembly
  • 1' 12" is enough for disassembly

PCB replacement


Positioning and fixing of the plate without measuring tools

Quick installation with super thin plate with integrated scale and spirit level

1. Mark guide point A following the instructions on the plate

2. Move the plate down until it meets the reference hole

3. Align the plate with the built-in level and mark the hole on the other side

Plate fixing


Wiring in just 3 seconds

The pipe fixing clip folds to keep the product raised during the connection of the pipes, offering ample space to facilitate all the tightening operations of the fittings

Wiring


Freedom of installation

  • Maximum height difference of the pipes: 25 m
  • Maximum piping length: 50 m

Freedom Installation


A minimum distance from the ceiling of only 5 cm is required

Distance


Cleaning and hygiene

Cleaning the internal fan is easy, thanks to the innovative design that allows disassembly in 1 minute with just 1 screw. So you can save time and money to dedicate yourself to what you love

Cleaning And Hygiene


A flexible solution

Thanks to the extreme flexibility of All Easy Pro, you can install it at a minimum distance of only 5 cm from the ceiling, allowing for optimal cooling of the room

Flexible Solution


Simplified filter cleaning

All Easy Pro is hygienic and practical: 6 magnetic connectors hold the upper filter in position to allow it to be removed and cleaned whenever desired

Filter cleaning


Intelligent Eye Eco Master

Intelligent Eye function automatically activates energy saving mode when it detects an empty room, thus reducing energy costs by up to 25%

intelligent eye


Smart Kit App with voice control

With All Easy Pro technology, you can control the air conditioner with your voice or with the Midea Air app

Smart Kits


Control your climate with your voice

The air conditioner is compatible with Amazon Echo, Google Home, Apple HomeKit.

Controlling comfort in your own home has never been easier. Thanks to the integration with the latest generation technologies Echo Voice Command by Amazon Alexa, Google Home and Apple HomeKit you can "ask" your air conditioner to do the best for you, with Midea.

Controllo Vocale


Mono and Multi Indoor Units

The indoor units are multipurpose so that they can be connected in both Mono and Multi configurations. You can therefore decide to install a Mono and add more units in the future.

Mutisplit


Follow me function

The room temperature can be detected by a special sensor placed in the infrared control, in order to obtain a more precise detection


Emergency function

In the event of a fault in one of the product's sensors, operation can continue in Emergency mode, until the faulty part is replaced


Flap orientation memory

At each restart, the vertical air deflector automatically adjusts to the last used angle


Midea Mutlisplit Outdoor Unit

Midea outdoor units are designed with the highest standards, to combine performance and design, thanks to the innovative diamond-cut shape, with no sharp edges and no visible screws on the front panel. The air expulsion grille, inspired by Archimedes' screw, contains a newly designed fan, designed to reduce noise to a minimum. Finally, the T-shaped rib on the upper panel allows for greater strength and stability


Free Combination

The units of the Multi range can be combined with different types of indoor units of different sizes, in order to obtain the most correct configuration for the installation environment


Condensation control

The units of the Multi line can operate in cooling mode even at low outside temperatures to air-condition all rooms where cooling is needed even in the winter season


Low noise

The adoption of new compressors and latest generation sound-absorbing materials allows the units of the Multi range to be very silent


Electronically controlled expansion valves

The refrigerant flow directed to each indoor unit is managed through an electronically controlled expansion valve, in order to obtain maximum precision in the management of the refrigerant flow


Long piping length

The outdoor units of the multi range admit a long piping length and a very high difference in height


Diamond Design Outdoor Unit

Innovative diamond cut shape with no sharp edges and no visible screws. The air outlet grille contains a newly designed fan to minimize noise.

Diamond


Diagnostic Monitor

The units have an alphanumeric display which, in addition to indicating the fault codes, allows you to read all the operating parameters of the system to simplify maintenance and assistance operations


Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase
