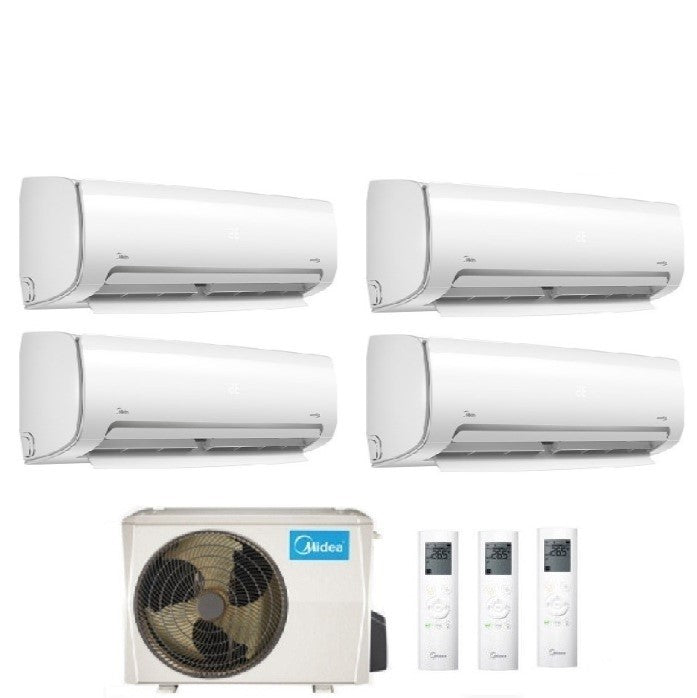

icon Midea Air Conditioner Quad Split Inverter Mission Pro Series 9+12+12+12 With M4o-36fn8 R-32 Wi-Fi Optional 9000+12000+12000+12000 | CaldaieMurali

Midea Air Conditioner Quad Split Inverter Mission Pro Series 9+12+12+12 With M4o-36fn8 R-32 Wi-Fi Optional 9000+12000+12000+12000

Important Notice on Regulations for Fluorinated Gases IN ITALY

In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018, equipment containing fluorinated gases that is not hermetically sealed can only be sold if installed by a certified company.

By law, each sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer ensuring that the installation complies with the regulations. Therefore, before completing the order, it will be necessary to provide this mandatory declaration.

Description

Technical features

Indoor Units

1) Model:

Model: Mission Pro MSMBAU-09HRFN8
Power: 9000 btu/h

Performance:

Cooling Capacity (kW): 2.64
Heating capacity (kW): 2.93
Air Flow (min-med-max) m3/min 4.0-6.2-7.3
Sound pressure (Silent-Min-Med-Max) dB(A) 19-24-31-39
Sound power (Hi) dB(A) 55

Dimensions :

Connection tube (liquid): 6.35mm (1/4”)
Connection tube (gas): 9.52mm (3/8”)
Indoor Unit WxDxH (mm): 730×198×293 ; 7.4kg

2) Model:

Model: 3 x Mission Pro MSMBBU-12HRFN8
Power: 12000 btu/h

Performance:

Cooling Capacity (kW): 3.52
Heating Capacity (kW): 3.81
Air Flow (min-med-max) m3/min 4.0-6.2-8.3
Sound pressure (Silent-Min-Med-Max) dB(A) 19-24-32-40
Sound power (Hi) dB(A) 56

Dimensions:

Connection tube (liquid): 6.35mm (1/4”)
Connection tube (gas): 9.52mm (3/8”)
Indoor Unit WxDxH (mm): 810×200×300 ; 8.5kg

Outdoor Unit

Model:

Catalog number: M4O-36FN8-Q
Gases: R-32
Max indoor units that can be combined: 4
Power (V/Hz/Φ) : 220~240/50/1

Capacity:

Cooling down

Nominal Capacity kW: 10.55
Absorbed power (Max): W 3520
SEER Seasonal Energy Efficiency: 7.6
Energy Efficiency Class: A++
Annual energy consumption KWh/A: 565

Heating

Nominal Capacity kW: 10.55
Absorbed power (Max): W 2880
SCOP Seasonal energy efficiency (W/W): 3.8
Energy Efficiency Class: A
Annual energy consumption KWh/A: 3426

Performance:

Outdoor Unit Air Flow: m3/h 4000
External Unit Sound Pressure Max (dB(A)): 63
Sound power (Max) dB(A): 65
Cooling/Heating operation range (°C): -15°~50°/-15°~24°
Operating limit temperature (Tol) °C -15

Dimensions:

Outdoor Unit (LxWxH) (mm):946x410x810 ; 68.8 Kg
Max. Total length/each UI m 45/25
Piping length (min per unit): 3 m
Max. height difference (each IU) m 10


MIDEA Multi Line

The range of Midea MULTI systems is one of the most complete and extensive on the market, and covers all the user's installation needs, starting from Dual systems up to Penta combinations. The depth of the range also extends to the indoor units, available in all the main categories, such as Split, Ducted, 4-way cassettes, and Floor consoles: all air conditioning systems characterized by very high efficiency, both in cooling and in heating mode. To broaden the scenario of possible installations, all the Midea MULTI Line is " Free Match ": internal units of different types can be connected to each outdoor unit.

Relevant Features:

"Diamond" outdoor unit

Midea outdoor units are made with the innovative diamond cut shape, with no sharp edges and no visible screws on the front panel. The air expulsion grille, inspired by the Archimedean screw, contains a newly designed fan to reduce noise to a minimum. The T-shaped rib on the top panel achieves greater strength and stability.

High efficiency HSS compressors

The compressors used by Midea are characterized by a robust and reliable structure designed to operate at high temperatures and pressures in order to ensure maximum reliability over time.

Facilitated installation

MULTI Midea condensing units allow the connection of up to 5 indoor units of any type. Each individual indoor unit can be controlled totally independently.

Energy saving

Precise control of the inverter sine wave and active PFC technology guarantee minimum energy absorption and the maximum level of silence.



The Midea group was among the first companies to introduce the use of low GWP (Global Warming Potential) index refrigerants in its products to counter the effects of atmospheric overheating and the dreaded «Greenhouse Effect»

- Low GWP index

Thanks to the reduced value of the GWP index (675), the R32 refrigerant is characterized by CO2 equivalent emissions significantly lower than those of other HFC refrigerants.

- Energy saving

Comparative tests show that, under equal conditions, the new R32 refrigerant guarantees a specific efficiency 2% higher than R410A

- Simplicity of Installation

Midea has developed a range of indoor units that can be applied both to outdoor units that use R32 refrigerant and to outdoor units that use R410A refrigerant. In this way, warehouse logistics and the association of indoor and outdoor units are very simple and intuitive.

General characteristics

MIDEA Mission Pro

Series features:

Self-diagnosis In the event of a breakdown, a system of fault codes allows users to report defects in a simple and clear way in order to quickly activate the assistance service.

Four inverters The quattro inverter technology consists in the adoption of linear regulation systems of the speed of the internal fan (selectable between 1% and 100%) of regulation of the temperature required in the room in units of 0.5 °C and step-less linear modulation of outdoor unit compressor and fan.

1W Stand By The internal units, in the event of a prolonged stop, completely remove the power supply to the external unit, decreasing the electricity consumption in the Stand By phase.

Refrigerant leak alarm If the temperatures of the refrigerant circuit are irregular due to refrigerant gas leaks, a specific fault code (EC) allows to identify this condition.

GEAR function The MISSION-PRO units are equipped with the GEAR function which makes it possible to limit the maximum rotation speed of the compressor and the consequent capacity supplied, significantly improving the specific efficiency of the product.

Follow me function The room temperature can be detected by a special sensor placed in the infrared control, in order to obtain a more precise detection.

Do Not Disturb function By pressing a button on the remote control it is possible to silence all the audible alarms, turn off the display of the internal unit and reduce the speed of the internal fan to a rotation speed lower than the minimum, normally selectable.

Condensation control The MISSION-PRO units can work in cooling mode even with a low outside temperature to air-condition technical rooms.

ECO function This function makes it possible to limit the rotation frequency of the compressor to reduce the capacity supplied and significantly increase the specific efficiency of the product during use in cooling mode.

Hydrophillic Aluminum The heat exchanger of the outdoor unit is treated with a special coating to improve resistance to weathering corrosion. Suitable for installations in coastal areas or in particularly humid areas. Under the same environmental conditions, the new coating of the Midea condensers guarantees them a longevity up to over 7 times higher than traditional models.

Mono and Multi Split Multipurpose Indoor Units The MISSION-PRO indoor units can be connected to the outdoor units for Mono Split (R32) or to the outdoor units of the multi range (R410A).

Wi-Fi Control (Optional)

Thanks to the presence of a special Smart Kit and the App available for both iOS and Android applications, it is possible to control the operation of Midea air conditioners in any situation: using the remote control, or directly from a smartphone. Furthermore, the App has been designed to offer even more functionality and ease of use.

Midea Air allows you to use some exclusive functions.

Smart diagnosis Thanks to the diagnostic program present in the application, the reference values ​​of over 100 operating parameters present in the product can be verified to evaluate the correct functioning of the system peripherals.

Weekly timer The switching on and off of the product can be set on a weekly basis from the App to program the use of the product even remotely.

Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Midea Air Conditioner Quad Split Inverter Mission Pro Series 9+12+12+12 With M4o-36fn8 R-32 Wi-Fi Optional 9000+12000+12000+12000

Product form

Technical features Indoor Units 1) Model: Model: Mission Pro MSMBAU-09HRFN8 Power: 9000 btu/h Performance: Cooling Capacity (kW): 2.64 Heating capacity... Read more

€1.930,00 Incl. VAT

    Description

    Technical features

    Indoor Units

    1) Model:

    Model: Mission Pro MSMBAU-09HRFN8
    Power: 9000 btu/h

    Performance:

    Cooling Capacity (kW): 2.64
    Heating capacity (kW): 2.93
    Air Flow (min-med-max) m3/min 4.0-6.2-7.3
    Sound pressure (Silent-Min-Med-Max) dB(A) 19-24-31-39
    Sound power (Hi) dB(A) 55

    Dimensions :

    Connection tube (liquid): 6.35mm (1/4”)
    Connection tube (gas): 9.52mm (3/8”)
    Indoor Unit WxDxH (mm): 730×198×293 ; 7.4kg

    2) Model:

    Model: 3 x Mission Pro MSMBBU-12HRFN8
    Power: 12000 btu/h

    Performance:

    Cooling Capacity (kW): 3.52
    Heating Capacity (kW): 3.81
    Air Flow (min-med-max) m3/min 4.0-6.2-8.3
    Sound pressure (Silent-Min-Med-Max) dB(A) 19-24-32-40
    Sound power (Hi) dB(A) 56

    Dimensions:

    Connection tube (liquid): 6.35mm (1/4”)
    Connection tube (gas): 9.52mm (3/8”)
    Indoor Unit WxDxH (mm): 810×200×300 ; 8.5kg

    Outdoor Unit

    Model:

    Catalog number: M4O-36FN8-Q
    Gases: R-32
    Max indoor units that can be combined: 4
    Power (V/Hz/Φ) : 220~240/50/1

    Capacity:

    Cooling down

    Nominal Capacity kW: 10.55
    Absorbed power (Max): W 3520
    SEER Seasonal Energy Efficiency: 7.6
    Energy Efficiency Class: A++
    Annual energy consumption KWh/A: 565

    Heating

    Nominal Capacity kW: 10.55
    Absorbed power (Max): W 2880
    SCOP Seasonal energy efficiency (W/W): 3.8
    Energy Efficiency Class: A
    Annual energy consumption KWh/A: 3426

    Performance:

    Outdoor Unit Air Flow: m3/h 4000
    External Unit Sound Pressure Max (dB(A)): 63
    Sound power (Max) dB(A): 65
    Cooling/Heating operation range (°C): -15°~50°/-15°~24°
    Operating limit temperature (Tol) °C -15

    Dimensions:

    Outdoor Unit (LxWxH) (mm):946x410x810 ; 68.8 Kg
    Max. Total length/each UI m 45/25
    Piping length (min per unit): 3 m
    Max. height difference (each IU) m 10


    MIDEA Multi Line

    The range of Midea MULTI systems is one of the most complete and extensive on the market, and covers all the user's installation needs, starting from Dual systems up to Penta combinations. The depth of the range also extends to the indoor units, available in all the main categories, such as Split, Ducted, 4-way cassettes, and Floor consoles: all air conditioning systems characterized by very high efficiency, both in cooling and in heating mode. To broaden the scenario of possible installations, all the Midea MULTI Line is " Free Match ": internal units of different types can be connected to each outdoor unit.

    Relevant Features:

    "Diamond" outdoor unit

    Midea outdoor units are made with the innovative diamond cut shape, with no sharp edges and no visible screws on the front panel. The air expulsion grille, inspired by the Archimedean screw, contains a newly designed fan to reduce noise to a minimum. The T-shaped rib on the top panel achieves greater strength and stability.

    High efficiency HSS compressors

    The compressors used by Midea are characterized by a robust and reliable structure designed to operate at high temperatures and pressures in order to ensure maximum reliability over time.

    Facilitated installation

    MULTI Midea condensing units allow the connection of up to 5 indoor units of any type. Each individual indoor unit can be controlled totally independently.

    Energy saving

    Precise control of the inverter sine wave and active PFC technology guarantee minimum energy absorption and the maximum level of silence.



    The Midea group was among the first companies to introduce the use of low GWP (Global Warming Potential) index refrigerants in its products to counter the effects of atmospheric overheating and the dreaded «Greenhouse Effect»

    - Low GWP index

    Thanks to the reduced value of the GWP index (675), the R32 refrigerant is characterized by CO2 equivalent emissions significantly lower than those of other HFC refrigerants.

    - Energy saving

    Comparative tests show that, under equal conditions, the new R32 refrigerant guarantees a specific efficiency 2% higher than R410A

    - Simplicity of Installation

    Midea has developed a range of indoor units that can be applied both to outdoor units that use R32 refrigerant and to outdoor units that use R410A refrigerant. In this way, warehouse logistics and the association of indoor and outdoor units are very simple and intuitive.

    General characteristics

    MIDEA Mission Pro

    Series features:

    Self-diagnosis In the event of a breakdown, a system of fault codes allows users to report defects in a simple and clear way in order to quickly activate the assistance service.

    Four inverters The quattro inverter technology consists in the adoption of linear regulation systems of the speed of the internal fan (selectable between 1% and 100%) of regulation of the temperature required in the room in units of 0.5 °C and step-less linear modulation of outdoor unit compressor and fan.

    1W Stand By The internal units, in the event of a prolonged stop, completely remove the power supply to the external unit, decreasing the electricity consumption in the Stand By phase.

    Refrigerant leak alarm If the temperatures of the refrigerant circuit are irregular due to refrigerant gas leaks, a specific fault code (EC) allows to identify this condition.

    GEAR function The MISSION-PRO units are equipped with the GEAR function which makes it possible to limit the maximum rotation speed of the compressor and the consequent capacity supplied, significantly improving the specific efficiency of the product.

    Follow me function The room temperature can be detected by a special sensor placed in the infrared control, in order to obtain a more precise detection.

    Do Not Disturb function By pressing a button on the remote control it is possible to silence all the audible alarms, turn off the display of the internal unit and reduce the speed of the internal fan to a rotation speed lower than the minimum, normally selectable.

    Condensation control The MISSION-PRO units can work in cooling mode even with a low outside temperature to air-condition technical rooms.

    ECO function This function makes it possible to limit the rotation frequency of the compressor to reduce the capacity supplied and significantly increase the specific efficiency of the product during use in cooling mode.

    Hydrophillic Aluminum The heat exchanger of the outdoor unit is treated with a special coating to improve resistance to weathering corrosion. Suitable for installations in coastal areas or in particularly humid areas. Under the same environmental conditions, the new coating of the Midea condensers guarantees them a longevity up to over 7 times higher than traditional models.

    Mono and Multi Split Multipurpose Indoor Units The MISSION-PRO indoor units can be connected to the outdoor units for Mono Split (R32) or to the outdoor units of the multi range (R410A).

    Wi-Fi Control (Optional)

    Thanks to the presence of a special Smart Kit and the App available for both iOS and Android applications, it is possible to control the operation of Midea air conditioners in any situation: using the remote control, or directly from a smartphone. Furthermore, the App has been designed to offer even more functionality and ease of use.

    Midea Air allows you to use some exclusive functions.

    Smart diagnosis Thanks to the diagnostic program present in the application, the reference values ​​of over 100 operating parameters present in the product can be verified to evaluate the correct functioning of the system peripherals.

    Weekly timer The switching on and off of the product can be set on a weekly basis from the App to program the use of the product even remotely.

    Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
    Data sheetData sheet
    • peso: 100.0 kg
    • classe energetica raffreddamento: A++
    • classe energetica riscaldamento: A+
    • gas: R-32
    • marca: Midea
    • modello: CLIMAT_212421250
    • potenza btu: 9000+12000+12000+12000
    • superficie riscaldabile mq: 25/35/35/35
