Outdoor Unit :
Model:
- Catalog code Outdoor Unit : M5O-42FN8-Q
- Max indoor units: up to 5 indoor units
Performance:
- Cooling Capacity: 12.30 kW
- Heating Capacity: 12.30 kW
- Std cooling absorption: 3.83 kW
- Std heating absorption: 3.30 kW
- Sound power level : 68 dB(A)
- Sound pressure level : 62 dB(A)
Characteristics:
- Power (V/Hz/Φ) : 220~240/50/1
- Refrigerant gas : R-32
- Pipe diameter Liquid : 6.35 mm (1/4") x5
- Gas pipe diameter: 9.52 mm (3/8") x4 + 12.70 mm (1/2")
- Maximum piping length: 35 m
- Maximum height difference Indoor Unit / Outdoor Unit: 15 m
- Guaranteed temperature range:
- - Cooling: -15° ~ 50°C
- - Heating: -15° ~ 24° C
Dimensions:
- External Unit Dimensions (LxWxH): 946x410x810 mm
- Weight of Outdoor Unit: 73.3 Kg

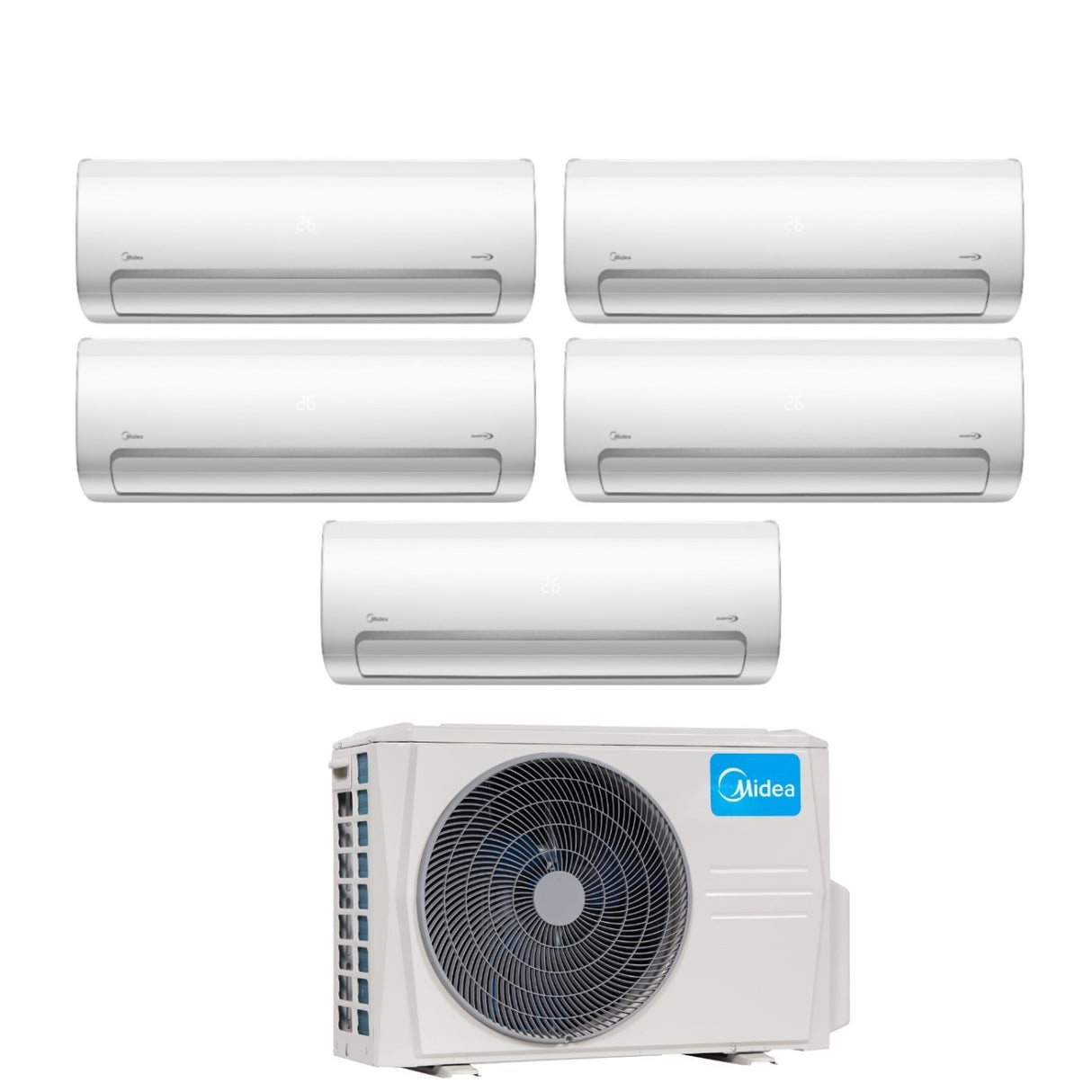

Mission Pro
Mission PRO is the ideal solution for those who want to combine environmental sustainability, high performance and safety. A lot of product
as powerful as it is silent, able to guarantee optimal rest for each member of the family. As with the entire residential range,
Mission PRO is also equipped with Midea's flagship technology, the Inverter QuattroTM, silent and with excellent performance with attention to domestic consumption
The ideal solution for those who care about the environment and savings: Mission PRO combines high performance, low consumption and safety in a single product. An air conditioner as powerful as it is silent, to guarantee the best rest for the whole family
Gear function
The Mission PRO units are equipped with the Gear function which makes it possible to limit the maximum rotation speed of the compressor and the consequent capacity supplied, significantly improving the specific efficiency of the product. The display of the internal unit is able to show, in addition to the selected temperature, also the room temperature and the instantaneous electrical power absorbed during operation
iECO function
Thanks to this function it is possible to limit the rotation frequency of the compressor to reduce the capacity supplied and significantly increase the specific efficiency of the product during use in cooling mode
"Do Not Disturb" function
Thanks to a simple button on the remote control it is possible to silence all the acoustic warnings, turn off the display of the internal unit and reduce the speed of the internal fan to a rotation speed lower than the minimum, normally selectable
Internal Fan Rotation Speed Linear Regulation
The rotation speed of the internal fan, beyond the usual predefined levels of activity, can be adjusted within the values 1-100%
Wi-Fi Optional
Controllable with smartphone via Wi-Fi line. Control the temperature in your home or office all year round. By purchasing a special SMART KEY and installing the APP on your iOS or Android mobile device, you can control every function of the air conditioner even remotely. Note: the room where the air conditioner is installed must be covered by a home Wi-Fi network
Midea Outdoor Units
Midea outdoor units are designed with the highest standards, to combine performance and design, thanks to the innovative diamond-cut shape, with no sharp edges and no visible screws on the front panel. The air expulsion grille, inspired by Archimedes' screw, contains a newly designed fan, designed to reduce noise to a minimum. Finally, the T-shaped rib on the upper panel allows for greater strength and stability
Diamond Design
Innovative diamond cut shape with no sharp edges and no visible screws. The air outlet grille contains a newly designed fan to minimize noise.
Anti-corrosion
Thanks to a special anti-corrosion treatment, the heat exchanger of the external unit is made resistant to salt air and external pollutants/atmospheric agents.
Functions and Features
• ECO function : Allows electricity savings of up to 60% in 8 hours compared to traditional air conditioners.
• 1W Stand-by : Complete removal of the power supply to the outdoor unit during a prolonged stand-by phase
• Eco-friendly R32
• Emergency function
• Quietness
• Leak alarm
Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
