icon Midea Dual Split Inverter Air Conditioner Mission Pro Series 12+12 With M2o-18nf8 R-32 Wi-Fi Optional 12000+12000 | CaldaieMurali

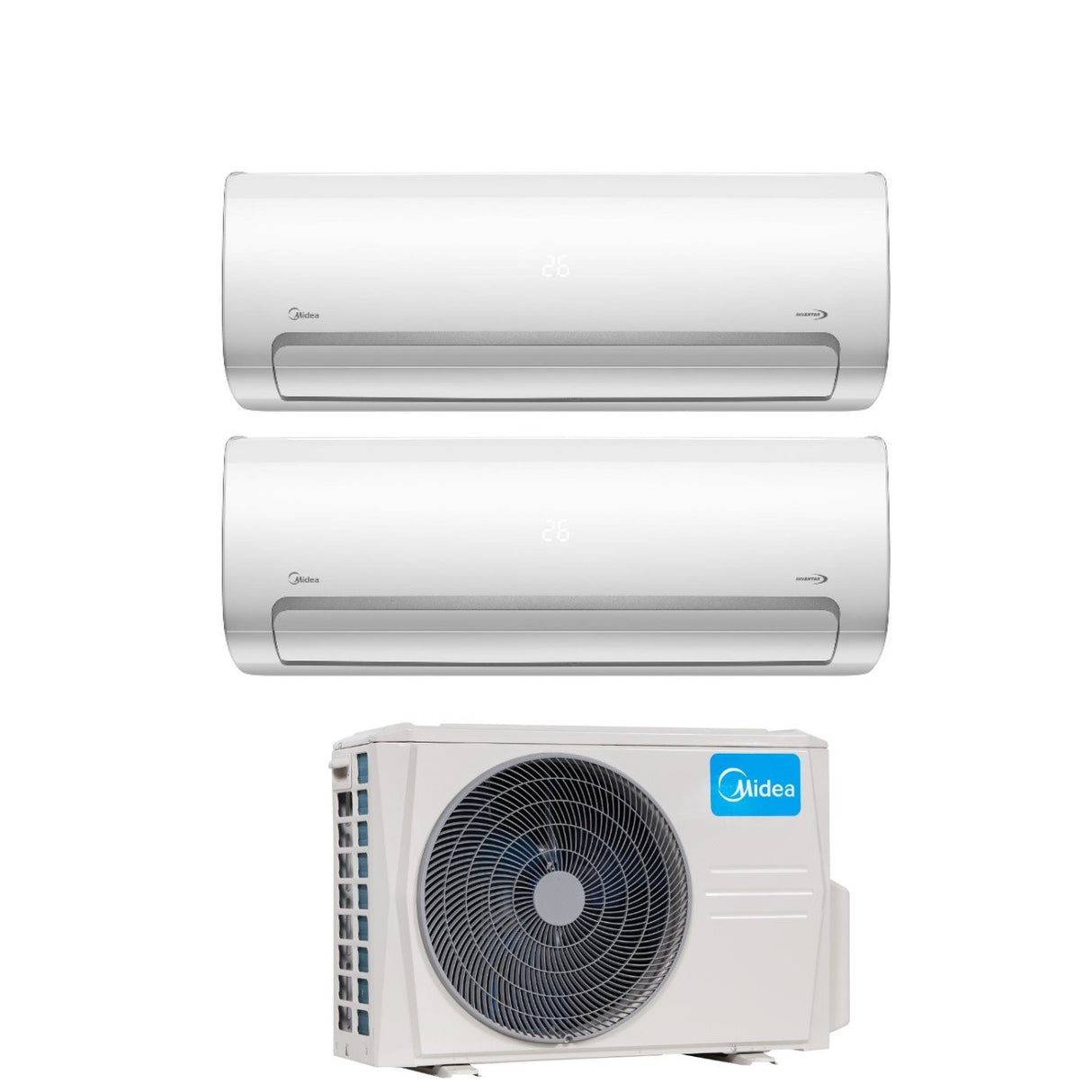

Midea Dual Split Inverter Air Conditioner Mission Pro Series 12+12 With M2o-18nf8 R-32 Wi-Fi Optional 12000+12000

Important Notice on Regulations for Fluorinated Gases IN ITALY

In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018, equipment containing fluorinated gases that is not hermetically sealed can only be sold if installed by a certified company.

By law, each sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer ensuring that the installation complies with the regulations. Therefore, before completing the order, it will be necessary to provide this mandatory declaration.

Description

Technical features

Indoor Units
  • Model: 2 x Mission Pro MSMBBU-12HRFN8
  • Power: 12000 btu/h
  • Wi-Fi Optional : CE-SK 102 code

Performance:

  • Cooling Capacity (kW): 3.52
  • Heating capacity (kW): 3.81
  • Air Flow (min-med-max) m3/min 4.0-6.2-8.3
  • Sound pressure (Silent-Min-Med-Max) dB(A) 19-24-32-40
  • Sound power (Hi) dB(A) 56

Dimensions:

  • Connection tube (liquid): 6.35mm (1/4”)
  • Connection tube (gas): 9.52mm (3/8”)
  • Indoor Unit WxDxH (mm): 810×200×300 ; 8.5kg

Outdoor Unit

Model:

  • Catalog number: M2O-18FN8-Q
  • Gases: R-32
  • Max indoor units that can be combined: 2
  • Power (V/Hz/Φ) : 220~240/50/1

Capacity:

- Cooling down

  • Nominal Capacity kW: 5.40
  • Absorbed power (Max): W 1790
  • SEER Seasonal energy efficiency: 6.3
  • Energy Efficiency Class: A++
  • Annual energy consumption KWh/A: 300

- Heating

  • Nominal Capacity kW: 5.60
  • Absorbed power (Max): W 1490
  • SCOP Seasonal Energy Efficiency (W/W): 4.0
  • Energy Efficiency Class: A+
  • Annual energy consumption KWh/A: 1690

Performance:

  • Outdoor Unit Air Flow: m3/h 2200
  • External Unit Sound Pressure Max (dB(A)): 56
  • Sound power (Max) dB(A): 64
  • Cooling/Heating operation range (°C): -15°~50°/-15°~24°
  • Operating limit temperature (Tol) °C -15

Dimensions:

  • Outdoor Unit (LxDxH) (mm): 800x333x555 ; 36 kgs
  • Max. Total length/ each IU m 30/20
  • Piping length (min per unit): 3 m
  • Max. height difference (each IU) m 10

MIDEA Multi Line

The range of Midea MULTI systems is one of the most complete and extensive on the market, and covers all the user's installation needs, starting from Dual systems up to Penta combinations. The depth of the range also extends to the indoor units, available in all the main categories, such as Split, Ducted, 4-way cassettes, and Floor consoles: all air conditioning systems characterized by very high efficiency, both in cooling and in heating mode. To broaden the scenario of possible installations, all the Midea MULTI Line is " Free Match ": internal units of different types can be connected to each outdoor unit

Relevant Features:

  • "Diamond" outdoor unit

Midea outdoor units are made with the innovative diamond cut shape, with no sharp edges and no visible screws on the front panel. The air expulsion grille, inspired by the Archimedean screw, contains a newly designed fan to reduce noise to a minimum. The T-shaped rib on the top panel achieves greater strength and stability

  • High efficiency HSS compressors

The compressors used by Midea are characterized by a robust and reliable structure designed to operate at high temperatures and pressures in order to ensure maximum reliability over time.

  • Facilitated installation

MULTI Midea condensing units allow the connection of up to 5 indoor units of any type. Each individual indoor unit can be controlled totally independently.

  • Energy saving

Precise control of the inverter sine wave and active PFC technology guarantee minimum energy absorption and the maximum level of silence

The Midea group was among the first companies to introduce the use of low GWP (Global Warming Potential) index refrigerants in its products to counter the effects of atmospheric overheating and the dreaded «Greenhouse Effect»

- Low GWP index

Thanks to the reduced value of the GWP index (675), the R32 refrigerant is characterized by CO2 equivalent emissions significantly lower than those of other HFC refrigerants.

- Energy saving

Comparative tests show that, under equal conditions, the new R32 refrigerant guarantees a specific efficiency 2% higher than R410A

- Simplicity of Installation

Midea has developed a range of indoor units that can be applied both to outdoor units that use R32 refrigerant and to outdoor units that use R410A refrigerant. In this way, warehouse logistics and the association of indoor and outdoor units are very simple and intuitive.

MIDEA MISSION PRO

The geometries used for the splits of the MISSION PRO range are pure and simple to the eye.
The lines that accompany the body, both frontally and on the sides, recall those formed by ocean waves. A real work of art, enhanced by the presence of a display ingeniously hidden under the front plastics, which is revealed to the user only when the unit is switched on.

Superior Performance Inverter 4

The exclusive QuattroTM Inverter technology allows excellent performance in all conditions of use, making the Midea Inverter compressor one of the best AC compressors in the world. In all conditions, Midea Inverter compressors work powerfully, efficiently, quickly and constantly

  • Maximum efficiency - The step-less linear modulation of the compressor makes it possible to adapt the rotation speed, and therefore the capacity supplied, to the environmental conditions in an extremely precise manner. The compressor perfectly adapts its rotation speed to the needs of the system without waste and with maximum efficiency.
  • Linear regulation - The internal fan speed is user selectable in a linear fashion between 1% and 100% instead of being available in 4 or 5 levels. In this way it is possible to make the product deliver the most congenial air flow to your needs, for maximum comfort.
  • Less Noise - The speed of the external fan adapts to the external temperature conditions and to the working modes of the product, to ensure less noise and maximum efficiency
  • Better Comfort - The temperature that can be set on the products is managed at intervals of 0.5°C. In this way it is possible to find the most correct temperature setting for your well-being.

Do Not Disturb function

By pressing a button on the remote control it is possible to silence all acoustic alarms, turn off the display of the indoor unit and reduce the speed of the indoor fan to a rotation speed lower than the minimum, normally selectable

iECO function

This function allows you to limit the rotation frequency of the compressor to reduce the capacity supplied and significantly increase the specific efficiency of the product during use in cooling mode

GEAR function

The Mission PRO units are equipped with the Gear function which makes it possible to limit the maximum rotation speed of the compressor and the consequent capacity supplied, significantly improving the specific efficiency of the product. The display of the internal unit is able to show, in addition to the selected temperature, also the room temperature and the instantaneous electrical power absorbed during operation

Follow me function

Select this function and the special sensor located in the infrared control will detect the ambient temperature around you, and then adjust the operation of the air conditioner according to your needs

Other features of the series

  • Self-diagnosis In the event of a breakdown, a system of fault codes allows users to report defects in a simple and clear way in order to quickly activate the assistance service.
  • 1W Stand By The internal units, in the event of a prolonged stop, completely remove the power supply to the external unit, decreasing the electricity consumption in the Stand By phase.

  • Refrigerant leak alarm If the temperatures of the refrigerant circuit are irregular due to refrigerant gas leaks, a specific fault code (EC) allows to identify this condition.

  • Integrated Midea Smart Kit The indoor units of the MISSION-PRO series are equipped with the Smart Kit system to be managed by a dedicated APP via WLAN connection.

  • Condensation control The MISSION-PRO units can work in cooling mode even with a low outside temperature to air-condition technical rooms.
  • Hydrophillic Aluminum The heat exchanger of the outdoor unit is treated with a special coating to improve resistance to weathering corrosion.
  • Mono and Multi Split Multipurpose Indoor Units The MISSION-PRO indoor units can be connected to the outdoor units for Mono Split (R32) or to the outdoor units of the multi range (R410A).

Wi-Fi Control (Optional)

Thanks to the presence of a special Smart Kit and the App available for both iOS and Android applications, it is possible to control the operation of Midea air conditioners in any situation: using the remote control, or directly from a smartphone. Furthermore, the App has been designed to offer even more functionality and ease of use

Midea Air allows you to use some exclusive functions.

  • Smart diagnosis Thanks to the diagnostic program present in the application, the reference values ​​of over 100 operating parameters present in the product can be verified to evaluate the correct functioning of the system peripherals.
  • Weekly timer The switching on and off of the product can be set on a weekly basis from the App to program the use of the product even remotely

Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase

Midea Dual Split Inverter Air Conditioner Mission Pro Series 12+12 With M2o-18nf8 R-32 Wi-Fi Optional 12000+12000

Product form

Technical features Indoor Units Model: 2 x Mission Pro MSMBBU-12HRFN8 Power: 12000 btu/h Wi-Fi Optional : CE-SK 102 code Performance:... Read more

€863,00 Incl. VAT

    Description

    Technical features

    Indoor Units
    • Model: 2 x Mission Pro MSMBBU-12HRFN8
    • Power: 12000 btu/h
    • Wi-Fi Optional : CE-SK 102 code

    Performance:

    • Cooling Capacity (kW): 3.52
    • Heating capacity (kW): 3.81
    • Air Flow (min-med-max) m3/min 4.0-6.2-8.3
    • Sound pressure (Silent-Min-Med-Max) dB(A) 19-24-32-40
    • Sound power (Hi) dB(A) 56

    Dimensions:

    • Connection tube (liquid): 6.35mm (1/4”)
    • Connection tube (gas): 9.52mm (3/8”)
    • Indoor Unit WxDxH (mm): 810×200×300 ; 8.5kg

    Outdoor Unit

    Model:

    • Catalog number: M2O-18FN8-Q
    • Gases: R-32
    • Max indoor units that can be combined: 2
    • Power (V/Hz/Φ) : 220~240/50/1

    Capacity:

    - Cooling down

    • Nominal Capacity kW: 5.40
    • Absorbed power (Max): W 1790
    • SEER Seasonal energy efficiency: 6.3
    • Energy Efficiency Class: A++
    • Annual energy consumption KWh/A: 300

    - Heating

    • Nominal Capacity kW: 5.60
    • Absorbed power (Max): W 1490
    • SCOP Seasonal Energy Efficiency (W/W): 4.0
    • Energy Efficiency Class: A+
    • Annual energy consumption KWh/A: 1690

    Performance:

    • Outdoor Unit Air Flow: m3/h 2200
    • External Unit Sound Pressure Max (dB(A)): 56
    • Sound power (Max) dB(A): 64
    • Cooling/Heating operation range (°C): -15°~50°/-15°~24°
    • Operating limit temperature (Tol) °C -15

    Dimensions:

    • Outdoor Unit (LxDxH) (mm): 800x333x555 ; 36 kgs
    • Max. Total length/ each IU m 30/20
    • Piping length (min per unit): 3 m
    • Max. height difference (each IU) m 10

    MIDEA Multi Line

    The range of Midea MULTI systems is one of the most complete and extensive on the market, and covers all the user's installation needs, starting from Dual systems up to Penta combinations. The depth of the range also extends to the indoor units, available in all the main categories, such as Split, Ducted, 4-way cassettes, and Floor consoles: all air conditioning systems characterized by very high efficiency, both in cooling and in heating mode. To broaden the scenario of possible installations, all the Midea MULTI Line is " Free Match ": internal units of different types can be connected to each outdoor unit

    Relevant Features:

    • "Diamond" outdoor unit

    Midea outdoor units are made with the innovative diamond cut shape, with no sharp edges and no visible screws on the front panel. The air expulsion grille, inspired by the Archimedean screw, contains a newly designed fan to reduce noise to a minimum. The T-shaped rib on the top panel achieves greater strength and stability

    • High efficiency HSS compressors

    The compressors used by Midea are characterized by a robust and reliable structure designed to operate at high temperatures and pressures in order to ensure maximum reliability over time.

    • Facilitated installation

    MULTI Midea condensing units allow the connection of up to 5 indoor units of any type. Each individual indoor unit can be controlled totally independently.

    • Energy saving

    Precise control of the inverter sine wave and active PFC technology guarantee minimum energy absorption and the maximum level of silence

    The Midea group was among the first companies to introduce the use of low GWP (Global Warming Potential) index refrigerants in its products to counter the effects of atmospheric overheating and the dreaded «Greenhouse Effect»

    - Low GWP index

    Thanks to the reduced value of the GWP index (675), the R32 refrigerant is characterized by CO2 equivalent emissions significantly lower than those of other HFC refrigerants.

    - Energy saving

    Comparative tests show that, under equal conditions, the new R32 refrigerant guarantees a specific efficiency 2% higher than R410A

    - Simplicity of Installation

    Midea has developed a range of indoor units that can be applied both to outdoor units that use R32 refrigerant and to outdoor units that use R410A refrigerant. In this way, warehouse logistics and the association of indoor and outdoor units are very simple and intuitive.

    MIDEA MISSION PRO

    The geometries used for the splits of the MISSION PRO range are pure and simple to the eye.
    The lines that accompany the body, both frontally and on the sides, recall those formed by ocean waves. A real work of art, enhanced by the presence of a display ingeniously hidden under the front plastics, which is revealed to the user only when the unit is switched on.

    Superior Performance Inverter 4

    The exclusive QuattroTM Inverter technology allows excellent performance in all conditions of use, making the Midea Inverter compressor one of the best AC compressors in the world. In all conditions, Midea Inverter compressors work powerfully, efficiently, quickly and constantly

    • Maximum efficiency - The step-less linear modulation of the compressor makes it possible to adapt the rotation speed, and therefore the capacity supplied, to the environmental conditions in an extremely precise manner. The compressor perfectly adapts its rotation speed to the needs of the system without waste and with maximum efficiency.
    • Linear regulation - The internal fan speed is user selectable in a linear fashion between 1% and 100% instead of being available in 4 or 5 levels. In this way it is possible to make the product deliver the most congenial air flow to your needs, for maximum comfort.
    • Less Noise - The speed of the external fan adapts to the external temperature conditions and to the working modes of the product, to ensure less noise and maximum efficiency
    • Better Comfort - The temperature that can be set on the products is managed at intervals of 0.5°C. In this way it is possible to find the most correct temperature setting for your well-being.

    Do Not Disturb function

    By pressing a button on the remote control it is possible to silence all acoustic alarms, turn off the display of the indoor unit and reduce the speed of the indoor fan to a rotation speed lower than the minimum, normally selectable

    iECO function

    This function allows you to limit the rotation frequency of the compressor to reduce the capacity supplied and significantly increase the specific efficiency of the product during use in cooling mode

    GEAR function

    The Mission PRO units are equipped with the Gear function which makes it possible to limit the maximum rotation speed of the compressor and the consequent capacity supplied, significantly improving the specific efficiency of the product. The display of the internal unit is able to show, in addition to the selected temperature, also the room temperature and the instantaneous electrical power absorbed during operation

    Follow me function

    Select this function and the special sensor located in the infrared control will detect the ambient temperature around you, and then adjust the operation of the air conditioner according to your needs

    Other features of the series

    • Self-diagnosis In the event of a breakdown, a system of fault codes allows users to report defects in a simple and clear way in order to quickly activate the assistance service.
    • 1W Stand By The internal units, in the event of a prolonged stop, completely remove the power supply to the external unit, decreasing the electricity consumption in the Stand By phase.

    • Refrigerant leak alarm If the temperatures of the refrigerant circuit are irregular due to refrigerant gas leaks, a specific fault code (EC) allows to identify this condition.

    • Integrated Midea Smart Kit The indoor units of the MISSION-PRO series are equipped with the Smart Kit system to be managed by a dedicated APP via WLAN connection.

    • Condensation control The MISSION-PRO units can work in cooling mode even with a low outside temperature to air-condition technical rooms.
    • Hydrophillic Aluminum The heat exchanger of the outdoor unit is treated with a special coating to improve resistance to weathering corrosion.
    • Mono and Multi Split Multipurpose Indoor Units The MISSION-PRO indoor units can be connected to the outdoor units for Mono Split (R32) or to the outdoor units of the multi range (R410A).

    Wi-Fi Control (Optional)

    Thanks to the presence of a special Smart Kit and the App available for both iOS and Android applications, it is possible to control the operation of Midea air conditioners in any situation: using the remote control, or directly from a smartphone. Furthermore, the App has been designed to offer even more functionality and ease of use

    Midea Air allows you to use some exclusive functions.

    • Smart diagnosis Thanks to the diagnostic program present in the application, the reference values ​​of over 100 operating parameters present in the product can be verified to evaluate the correct functioning of the system peripherals.
    • Weekly timer The switching on and off of the product can be set on a weekly basis from the App to program the use of the product even remotely

    Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase

    Data sheetData sheet
    • peso: 55.0 kg
    • classe energetica raffreddamento: A++
    • classe energetica riscaldamento: A+
    • gas: R-32
    • marca: Midea
    • metri quadri : 35/35
    • modello: Mission Pro 12+12 18
    • potenza btu: 12000+12000
    • superficie riscaldabile mq: 35/35
