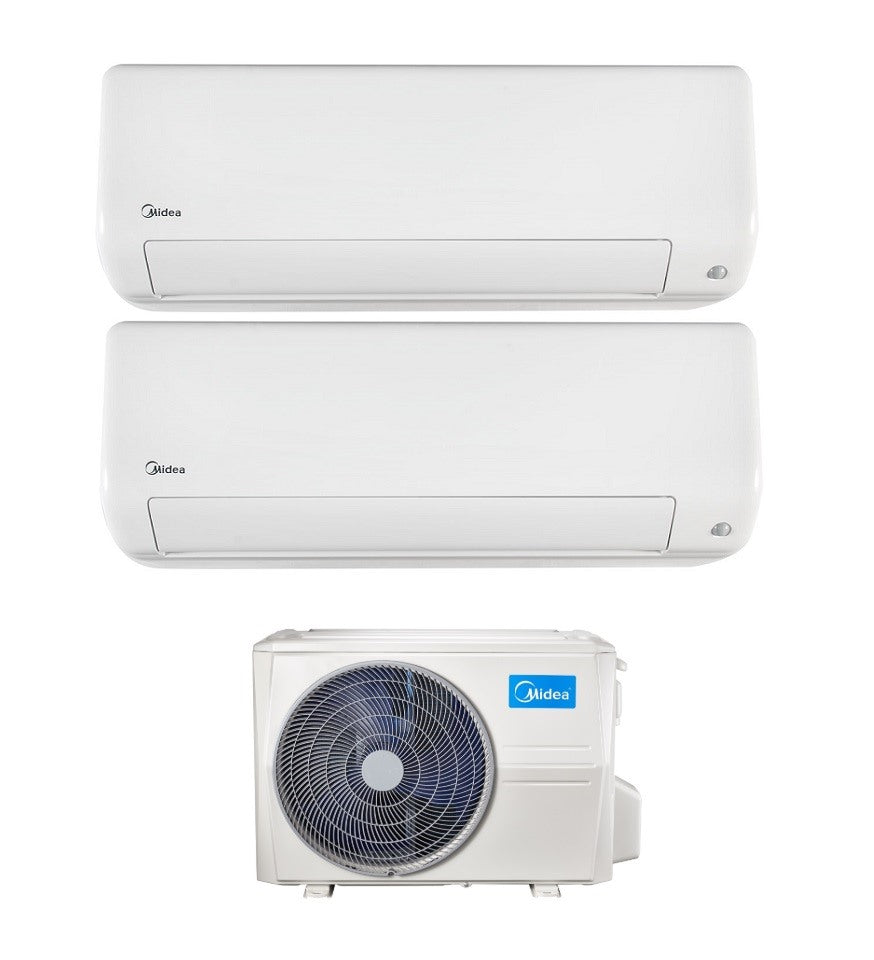

Midea Dual Split Inverter Air Conditioner All Easy Pro series 9000+9000 Btu with M2OD-18FN8-Q R-32 integrated Wi-Fi - NEW 9+9
1) Model:
- Indoor unit code:2x MSEPBU-09HRFN8
- Dimensions WxDxH 795-295-225 mm
Outdoor Unit
Model:
- Catalog number: M2OD-18FN8-Q
- Gases: R-32
- Max indoor units that can be combined: 3
- Power (V/Hz/Φ) : 220~240/50/1
Capacity:
- Cooling down
- Nominal Capacity kW: 7.90
- Absorbed power (Max): W 2430
- SEER Seasonal energy efficiency: 6.1
- Energy Efficiency Class: A++
- Annual energy consumption KWh/A: 453
- Heating
- Nominal Capacity kW: 8.02
- Absorbed power (Max): W 2160
- SCOP Seasonal energy efficiency (W/W): 4.0
- Energy Efficiency Class: A+
- Annual energy consumption KWh/A: 1855
Performance:
- Outdoor Unit Air Flow: m3/h 2700
- External Unit Sound Pressure Max (dB(A)): 54
- Sound power (Max) dB(A): 67
- Liquid Side Pipe mm 6.35 (X3)
- Gas Side Pipe mm 9.52 (X3)
- Cooling/Heating operation range (°C): -15°~50°/-15°~24°
- Operating limit temperature (Tol) °C -15
Dimensions:
- Outdoor Unit (LxWxH) (mm): 845-363-702 ; 51.1Kg
- Max. Total length/ each IU m 60/30
- Piping length (min per unit): 3 m
- Max. height difference (each IU) m 10
All EasyPro
All Easy Pro, everything really easy!
The new All Easy Pro series by Midea facilitates all operations, starting from the installation thanks to the graduated plate and integrated spirit level, passing through the 1 screw 1 minute design which allows quick access to the PCB board and the complete disassembly of the internal components. up to the cleaning of the upper filter thanks to the innovative magnetic attachment.
Clean and hygiene 1 screw 1 minute
Cleaning the internal fan is easy thanks to the innovative 1-screw design that allows disassembly in 1 minute saving time and money.
Positioning and fixing of the plate without measuring tools
Quick installation with super thin plate with graduated scale and integrated spirit level.
Wiring in 3 seconds
176 mm of dedicated piping space with installation support clips. Electrical panel easy to access by opening the front panel.
Freedom of installation
- Maximum height of pipes 15 m
- Maximum piping length 25 m
- A minimum distance from the ceiling of only 5 cm is required
Energy efficiency A+++
Maximum bill savings and energy efficiency thanks to the Inverter Quattro motor and the innovative design of the front vent which guarantees a wider air flow.
Intelligent Eye Eco Master
The Intelligent Eye function automatically controls the indoor unit by activating energy saving mode or switching off the split when it detects an empty room, thus reducing energy costs by up to 25%.
MideaAIR Smart Kit App
Controlling the comfort of your own home has never been easier thanks to the MideaAIR App and the latest generation voice control technologies.
Voice Control Smart Kit*
Thanks to the integration with the latest generation technologies
Echo Voice Command by Amazon Alexa, Google Home and Apple HomeKit you can "ask" your air conditioner for the best for you.
*Additional hardware and software components not supplied by GD Midea Air-conditioning Equipment Co. are required.
CHARACTERISTICS
- Cooling and heating
- Cooling kW: 2.73 / 3.52 / 5.57
- Heating kW: 3.14 / 3.96 / 5.57
- Energy class A+++
- 1 screw / 1 minute design
- Graduated mounting plate with built-in spirit level
- X-Block structure
- Magnetic filter
- Intelligent Eye – Eco Master
- Smart Kits
- Space dedicated to pipes 176 mm
- Wiring in 3 seconds
- Minimum distance from the ceiling 5 cm
- Maximum pipe height 15 m
- Maximum piping length 30 m
- Remote control
Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase
