icon AREA OCCASIONI Air Conditioner Midea Dual Split Inverter ELEGANCE series 9+12 with M2OE-18HFN8-Q R-32 Wi-Fi Optional 9000+12000 | CaldaieMurali

AREA OCCASIONI Air Conditioner Midea Dual Split Inverter ELEGANCE series 9+12 with M2OE-18HFN8-Q R-32 Wi-Fi Optional 9000+12000

Description

ATTENTION: THE PRODUCT IS NEW AND HAS BEEN CHECKED BY OUR TECHNICIANS BUT IT HAS TRANSPORT DEFECTS.

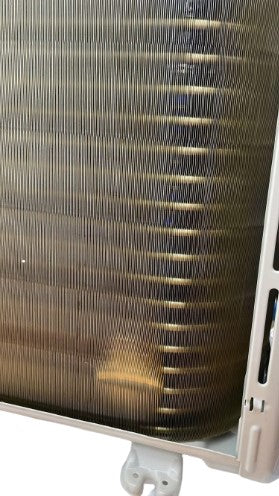

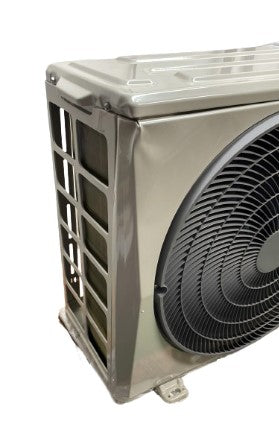

  • VARIOUS FRONT AND SIDE DENTS AND DAMAGED COOLANT FINS
  • DAMAGED PACKAGING

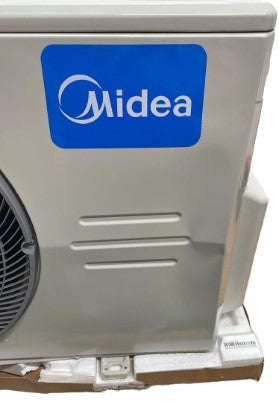

FOR MORE DETAILS VIEW THE PHOTOS NEXT TO THE MAIN IMAGE

Technical features

Internal units

1) Model
  • Indoor unit catalog code: 1x MSAGSAU-09HRDN8
  • EAN : 8052705163308
  • Power: 9000 Btu
  • Cooling capacity: 2.64 kW
  • Heating capacity: 2.93 kW
  • Sound power level: 54 dB(A)
  • Sound pressure level : 20~37 dB(A)
  • Liquid pipe diameter: 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 (3/8")
  • Dimensions (LxWxH): 726x210x291 mm
  • Weight: 8.0 Kg
2) Model
  • Indoor unit catalog code: 1x MSAGSBU-12HRDN8
  • EAN : 8052705165180
  • Power: 12000 Btu
  • Cooling capacity: 3.52 kW
  • Heating capacity: 3.81 kW
  • Sound power level: 56 dB(A)
  • Sound pressure level : 21~37 dB(A)
  • Liquid pipe diameter: 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 (3/8")
  • Dimensions (LxWxH): 835x208x295 mm
  • Weight: 8.7 Kg

External unit

  • Outdoor unit catalog code: M2OE-18HFN8-Q
  • EAN : 8052705165609
  • Number of connectable indoor units: 2

Energy efficiency

  • SEER : 6.3
  • SCOPE : 4
  • Energy efficiency class in cooling: A++
  • Energy efficiency class in heating: A+
  • Annual energy consumption in cooling: 300 kWh/a
  • Annual energy consumption in heating: 1500 kWh/a

Performance

  • Cooling capacity: 5.28 kW
  • Heating capacity: 5.57 kW
  • Cooling absorption: 1,635 kW
  • Heating absorption: 1,500 kW
  • Sound power level: 65 dB(A)
  • Sound pressure level: 55 dB(A)

Electrical data

  • Power supply (V/Hz/Φ) : 220~240/50/1
  • Refrigerant gas: R-32
  • Guaranteed temperature range:
    - Cooling: -15° ~ 50°C
  • - Heating: -15° ~ 24°C
Installation data
  • Liquid tube diameter: 6.35mm (1/4") x2
  • Gas pipe diameter: 9.52 mm (3/8") x2
  • Maximum pipe length: 25 m
  • Maximum height difference between internal unit and external unit: 10 m External unit in a higher position than internal units
  • Maximum height difference between internal unit and external unit: 15 m External unit in lower position than internal units

Dimensions and weight

  • External unit dimensions (WxDxH): 800x333x554 mm
  • External unit weight: 35.0 Kg

Midea Multi Split Outdoor Unit

Midea outdoor units are designed with the highest standards, to combine performance and design, thanks to the innovative diamond cut shape, without sharp edges and without visible screws on the front panel. The air expulsion grille, inspired by the Archimedes screw, contains a newly designed fan, designed to minimize noise. Finally, the T-shaped rib on the upper panel allows for greater strength and stability.


Free combination

The units of the Multi range can be combined with different types of internal units of different sizes, in order to obtain the most correct configuration for the installation environment.


Condensation control

The Multi line units can operate in cooling mode even at low external temperatures to air condition all environments where cooling is required even in the winter season.


Low noise

The adoption of new compressors and latest generation sound-absorbing materials allows the units of the Multi range to be very silent.


Electronically controlled expansion valves

The refrigerant flow directed to each internal unit is managed through an electronically controlled expansion valve, in order to obtain maximum precision in the management of the refrigerant flow.


Long pipe length

The external units of the multi range allow for a long pipe length and a very high difference in height.


Diamond design external unit

Innovative diamond cut shape with no sharp edges and no visible screws. The air exhaust grille contains a newly designed fan to minimize noise.

Diamond


Diagnostic monitor

The units are equipped with an alphanumeric display which, in addition to indicating fault codes, allows the reading of all the operating parameters of the system to simplify maintenance and assistance operations.


Midea Elegance

The evolution of technology. With the Midea Elegance Series air conditioner, you can keep control of your home consumption thanks to the iECO and GearShift functions, discover true comfort by setting the air conditioner to Follow Me, Breeze Away and Super Cool modes and enjoy your home safely thanks to the air sterilization function for deep cleaning and rapid disinfection. Furthermore, thanks to a special anti-corrosion treatment, the heat exchanger of the external unit will be unassailable by salt and external atmospheric pollutants.


Self-diagnosis

In the event of a breakdown, a fault code system allows users to be informed of defects in a simple and clear manner in order to quickly activate the assistance service.


1W Standby

In the event of prolonged shutdown, the internal units completely remove power from the external unit, reducing electricity consumption in the Stand-By phase.


Linear fan regulation

Regolazione

The rotation speed of the internal fan, beyond the usual predefined activity levels, can be adjusted within the values ​​1-100%.


Condensation control

The units can operate in cooling mode even at low external temperatures to air-condition technical rooms


Eco function

This function allows you to limit the rotation frequency of the compressor to reduce the capacity delivered and significantly increase the specific efficiency of the product when used in cooling mode.


Refrigerant Leak Alarm

If the temperatures of the refrigeration circuit are irregular due to refrigerant leaks, a specific fault code (EL-0C) allows this condition to be identified.


GEAR function

SMART units are equipped with the GEAR function which allows to limit the maximum rotation speed of the compressor and the consequent capacity delivered, significantly improving the specific efficiency of the product.


Control your climate with your voice

The Right series air conditioner is compatible with Amazon Echo, Google Home, Apple HomeKit.

Controlling the comfort of your home has never been easier. Thanks to the integration with the latest generation technologies Echo Voice Command by Amazon Alexa, Google Home and Apple HomeKit you can “ask” your air conditioner for the best for you, with Midea.

Controllo Vocale


Midea Smart Kit optional

The internal units of the Elegance series can be equipped with the CE-SK105 accessory to be managed by a dedicated APP via Wlan connection

Controllo Midea


Single and multi internal units

The internal units are multipurpose so they can be connected in both Mono and Multi configurations. You can therefore decide to install a Mono and add additional units in the future.


Follow Me Function

The room temperature can be detected by a special sensor located in the infrared control, in order to obtain a more precise measurement.


Emergency function

In the event of a failure of one of the product's sensors, operation can continue in Emergency mode until the faulty part is replaced.


Deflector orientation memory

At each restart, the vertical air deflector automatically positions itself at the last angle used.


Product Warranty : The warranty on this item is 24 months from the date of purchase.
