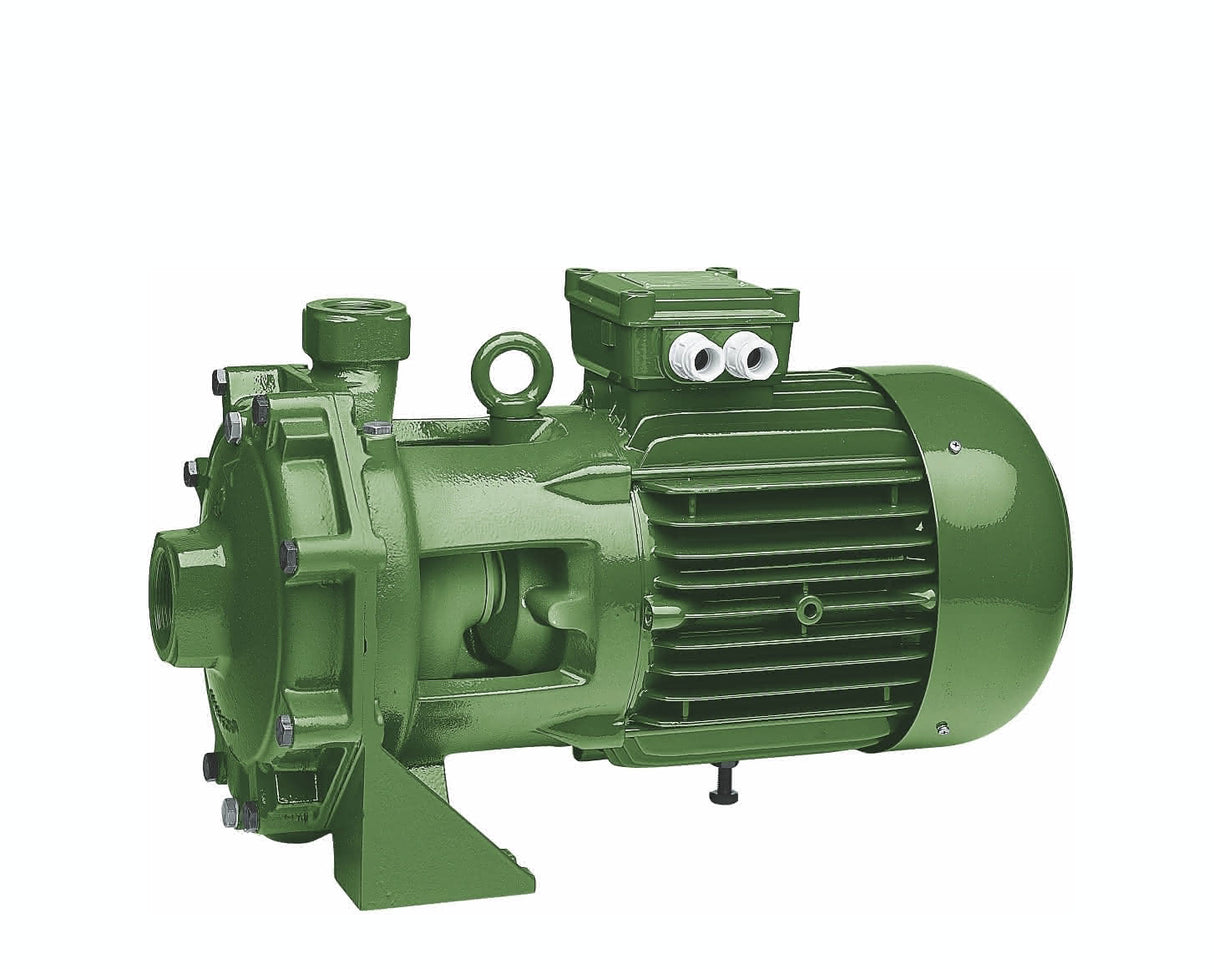

Elettropompa Centrifuga Dab BIGIRANTE K66/100 T 4HP 230/400V codice 60179857

Description

ELETTROPOMPA CENTRIFUGA BIGIRANTE

DATI TECNICI
Campo di funzionamento: da 1,2 a 30 m3/h con prevalenza fino a 97 metri.
Liquido pompato: pulito, libero da sostanze solide o abrasive, non viscoso, non aggressivo, non cristallizzato e chimicamente neutro, prossimo alle caratteristiche dell’acqua.
Campo di temperatura del liquido:
K 35/40, K 45/50,
K 35/100, K 40/100, K 55/100 : da -10°C a +50°C
K 55/50, K 66/100, K 90/100
K 70/300, K 80/300, K 70/400, K 80/400 : da -15°C a +110°C
Massima temperatura ambiente: +40°C
Massima pressione di esercizio:
K 35/40, K 35/100, K 40/100 :6 bar (600 kPa)
K 45/50, K 55/50 :8 bar (800 kPa)
K 55/100, K 66/100 :10 bar (1000 kPa)
K 90/100, K 70/300, K 80/300, K 70/400, K 80/400 :12 bar (1200 kPa)
Grado di protezione:
IP 55, IP 44 per K 35/40, K 45/50, K 55/50, K 35/100, K 40/100
Grado di protezione alla morsettiera: IP 55
Classe di isolamento: F
Tensione di serie:
monofase 220-240 V / 50 Hz
trifase 230-400 V / 50 Hz fino a 4 kW incluso-400 V Δ 50 Hz dai 5,5 kW
Installazione: fissa, orizzontale o verticale purché il motore sia
posizionato sopra la pompa.
Esecuzioni speciali a richiesta: altre tensioni e/o frequenze.


APPLICAZIONI
Pompa centrifuga bigirante progettata per la realizzazione di gruppi di pressurizzazione in impianti idrici e alimentazione di autoclavi. Idonea per irrigazioni a pioggia e altri impieghi di approvvigionamento idrico in generale.

CARATTERISTICHE COSTRUTTIVE DELLA POMPA
Corpo pompa e supporto motore in ghisa.
Girante in tecnopolimero.
Tenuta meccanica in carbone/ceramica.

CARATTERISTICHE COSTRUTTIVE DEL MOTORE
Di tipo asincrono chiuso e raffreddato a ventilazione esterna.
Rotore montato su cuscinetti a sfere ingrassati a vita e sovradimensionati per garantire silenziosità e durata.
Protezione termo-amperometrica incorporata e condensatore permanentemente inserito nella versione monofase.
Per la protezione del motore trifase è raccomandabile l’uso di un telesalvamotore in accordo alle norme vigenti.
Costruzione secondo normative CEI 2-3
Motori IE2 di serie da 0,75 kW fino a 5,5 Kw - IE3 ≥ 7,5 Kw










Garanzia prodotto : Tutti i prodotti in vendita sul nostro sito sono nuovi ed imballati. La garanzia su questo articolo è 24 mesi dalla data dell'acquisto

Elettropompa Centrifuga Dab BIGIRANTE K66/100 T 4HP 230/400V codice 60179857

Product form

ELETTROPOMPA CENTRIFUGA BIGIRANTE DATI TECNICICampo di funzionamento: da 1,2 a 30 m3/h con prevalenza fino a 97 metri.Liquido pompato: pulito,... Read more

€706,00 Incl. VAT

    Description

    ELETTROPOMPA CENTRIFUGA BIGIRANTE

    DATI TECNICI
    Campo di funzionamento: da 1,2 a 30 m3/h con prevalenza fino a 97 metri.
    Liquido pompato: pulito, libero da sostanze solide o abrasive, non viscoso, non aggressivo, non cristallizzato e chimicamente neutro, prossimo alle caratteristiche dell’acqua.
    Campo di temperatura del liquido:
    K 35/40, K 45/50,
    K 35/100, K 40/100, K 55/100 : da -10°C a +50°C
    K 55/50, K 66/100, K 90/100
    K 70/300, K 80/300, K 70/400, K 80/400 : da -15°C a +110°C
    Massima temperatura ambiente: +40°C
    Massima pressione di esercizio:
    K 35/40, K 35/100, K 40/100 :6 bar (600 kPa)
    K 45/50, K 55/50 :8 bar (800 kPa)
    K 55/100, K 66/100 :10 bar (1000 kPa)
    K 90/100, K 70/300, K 80/300, K 70/400, K 80/400 :12 bar (1200 kPa)
    Grado di protezione:
    IP 55, IP 44 per K 35/40, K 45/50, K 55/50, K 35/100, K 40/100
    Grado di protezione alla morsettiera: IP 55
    Classe di isolamento: F
    Tensione di serie:
    monofase 220-240 V / 50 Hz
    trifase 230-400 V / 50 Hz fino a 4 kW incluso-400 V Δ 50 Hz dai 5,5 kW
    Installazione: fissa, orizzontale o verticale purché il motore sia
    posizionato sopra la pompa.
    Esecuzioni speciali a richiesta: altre tensioni e/o frequenze.


    APPLICAZIONI
    Pompa centrifuga bigirante progettata per la realizzazione di gruppi di pressurizzazione in impianti idrici e alimentazione di autoclavi. Idonea per irrigazioni a pioggia e altri impieghi di approvvigionamento idrico in generale.

    CARATTERISTICHE COSTRUTTIVE DELLA POMPA
    Corpo pompa e supporto motore in ghisa.
    Girante in tecnopolimero.
    Tenuta meccanica in carbone/ceramica.

    CARATTERISTICHE COSTRUTTIVE DEL MOTORE
    Di tipo asincrono chiuso e raffreddato a ventilazione esterna.
    Rotore montato su cuscinetti a sfere ingrassati a vita e sovradimensionati per garantire silenziosità e durata.
    Protezione termo-amperometrica incorporata e condensatore permanentemente inserito nella versione monofase.
    Per la protezione del motore trifase è raccomandabile l’uso di un telesalvamotore in accordo alle norme vigenti.
    Costruzione secondo normative CEI 2-3
    Motori IE2 di serie da 0,75 kW fino a 5,5 Kw - IE3 ≥ 7,5 Kw










    Garanzia prodotto : Tutti i prodotti in vendita sul nostro sito sono nuovi ed imballati. La garanzia su questo articolo è 24 mesi dalla data dell'acquisto
    Data sheetData sheet
    • peso: 24.0 kg
    • marca: DAB
    • modello: 60179857
