Technical features
- Indoor unit catalog code : UV42F.N20
- Outdoor unit catalog code : UUD3.U30
- Power: 42000 btu
- Infrared Command Included : ( Code PQWRHQ0FDB )
- Wired control Optional : ( Code PREMTB001 )
- Optional Wi-Fi Card: ( Code PWFMDD200 )
- Optional Remote Sensor : ( Code PQRSTA0 )
Energy efficiency
- SEER : 6.3
- SCOP : 4.1
- Annual Energy Consumption in Cooling : 1152 kWh/a
- Annual Energy Consumption in Heating: 3244 kWh/a
Performance
- Cooling Capacity: 12.1 kW
- Heating Capacity: 13.5 kW
- Cooling absorption: 3.90 kW
- Heating absorption: 3.75 kW
- Treated Air Indoor Unit : 20~28 m 3 /min
- Sound Power Level Indoor Unit : 62 dB(A)
- External Unit Sound Power Level: 69 dB(A)
- Sound Pressure Level Indoor Unit : 40~46 dB(A)
- Sound Pressure Level Outdoor Unit : 51~52 dB(A)
Electrical data
- Power supply (V,Hz, Ø) : 380~415/50/3
- Refrigerant gas : R32
- Operating range
- - Cooling: -20° ~ 52°C
- - Heating: -25° ~ 18° C
Installation data
- Pipe diameter Liquid : 9.52 mm (3/8")
- Gas pipe diameter: 15.88 mm (5/8")
- Maximum piping length: 85 m
- Maximum height difference Indoor Unit / Outdoor Unit: 30 m
Dimensions and weight
- Internal Unit Dimensions (WxHxD): 1600x235x690 mm
- Indoor Unit Weight: 36.7 Kg
- External Unit Dimensions (WxHxD): 950x1380x330 mm
- Weight of Outdoor Unit: 85 Kg

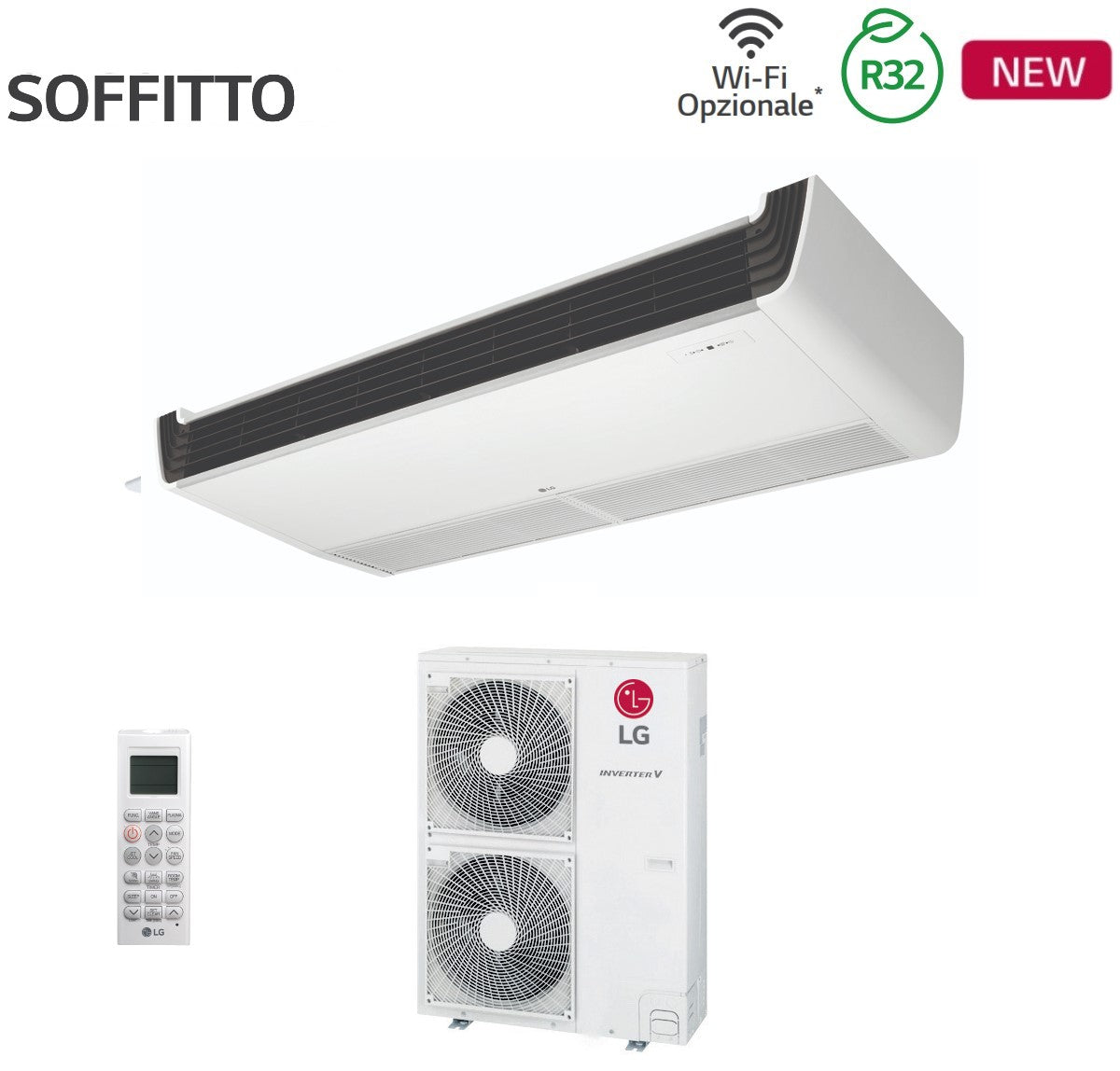

LG ceiling
Innovative design
With its innovative V-shape and black fins, the new ceiling-mounted indoor unit stands out with an elegance suitable for all spaces. The resulting product aesthetics were awarded the If Design Award.
Two Section One Touch Filter
The composition of the filter in two parts allows it to be inserted and removed in a simplified way. Thanks to this, cleaning and maintenance are extremely simplified
Double thermistor control
If the wired control is used, the ambient temperature in the rooms can be detected in 3 different ways:
- from the sensor located in the wired controller.
- from the sensor on the unit
-from both sensors, using the lower of the two detected as the reference value.
The combined dual thermistor control can optimize the indoor air temperature for a more comfortable environment.
Enhanced cooling and heating
The new ceiling-mounted indoor unit, thanks to the improved cooling and heating potential, guarantees efficient performance in large rooms. The new speed and the increased performance in terms of volumes allow the air flow to reach over 15m away from the air conditioner.
Simplified installation
Quick and easy installation improved by reducing the number of screws used, positioned in such a way as to make the front panel accessible.
After Thermistor Temperature Control
Possibility of Wi-Fi connection with PWFMDD200 accessory
Voice control
If the Wi-Fi module is installed, the internal unit becomes compatible with the Google Home and Alexa voice assistants.
Functions Available
• Power on
• Shutdown
• Temperature regulation
• Setting operating modes
• Ventilation adjustment
• Monitoring
Outdoor Unit
• Self-supporting structure in warm gray painted galvanized steel sheet panels with surface treatment and Cataphoresis process, a surface treatment capable of conferring considerable resistance to corrosion in order to protect the outdoor unit from atmospheric agents
• Removable right front panel for connection operations with the refrigerant circuit with integrated handle to facilitate the transport and positioning of the unit
• Removable top cover to access the control components with integrated handle on the right side to facilitate the transport and positioning of the unit
• Protection grid on the air expulsion
Heat exchanger
Wide Louver Fin external heat exchanger which gives an additional improvement in the exchange efficiency compared to a traditional exchanger, in corrugated copper tube with aluminum fins, covered with a Black Fin galvanic bath anti-corrosion treatment to give better resistance to acid rain and saltiness in sea areas. .Air inlets protected by a square mesh of the same color as the outdoor unit. Protection of the air detection probe in dedicated housing
Compressor
Capacity delivery system consisting of 1 Twin Rotary Dc inverter hermetic compressor with direct start. linear control of the capacity with an action range between the minimum of 10% up to a maximum of 130%
Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
