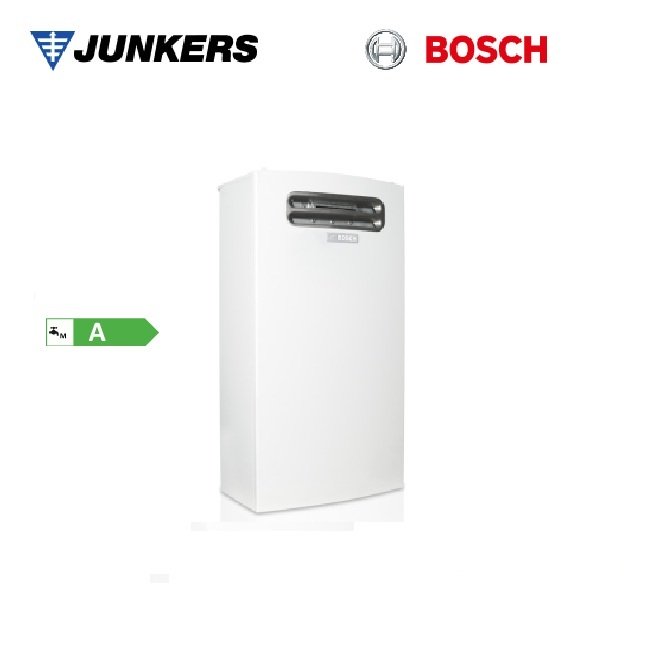

JUNKERS BOSCH GAS WATER HEATER MODEL THERM 4600 SO 12 LITERS LPG
Product data for energy consumption - according to requirements of EU regulations no. 811/2013 and 812/2013 to complete the directive 2010/30/EU
- CNG code: T4600 SO 12-23
- Water heating energy efficiency class A
- Declared load profile M
- External installation
- Remote control standard standard standard Forced draught sealed chamber
- Nominal heat output (Pn) [kW] 20.8
- Nominal heat input (Qn) [kW] 22.5
- Power setting/modulation range (Pn,min. - Pn,max.) [kW] 2.9-20
- Flow rate of water supplied with ΔT 25 °C [l/min] 12
- Flow rate of water supplied with ΔT 35 °C [l/min] 9
- Efficiency at 100% of rated power [%] 92
- sound pressure max. [dB(A)] 72
- Power supply [V(AC)] 230
- Maximum absorbed power [W] 228
- Degree of electrical protection [IP] IPX5D
- Weight (without packaging) [kg] 10
- Dimensions (H x W x D) [mm] 568 x 300 x 170
THERM 4600 SO
THERM 4600 SO is the outdoor water heater with extremely compact dimensions.
It satisfies any space and installation requirement, does not require fume extraction/exhaust systems, is resistant to cold and bad weather thanks to the antifreeze device (up to -25 °C). Furthermore, it is installed outside but can be easily managed from inside the home, in an easy and intuitive way, thanks to the large remote control display (standard).
Advantages
▶ It is installed outdoors and does not require fume extraction and exhaust systems
▶ Resists the cold and bad weather thanks to the standard antifreeze device
▶ It is supplied with the remote control with display for managing the operating temperature, easy and intuitive
▶ It can be connected directly to solar thermal systems for the production of domestic hot water
Characteristics
▶ Instant gas water heater with sealed chamber and forced draught for outdoor use, available in the 12, 15 and 18 l/min versions; methane and LPG
▶ Flame ionisation electronic ignition
▶ High efficiency and wide modulation range (1:7)
▶ Works even in case of very low water pressures
▶ Extremely compact dimensions
Product Warranty All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
