Self-Cleaning Filter Desander With Cyclone Washing Depura Cyclon 3/4

Gel Series Self-Cleaning Filter Desander With Cyclone Washing Depura Cyclon

Technical features

Model : Depura Baby Cyclon 1/2"

Attacks:

• In-Out: 1/2 f
• Scar.: 10 mm

NP: 10 bars

Flow rate: 1.1 m3/h

Use: tec/pot

Water temperature: 5-40°C

Ambient temperature: 5-50°C

Model : Depura Baby Cyclon 3/4"

Attacks:

• In-Out: 3/4 f
• Scar.: 10 mm

NP: 10 bars

Flow rate: 1.1 m3/h

Use: tec/pot

Water temperature: 5-40°C

Ambient temperature: 5-50°C

Gel Series

General characteristics

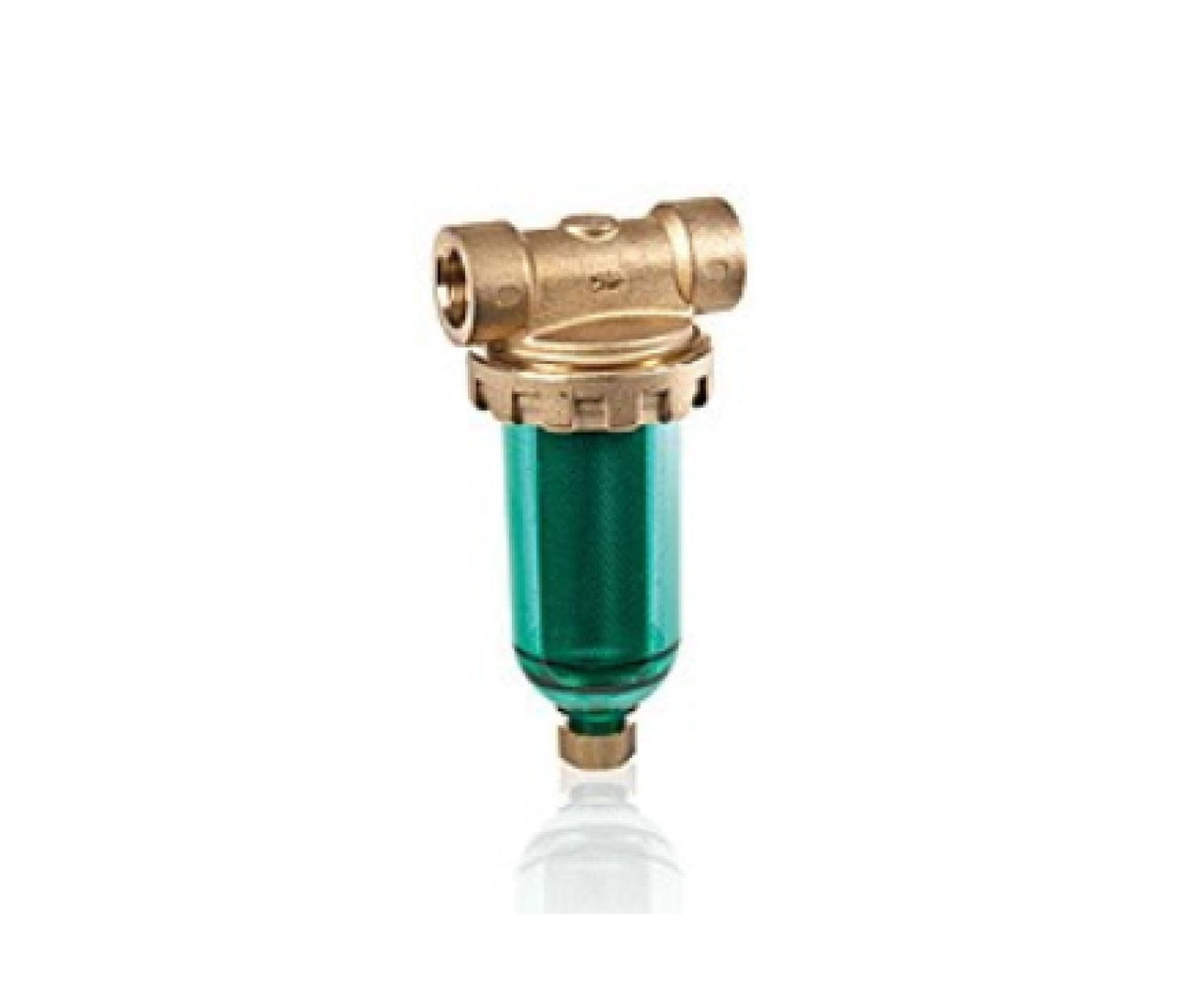

The water normally used in civil and industrial water systems contains a certain quantity of solid impurities of various nature in suspension, such as sand, rust, etc. These particles, with diameters ranging from a few microns to a few millimetres, are often the cause of damage and corrosion to water systems, taps and household appliances. To solve the problem it is necessary to install a filter upstream of the plant or equipment to be safeguarded. There are different types of safety filters: anti-flooding filters, manual self-cleaning cartridge filters and automatic self-cleaning cartridge filters. Depura Cyclon Baby - Characteristics The Depura Cyclon Baby are self-cleaning safety filters, manual, with cyclone washing and in-line connections. For civil, technical and industrial use, these filters are used when sand or other suspended particles make the installation of a traditional filter or a self-cleaning one inappropriate. Periodic washing with water turbines (cyclone) keeps the filter cartridge clean. The Depura Cyclon Baby consist of a brass head, a SAN plastic vessel and a micro-stretched stainless steel washable mesh filter cartridge with a 90µm filtration degree. The above equipment is made with top quality materials, certified for food use (DM 174/2004).

Depura Cyclon Baby - Installation:

• Depura Cyclon Baby must be installed by qualified personnel, in a dry place protected from frost and sunlight
• During installation, be careful not to cause knocks so as not to damage the bowl.
• Connect the filter to the pipes using cylindrical thread fittings.
• Install the filter upright.
• The flow direction must respect the direction of the arrows placed on the filter head.
• Do not install the filter in situations which could generate depressions in the water mains.
• Always provide a by-pass system with valves, check valve sampling cocks.
• Check that the technical characteristics of the filter indicated in the table correspond to the required operating conditions.
• In the presence of high and/or pulsating network pressures, install a pressure reducer and a water hammer absorber before the filter.
• For applications for potable use, after having installed the filter, disinfect the system.
• Screw the jar onto the filter head using the ring nut. Depura Cyclon Baby - Maintenance
• Periodically wash the filter with water turbines (cyclone) by turning the cleaning tap by 90° for 10/15 seconds.
• Clean the bowl and cartridge using soap and clean, clear potable water.
• Before disassembling the cartridge to wash or replace it, exclude the filter from the system by closing the stop valves and opening the by-pass valve.

Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

• peso: 20.0 kg
• marca: Hydro-Tec
• modello: Depura Cyclon
