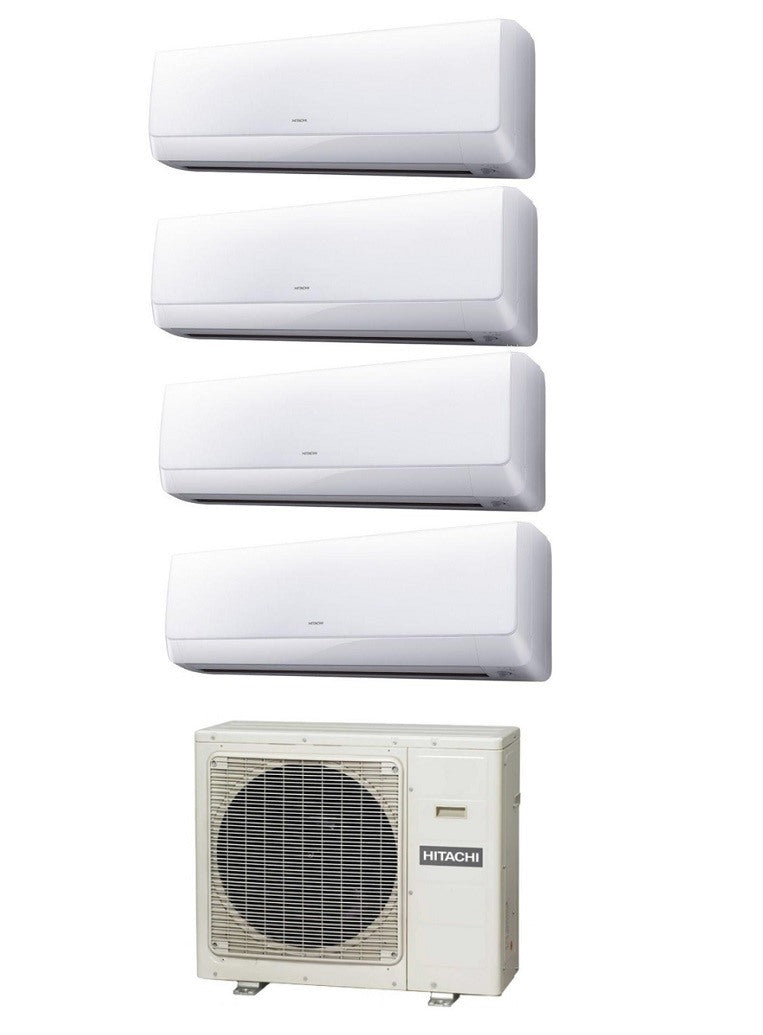

Hitachi Akebono 9+9+9+12 Quadri Split Air Conditioner with RAM-70NP4E R-32 Wi-Fi Optional

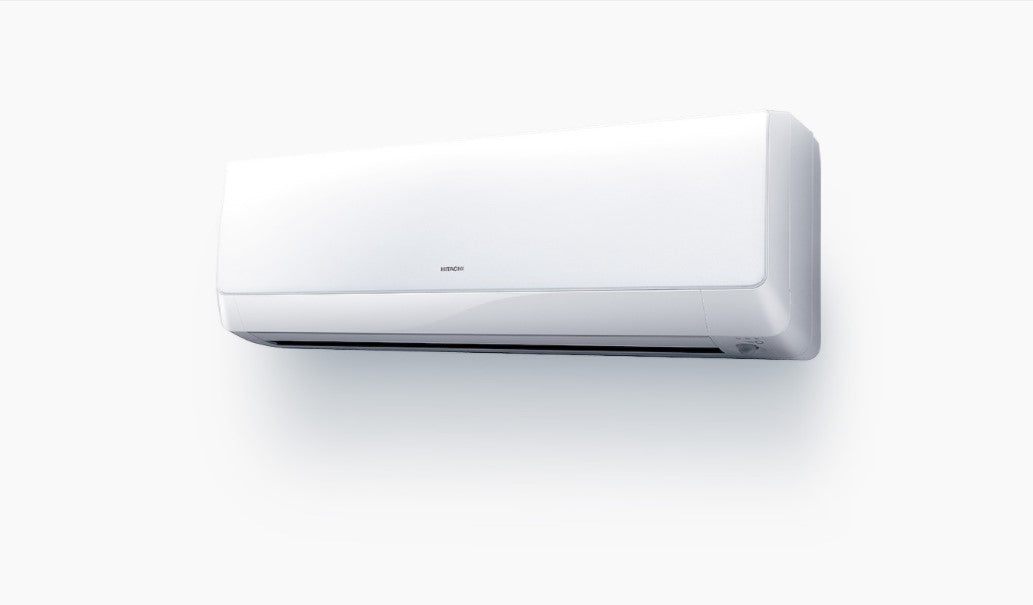

Internal Units
1) Model :
- Internal Unit Catalog Code: 3x RAK-25RXE
- Power: 9000 Btu
- Internal Unit Dimensions (HxWxD): 295x900x210 mm
- Internal Unit Weight: 11 Kg
- Optional Wi-Fi card: (Code SPX-WFG01 )
- Optional Simplified Wall Control: (Code SPX-RCDB )
- Optional Remote Control and Receiver: (Code SPX-RCKA3)
2) Model:
- Internal Unit Catalog Code: RAK-35RXE
- Power: 12000 Btu
- Internal Unit Dimensions (HxWxD): 295x900x210 mm
- Internal Unit Weight: 11 Kg
- Optional Wi-Fi card: (Code SPX-WFG01 )
- Optional Simplified Wall Control: (Code SPX-RCDB )
- Optional Remote Control and Receiver: (Code SPX-RCKA3)
External Unit
Model:
- External Unit Catalog Code: RAM-70NP4E
- Maximum number of connectable indoor units: 4
Energy Efficiency:
- SEER : 8.5
- SCOP : 4.6
- Energy Efficiency Class Cooling: A+++
- Heating Energy Efficiency Class: A++
Performance:
- Cooling Capacity: 2.40-7.00-8.80 kw
- Heating capacity: 2.60-8.50-9.50 kw
- Std Cooling Absorption: 0.46-1.89-3.20 kW
- Std Heating Absorption: 0.48-2.02-3.12 kW
- Sound power level: 63 dB(A)
- Sound pressure level: 50/53 dB(A)
Characteristics:
- Power supply (V/Hz/Φ) : 220~240/50/1
- Refrigerant gas: R-32
Dimensions:
- External Unit Dimensions (HxWxD): 800x850x298 mm
- External Unit Weight: 58 Kg
Warranty
The residential and light commercial series of Hitachi air conditioners are covered by
a 2-year warranty from the date of purchase and an additional
5-year warranty on the electronic boards of the
outdoor units and
indoor units as well as on the compressors. This warranty includes spare parts and labor.
Akebono
When the air conditioner is a design
The entire range of Premium Frost Wash, Akebono Frost Wash and Performance Frost Wash indoor units is now equipped with the exclusive Frost Wash technology, which captures, freezes and washes away dust, mould and impurities, ensuring perfect hygiene of the air conditioner and a healthy environment. Thanks to this function, freezing (Frost) and subsequent defrosting (Wash) of the battery is activated. The ice crystals and water drops generated by this process allow for thorough cleaning of the exchanger fins, thus eliminating dust, mould and bad odours.
Constant power
The system provides heating ensuring continuity of nominal output even with an external temperature of -15°. Maximum performance is provided when the need is greatest.
Presence sensor
The sensor activates operation when it identifies human presence in the environment and progressively reduces operation when it does not detect the presence of people.
Designed with the highest quality components
The components of the indoor unit, including the stainless steel filter, have been designed for longer product life and better air quality.
Compatible with Humo Wi-Fi system
Thanks to the Hi-Kumo APP you can turn on, turn off, change the temperature or make programs from anywhere in the world. The system can be controlled via a smartphone and an internet connection to the Wi-Fi device (optional).
Product Warranty: All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
