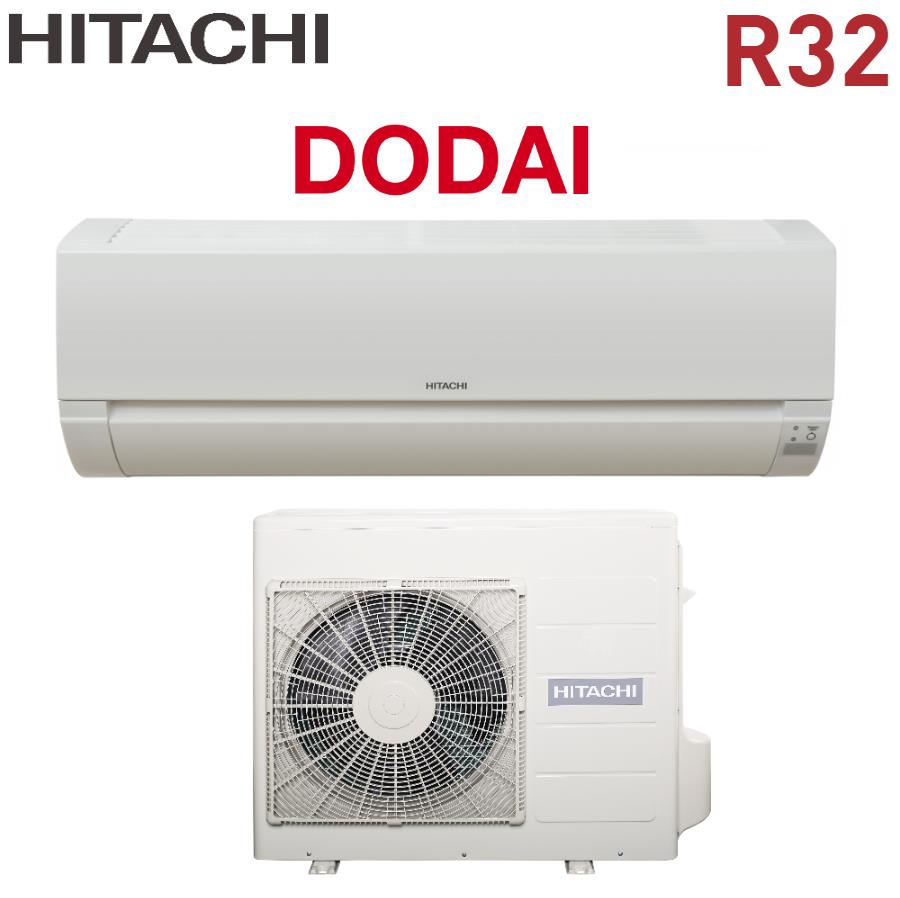

Hitachi Air Conditioner Dodai Series 12000 Btu Rak-35ped With Rac-35wed Gas R-32 Wi-Fi Optional

Description

Hitachi Dodai Series 12000 btu RAK-35PED with RAC-35WED Gas R-32 Wi-Fi Optional


Technical features

Indoor units:

  • Model: RAK - 35PED
  • Power: 12000 Btu

Rated Power (MIN-MAX)

  • Cooling : 3.50 kW (0.90- 4.00)
  • Heating : 4.20 Kw (0.90- 5.00)

Sound Pressure Level (SL-LMH)

  • Cooling dB(A) : 25/26/36/43
  • Heating dB(A) : 26/27/36/44

Outdoor Unit:

  • Model: RAK - 35WED
  • Gases: R-32

Rated Power (MIN-MAX):

  • Cooling: 3.50 kW (0.90 - 4.00);
  • Heating: 4.20 kW (0.90 - 5.00);


AIR FLOW (SL -LMH):

  • Cooling m3/h: 333 / 400 / 485 / 600
  • Heating m3/h: 333 /520 /550 / 660



Energy efficiency:
  • SEER: 6.10
  • SCOP (AVERAGE CLIMATE ZONE): 4.20
  • EER - COP (ENERGY CLASS)


REMOTE CONTROL (STANDARD) : RAR-5F1

  • Cooling: 3.21
  • Heating: 3.82
ENERGY RATING:
  • Cooling: A++
  • Heating: A+

AIR FLOW:

  • Cooling (m3/h): 1860
  • Heating (m3/h): 1620

Sound Power (EUROVENT DATA) dB(A): 57


Sound Pressure Level:

  • Cooling dB(A): 48
  • Heating dB(A): 49

General data

  • POWER SUPPLY : 230/1Ph/50Hz
  • PIPE DIAMETER (LIQ.-GAS): 1/4"/3/8"
  • MAXIMUM LENGTH OF THE PIPES: m 20
  • MAXIMUM HEIGHT DIFFERENCE OF THE PIPES (BETWEEN INDOOR UNIT AND OUTDOOR UNIT): m 10
  • REFRIGERANT CHARGE (MAX PRECHARGE LENGTH): 700(20)
  • REFRIGERANT FLUID: R-32
  • COMPRESSOR: Rotary
  • PIPE DIAMETER (LIQ.-GAS): 1/4" / 3/8
  • CONDENSATE OUTLET DIAMETER (mm) : 16

General characteristics


ALL THE FEATURES TO MAKE YOU FEEL GOOD


Where there is a Hitachi air conditioner, there is well-being. It will be thanks to the Hi-Kumo mobile app that lets you control the air conditioner remotely, wherever you are. It will be the low electricity consumption or the 5-year guarantee on electronic boards and compressors. Or it will be the security of a Japanese brand that has always been synonymous with innovation.



Dodai series

Dodai is even easier to install, because it features a new, more compact chassis that allows for a reduction in installation time thanks to easier access to the refrigerant pipes. In case of maintenance the fan motor can be easily dismounted without removing the heat exchanger, thus reducing the intervention time of the service personnel.


  • Improved seasonal energy efficiency

Thanks to the new R32 refrigerant technology, the seasonal efficiency class has improved compared to the previous model obtaining SEER in class A++ and SCOP in class A+.


  • Silent function_ SUPERQUIET

Improved silence and vibration level of the outdoor unit thanks to the new compressor, new layout of the refrigerant circuit and new control electronics.


  • New R32 refrigerant

The R32 refrigerant is characterized by a better energy efficiency than the current R410A, thanks to its lower GWP (global warming potential) and the lower quantity of refrigerant present in air conditioners. These aspects mean a lower impact on the environment and therefore an excellent solution in view of the European objectives on F-Gas.


  • Leave Home _ EVERYTHING UNDER CONTROL

The function allows you to set a minimum maintenance temperature (10°C) in heating for periods when you are away from home for vacation or work.


  • Eco and Powerful function _ YOU CAN SAVE

You can choose whether to operate the air conditioner at very low consumption or at maximum power to quickly reach the desired temperature.


  • 12h timer

Available on the remote control for simple daily programming.


Product Guarantee

All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Hitachi Air Conditioner Dodai Series 12000 Btu Rak-35ped With Rac-35wed Gas R-32 Wi-Fi Optional

Product form

Hitachi Dodai Series 12000 btu RAK-35PED with RAC-35WED Gas R-32 Wi-Fi Optional Technical features Indoor units: Model: RAK - 35PED... Read more

€398,00 Incl. VAT

    Description

    Hitachi Dodai Series 12000 btu RAK-35PED with RAC-35WED Gas R-32 Wi-Fi Optional


    Technical features

    Indoor units:

    • Model: RAK - 35PED
    • Power: 12000 Btu

    Rated Power (MIN-MAX)

    • Cooling : 3.50 kW (0.90- 4.00)
    • Heating : 4.20 Kw (0.90- 5.00)

    Sound Pressure Level (SL-LMH)

    • Cooling dB(A) : 25/26/36/43
    • Heating dB(A) : 26/27/36/44

    Outdoor Unit:

    • Model: RAK - 35WED
    • Gases: R-32

    Rated Power (MIN-MAX):

    • Cooling: 3.50 kW (0.90 - 4.00);
    • Heating: 4.20 kW (0.90 - 5.00);


    AIR FLOW (SL -LMH):

    • Cooling m3/h: 333 / 400 / 485 / 600
    • Heating m3/h: 333 /520 /550 / 660



    Energy efficiency:
    • SEER: 6.10
    • SCOP (AVERAGE CLIMATE ZONE): 4.20
    • EER - COP (ENERGY CLASS)


    REMOTE CONTROL (STANDARD) : RAR-5F1

    • Cooling: 3.21
    • Heating: 3.82
    ENERGY RATING:
    • Cooling: A++
    • Heating: A+

    AIR FLOW:

    • Cooling (m3/h): 1860
    • Heating (m3/h): 1620

    Sound Power (EUROVENT DATA) dB(A): 57


    Sound Pressure Level:

    • Cooling dB(A): 48
    • Heating dB(A): 49

    General data

    • POWER SUPPLY : 230/1Ph/50Hz
    • PIPE DIAMETER (LIQ.-GAS): 1/4"/3/8"
    • MAXIMUM LENGTH OF THE PIPES: m 20
    • MAXIMUM HEIGHT DIFFERENCE OF THE PIPES (BETWEEN INDOOR UNIT AND OUTDOOR UNIT): m 10
    • REFRIGERANT CHARGE (MAX PRECHARGE LENGTH): 700(20)
    • REFRIGERANT FLUID: R-32
    • COMPRESSOR: Rotary
    • PIPE DIAMETER (LIQ.-GAS): 1/4" / 3/8
    • CONDENSATE OUTLET DIAMETER (mm) : 16

    General characteristics


    ALL THE FEATURES TO MAKE YOU FEEL GOOD


    Where there is a Hitachi air conditioner, there is well-being. It will be thanks to the Hi-Kumo mobile app that lets you control the air conditioner remotely, wherever you are. It will be the low electricity consumption or the 5-year guarantee on electronic boards and compressors. Or it will be the security of a Japanese brand that has always been synonymous with innovation.



    Dodai series

    Dodai is even easier to install, because it features a new, more compact chassis that allows for a reduction in installation time thanks to easier access to the refrigerant pipes. In case of maintenance the fan motor can be easily dismounted without removing the heat exchanger, thus reducing the intervention time of the service personnel.


    • Improved seasonal energy efficiency

    Thanks to the new R32 refrigerant technology, the seasonal efficiency class has improved compared to the previous model obtaining SEER in class A++ and SCOP in class A+.


    • Silent function_ SUPERQUIET

    Improved silence and vibration level of the outdoor unit thanks to the new compressor, new layout of the refrigerant circuit and new control electronics.


    • New R32 refrigerant

    The R32 refrigerant is characterized by a better energy efficiency than the current R410A, thanks to its lower GWP (global warming potential) and the lower quantity of refrigerant present in air conditioners. These aspects mean a lower impact on the environment and therefore an excellent solution in view of the European objectives on F-Gas.


    • Leave Home _ EVERYTHING UNDER CONTROL

    The function allows you to set a minimum maintenance temperature (10°C) in heating for periods when you are away from home for vacation or work.


    • Eco and Powerful function _ YOU CAN SAVE

    You can choose whether to operate the air conditioner at very low consumption or at maximum power to quickly reach the desired temperature.


    • 12h timer

    Available on the remote control for simple daily programming.


    Product Guarantee

    All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

    Data sheetData sheet
    • peso: 35.0 kg
    • classe energetica raffreddamento: A++
    • classe energetica riscaldamento: A+
    • gas: R-32
    • marca: Hitachi
    • metri quadri : 25-40 m2
    • modello: RAK-35PED_RAC-35WED
    • potenza btu: 12000
    • superficie riscaldabile mq: 35
