- Maximum length of pipes: 50 m
- Maximum difference in altitude (lowest EU/highest EU): 30/30 M
- Refrigerant Pipe Diameter Liquid-Gas inches (3/8'/3/4')
Dimensions and Weight
- Internal Unit Dimensions (HxWxD): 1300x350x800 mm
- Internal Unit Weight: 51 Kg
- Panel Dimensions (HxWxD): 950x37x950 mm
- Panel weight: 6 kg
- External Unit Dimensions (HxWxD): 950x1386x340 mm
- External Unit Weight: 101.5 Kg
- Condensate pipe diameter (outer) : mm ODΦ32
Condensation drain pump included
Remote Control Included

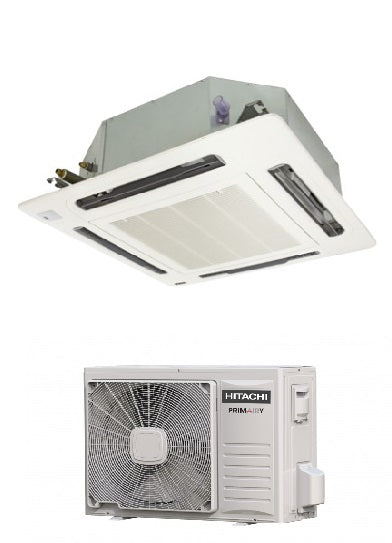

4 Way Cassette
Cassette units are particularly suitable for installation in false ceilings with limited recess space, thanks to a depth of only 248 mm for the smallest sizes. They are ideal for rooms with high ceilings, thanks to the generous thrust of the fan, and can be easily incorporated between light panels
or other configurations. The use of a generous condensate drain pump - installed as standard - and the possibility of introducing fresh air into the unit chassis, confirm the attention paid to the engineering and design of the product.
Homogeneous distribution of air flow
Thanks to the four fins, the air flow is distributed evenly throughout the room. The 4 adjustable louvers allow the user to precisely manage the diffusion of the air which, thanks to a maximum inclination of 90° of the fin, can be directed vertically towards the floor.
Temperature compensation
The Temperature Compensation function, available in combination with the wall control (HCWA21NEWH), guarantees even more precise regulation of the flow temperature, based on the reading of the parameters in the room. This combination is particularly suitable for rooms with ceilings over 2.5 m high.
FLEXIBILITY Infrared Receiver and Remote Control: The standard wireless remote control receiver is positioned in a corner of the panel for maximum control efficiency.
