Hisense
Garanzia Italiana 24 mesi
Classe energetica di riscaldamento: A+
Classe energetica di raffreddamento: A++
SKU: DJ 5+7+18 72

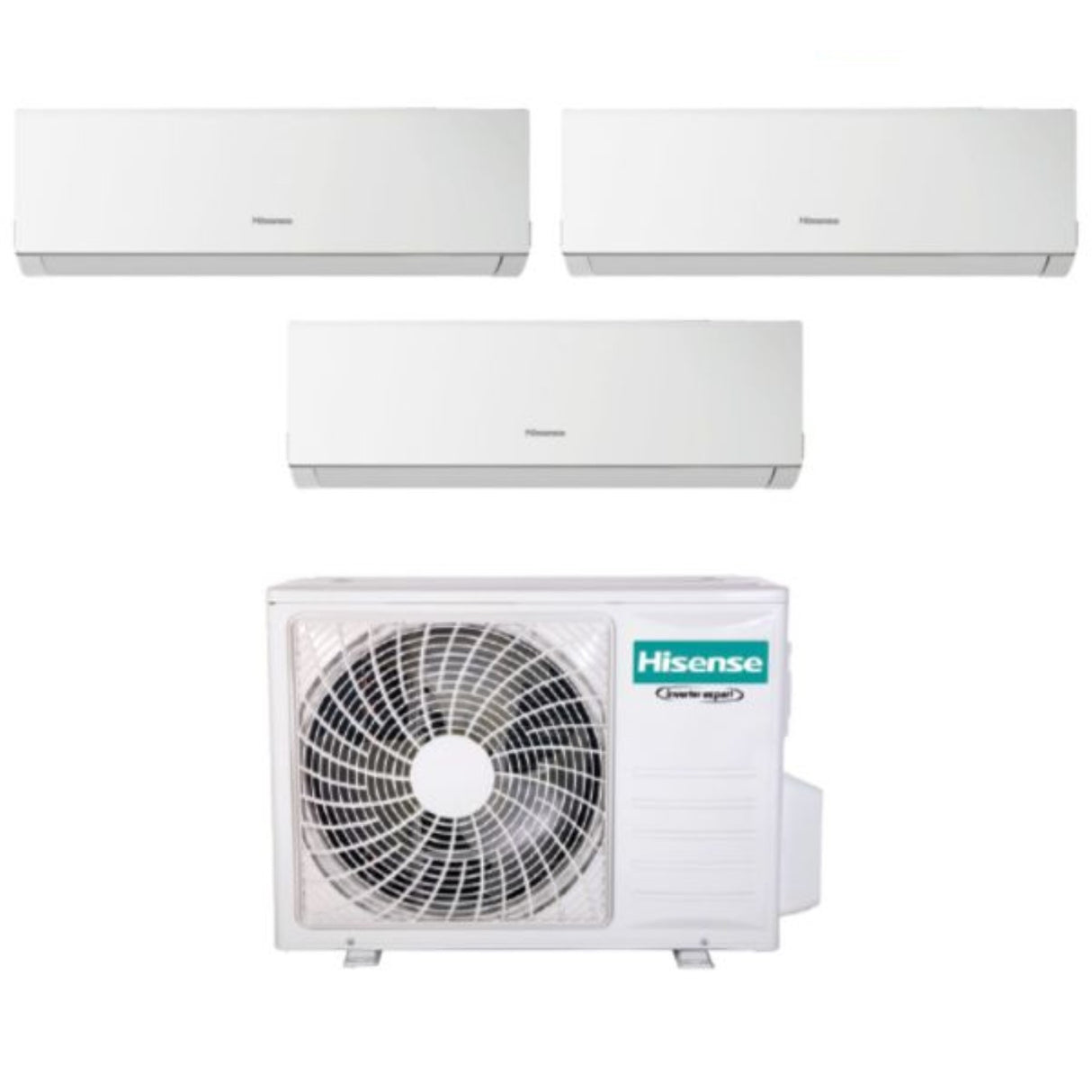

Hisense Trial Split Inverter Air Conditioner NEW COMFORT series 5+7+18 with 3AMW72U4RFA R-32 Wi-FI Optional 5000+7000+18000

€1.267,00 VAT included
Tax included Shipping calculated at checkout.

How shipping works

Shipping costs vary depending on the weight and shipping method of your order. Our shipping services:

  • Standard Shipping: Estimated delivery within 2 to 5 business days
  • Premium Shipping: Guaranteed delivery within 24 business hours
  • Premium Shipping + Home Delivery: Guaranteed delivery within 24 business hours

    See the tables for standard shipping prices for Italy and the Minor Islands and Disadvantaged Areas.

    For more details on Premium Shipping, please visit the Premium Shipping page.

Customer service

Our customer service team is dedicated to providing support to our customers with any issues or questions they may have before or after purchasing our products.

Use the direct communication channel to speak with one of our representatives, or send us an email at one of the addresses listed on the contact us page.

Our customer service team is made up of highly qualified professionals who are always ready to help customers resolve any issue or answer any question quickly and efficiently. We are committed to ensuring maximum customer satisfaction and providing the highest quality after-sales service. So, if you need assistance, don't hesitate to contact us; we'll be happy to help in any way we can.

Description

Technical Features

Internal units

1) Model

  • Internal Unit Catalog Code: 1x DJ15YD00G
  • Power: 5000 btu/h
  • Cooling Capacity : 1.5 kW
  • Heating capacity: 1.8 kW
  • Power consumption: 43 W
  • Rated Current : 0.2A
  • Treated Air: 8.3 m3 /min
  • Sound pressure level : 19~39 dB(A)
  • Liquid Pipe Diameter: 6.35mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (WxHxD): 745x270x212 mm
  • Internal Unit Weight: 7.5 Kg
  • Optional Wi-Fi Card (Code AEH-W4E1 )
  • Optional Wired Control (Code YXE-C01U )

2) Model

  • Internal Unit Catalog Code: 1x DJ20YD00G
  • Power: 7000 btu/h
  • Cooling Capacity : 2.1 kW
  • Heating capacity: 2.5 kW
  • Power consumption: 43 W
  • Rated Current : 0.2A
  • Treated Air: 8.3 m3 /min
  • Sound pressure level : 19~39 dB(A)
  • Liquid Pipe Diameter: 6.35mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (WxHxD): 745x270x212 mm
  • Internal Unit Weight: 7.5 Kg
  • Optional Wi-Fi Card (Code AEH-W4E1 )
  • Optional Wired Control (Code YXE-C01U )

3) Model

  • Internal Unit Catalog Code: 1x DJ50XA0AG
  • Power: 18000 btu/h
  • Cooling Capacity : 5.0 kW
  • Heating capacity: 5.6 kW
  • Power consumption: 70 W
  • Rated Current : 0.3A
  • Treated Air: 16.7 m3 /min
  • Sound pressure level : 21~46 dB(A)
  • Liquid Pipe Diameter: 6.35mm (1/4")
  • Gas pipe diameter: 12.70 mm (1/2")
  • Internal Unit Dimensions (WxHxD): 914x315x228 mm
  • Internal Unit Weight: 12.0 Kg
  • Optional Wi-Fi Card (Code AEH-W4E1 )
  • Optional Wired Control (Code YXE-C01U )

External Unit

Model:

  • External Unit Catalog Code: 3AMW72U4RFA
  • Max indoor units: up to 3 indoor units

Energy Efficiency:

  • SEER : 6.8
  • SCOP : 4.01
  • Energy Efficiency Class Cooling: A++
  • Heating Energy Efficiency Class: A+
  • Annual energy consumption in Cooling: 371 kWh/a
  • Annual energy consumption in heating: 1920 kWh/a

Performance:

  • Cooling capacity: 7.2 kW
  • Heating capacity: 7.9 kW
  • Cooling Power Consumption: 1.87 kW
  • Heating absorption: 2.03 kW
  • Sound power level: 68 dB(A)
  • Sound pressure level : 49~55 dB(A)

Characteristics:

  • Power supply (V/Hz/Φ) : 220~240/50/1
  • Refrigerant gas: R-32
  • Guaranteed temperature range:
  • - Cooling: -15° ~ 48° C
  • - Heating: -15° ~ 24° C

Installation Data:

  • Liquid Tube Diameter: 6.35mm (1/4") x3
  • Gas pipe diameter: 9.52 mm (3/8") x3
  • Maximum Pipe Length: 45 m
  • Maximum height difference between internal unit and external unit: 15 m

Dimensions:

  • External Unit Dimensions (WxHxD): 860×670×310 mm
  • External Unit Weight: 49 Kg

3 year warranty (5 on the compressor)

Warranty

The Hisense Italia warranty can be activated within 1 month from the date of purchase athttp://www.hisenseitalia.it/clima/supporto


Multisplit External Unit Technologies

High Efficiency DC Twin Rotary Inverter Compressor

The design of the new BLDC Inverter double rotor compressor guarantees better balance and reduced vibrations. This translates into maximum silence and excellent performance in terms of efficiency and energy saving.


180° sine wave DC drive technology

The system constantly monitors the compressor frequency and creates the most efficient waveform to determine effective consumption savings.

Curve control

Driver della curva Hisense


Rubidium magnet compressor

Thanks to the greater compression of the gas molecules, the compressor with rubidium magnet guarantees greater efficiency and lower absorption.

Compressore


Electronic expansion valve

The outdoor unit uses an electronic expansion valve that regulates and optimizes the amount of refrigerant in all operating indoor units .

Wide voltage range operation

The outdoor unit can operate with a voltage from 176V to 264V. In the new models, the use of an automatic voltage regulation technique ensures that the protection value is adjusted accordingly, maintaining the operating frequency at an optimal value.

Exchanger design: designed to improve efficiency

The design of the external exchanger has been designed to increase heat transfer in such a way as to make the refrigeration circuit more efficient and avoid the creation of ice blocks. Another advantage is that it can support long distance connections between the external unit and the internal units without reducing the cooling capacity.


Hisense New Comfort

New Comfort


Easy Installation

The New Comfort models are easy to install thanks to the new design of the indoor unit and mounting plate.

1 . The mounting plate is equipped with two tabs that allow the indoor unit to be spaced away from the wall to have more usable space when connecting the pipes

Easy installation 2


2. The panel located on the bottom of the indoor unit is easily removed to ensure convenient access to the pipes

Easy installation


3. You can choose the side to connect the condensate drain pump according to your installation needs.

Easy installation 3


Wi-Fi Control

Hisense air conditioners can be conveniently managed inside and outside the home with a mobile device and a Wi-Fi connection. HiSmart Life is the simple-to-use app with an intuitive interface that allows you to control the air conditioner wherever you are. The app is available for iOS and Android.

After downloading the app and pairing the air conditioner, the app allows you to manage the operating mode, temperature, fan speed and air flow. From the "Smart Function" section you can also set daily or weekly timers.

Controllo Wi-Fi intelligente


Smart Voice Control

The new HiSmart Life app is compatible with Alexa and Google Assistant: thanks to voice interaction, you can turn on, turn off, adjust the temperature and set the desired operating mode (cooling or heating).

You can find HiSmart Life in Alexa Skills and in the Google Assistant catalog.

Smart Voice


Optimal airflow

The new Hisense air conditioners guarantee an ideal airflow based on the operating mode or the type of activity carried out by people in the room.

You can select the direction of the air flow directly from the remote control


Universal unit for mono and multi systems

Universal internal units can be connected to Monosplit and Multisplit external units to ensure maximum installation versatility

Sistemi


Functions

Dimmer : Pressing this button on the remote control will turn off the display light on the front panel

i FEEL : The sensor inside the remote control is able to detect the surrounding temperature and transmit this information to the indoor unit. The indoor unit operates according to the detected temperature. Intelligent temperature control ensures a more comfortable environment and more precise temperature control, saving energy

Special 8°C restart: The special 8°C heating mode is very useful especially for homes located in areas with colder temperatures (and in second homes). In fact, during your absence, the unit will start in heating mode as soon as it detects a temperature lower than 8°C, preventing your rooms from freezing and reducing the level of humidity in the air.


ON/OFF contact for hotel room control

Hisense


ON/OFF contact for fire control

Hisense


Total Protection: 4 Filters in 1

4 Filtri

Catechin filter: removes odors and dust

HEPA filter: removes pollen and dust

Silver Ion Filter: sterilizes bacteria by acting on their composition

Aroma Filter: releases a pleasant scent into the environment


Characteristics

Caratteristiche


Product Warranty: All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

Technical Data Sheet

  • peso: 75.0 kg
  • classe energetica raffreddamento: A++
  • classe energetica riscaldamento: A+
  • gas: R-32
  • marca: Hisense
  • modello: DJ 5+7+18 72
  • potenza btu: 5000+7000+18000
  • superficie riscaldabile mq: 15/20/50
