Hisense R-32 console
Garanzia Italiana
24 mesi
Classe energetica di riscaldamento:
A+
Classe energetica di raffreddamento:
A++
SKU:
AKT 9+12+12+12 105

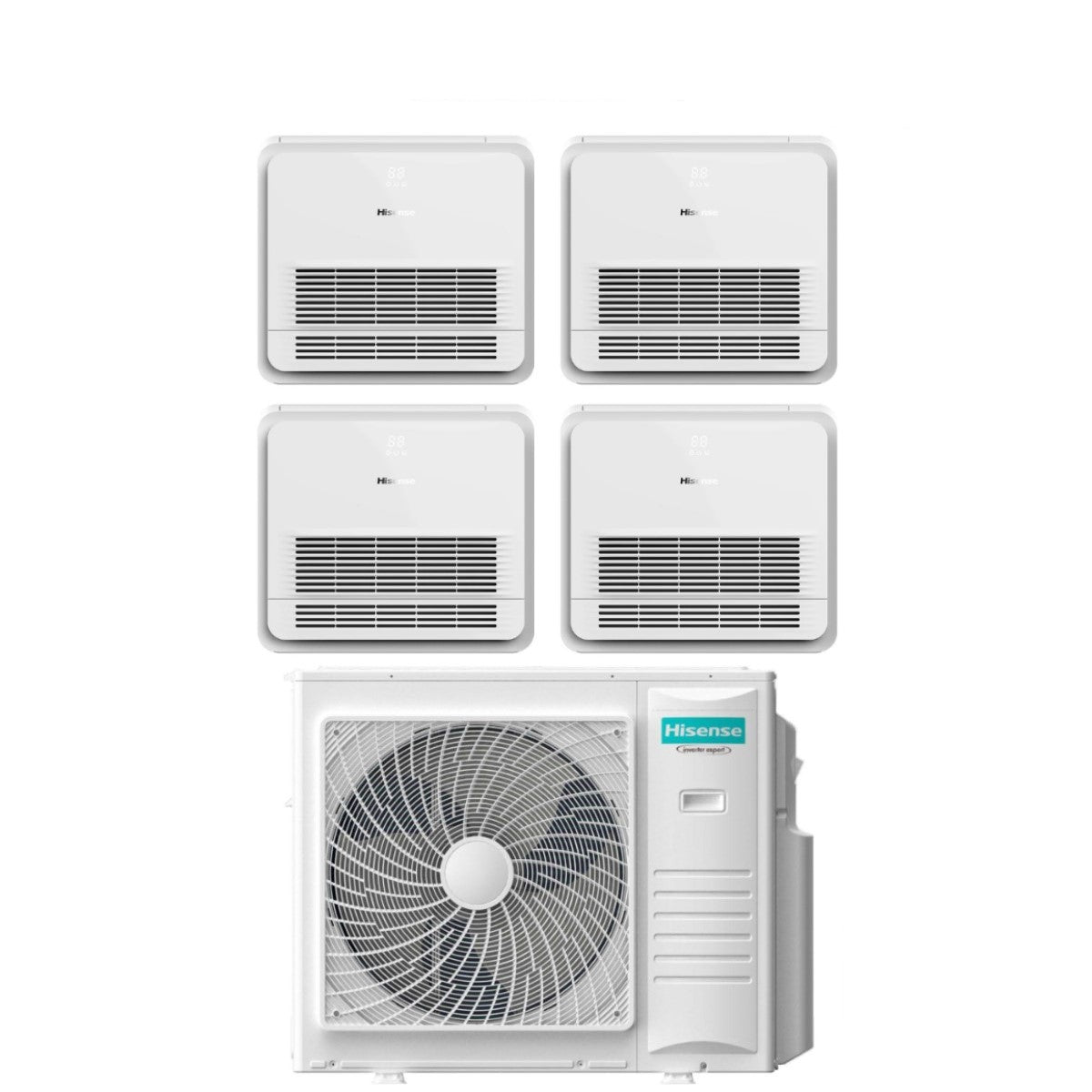

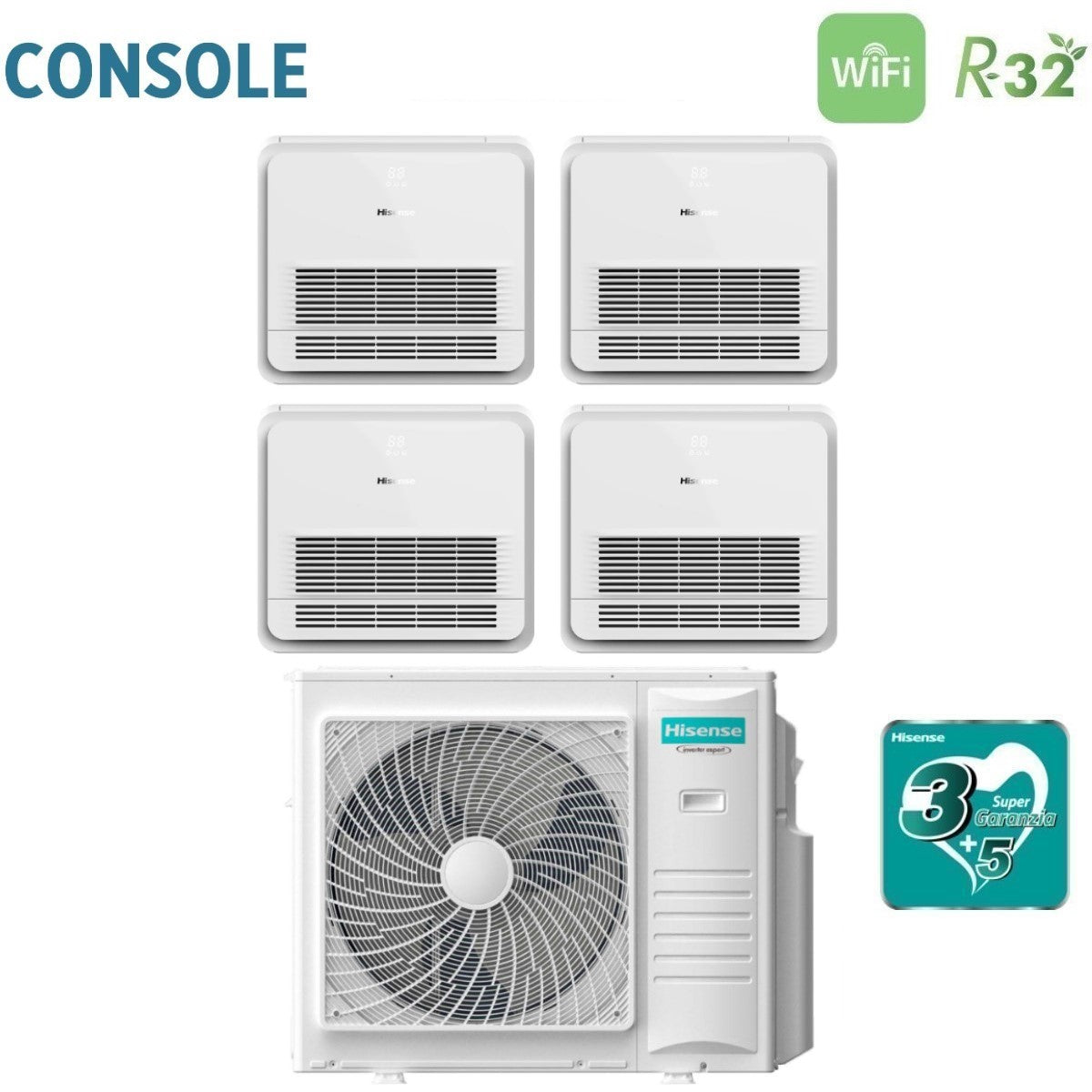

Hisense Air Conditioner Quadri Split Console 9+12+12+12 with 4AMW105U4RAA R-32 Wi-Fi Optional With Standard Remote Control 9000+12000+12000+12000 - New
Sold out
€2.893,00
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
Hisense Air Conditioner Quadri Split Console 9+12+12+12 with 4AMW105U4RAA R-32 Wi-Fi Optional With Standard Remote Control 9000+12000+12000+12000 - New is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
Shipping costs vary depending on the weight and shipping method of your order. Our shipping services:
- Standard Shipping: Estimated delivery within 2 to 5 business days
- Premium Shipping: Guaranteed delivery within 24 business hours
- Premium Shipping + Home Delivery: Guaranteed delivery within 24 business hours
See the tables for standard shipping prices for Italy and the Minor Islands and Disadvantaged Areas.
For more details on Premium Shipping, please visit the Premium Shipping page.
Customer service
Customer service
Our customer service team is dedicated to providing support to our customers with any issues or questions they may have before or after purchasing our products.
Use the direct communication channel to speak with one of our representatives, or send us an email at one of the addresses listed on the contact us page.
Our customer service team is made up of highly qualified professionals who are always ready to help customers resolve any issue or answer any question quickly and efficiently. We are committed to ensuring maximum customer satisfaction and providing the highest quality after-sales service. So, if you need assistance, don't hesitate to contact us; we'll be happy to help in any way we can.
Description
Description
Technical features

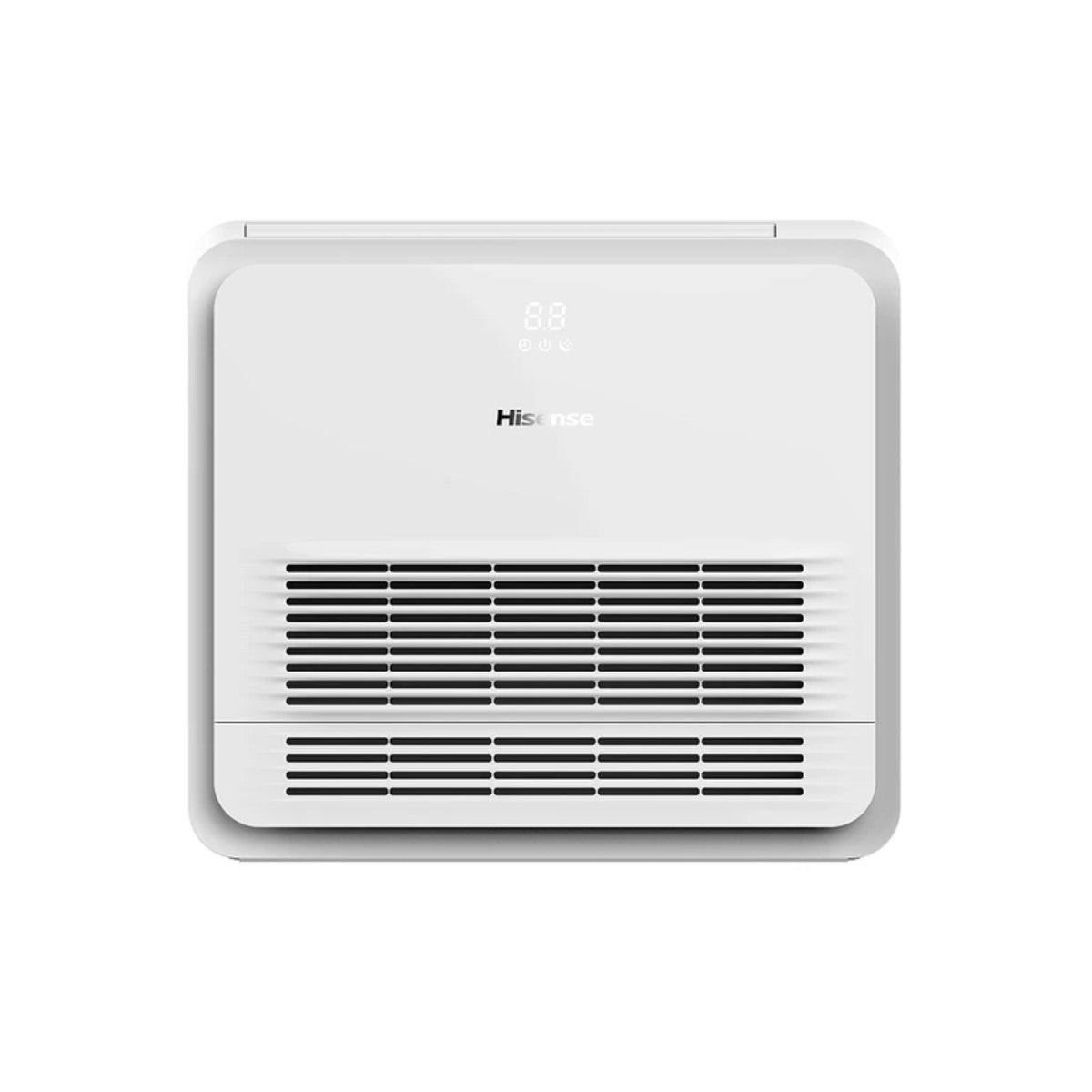

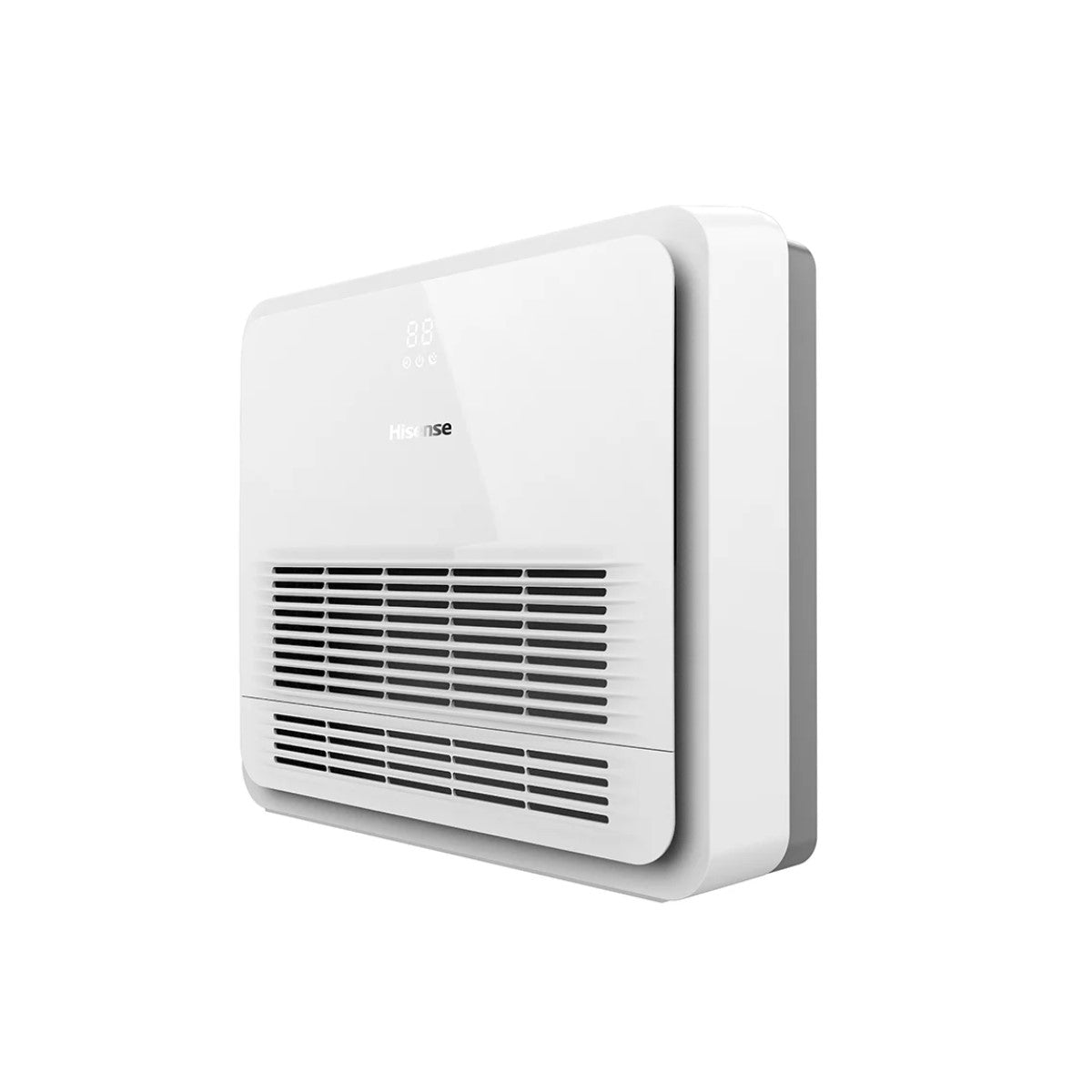

Internal Units
1) Model
- Indoor Unit Catalog Code: 1x AKT26UR4RK4
- Power: 9000 Btu/h
- Cooling Capacity: 2.8 kW
- Heating capacity: 3 kW
- Power consumption: 20 W
- Air flow rate: 9.2 m 3 /min
- Sound pressure level: 28~39 dB(A)
- Liquid pipe diameter: 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Internal Unit Dimensions (WxHxD): 700x630x220 mm
- Internal Unit Weight: 15 Kg
- Optional Wi-Fi card (Code AEH-W4A1/B1 )
- Optional wired control (Code YXE-C01U )
2) Model
- Indoor Unit Catalog Code: 3x AKT35UR4RK4
- Power: 12000 Btu/h
- Cooling Capacity: 3.52 kW
- Heating capacity: 3.8 kW
- Power consumption: 25 W
- Air flow: 10 m 3 /min
- Sound pressure level: 33~38 dB(A)
- Liquid pipe diameter: 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Internal Unit Dimensions (WxHxD): 700x630x220 mm
- Internal Unit Weight: 15 Kg
- Optional Wi-Fi card (Code AEH-W4A1/B1 )
- Optional wired control (Code YXE-C01U )
External Unit
Model:
- Outdoor Unit catalog code: 4AMW105U4RAA
- Max indoor units: up to 4 indoor units
Energy efficiency:
- SEER : 6.50 (W/W)
- SCOP : 4.01 (W/W)
- Energy Efficiency Class (Cooling): A++
- Energy Efficiency Class (Heating): A+
- Annual energy consumption Cooling: 538 kWh/a
- Annual energy consumption Heating: 2793 kWh/a
Performance:
- Cooling Capacity: 10 kW
- Heating Capacity: 11 kW
- Std Cooling absorption: 3.1 kW
- Std Heating absorption: 2.8 kW
- Sound power level: 68 dB(A)
- Sound pressure level: 54~60 dB(A)
Characteristics:
- Power (V/Hz/Φ): 220~240/50/1
- Refrigerant gas: R-32
- Liquid tube diameter: 6.35 mm (1/4") x4
- Gas pipe diameter: 9.52 mm (3/8") x4
- Guaranteed temperature range:
- - Cooling: -15° ~ 48° C
- - Heating: -15° ~ 24° C
Dimensions:
- External Unit Dimensions (WxHxD): 950×840×340 mm
- External Unit Weight: 73 Kg
3 year warranty (5 on the compressor)
The Hisense Italia warranty can be activated within 1 month from the date of purchase athttp://www.hisenseitalia.it/clima/supporto
Multisplit Outdoor Unit Technologies
High Efficiency DC Twin Rotary Inverter Compressor
The design of the new double rotor BLDC Inverter compressor guarantees better balancing and reduced vibrations. This translates into the maximum level of silence and excellent performance in terms of efficiency and energy saving.
DC drive technology with 180° sine wave
The system constantly monitors the compressor frequency and creates the most efficient waveform to determine effective consumption savings.
Curve control
Compressor with rubidium magnet
Thanks to the greater compression of the gas molecules, the compressor with rubidium magnet guarantees greater efficiency and lower absorption
Electronic expansion valve
The outdoor unit uses an electronic expansion valve that regulates and optimizes the amount of refrigerant of all operating indoor units .
Wide voltage range operation
The outdoor unit can operate with a voltage of 176V to 264V. In the new models, the use of an automatic voltage regulation technique guarantees that the protection value adjusts according to it, maintaining the operating frequency at an optimal value.
Exchanger design: designed to improve its efficiency
The design of the external exchanger has been designed to increase heat transfer in such a way as to make the refrigeration circuit more efficient and avoid the creation of ice blocks. A further advantage is that it can support long-distance connections between the external unit and internal units without reducing the cooling capacity.
Cooling down
The upper and lower air outlets open simultaneously for fast and comfortable cooling.
Heating
The lower air supply ensures uniform heating throughout the room.
Characteristics
Smart defrost
Based on the historical data, the system adapts the conditions for activating defrost to guarantee maximum comfort in heating mode.
New corrugated fin
Newly developed corrugated fin that improves heat exchange capacity
Checking the refrigerant charge level
If the refrigerant charge level drops below a certain level, the air conditioner will go into alarm and stop working to ensure the safety of users and the machine itself.
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Technical Data Sheet
Technical Data Sheet
- peso: 140.0 kg
- classe energetica raffreddamento: A++
- classe energetica riscaldamento: A+
- conto termico 3 0: Conto_Termico_3.0
- gas: R-32
- lunghezza: 1
- marca: Hisense
- modello: ACT 9+12+12+12 105
- potenza btu: 9000+12000+12000+12000
- superficie riscaldabile mq: 25/35/35/35
