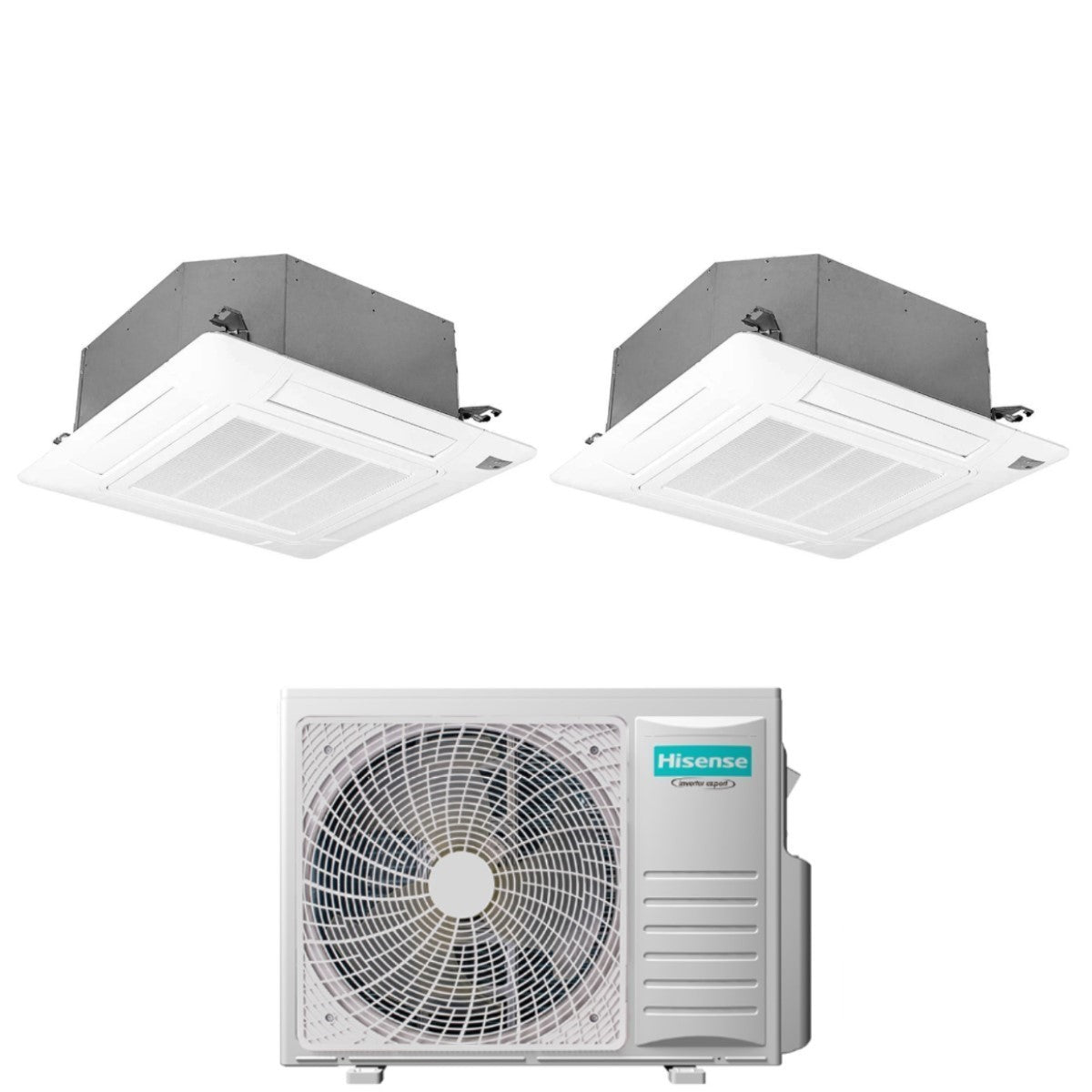

Internal units
1) Model
- Indoor unit catalog code: 1x ACT35UR4RCC8
- Panel code : PE-QEA-LD
- Power: 12000 Btu
- Cooling capacity: 3.5 kW
- Heating capacity: 4.0 kW
- Sound power level: 54 dB(A)
- Sound pressure level : 30~38 dB(A)

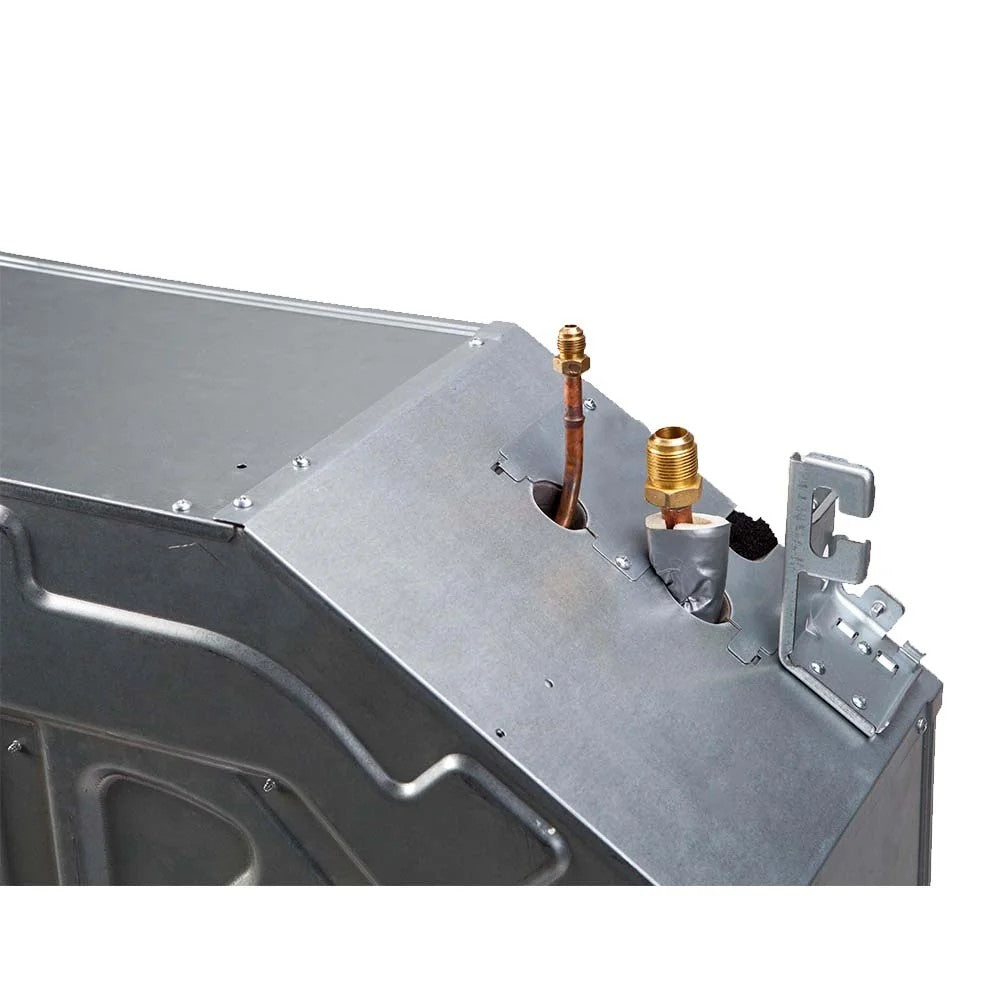

- Liquid pipe diameter: 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Internal unit dimensions (WxHxD): 570x215x570 mm
- Internal unit weight: 15.5 Kg
- Panel dimensions (WxHxD): 620x40x620 mm
- Panel weight: 2.6 Kg
- Remote control as standard
- Wi-Fi Card : AEH-W4GX
- Wired Control: YXE-C01U
2) Model
- Indoor unit catalog code: 1x ACT52UR4RCC8
- Panel code : PE-QEA-LD
- Power: 18000 Btu
- Cooling capacity: 5.0 kW
- Heating capacity: 5.5 kW
- Sound power level: 57 dB(A)
- Sound pressure level : 34~42 dB(A)
- Liquid pipe diameter: 6.35 mm (1/4")
- Gas pipe diameter: 12.70 mm (1/2")
- Internal unit dimensions (WxHxD): 570x215x570 mm
- Internal unit weight: 15.5 Kg
- Panel dimensions (WxHxD): 620x40x620 mm
- Panel weight: 2.6 Kg
- Remote control as standard
- Wi-Fi Card : AEH-W4GX
- Wired Control: YXE-C01U

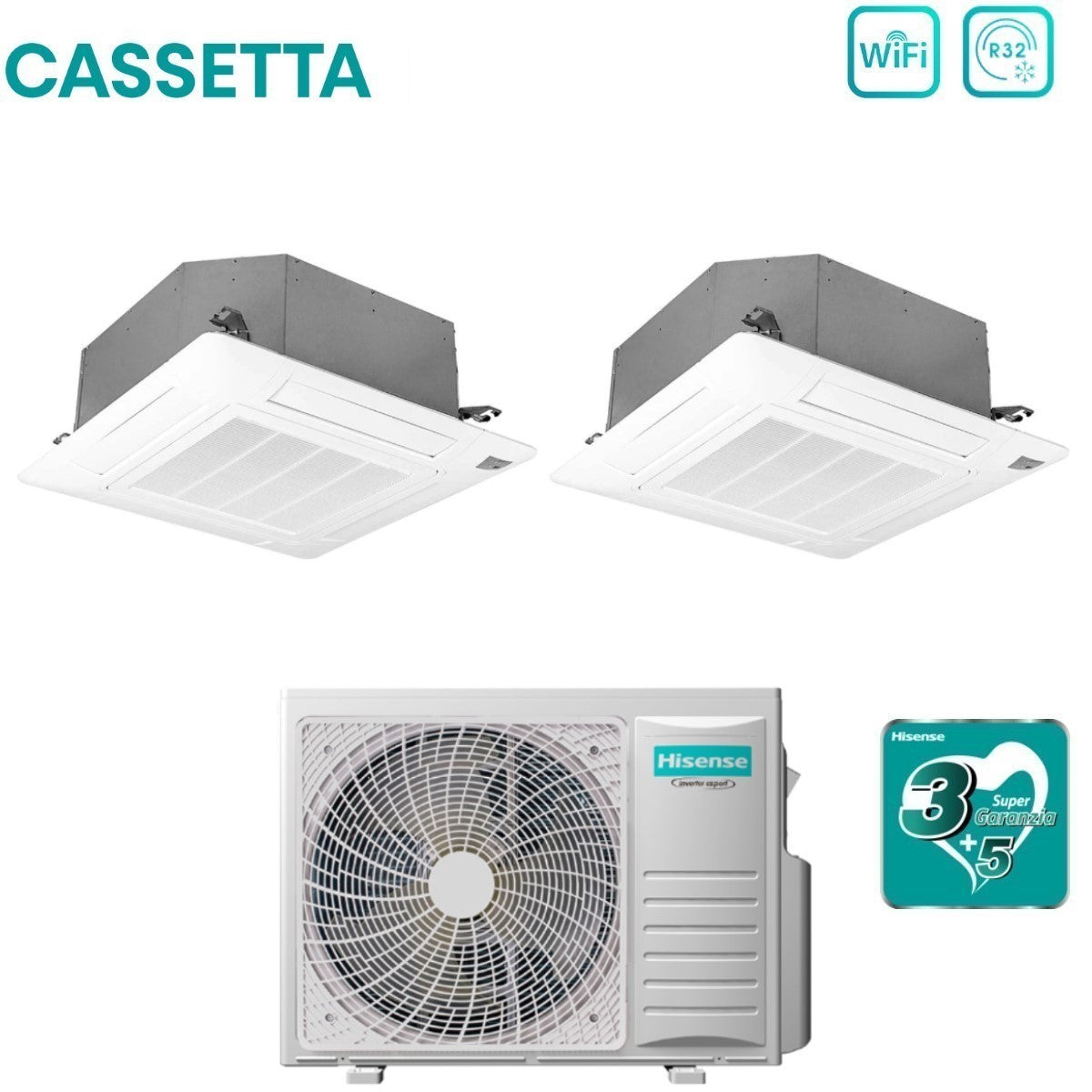

External unit
- Outdoor unit catalog code: 4AMW81U4RJC
- Number of connectable indoor units : Up to 4 indoor units
Energy efficiency
- SEER : 7.5
- SCOP : 4.4
- Energy efficiency class cooling: A++
- Heating energy efficiency class: A+
- Annual energy consumption in cooling: 373 kWh/a
- Annual energy consumption in heating: 2765 kWh/a
Performance
- Cooling capacity: 8.0 kW
- Heating capacity: 9.0 kW
- Cooling absorption: 2.14 kW
- Heating absorption: 2.23 kW
- Sound power level: 64 dB(A)
- Sound pressure level : 54~60 dB(A)
Electrical data
- Power supply (V/Hz/Ø) : 220~240/50/1
- Refrigerant gas: R-32
- Guaranteed temperature range:
- Cooling: -15° ~ 50° C
- Heating: -20° ~ 24° C
Installation data
- Liquid tube diameter: 6.35mm (1/4") x4
- Gas pipe diameter: 9.52 mm (3/8") x4
- Maximum pipe length: 60 m
- Maximum height difference between internal unit and external unit: 15 m
Dimensions and weight
- External unit dimensions (WxHxD): 860x670310 mm
- External unit weight: 70.0 Kg
3 year warranty (5 on the compressor)
The Hisense Italia warranty can be activated within 1 month from the date of purchase at http://www.hisenseitalia.it/clima/supporto
Multisplit external unit technologies
High efficiency DC Twin Rotary inverter compressor
The design of the new BLDC Inverter double rotor compressor guarantees better balance and reduced vibrations. This translates into maximum silence and excellent performance in terms of efficiency and energy saving.
Full DC inverter
Hisense Inverter Expert technology ensures high efficiency and low noise levels thanks to the combined action of the DC Inverter compressor, the DC Inverter fan motor and the electronic expansion valve.
Compact and versatile
The dimensions of the new Free Match outdoor units have been reduced by 10% to allow installation even in small spaces.
Maximum comfort even in winter
The outdoor unit uses an electronic expansion valve that regulates and optimizes the amount of refrigerant for all operating indoor units.
Super warm up
The new Free Match external units guarantee maximum efficiency even at low temperatures, down to -20°
180° sine wave DC drive technology
The system constantly monitors the compressor frequency and creates the most efficient waveform to determine effective consumption savings.
Curve control
Rubidium magnet compressor
Thanks to the greater compression of the gas molecules, the compressor with rubidium magnet guarantees greater efficiency and lower absorption.
Electronic expansion valve
The outdoor unit uses an electronic expansion valve that regulates and optimizes the amount of refrigerant in all operating indoor units.
Wide voltage range operation
The outdoor unit can operate with a voltage from 176V to 264V. In the new models, the use of an automatic voltage regulation technique ensures that the protection value is adjusted accordingly, maintaining the operating frequency at an optimal value.
Exchanger design: designed to improve efficiency
The design of the external exchanger has been designed to increase heat transfer in such a way as to make the refrigeration circuit more efficient and avoid the creation of ice blocks. Another advantage is that it can support long distance connections between the external unit and the internal units without reducing the cooling capacity.
Green Gas More efficient and better for the environment
R32 is an environmentally friendly gas with a higher cooling capacity for the same volume. This means that less refrigerant is needed in each device, thus reducing global warming. The advantages of R32 gas are that it has no effect on ozone in the air, GWP (global warming impact) 66% lower than R410A gas, higher energy efficiency, higher thermal conductivity and higher cooling capacity.

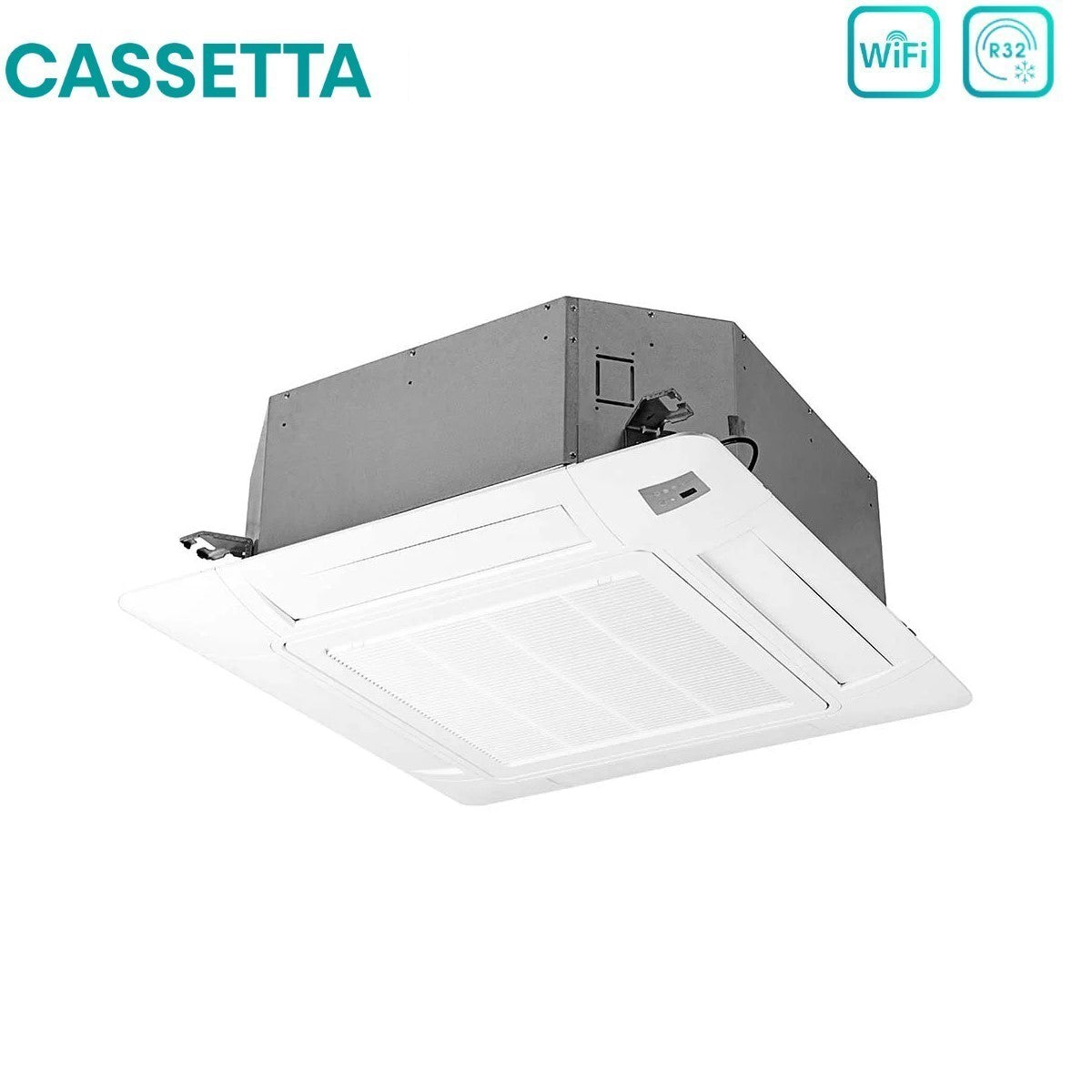

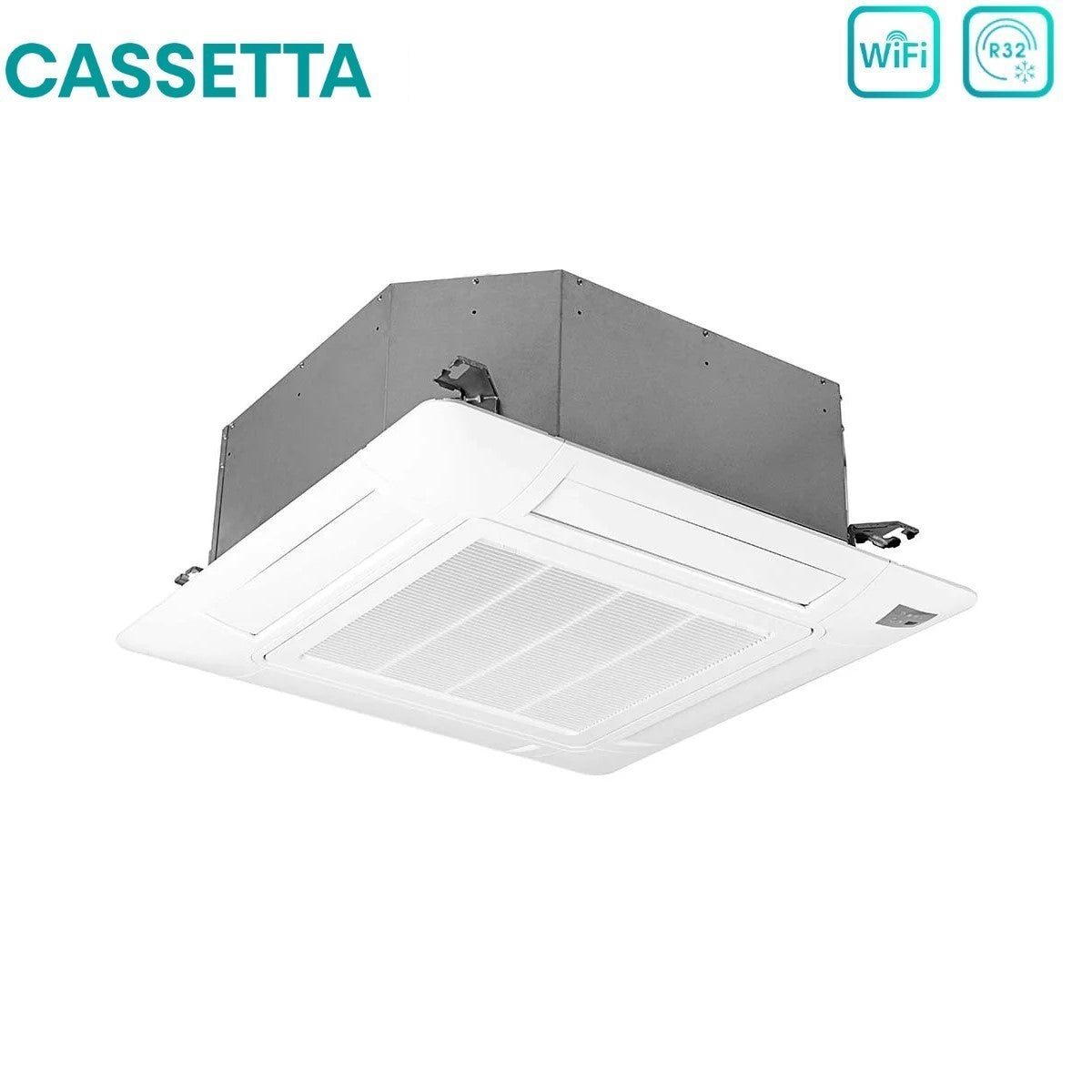

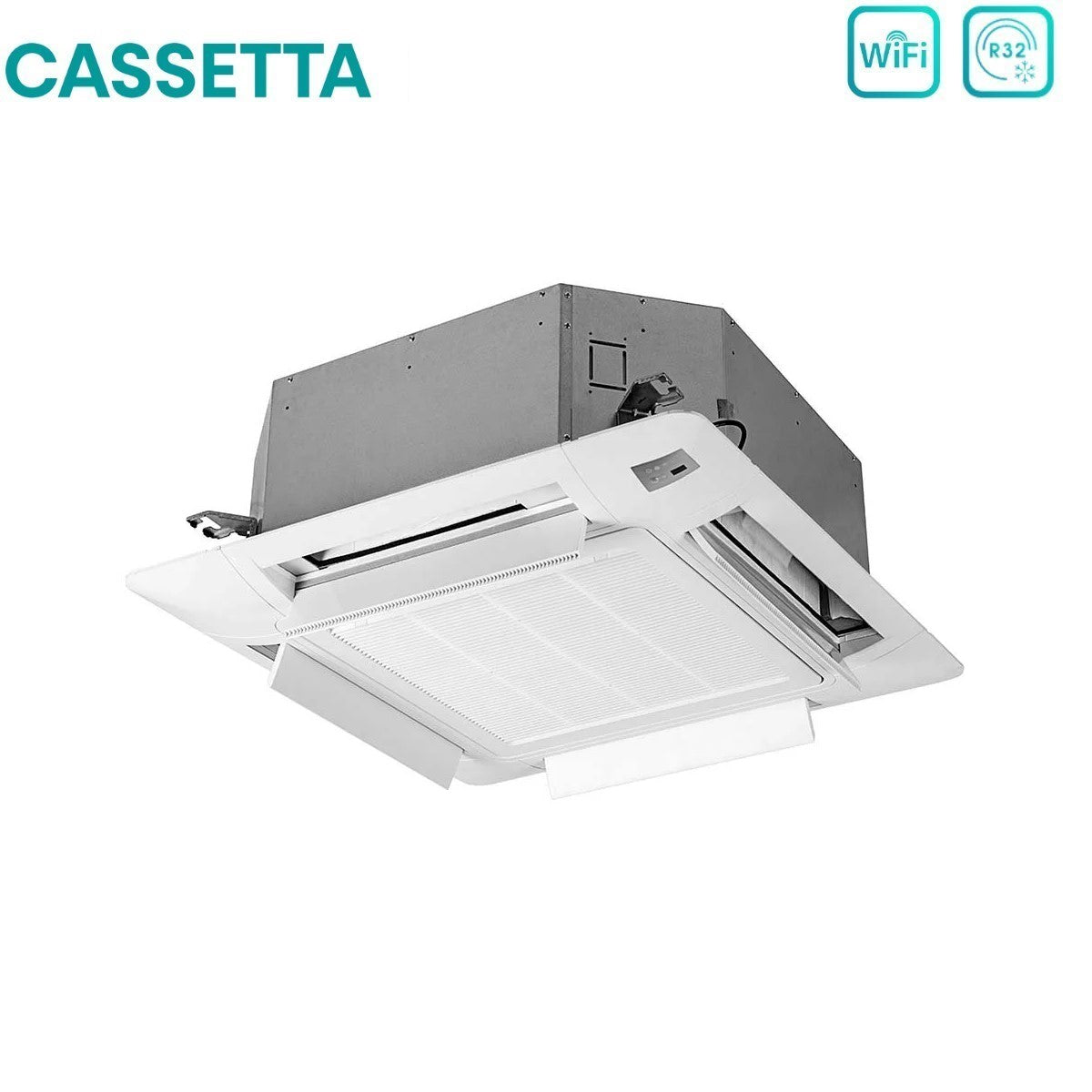

New Hisense round flow Comfort 360° cassette
With the new Round Flow cassette units, each flap can be managed individually using the remote control supplied. Thanks to the independent movements of the deflectors, the air fl ow can be controlled according to the different needs in the room.

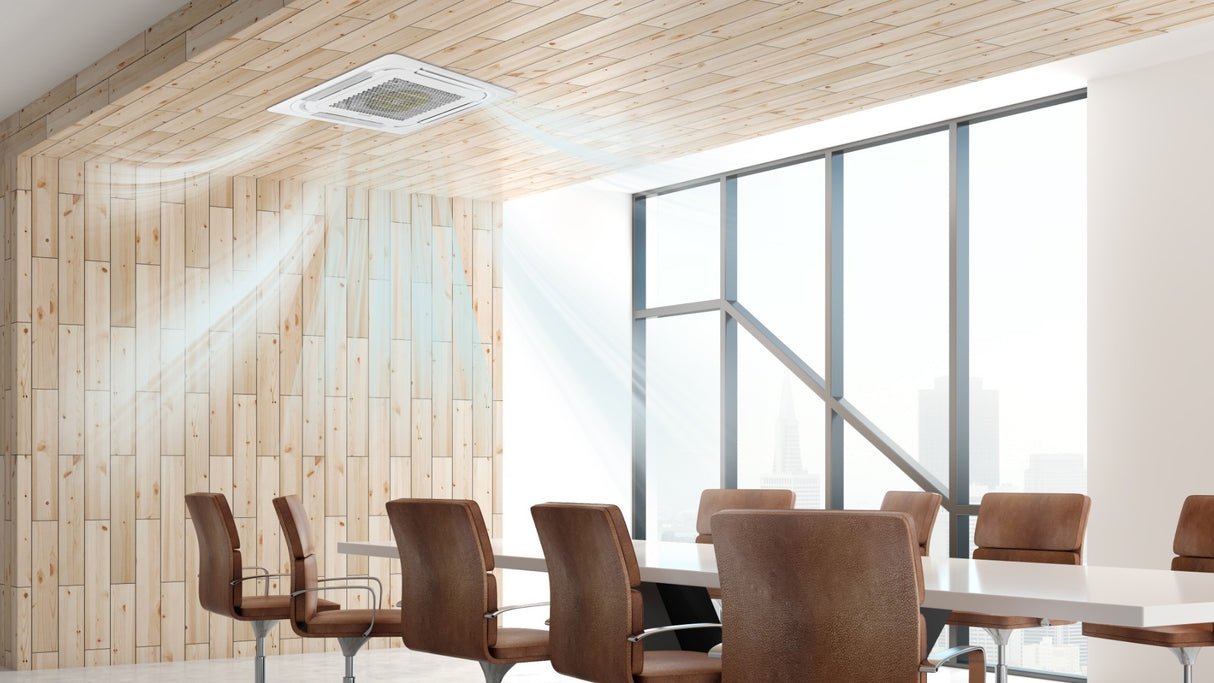

360° round flow Uniform air distribution.

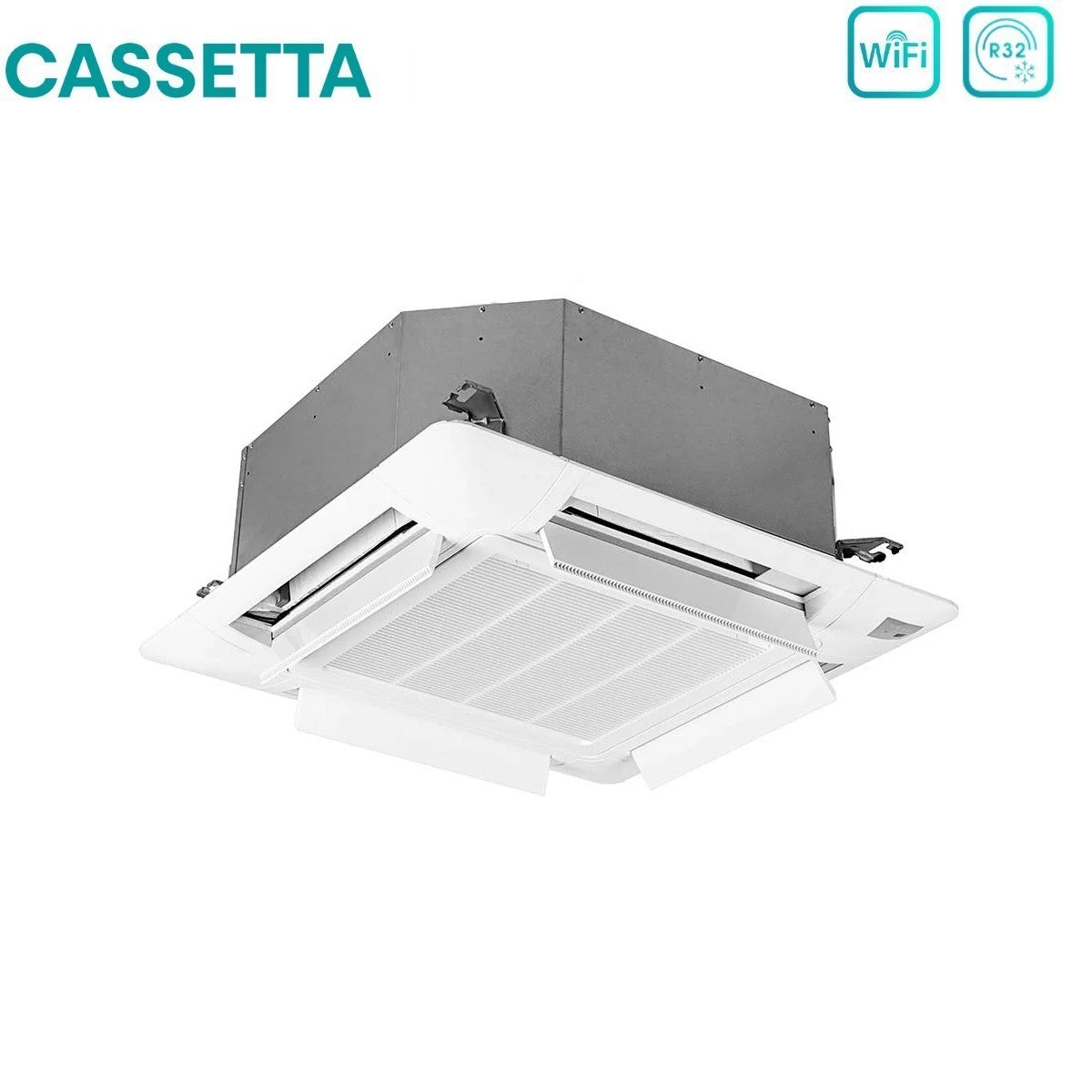

Big louver The opening angle of the deflectors can be adjusted up to 88° to ensure uniform air distribution

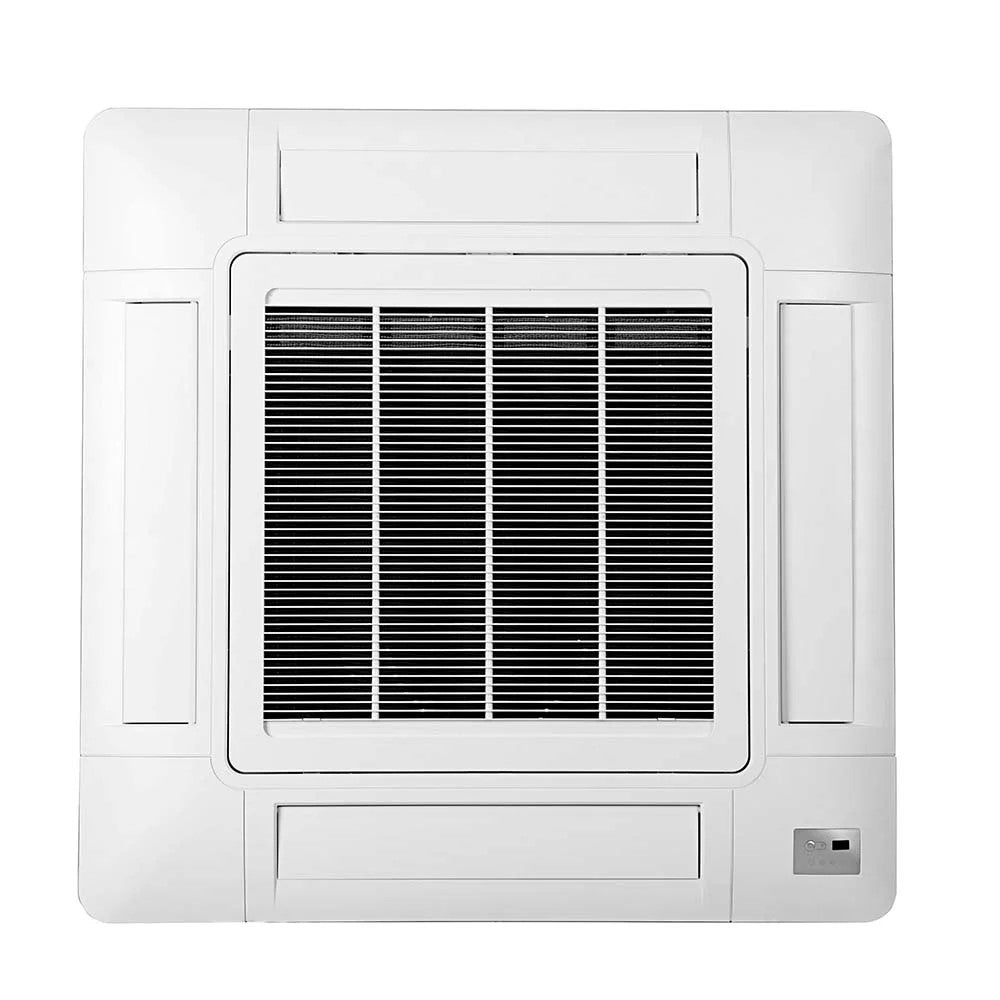

Simple and elegant design The panel is characterised by its simple and elegant lines which hide a display that activates when switched on to allow you to monitor its operation at any time.

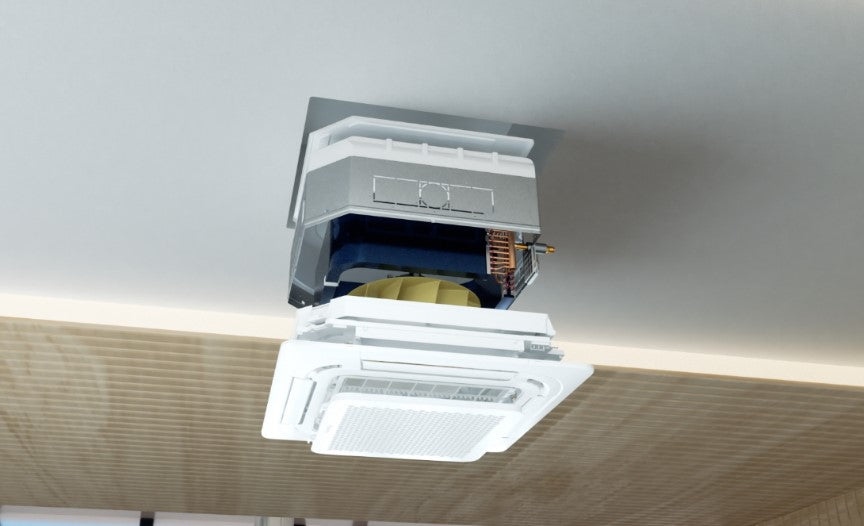

Compact structure The new Round Flow cassette units have a very compact structure measuring only 236 mm
High efficiency evaporator The units are equipped with the new evaporator with a large exchange surface to ensure greater efficiency without sacrificing energy savings.
Smart Eye (Optional) The «Smart Eye» presence sensor uses infrared scanning to detect the position of people in the room and adjusts the air flow accordingly. If no presence is detected, the air conditioning automatically switches to energy saving mode.
Multiple control possibilities The cassette units are supplied with a handy remote control but it is possible to control the unit with a wired remote YXEE01U(E) or via Wi-Fi AEH-W4GX to be purchased separately.
Smart Wi-Fi Control
Hisense air conditioners can be conveniently managed inside and outside the home with a mobile device and a Wi-Fi connection. ConnectLife is the simple-to-use app with an intuitive interface that allows you to control your air conditioner wherever you are. The app is available for iOS and Android.
Operation in Wi-Fi mode requires the installation of cards on each indoor unit.
After downloading the app and pairing the air conditioner, the app allows you to manage the operating mode, temperature, ventilation speed and air flow. From the "Automation" section you can also set daily or weekly timers
Smart Voice Control
The new ConnectLife app is compatible with Alexa and Google assistant, thanks to voice interaction, it is possible to turn on, turn off, adjust the temperature and set the operating mode (cooling or heating). You can find ConnectLife in the Alexa Skills and in the Google assistant catalog
Product Warranty : The warranty on this item is 24 months from the date of purchase.
