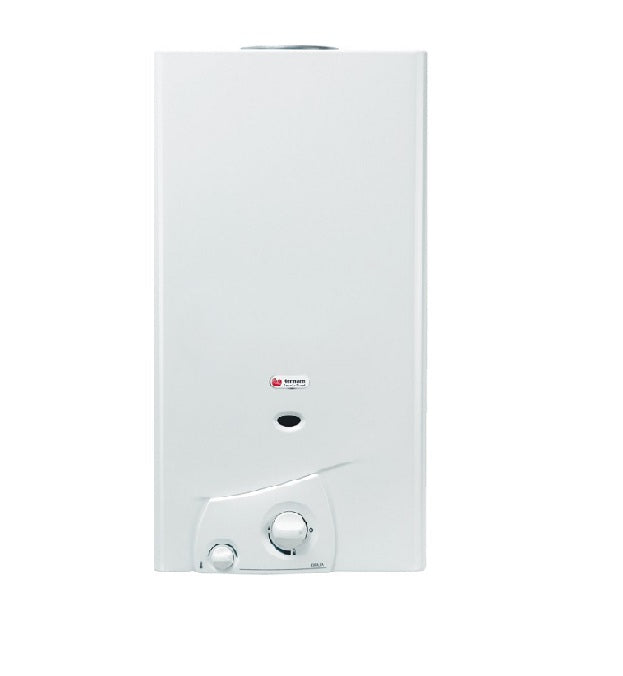

Saunier Duval Opalia C 11 E - A/1 LPG water heater

Description

NB: PRODUCT DISCONTINUED THE NEW MODEL OPALIA C LOW NOX WILL BE SHIPPED

GAS WATER HEATER SAUNIER DUVAL OPALIA C 11 E - A/1 LPG, Open Chamber: instantaneous gas water heater for the production of domestic hot water.

Technical specifications

Model:

ErP efficiency class in heating/DHW: B

Healthcare professional profile: M

Combustion chamber: open to natural draft

Sanitary

Rated power min/max: kW 10.7/19.2

Type of regulation: Modulating

Ignition type: Electronic

Specific flow rate (T=25 K): l/min 11

Minimum ignition flow l/min 2.7

Minimum supply pressure 0.2 bar

Electrical characteristics

Supply voltage (V/Hz): 2 batteries

Dimensions:

Dimensions (hxlxp): 575x310x220 mm ; 10.3 Kg

Diameter of the flue pipe mm 110

LPG code - 10013748

LPG version

Features list

OPALIA

The entire range of Opalia water heaters is characterized by the extreme ease of use, the reliability of the performances combined with a modern design and simplicity of use. The Opalia model is available in the Open Chamber and 2 - Sealed Chamber water heaters, from 11 to 14 litres, all equipped with electronic ignition with safety lock in the event of pilot flame failure.

Characteristics:

Modern design with compact dimensions: the water heaters can be easily installed in any room, even inside the kitchen cabinets.

Maximum safety: the safety thermostat intervenes in the event of overtemperature of the domestic hot water; the ionization flame control blocks the gas supply in the event of a flame failure at the burner; in the Open Chamber models, the anti-fume backflow safety device blocks the water heater in the event of a risk of fumes entering the environment.

Electronic control (only for models with 2 - Sealed chamber water heaters): it is possible to optimally adapt the operation of the appliance to the conditions of use and the temperature of the hot water, guaranteeing maximum sanitary comfort and optimizing gas consumption. Any malfunctions are signaled on the LCD display.

Opalia C 11 E - A/1 and C 14 E - A/1

Open Chamber instantaneous gas water heaters

Electronic ignition card for: intermittent pilot flame ignition and to control the lack of burner flame.

Fume discharge safety sensor that blocks the water heater in case of risk of fumes being released into the environment.

Safety thermostat which blocks the water heater in the event of domestic hot water overheating at the exchanger outlet.

Diaphragm gas valve.

Flow sensor.

Copper lamellar heat exchanger.

Domestic hot water temperature selector.

Gas power selector.

All ready for Energy Labeling

1. ErP, Ecodesign and ELD. What do they mean and how do they differ

ErP and Ecodesign: The EU has issued new obligations for Energy Using Products (ErP). Known as the Ecodesign Directive, it prescribes minimum efficiency requirements and emission limits for DHW heating appliances up to 400 kW.

ELD: In addition to the ErP Directive, the EU is also introducing mandatory energy labeling for the same type of appliances up to 70 kW. The Energy Labeling Directive (ELD) requires that new products and systems for heating DHW production are labeled with an indication of their energy efficiency class.

2. Which products are affected by the new directives

The Ecodesign directive addresses two product categories that are relevant to our installers and resellers.

Category 1: Includes electric, gas and oil space heaters, combi boilers, heat pumps and cogenerators.

Category 2 : includes electric, gas and oil-fired DHW production equipment, DHW heat pumps and solar systems.

By combining these products and components, for example by adding a temperature control unit, the energy classification of the system can be increased, which will be calculated by the installer and indicated on the package label.

Warranty

All products for sale on our site are new and packed. The guarantee on this item is 24 months from the date of purchase.

Saunier Duval Opalia C 11 E - A/1 LPG water heater

Product form

NB: PRODUCT DISCONTINUED THE NEW MODEL OPALIA C LOW NOX WILL BE SHIPPED GAS WATER HEATER SAUNIER DUVAL OPALIA C... Read more

€200,00 Incl. VAT

    Description

    NB: PRODUCT DISCONTINUED THE NEW MODEL OPALIA C LOW NOX WILL BE SHIPPED

    GAS WATER HEATER SAUNIER DUVAL OPALIA C 11 E - A/1 LPG, Open Chamber: instantaneous gas water heater for the production of domestic hot water.

    Technical specifications

    Model:

    ErP efficiency class in heating/DHW: B

    Healthcare professional profile: M

    Combustion chamber: open to natural draft

    Sanitary

    Rated power min/max: kW 10.7/19.2

    Type of regulation: Modulating

    Ignition type: Electronic

    Specific flow rate (T=25 K): l/min 11

    Minimum ignition flow l/min 2.7

    Minimum supply pressure 0.2 bar

    Electrical characteristics

    Supply voltage (V/Hz): 2 batteries

    Dimensions:

    Dimensions (hxlxp): 575x310x220 mm ; 10.3 Kg

    Diameter of the flue pipe mm 110

    LPG code - 10013748

    LPG version

    Features list

    OPALIA

    The entire range of Opalia water heaters is characterized by the extreme ease of use, the reliability of the performances combined with a modern design and simplicity of use. The Opalia model is available in the Open Chamber and 2 - Sealed Chamber water heaters, from 11 to 14 litres, all equipped with electronic ignition with safety lock in the event of pilot flame failure.

    Characteristics:

    Modern design with compact dimensions: the water heaters can be easily installed in any room, even inside the kitchen cabinets.

    Maximum safety: the safety thermostat intervenes in the event of overtemperature of the domestic hot water; the ionization flame control blocks the gas supply in the event of a flame failure at the burner; in the Open Chamber models, the anti-fume backflow safety device blocks the water heater in the event of a risk of fumes entering the environment.

    Electronic control (only for models with 2 - Sealed chamber water heaters): it is possible to optimally adapt the operation of the appliance to the conditions of use and the temperature of the hot water, guaranteeing maximum sanitary comfort and optimizing gas consumption. Any malfunctions are signaled on the LCD display.

    Opalia C 11 E - A/1 and C 14 E - A/1

    Open Chamber instantaneous gas water heaters

    Electronic ignition card for: intermittent pilot flame ignition and to control the lack of burner flame.

    Fume discharge safety sensor that blocks the water heater in case of risk of fumes being released into the environment.

    Safety thermostat which blocks the water heater in the event of domestic hot water overheating at the exchanger outlet.

    Diaphragm gas valve.

    Flow sensor.

    Copper lamellar heat exchanger.

    Domestic hot water temperature selector.

    Gas power selector.

    All ready for Energy Labeling

    1. ErP, Ecodesign and ELD. What do they mean and how do they differ

    ErP and Ecodesign: The EU has issued new obligations for Energy Using Products (ErP). Known as the Ecodesign Directive, it prescribes minimum efficiency requirements and emission limits for DHW heating appliances up to 400 kW.

    ELD: In addition to the ErP Directive, the EU is also introducing mandatory energy labeling for the same type of appliances up to 70 kW. The Energy Labeling Directive (ELD) requires that new products and systems for heating DHW production are labeled with an indication of their energy efficiency class.

    2. Which products are affected by the new directives

    The Ecodesign directive addresses two product categories that are relevant to our installers and resellers.

    Category 1: Includes electric, gas and oil space heaters, combi boilers, heat pumps and cogenerators.

    Category 2 : includes electric, gas and oil-fired DHW production equipment, DHW heat pumps and solar systems.

    By combining these products and components, for example by adding a temperature control unit, the energy classification of the system can be increased, which will be calculated by the installer and indicated on the package label.

    Warranty

    All products for sale on our site are new and packed. The guarantee on this item is 24 months from the date of purchase.

    Data sheetData sheet
    • peso: 23.0 kg
    • classe efficienza energetica: B
    • gas: LPG
    • installazione: VERTICAL
    • litri: 11
    • marca: HERMANN SAUNIER DUVAL
    • modello: SCALD_1417
    • tipologia : OPEN ROOM
