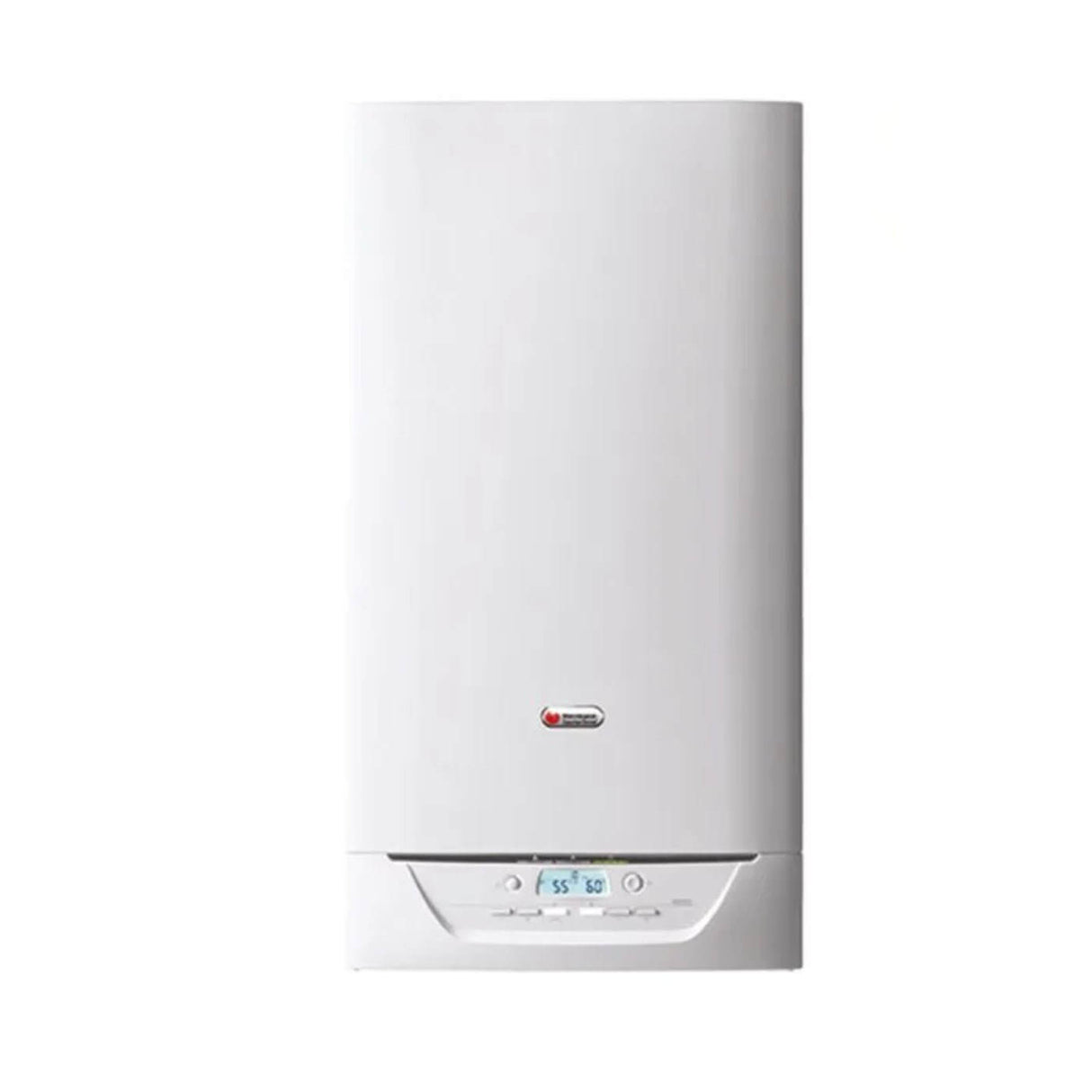

Saunier Duval Master 4 Condensing Boiler 30 Kw Complete With Kit For Methane Fume Exhaust - New Erp

SAUNIER DUVAL MASTER 4 CONDENSING 30 kW COMPLETE WITH FUME EXHAUST KIT - NEW ERP

Model:

• ErP efficiency class in heating/DHW: A
• Sanitary load profile: XL
• Type: Heating and domestic hot water
• Combustion chamber: sealed
• Domestic hot water production technology: AquaspeedPLUS®
• Heating
• Nominal power P min/max heating 80/60 °C: kW 6.1/25.0
• Partial load efficiency 30% 40/30 °C %: 109
• Sanitary
• Rated power min/max (60 °C): kW 6.1/30.6
• Specific flow rate (∆T=25 K): l/min 17
• Continuous flow rate (∆T=30 K): l/min 21
• Min/max DHW temperature: 45 / 65 °C
• Electrical characteristics
• Total absorbed electric power: W 140
• Supply voltage/frequency: V/Hz 230/50
• Dimensions:
• Dimensions (h x w x d): 892 x 470 x 570 mm
• CNG code (G20) - 10017336
• METHANE version

MASTER 4 CONDENSING

The Master 4 Condensing boilers boast exceptionally low consumption and are positioned at the top of the category both in terms of sanitary comfort and efficiency thanks also to the exclusive Aquaspeed PLUS® system for the production of domestic hot water. The range includes two models of 30 kW and 35 kW.

Characteristics

• Energy classification 4 stars **** (92/42/EEC) with yields up to 109.2%;
• Sanitary comfort 3 stars *** (EN 13203-1), thanks to the exclusive Aquaspeed PLUS® technology with sanitary stainless steel plate exchanger and double dynamic accumulation (42 litres).
• User interface with backlit digital display: the keys and symbols used allow the user to conveniently select the desired functions and temperatures and to use them simply and immediately.
• Solar Easy: all models in the Master 4 Condensing range are compatible with all solar systems. If solar radiation is not sufficient to keep the domestic water at the desired temperature, the boiler intervenes as an integration.
• Silent operation, modern design and compact dimensions make all Master 4 Condensing models perfect both for new systems and for replacement in existing systems, thanks also to a complete range of hydraulic accessories.
• Domestic hot water production (DHW) according to EN13203 up to 23 l/min
• Peak flow rate in the first 10 min. up to 276 litres
• Low NOx emissions - class 5 (EN 483)
• Total premix burner and primary heat exchanger in anti-corrosion stainless steel
• High efficiency and modulating circulator
• Heating system antifreeze function

• peso: 40.0 kg
• classe energetica produzione acs: A
• classe energetica riscaldamento: A
• gas: Methane
• marca: HERMANN SAUNIER DUVAL
• metri quadri : 220
• modello: CALD_362
• potenza in kw: 30
• potenza nominale: 30
• superficie riscaldabile mq: 220
