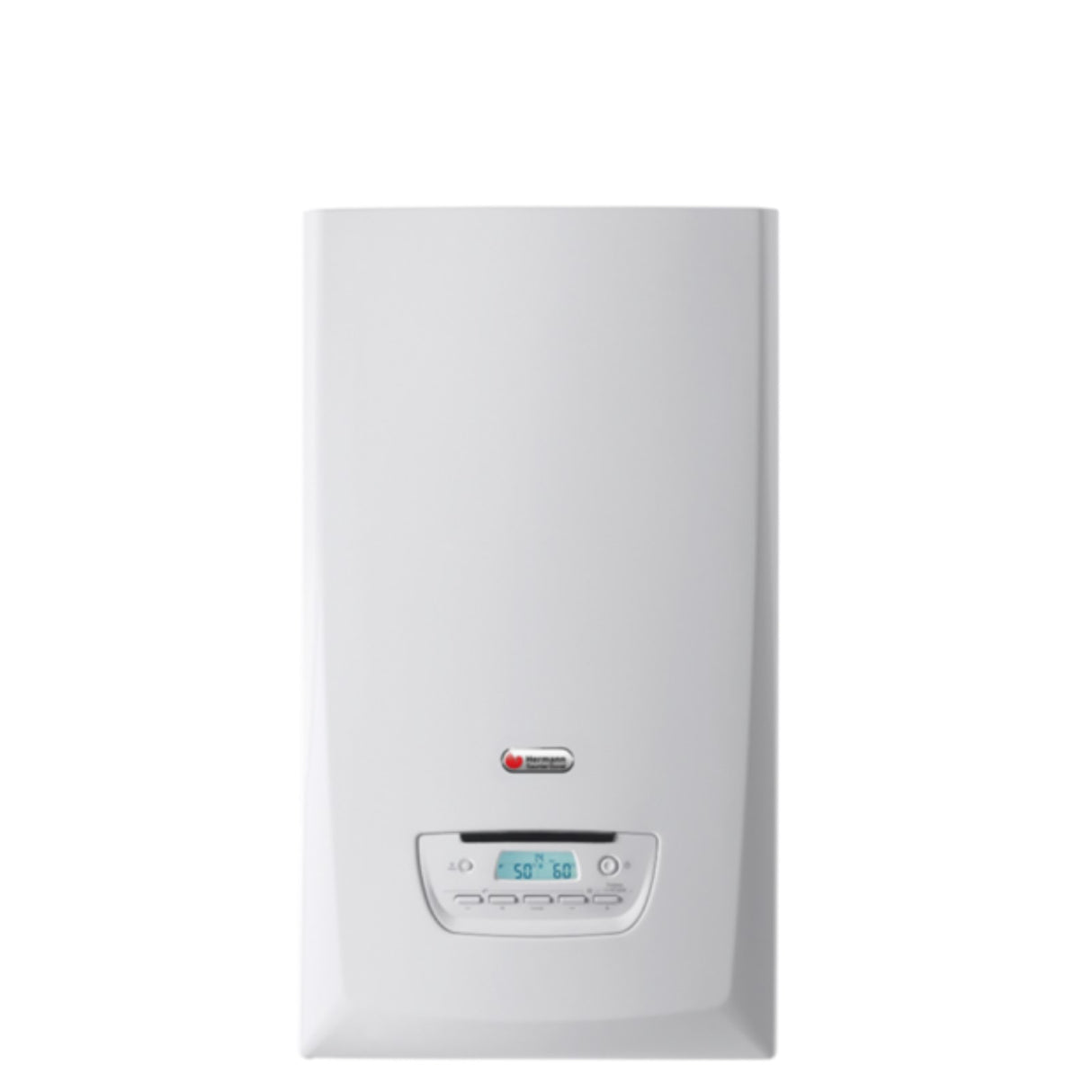

Condensing Boiler Hermann Saunier Duval THEMA CONDENS 26 kW LPG Complete with Flue Gas Exhaust Kit

Technical features

• Model : Thema Condens 26
• Power supply: LPG
• NOx class : 6
• Degree of protection: IPX5

Energy efficiency

• Energy efficiency class in heating: A
• Energy efficiency class in sanitary ware: A
• Health load profile: XL

Warm-up performance

• Rated power 80°~60°C : 4.9 ~ 24.2 kW
• Maximum efficiency 80°~60°C : 98.8%
• Maximum efficiency 50°~30°C : 106.5%

Healthcare performance

• Rated power 60°C: 25.5 kW
• Specific flow rate (DT = 30K) (EN13203) : 12.2 l/min
• Domestic hot water temperature: 38°~60° C

Dimensions and weight

• Dimension (HxWxD) 740x418x344 mm
• Net weight: 37.1 Kg

THEMA CONDENS Wall-mounted condensing boiler specifically for commercial propane systems

Thema Condens, ecological and high-performance, meets the highest standards in terms of efficiency and comfort, thanks to the exclusive Aquaspeed® technology for the production of domestic hot water. The range includes a single 26 kW combined model, designed with the aim of offering Hermann Saunier Duval installers the ideal solution for replacing traditional boilers powered by commercial propane. Thema Condens was designed with the aim of offering an ideal solution for replacing traditional boilers powered by commercial propane. Thema Condens, a boiler at the top of its category in terms of domestic comfort and efficiency. The exclusive Aquaspeed® system guarantees the immediate supply of domestic hot water at the desired temperature: the preheating of the primary circuit and therefore also of the secondary stainless steel plate exchanger, allows the boiler to respond immediately to any sudden request from the user.

• Designed for commercial propane fueled systems
• Equipped with Aquaspeed® technology for pre-heating domestic hot water
• Elegant design and small size
• Ease of management Thema Condens was created to operate on commercial propane but can easily be converted to operate on methane gas if necessary.
• Thema Condens is the ideal solution for replacing, inside apartments, traditional or condensing wall-mounted boilers that work on high-temperature or low-temperature systems. Thema Condens is available in a single model with a power of 24 kW for heating and 26 kW for the production of domestic hot water.

Characteristics

• Commercial propane condensing wall mounted boiler, combined for heating and domestic hot water, with stainless steel primary exchanger
• 4-star energy classification (92/42/EEC) with efficiency up to 108.4%; 3-star domestic hot water comfort (EN 13203-1), thanks to the Aquaspeed® system which guarantees immediate delivery of domestic hot water at the desired temperature.
• Control panel with backlit digital display, easy to use: the user can easily select the desired functions and temperatures.
• Solar Easy: compatible with all Hermann Saunier Duval solar systems, thanks to a complete series of solar kits.
• The small size makes Thema Condens perfect for both replacement and installation in new construction systems.

Product Warranty : All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 35.0 kg
• classe efficienza energetica: A
• classe energetica produzione acs: A
• classe energetica riscaldamento: A
• gas: LPG
• marca: Hermann Saunier Duval
• metri quadri : 150
• modello: CALD_THEMA
• potenza in kw: 26
• potenza nominale: 26
• superficie riscaldabile mq: 150
