icon Air-Water Monobloc Heat Pump Inverter Haier Super Water Au162fycra R-32 Single-Phase With Control Included 25023016z | CaldaieMurali

Air-Water Monobloc Heat Pump Inverter Haier Super Water Au162fycra R-32 Single-Phase With Control Included 25023016z

Description

ATTENTION ! IN CASE OF NO IMMEDIATE AVAILABILITY, THE PRODUCT WILL BE ORDERED AND SHIPPED IN 10 WORKING DAYS

OPTIONAL START UP!

Technical features

  • Model : AU162FYCRA(HW)
  • Commercial code: 25023016Z
  • Surface : Up to 180 m2
  • Standard YR-E27 command
  • Standard Y-filter

Heating LWT 35°C ~ OAT 7°C

  • Output power: 16.00 kW
  • Absorbed power: 3.86 kW
  • COP: 4.15

Heating LWT 55°C ~ OAT 7°C

  • Output power: 14.01 kW
  • Absorbed power: 5.63 kW
  • COP: 2.49
Energy efficiency

Heating with medium delivery water temperature at 35°C

  • SCOP : 4.00
  • ηs : 157%
  • Energy class: A++

Heating with medium delivery water temperature at 55°C

  • SCOP: 3.09
  • ηs : 121%
  • Energy class: A+

Cooling LWT 7°C ~ OAT 35°C

  • Output power: 14.50 kW
  • Absorbed power: 4.92 kW
  • EER: 2.95

Cooling LWT 18°C ​​~ OAT 35°C

  • Output power: 16.00 kW
  • Absorbed power: 3.64 kW
  • EER: 4.40

Performance

  • Water flow rate: 45.8 l/min
  • Minimum system water content: 80 litres
  • Sound power : 68 dB(A)
  • Internal water pump model : Grundfos
External temperature operating limits
  • Heating : -20°C ~ 35°C
  • Cooling : 10°C ~ 46°C
Delivery water temperature range
  • Heating : 25°C ~ 55°C
  • Cooling : 5°C ~ 20°C

Electrical data

  • Power supply (V,Hz, Ø) : 220~240/50/1
  • Refrigerant gas : R32
Installation data
  • Inlet / outlet liquid pipes diameter: 1" F

Dimensions and weight

  • Net dimensions (LxPxH): 950x370x1500 mm
  • Net weight : 145.0 Kg
  • Gross dimensions (LxDxH): 1010x480x1638 mm
  • Gross weight : 157.0 kg

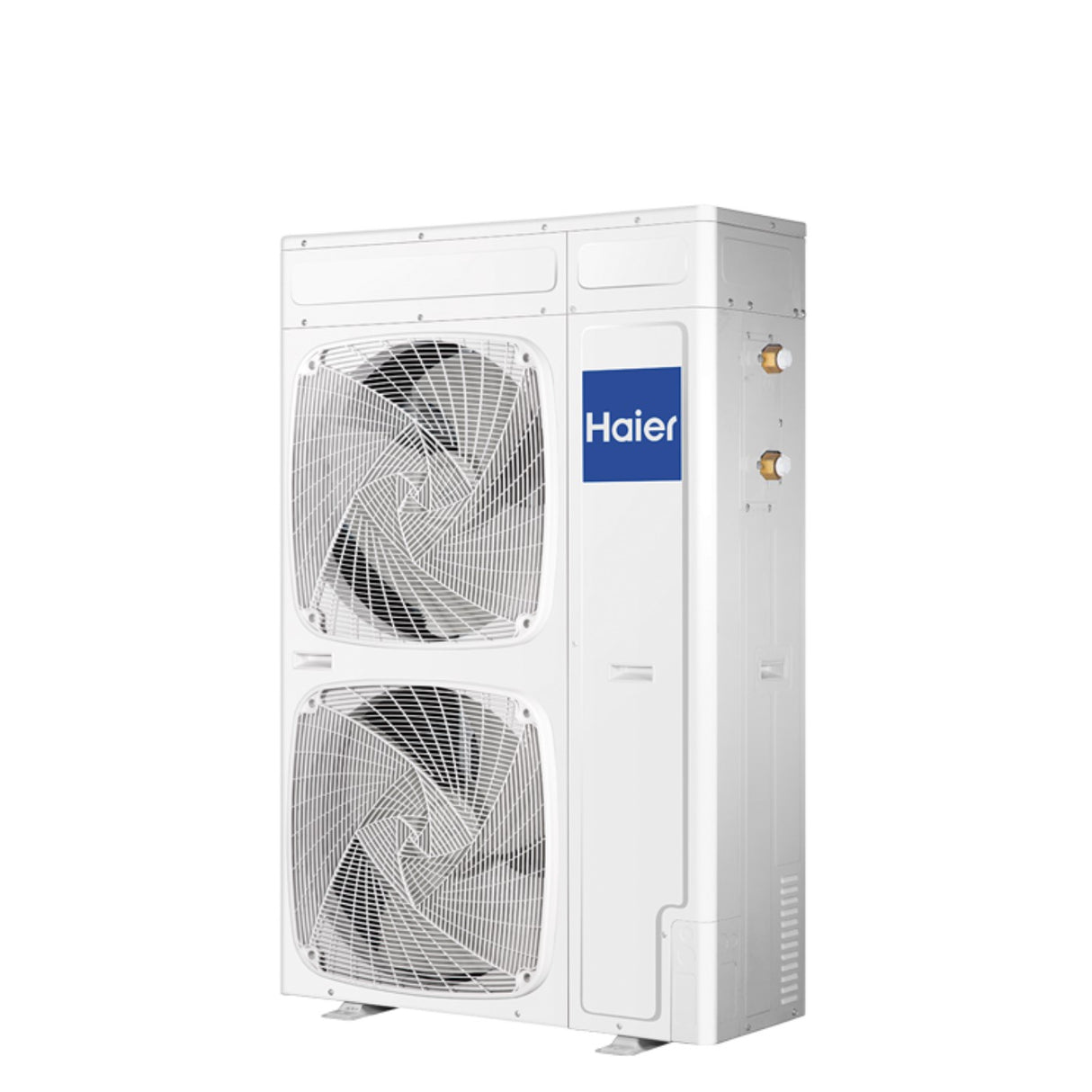

R-32 Haier Super Acqua Monoblock Air-Water Heat Pump

Super Acqua is the new Haier monobloc air/water heat pump , reversible, high efficiency , with DC inverter compressors, DC Brushless fans, and DC inverter circulator.
The Haier Super Acqua packaged heat pump has been designed for residential and commercial applications and is designed for:

  • Winter heating
  • Summer cooling
  • Domestic hot water production

All the advantages of a heat pump system

In a period of energy price increases like the one we are experiencing, the presence of a heat pump system in the home can help a lot in terms of savings.

The heat pump works on the basis of a heat exchange process between environments with different temperatures: the machine obtains energy from the air or from the subsoil or from the water and returns it to the internal environment through the heat exchanger.

The energy produced by a heat pump can be used to heat or cool rooms but also to produce hot water.

Heat pumps are considered a cost-effective choice because they can produce up to 5 kWh of thermal energy with 1 kWh of electricity, so you get more energy than you use.

In addition to the indisputable economic advantages, linked to greater energy efficiency, a heat pump system requires less maintenance, since fuel oil or gas is not burned inside.

Finally, from the point of view of environmental impact, the heat pump can certainly be said to be more sustainable because it does not produce CO emissions caused by the combustion of fossil raw materials.

The advantages of heat pumps are therefore various and are even more evident in Haier's Super Water air heat pumps, monobloc and split , which guarantee maximum comfort


Maximum comfort with the Super Acqua heat pump

The Haier Super Acqua heat pump ensures maximum comfort thanks to:

- Fast and comfortable heating

- Standard YR-E27 / YR-E27A remote control , which allows optimal management of energy flows, as well as easy control of the various operating parameters of the machine

- Minimum sound level with "Quiet" operating mode

- Domestic hot water (DHW) regulation and "Turbo" mode to reach the water temperature set point in the shortest possible time

- Predefined time programs with switching on and/or switching off differentiated for working days and weekends

Maximum Comfort


Haier Super Acqua heat pump installation: quick and easy!

The Haier Super Acqua packaged heat pump , with the integrated heat exchanger , does not require the connection of gas pipes.

The integrated hydraulic circuit is equipped with a high efficiency inverter circulator. Also included as standard:

Expansion valve

Differential flow switch

Safety valve to guarantee the stability of the hydronic system

4-way valve for reversing the refrigeration cycle

The compact dimensions facilitate installation even in small spaces .


Safety first

On the safety side, in addition to the water overpressure valve installed inside , there are also pressure sensors and pressure switches on the gas side .

Furthermore, the flow switch (or differential pressure switch) and the continuous control of the inlet-outlet water temperatures guarantee that the unit always works with the correct flow rate, avoiding malfunctions or, worse, damage to components.

There is also a dedicated " antifreeze " logic: if the external temperature and water conditions require it, the internal pump will be activated and, if necessary, also the compressor, to bring the water back to temperatures far from freezing

Top performance in all seasons

The guaranteed heating performance down to -20°C outside temperature make the Super Acqua heat pump suitable for installation in any climatic zone, even in those with the most severe conditions.

The supplied temperature sensors ensure that, in case of temperatures below 0°C, the compressor and the pump are constantly in operation to avoid possible freezing. The 5 kW heat pump size guarantees its performance down to -25°C outside temperature

Top performance


Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Air-Water Monobloc Heat Pump Inverter Haier Super Water Au162fycra R-32 Single-Phase With Control Included 25023016z

Product form

ATTENTION ! IN CASE OF NO IMMEDIATE AVAILABILITY, THE PRODUCT WILL BE ORDERED AND SHIPPED IN 10 WORKING DAYS OPTIONAL... Read more

€4.825,00 Incl. VAT

    Description

    ATTENTION ! IN CASE OF NO IMMEDIATE AVAILABILITY, THE PRODUCT WILL BE ORDERED AND SHIPPED IN 10 WORKING DAYS

    OPTIONAL START UP!

    Technical features

    • Model : AU162FYCRA(HW)
    • Commercial code: 25023016Z
    • Surface : Up to 180 m2
    • Standard YR-E27 command
    • Standard Y-filter

    Heating LWT 35°C ~ OAT 7°C

    • Output power: 16.00 kW
    • Absorbed power: 3.86 kW
    • COP: 4.15

    Heating LWT 55°C ~ OAT 7°C

    • Output power: 14.01 kW
    • Absorbed power: 5.63 kW
    • COP: 2.49
    Energy efficiency

    Heating with medium delivery water temperature at 35°C

    • SCOP : 4.00
    • ηs : 157%
    • Energy class: A++

    Heating with medium delivery water temperature at 55°C

    • SCOP: 3.09
    • ηs : 121%
    • Energy class: A+

    Cooling LWT 7°C ~ OAT 35°C

    • Output power: 14.50 kW
    • Absorbed power: 4.92 kW
    • EER: 2.95

    Cooling LWT 18°C ​​~ OAT 35°C

    • Output power: 16.00 kW
    • Absorbed power: 3.64 kW
    • EER: 4.40

    Performance

    • Water flow rate: 45.8 l/min
    • Minimum system water content: 80 litres
    • Sound power : 68 dB(A)
    • Internal water pump model : Grundfos
    External temperature operating limits
    • Heating : -20°C ~ 35°C
    • Cooling : 10°C ~ 46°C
    Delivery water temperature range
    • Heating : 25°C ~ 55°C
    • Cooling : 5°C ~ 20°C

    Electrical data

    • Power supply (V,Hz, Ø) : 220~240/50/1
    • Refrigerant gas : R32
    Installation data
    • Inlet / outlet liquid pipes diameter: 1" F

    Dimensions and weight

    • Net dimensions (LxPxH): 950x370x1500 mm
    • Net weight : 145.0 Kg
    • Gross dimensions (LxDxH): 1010x480x1638 mm
    • Gross weight : 157.0 kg

    R-32 Haier Super Acqua Monoblock Air-Water Heat Pump

    Super Acqua is the new Haier monobloc air/water heat pump , reversible, high efficiency , with DC inverter compressors, DC Brushless fans, and DC inverter circulator.
    The Haier Super Acqua packaged heat pump has been designed for residential and commercial applications and is designed for:

    • Winter heating
    • Summer cooling
    • Domestic hot water production

    All the advantages of a heat pump system

    In a period of energy price increases like the one we are experiencing, the presence of a heat pump system in the home can help a lot in terms of savings.

    The heat pump works on the basis of a heat exchange process between environments with different temperatures: the machine obtains energy from the air or from the subsoil or from the water and returns it to the internal environment through the heat exchanger.

    The energy produced by a heat pump can be used to heat or cool rooms but also to produce hot water.

    Heat pumps are considered a cost-effective choice because they can produce up to 5 kWh of thermal energy with 1 kWh of electricity, so you get more energy than you use.

    In addition to the indisputable economic advantages, linked to greater energy efficiency, a heat pump system requires less maintenance, since fuel oil or gas is not burned inside.

    Finally, from the point of view of environmental impact, the heat pump can certainly be said to be more sustainable because it does not produce CO emissions caused by the combustion of fossil raw materials.

    The advantages of heat pumps are therefore various and are even more evident in Haier's Super Water air heat pumps, monobloc and split , which guarantee maximum comfort


    Maximum comfort with the Super Acqua heat pump

    The Haier Super Acqua heat pump ensures maximum comfort thanks to:

    - Fast and comfortable heating

    - Standard YR-E27 / YR-E27A remote control , which allows optimal management of energy flows, as well as easy control of the various operating parameters of the machine

    - Minimum sound level with "Quiet" operating mode

    - Domestic hot water (DHW) regulation and "Turbo" mode to reach the water temperature set point in the shortest possible time

    - Predefined time programs with switching on and/or switching off differentiated for working days and weekends

    Maximum Comfort


    Haier Super Acqua heat pump installation: quick and easy!

    The Haier Super Acqua packaged heat pump , with the integrated heat exchanger , does not require the connection of gas pipes.

    The integrated hydraulic circuit is equipped with a high efficiency inverter circulator. Also included as standard:

    Expansion valve

    Differential flow switch

    Safety valve to guarantee the stability of the hydronic system

    4-way valve for reversing the refrigeration cycle

    The compact dimensions facilitate installation even in small spaces .


    Safety first

    On the safety side, in addition to the water overpressure valve installed inside , there are also pressure sensors and pressure switches on the gas side .

    Furthermore, the flow switch (or differential pressure switch) and the continuous control of the inlet-outlet water temperatures guarantee that the unit always works with the correct flow rate, avoiding malfunctions or, worse, damage to components.

    There is also a dedicated " antifreeze " logic: if the external temperature and water conditions require it, the internal pump will be activated and, if necessary, also the compressor, to bring the water back to temperatures far from freezing

    Top performance in all seasons

    The guaranteed heating performance down to -20°C outside temperature make the Super Acqua heat pump suitable for installation in any climatic zone, even in those with the most severe conditions.

    The supplied temperature sensors ensure that, in case of temperatures below 0°C, the compressor and the pump are constantly in operation to avoid possible freezing. The 5 kW heat pump size guarantees its performance down to -25°C outside temperature

    Top performance


    Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

    Data sheetData sheet
    • peso: 199.0 kg
    • alimentazione: Single phase
    • gas: R-32
    • marca: Haier
    • modello: AU162FYCRA_1
    • potenza in kw: 16
    • tipologia : Monobloc
