Technical features
Indoor unit
1)Model:
- White model catalog code: AS20S2SF1FA-MB
- Power: 7000 Btu/h x 2
- Dimensions WxDxH 866x196x301 mm; 9.5 kgs
- Standard YR-HQ remote control
- Integrated Wi-Fi
2)Model:
- White model catalog code: AS35S2SF1FA-MB
- Power: 12000 Btu/h
- Dimensions WxDxH 866x196x301 mm; 9.5 kgs
- Standard YR-HQ remote control
- Integrated Wi-Fi
Outdoor unit
- Catalog code: 3U55S2SR2FA
- Max indoor units: 3
Energy efficiency
- Nom COOL output power (min~max) kW 5.2 (1.5~7.0)
- RISC output power nom (min~max) kW 6,5 (1,8~8,1)
- RAFF SEER energy class 8.5 (A+++)
- Energy class RISC SCOP 4.0 (A+)
Performance
- Annual energy consumption RAFF kWh/a 210
- Annual RISC energy consumption kWh/a 1522
- Power supply V-Ph-Hz 230-1-50
- Sound power dB(A) 65
- Sound pressure dB(A) 52
Hydraulic data:
- R32 refrigerant
- Liquid/gas pipe Ø mm 3x6.35 / 3x9.52
- Total pipe length max m 50
- Single EU-UI line max piping length m 20
- Max height difference IU - UE m 15
- Max height difference IU - IU m 7.5
- Function limits:
- COOL. min~max °C -10÷46°C
- HEAT. min~max °C -15÷24°C
- Dimensions WxDxH mm 860x308x730 ; 51 kgs
FLEXIS extension

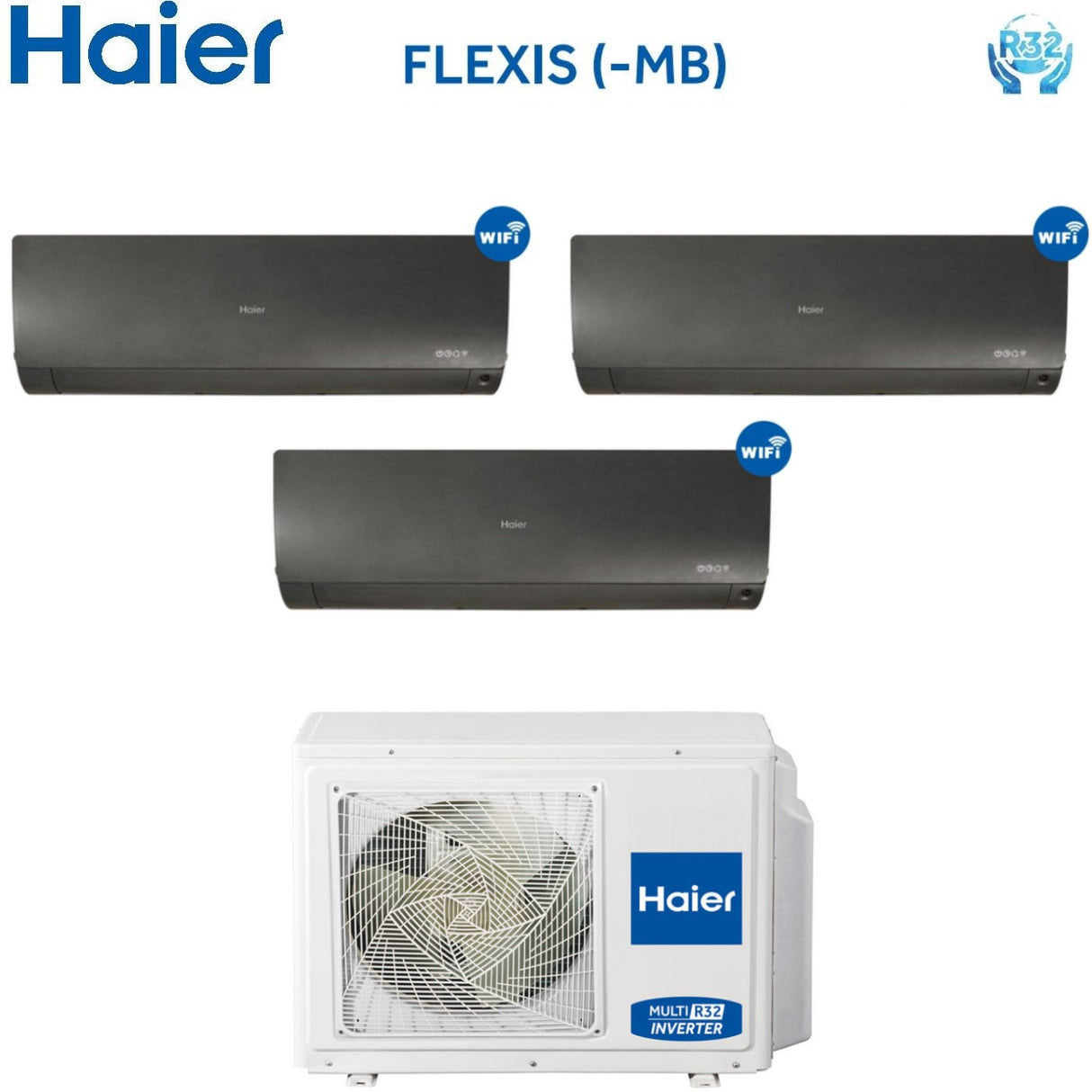

The new Haier FLEXIS internal unit is available in Matt White and Matt Black , i.e. matt white and matt anthracite grey. It supports R32 gas which at the moment represents the best in yields and reduced environmental impact on the greenhouse effect, it is easy to use thanks to a complete and intuitive remote control, and a refined and pleasant aesthetic which thanks to the opaque color is very modern and integrates well into the home environment.
The performance is top notch from all points of view and the use of DC fans combined with design optimization can reduce noise up to 16d B(A ) , practically imperceptible to the human ear.
Haier FLEXIS is equipped with a double motion sensor with an angle of 120° and a reading up to 8m. distance, which ensures a comfortable air flow by detecting the presence of people in the room according to your needs. In fact, the "follow" or "avoid" functions can be set.
The air deflectors are also adjustable by remote control both for the classic movement on the horizontal axis and on the vertical ones to direct the flow to the right or to the left as desired.
To the delight of the installer, Haier FLEXIS was designed with criteria that facilitate assembly by reducing installation times and simplifying the steps to be done for the hydraulic and electrical connections and was born in an inverter heat pump with high energy efficiency and with all the characteristics necessary to take advantage of the tax breaks provided for by the legislature for 2019.
Eco Sensor
Double motion sensor
Double motion sensor capable of covering an area of 120° (2 direction area horizontally). Maximum detection distance 8m.
Quietness
The noise level of the indoor unit is 19 dB(A)
The use of DC Inverter fans and design optimization decrease the noise level of the indoor units. With the Quiet setting the level of only 19dB(A) is reached.
Easy installation
1. Easy installation of the mounting template Thanks to detailed instructions, the mounting template can be installed quickly and easily.
2. Easy clip Easier to install due to the additional support clip, which increases the working space.
3. Quick and easy repair of the PCB and motor Allows the removal and maintenance of the PCB and motor without the need to disassemble the unit and the evaporator.
4. More space for piping reduces installation time by increasing the operating space for easy access to piping and electrical connection area.
6. Removable bottom panel Allows the installer to connect pipes and cables with more operating space
Wifi
Allows you to set the air conditioner remotely even when you are away
- Easy installations
- Eco Sensor
- 16dB(A)
- Wi-Fi as standard
- Energy class in cooling: A+++
- Energy class in heat pump: A++
