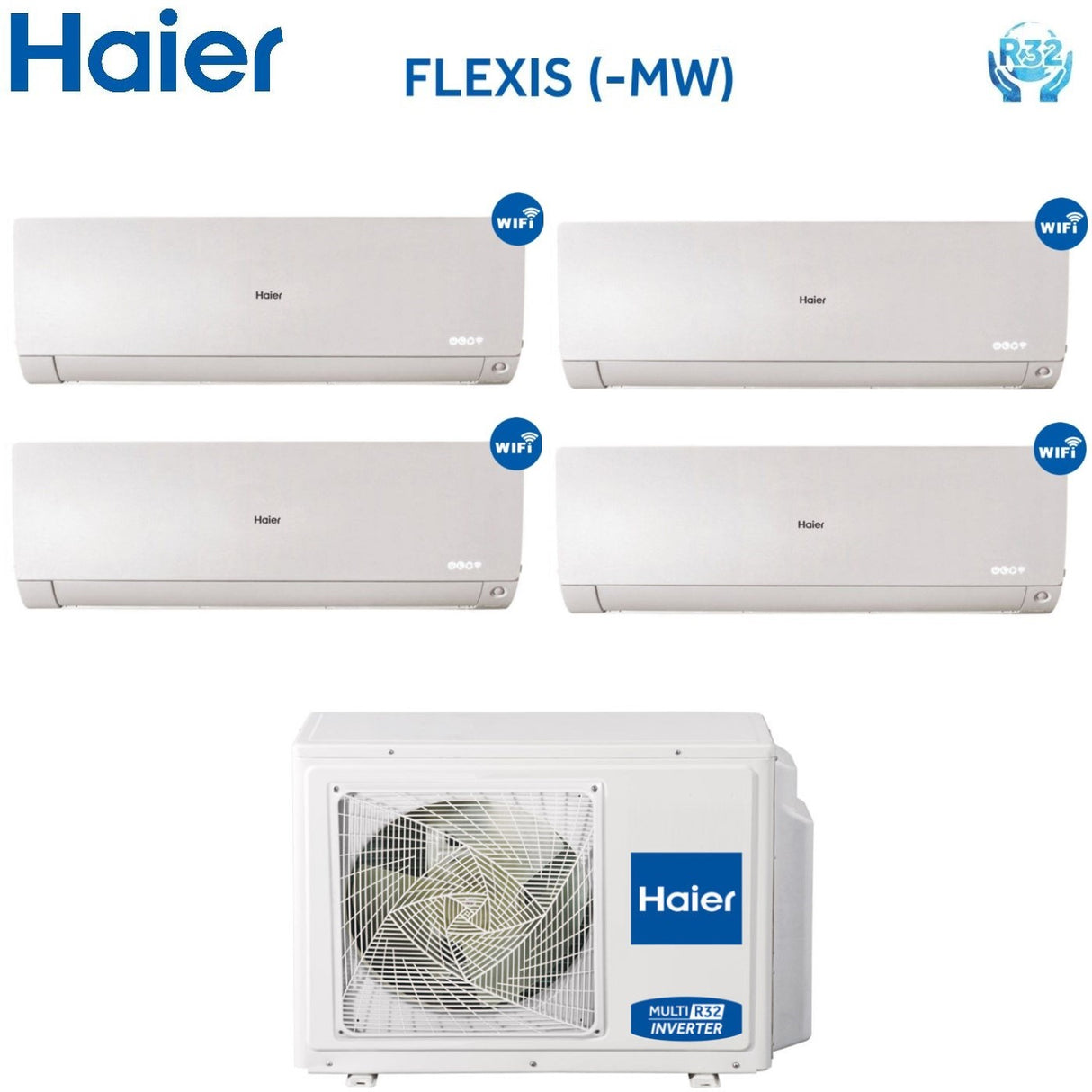

HAIER FLEXIS White Series 9000+9000+9000+9000 BTU Inverter Split Quadri Air Conditioner with 4U85S2SR2FA Built-in WiFi R-32 Wi-Fi 9+9+9+9 - New

Technical Features

Internal Unit

1)Model:

External unit

Model:

• Catalog Code: 4U85S2SR2FA
• Max internal units: 4

Energy efficiency

• Energy class RAFF. SEER 7.0 (A++)
• HEATING energy class. SCOP 4.0 (A+)
• Annual energy consumption RAFF kWh/a 456
• Annual energy consumption RISC kWh/a 2503

Performance

• Power output COOL nom (min~max) kW 8.5 (3.2~9.5)
• RISC rated output power (min~max) kW 9.6 (4.4-10.7)
• Power consumption RAFF. nom kW 2,5
• Power consumption HEATING nom kW 2,4
• Sound power dB(A) 68
• Sound pressure dB(A) 55
• Treated air volume 4000 m3h
• Power supply 230-1-50 V-Ph- Hz

Hydraulic data

• R32 Refrigerant
• Liquid/gas pipe Ø mm 4x6.35 / 3x9.52 + 12.7
• Total length of pipes max 70 m
• Max pipe length single line UE-UI m 25
• Max difference in altitude UI - UE m 15
• Max difference in altitude UI - UI m 7.5
• Function limits:
  - COOL. min~max °C -10÷46°C
  - HEATING min~max °C -15÷24°C

Dimensions

• Dimensions WxDxH mm 890x340x700; 61 kg

FLEXIS

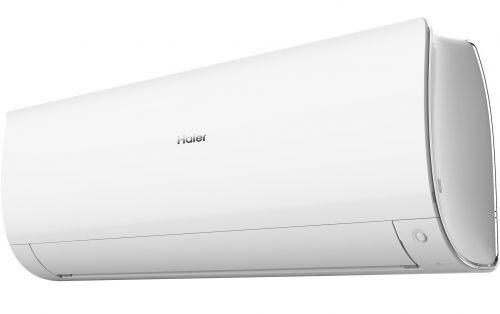

The new Haier FLEXIS indoor unit is available in Matt White and Matt Black , that is, matt white and matt anthracite grey. It supports R32 gas , which currently represents the best in terms of performance and reduced environmental impact on the greenhouse effect, it is easy to use thanks to a complete and intuitive remote control, and a refined and pleasant aesthetic that, thanks to the matt colour, is very modern and integrates perfectly into the home environment.

The performance is top notch in all respects and the use of direct current fans combined with design optimization can reduce noise levels by up to 16d B(A ) , virtually imperceptible to the human ear.

Haier FLEXIS is equipped with a double motion sensor with a 120° angle and a reading up to 8m away, which ensures a comfortable air flow by detecting the presence of people in the environment according to your needs. In fact, the “follow” or “avoid” functions can be set.
The air deflectors are also adjustable by remote control both for the classic movement on the horizontal axis and on the vertical ones to direct the flow to the right or left as desired.

To the delight of the installer, Haier FLEXIS has been designed with criteria that facilitate assembly by reducing installation times and simplifying the steps to be taken for hydraulic and electrical connections and is born as a high energy efficiency inverter heat pump and with all the features necessary to take advantage of the tax breaks provided for by the legislature for 2019.

Eco Sensor

Dual motion sensor

Double motion sensor capable of covering an area of ​​120° (2 directions of the area horizontally). Maximum detection distance 8m.

Silence

The indoor unit's noise level is 19 dB(A)

The use of DC Inverter fans and design optimization reduce the noise level of the indoor units. With the Quiet setting, the level of only 19dB(A) is reached.

Easy installation

1. Easy installation of the mounting jig Thanks to detailed instructions, the mounting jig can be installed quickly and easily.

2. Easy clip Easier to install thanks to the additional support clip, which increases the working space.

3. Quick and easy repair of the electronic board and motor Allows the removal and maintenance of the electronic board and motor without having to disassemble the unit and evaporator.

4. More space for piping reduces installation time by increasing operating space for easy access to piping and electrical connection area.

6. Removable bottom panel Allows the installer to connect pipes and cables with greater operating space

Wi-Fi

Allows you to set the air conditioning remotely even when you are away

• Easy installations
• Eco Sensor
• 16dB(A)
• Wi-Fi as standard
• Energy class in cooling: A+++
• Energy class in heat pump: A++

Product Warranty: All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 100.0 kg
• classe energetica raffreddamento: A++
• classe energetica riscaldamento: A+
• gas: R-32
• marca: HAIER
• modello: 9+9+9+9Flexis+4U85S2SR2FA
• potenza btu: 9000+9000+9000+9000
• superficie riscaldabile mq: 25/25/25/25
