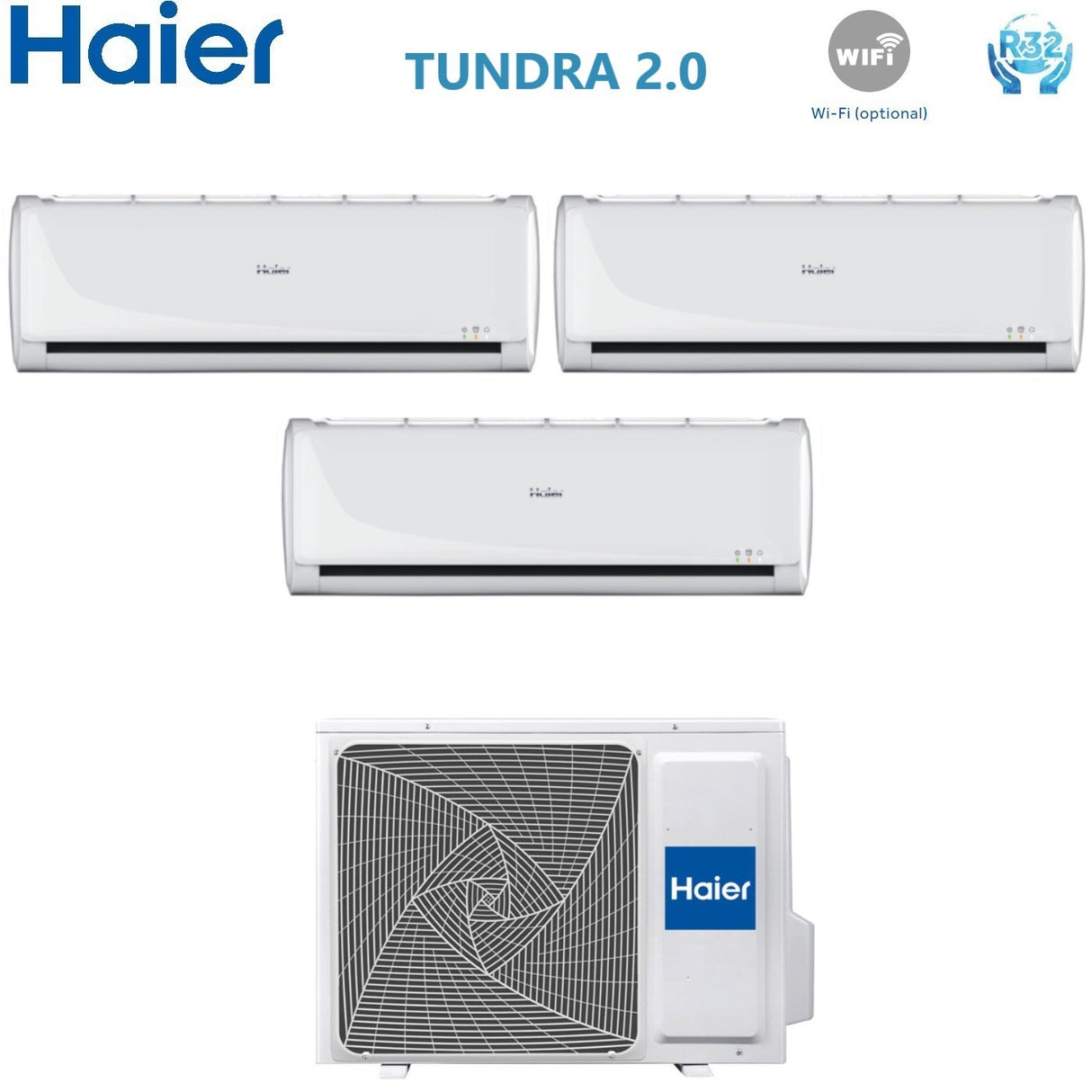

Haier Trial Split Inverter Air Conditioner Tundra 2.0 Series 7+7+9 With 3u70s2sr2fa R-32 Wi-Fi Optional 7000+7000+9000 - New

Description

Technical features

1) Model

  • Series: TUNDRA 2.0
  • Indoor unit model : 2 x AS20TADHRA
  • Power: 7000 btu
  • Dimensions WxDxH (mm) : 820 x 195 x 280; 8.8 kg

2) Model

  • Series: TUNDRA 2.0
  • Indoor unit model : AS25TADHRA
  • Power: 9000 btu
  • Dimensions WxDxH (mm) : 820 x 195 x 280; 8.8 kg

Outdoor unit

Model:

  • Catalog code: 3U70S2SR2FA
  • Max indoor units: 3

Energy efficiency

  • RAFF energy class. SEER 7.5 (A++)
  • Energy class RISC. SCOP 4.2 (A+)
  • Annual energy consumption RAFF kWh/a 332
  • Annual RISC energy consumption kWh/a 2012

Performance

  • Nom COOL output power (min~max) kW 7.0 (2.4~7.6)
  • RISC output power nom (min~max) kW 7.6 (2.9-8.5)
  • COOL absorbed power. rated kW 1.75
  • HEATING absorbed power. rated kW 1.80
  • Sound power dB(A) 66
  • Sound pressure dB(A) 53
  • Treated air volume 3000 m3h
  • Power supply 230-1-50V-Ph-Hz

Hydraulic data

  • R32 refrigerant
  • Liquid/gas pipe Ø mm 3x6.35 / 3x9.52
  • Total pipe length max m 60
  • Single EU-UI line max piping length m 25
  • Max height difference IU - UE m 15
  • Max height difference IU - IU m 7.5
  • Function limits:
    - COOL. min~max °C -10÷46°C
    - HEAT. min~max °C -15÷24°C

Dimensions

  • Dimensions WxDxH mm 890x340x700 ; 54 kgs

TUNDRA 2.0

Haier introduces the new Tundra 2.0 inverter wall air conditioner with R32 refrigerant gas.

In accordance with the objectives of the European legislation on the emission of greenhouse gases and the requests for improvement of energy efficiency, Haier has invested in Research and Development to provide modern solutions for air conditioning. Today the R32 range is implemented with monosplit and multisplit solutions.

Advantages of R32 gas

Compared with traditional R410A gas, the potential GWP level of R32 is about 1/3 less. (GWP is 675 for R32 compared to 2088 for R410A). As a single refrigerant component, R32 is also easy to recycle and reuse. There is no concern about splitting and splitting as R32 is not a gas mixture.

MAIN FEATURES:

  • Superquiet: with the Super Quiet setting the level of only 21 dB(A) is reached
  • Intelligent Air: this function automatically directs the deflectors in order to best distribute the flow according to the set mode
  • Sleep function: Haier has designed a program for the night function of the air conditioner to ensure maximum comfort without wasting energy
  • Energy saving and high efficiency compressor
  • Self-cleaning exchanger: helps to keep the heat exchanger clean from mould, dust, etc…
  • Wi-Fi Optional Allows you to set the air conditioner remotely

Features list

  • On-off card
  • 180° AD
  • DC motor
  • Sleep function
  • 6 Ventilation Speeds
  • intelligent air
  • Smart Defrosting
  • Auto Mode
  • Auto vertical flow
  • Self-cleaning exchanger
  • Reversible Condensate Drain
  • Display tests
  • Auto Restart
  • Blue-Fin
  • Easy Clean

Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Haier Trial Split Inverter Air Conditioner Tundra 2.0 Series 7+7+9 With 3u70s2sr2fa R-32 Wi-Fi Optional 7000+7000+9000 - New

Product form

Technical features 1) Model Series: TUNDRA 2.0 Indoor unit model : 2 x AS20TADHRA Power: 7000 btu Dimensions WxDxH (mm)... Read more

€1.445,00 Incl. VAT

    Description

    Technical features

    1) Model

    • Series: TUNDRA 2.0
    • Indoor unit model : 2 x AS20TADHRA
    • Power: 7000 btu
    • Dimensions WxDxH (mm) : 820 x 195 x 280; 8.8 kg

    2) Model

    • Series: TUNDRA 2.0
    • Indoor unit model : AS25TADHRA
    • Power: 9000 btu
    • Dimensions WxDxH (mm) : 820 x 195 x 280; 8.8 kg

    Outdoor unit

    Model:

    • Catalog code: 3U70S2SR2FA
    • Max indoor units: 3

    Energy efficiency

    • RAFF energy class. SEER 7.5 (A++)
    • Energy class RISC. SCOP 4.2 (A+)
    • Annual energy consumption RAFF kWh/a 332
    • Annual RISC energy consumption kWh/a 2012

    Performance

    • Nom COOL output power (min~max) kW 7.0 (2.4~7.6)
    • RISC output power nom (min~max) kW 7.6 (2.9-8.5)
    • COOL absorbed power. rated kW 1.75
    • HEATING absorbed power. rated kW 1.80
    • Sound power dB(A) 66
    • Sound pressure dB(A) 53
    • Treated air volume 3000 m3h
    • Power supply 230-1-50V-Ph-Hz

    Hydraulic data

    • R32 refrigerant
    • Liquid/gas pipe Ø mm 3x6.35 / 3x9.52
    • Total pipe length max m 60
    • Single EU-UI line max piping length m 25
    • Max height difference IU - UE m 15
    • Max height difference IU - IU m 7.5
    • Function limits:
      - COOL. min~max °C -10÷46°C
      - HEAT. min~max °C -15÷24°C

    Dimensions

    • Dimensions WxDxH mm 890x340x700 ; 54 kgs

    TUNDRA 2.0

    Haier introduces the new Tundra 2.0 inverter wall air conditioner with R32 refrigerant gas.

    In accordance with the objectives of the European legislation on the emission of greenhouse gases and the requests for improvement of energy efficiency, Haier has invested in Research and Development to provide modern solutions for air conditioning. Today the R32 range is implemented with monosplit and multisplit solutions.

    Advantages of R32 gas

    Compared with traditional R410A gas, the potential GWP level of R32 is about 1/3 less. (GWP is 675 for R32 compared to 2088 for R410A). As a single refrigerant component, R32 is also easy to recycle and reuse. There is no concern about splitting and splitting as R32 is not a gas mixture.

    MAIN FEATURES:

    • Superquiet: with the Super Quiet setting the level of only 21 dB(A) is reached
    • Intelligent Air: this function automatically directs the deflectors in order to best distribute the flow according to the set mode
    • Sleep function: Haier has designed a program for the night function of the air conditioner to ensure maximum comfort without wasting energy
    • Energy saving and high efficiency compressor
    • Self-cleaning exchanger: helps to keep the heat exchanger clean from mould, dust, etc…
    • Wi-Fi Optional Allows you to set the air conditioner remotely

    Features list

    • On-off card
    • 180° AD
    • DC motor
    • Sleep function
    • 6 Ventilation Speeds
    • intelligent air
    • Smart Defrosting
    • Auto Mode
    • Auto vertical flow
    • Self-cleaning exchanger
    • Reversible Condensate Drain
    • Display tests
    • Auto Restart
    • Blue-Fin
    • Easy Clean

    Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

    Data sheetData sheet
    • peso: 75.0 kg
    • classe energetica raffreddamento: A++
    • classe energetica riscaldamento: A+
    • gas: R-32
    • marca: HAIER
    • modello: Tundra 7+7+9 con 3U70S2SR2F
    • potenza btu: 7000+7000+9000
    • superficie riscaldabile mq: 20/20/25
