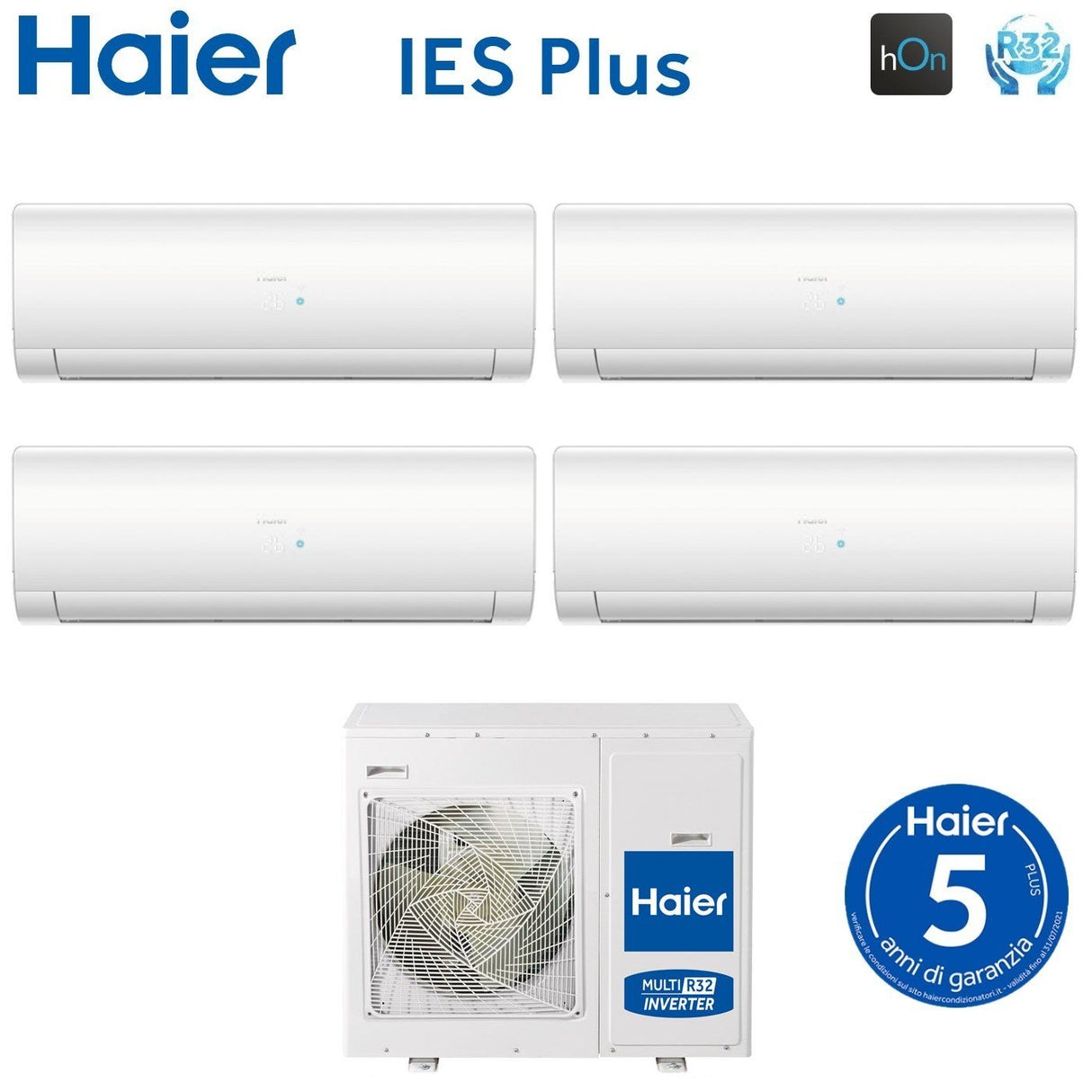

Haier Quadri Split Inverter Air Conditioner IES PLUS Series 7+7+7+12 with 4U85S2SR3FA R-32 Integrated Wi-Fi 7000+7000+7000+12000 - New

Trustpilot
€2.251,00 VAT included
Tax included Shipping calculated at checkout.

Come funziona la spedizione

I costi di spedizione variano a seconda del peso e della modalità di spedizione dell'ordine.

I nostri servizi di spedizione:

  • Spedizione standard: consegna stimata dai 2 ai 5 giorni lavorativi
  • Spedizione Premium: consegna garantita in 24 ore lavorative
  • Spedizione Premium + Consegna al piano: consegna garantita in 24 ore lavorative

Consulta le tabelle per i prezzi della spedizione standard per l'Italia e per le Isole Minori e Zone Disagiate.

Per ulteriori dettagli sulla Spedizione Premium, consulta la pagina di spedizione premium.

Servizio clienti

Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.

Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.

Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.

Description

Technical Features

Internal units

1) Model

  • Internal Unit Catalog Code: 3x AS20S2SF2FA-3
  • Commercial Code Internal Unit: 2501300A2
  • Power: 7000 btu/h
  • Cooling Capacity : 2.0 kW
  • Heating capacity: 2.5 kW
  • Treated Air: 600 m3 /h
  • Sound Power Level: 53 dB(A)
  • Sound pressure level : 19~38 dB(A)
  • Liquid Pipe Diameter: 6.35mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (WxDxH): 870x196x301 mm
  • Internal Unit Weight: 9.5 Kg
  • Built-in Wi-Fi

2) Model

  • Internal Unit Catalog Code: 1x AS35S2SF2FA-3
  • Commercial Code Internal Unit: 2501302A2
  • Power: 12000 btu/h
  • Cooling Capacity : 3.5 kW
  • Heating capacity: 4.2 kW
  • Treated Air: 650 m3 /h
  • Sound Power Level: 55 dB(A)
  • Sound pressure level : 20~39 dB(A)
  • Liquid Pipe Diameter: 6.35mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (WxDxH): 870x196x301 mm
  • Internal Unit Weight: 9.5 Kg
  • Built-in Wi-Fi

External Unit

Model:

  • External Unit Catalog Code: 4U85S2SR3FA
  • Commercial Code External Unit: 2502327B2
  • Max indoor units: up to 4 indoor units

Energy Efficiency:

  • SEER : 7.0
  • SCOP : 4.0
  • Energy Efficiency Class Cooling: A++
  • Heating Energy Efficiency Class: A+
  • Annual energy consumption in Cooling: 456 kWh/a
  • Annual energy consumption in heating: 2503 kWh/a

Performance:

  • Cooling capacity: 8.5 kW
  • Heating capacity: 9.6 kW
  • Std Cooling Absorption: 2.5 kW
  • Std Heating Absorption: 2.4 kW
  • Sound power level: 68 dB(A)
  • Sound pressure level: 55 dB(A)

Characteristics:

  • Power supply (V/Hz/Φ) : 220~240/50/1
  • Refrigerant gas: R-32
  • Guaranteed temperature range:
  • - Cooling: -10° ~ 46° C
  • - Heating: -15° ~ 24° C
Installation Data
  • Liquid Pipe Diameter: 6.35mm (1/4") x4
  • Gas pipe diameter: 9.52 mm (3/8") x3 + 12.70 mm (1/2") x1
  • Maximum Pipe Length: 70 m
  • Maximum height difference between internal unit and external unit: 15 m

Dimensions:

  • External Unit Dimensions (WxDxH): 890x340x700 mm
  • External Unit Weight: 61.0 Kg

5 Years of Peace of Mind with the Haier Plus 5 Warranty

Register your new air conditioner and activate the Haier Warranty in just a few steps

Garanzia

To do this, keep the following at hand:
  • Serial numbers to register
  • Your personal and login data
  • The contacted technician's details

Models from years prior to 2019 and the following lines are not included in the Plus 5 Warranty: Geos +, Hec, Portable, Water heaters, Air curtains, MRV, Chillers, heat recovery units

R-32 Multisplit Haier

Earth, home to all. Let's protect it!

Compared to 100 years ago, the global temperature has increased by almost 0.5°C (from 1981 to 1990 +0.48°C). Global warming has attracted the attention of all countries, the main cause of the increase in temperature is the release of greenhouse gases into the atmosphere. To remedy the situation, the Montreal Protocol was signed in 1987 and the Kyoto Protocol in 1997. In 2009, the European Union introduced the F-Gas regulation and approved in December 2013. The new rules come into force in May 2014 and January 2015. Without the rules indicated by the F-Gas regulation, we would produce 150 thousand tons of CO2 per year.

Refrigerant with very low environmental impact

Haier offers products that comply with the requirements of European Union environmental standards. To avoid dangerous damage to the environment, Europe is working to reduce greenhouse gas emissions and improve energy efficiency. Units with R32 refrigerant contain less gas and have a lower GWP than R410A units, which have a lower impact on global warming.

GWP = Global Warming Potential

Global warming potential (GWP) is a measure of how much a molecule of a certain greenhouse gas impacts the greenhouse effect; the index is based on a relative scale that compares each gas with carbon dioxide, whose GWP by definition has the value 1. Each GWP value is calculated for a specific time interval.

In comparison, the GWP of R32 refrigerant is equivalent to a value of 675, while the GWP of R410A refrigerant is equivalent to a value of 2088.

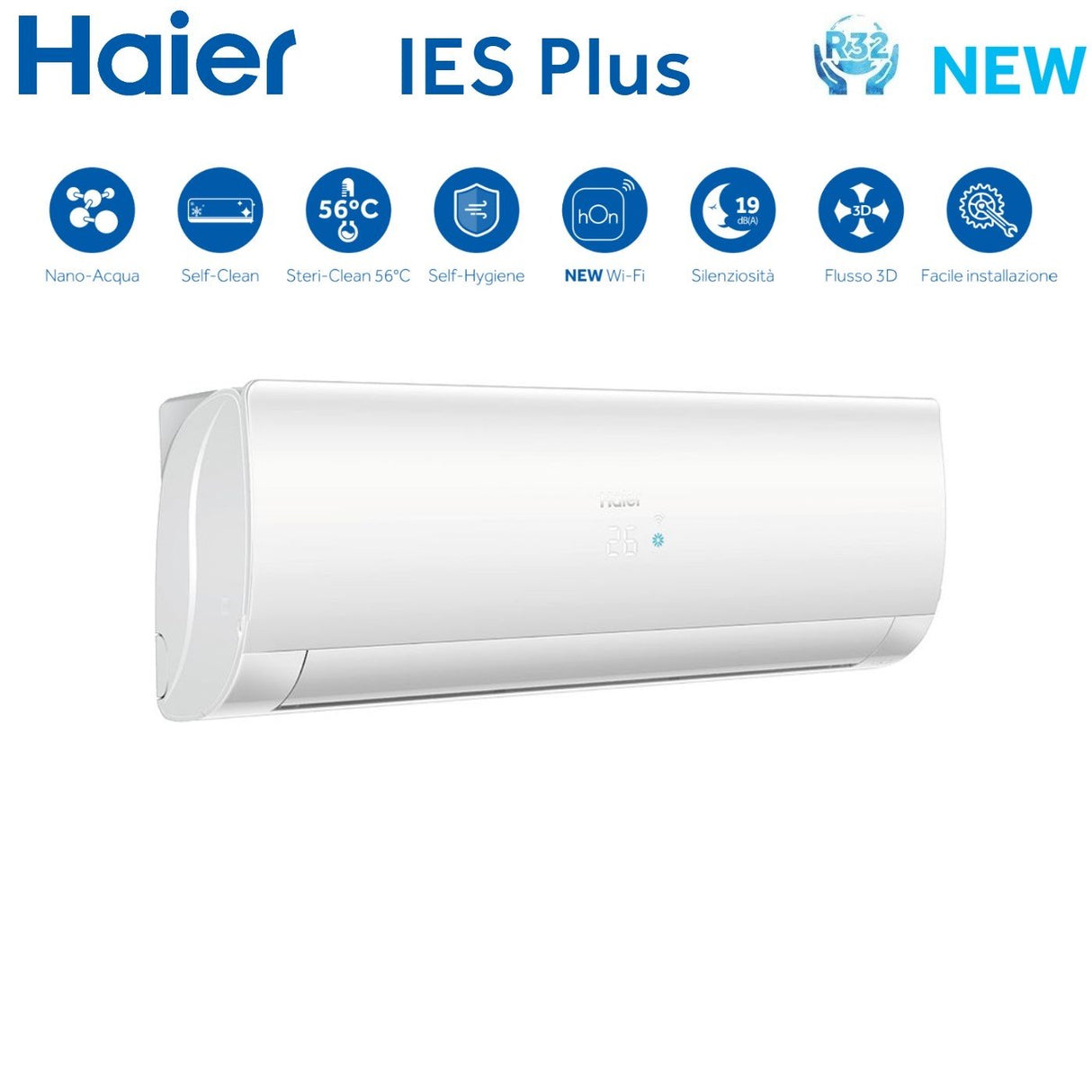

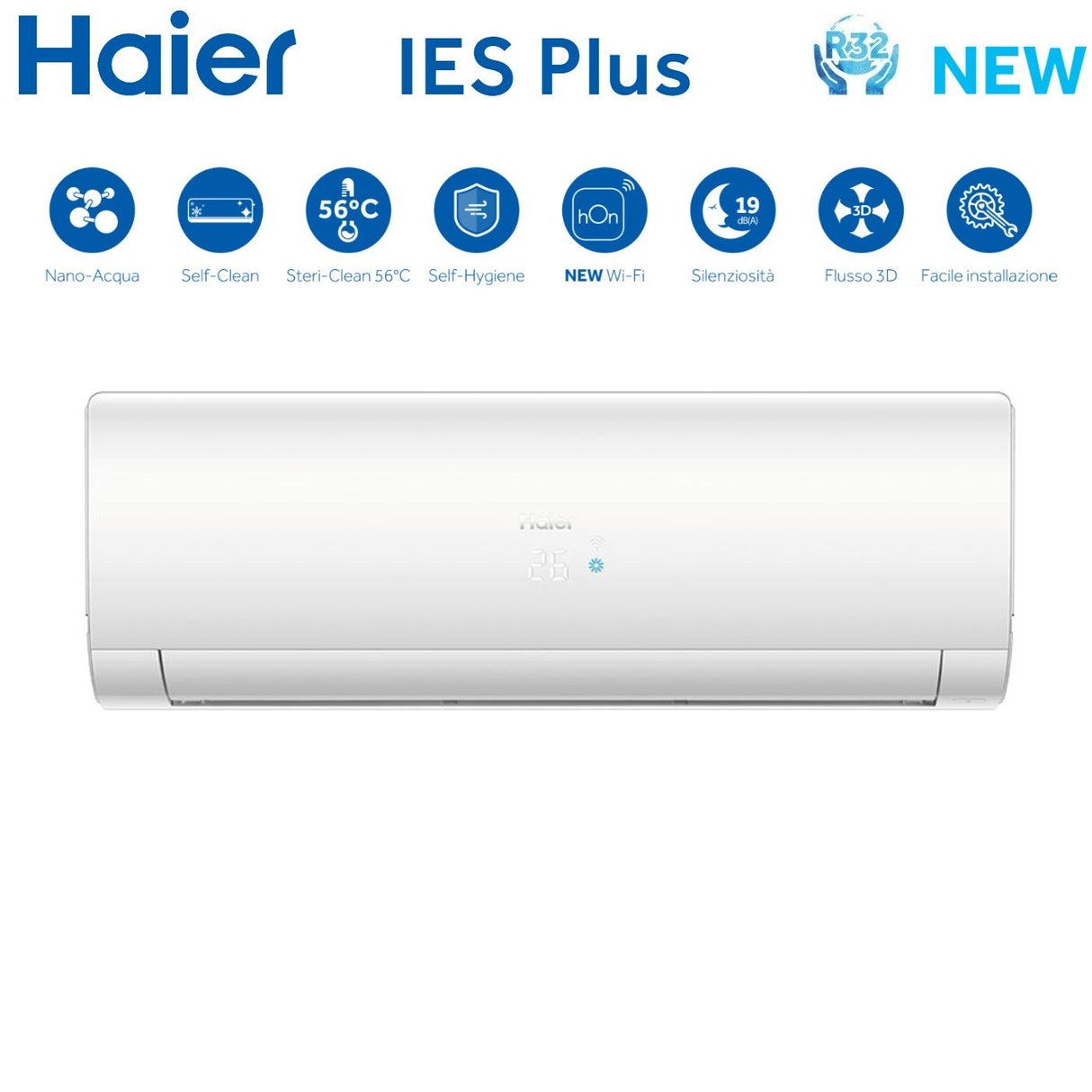

Haier IES PLUS

Ies Plus

Smart

With the Haier "hOn" application you can control all the Haier group appliances of your Smart Home from your smartphone or tablet, with a single app. Furthermore, through hOn, you can manage all the basic functions , purification functions and much more. The app allows the use of voice commands because it is compatible with Google Assistant and Alexa and therefore also allows voice control

Smart Ies Plus

Purification

The Nano-Water sterilization system improves air quality by providing a refreshing and well-being sensation , like the one you can experience in a forest, while staying comfortably at home.

The IES Plus air conditioner offers additional purification thanks to Steri-Clean 56°C, Self-Hygiene and Self-Clean technologies.

Purificazione Ies

Comfort

Low noise level: 19 dB(A) A low noise level ensures maximum peace of mind thanks to the optimised design of the fan, air ducts and motor.

Comfort Ies Plus

3D Airflow The continuous movement of the vertical and horizontal deflectors directs the airflow to any point in the room

Plus Product

• Nano-Water

• Self-Clean

• Steri-Clean 56°C

• Self-Hygiene

• Wi-Fi control with hOn App to remotely control the air conditioner

• Low noise level

• 3D airflow: continuous movement of horizontal and vertical deflectors

• Easy installation

Product Warranty: All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

Scheda Tecnica
  • peso: 100.0 kg
  • classe energetica raffreddamento: A++
  • classe energetica riscaldamento: A+
  • gas: R-32
  • marca: HAIER
  • modello: IES PLUS 7+7+7+12 85
  • potenza btu: 7000+7000+7000+12000
  • superficie riscaldabile mq: 20/20/20/35
