HAIER I ES

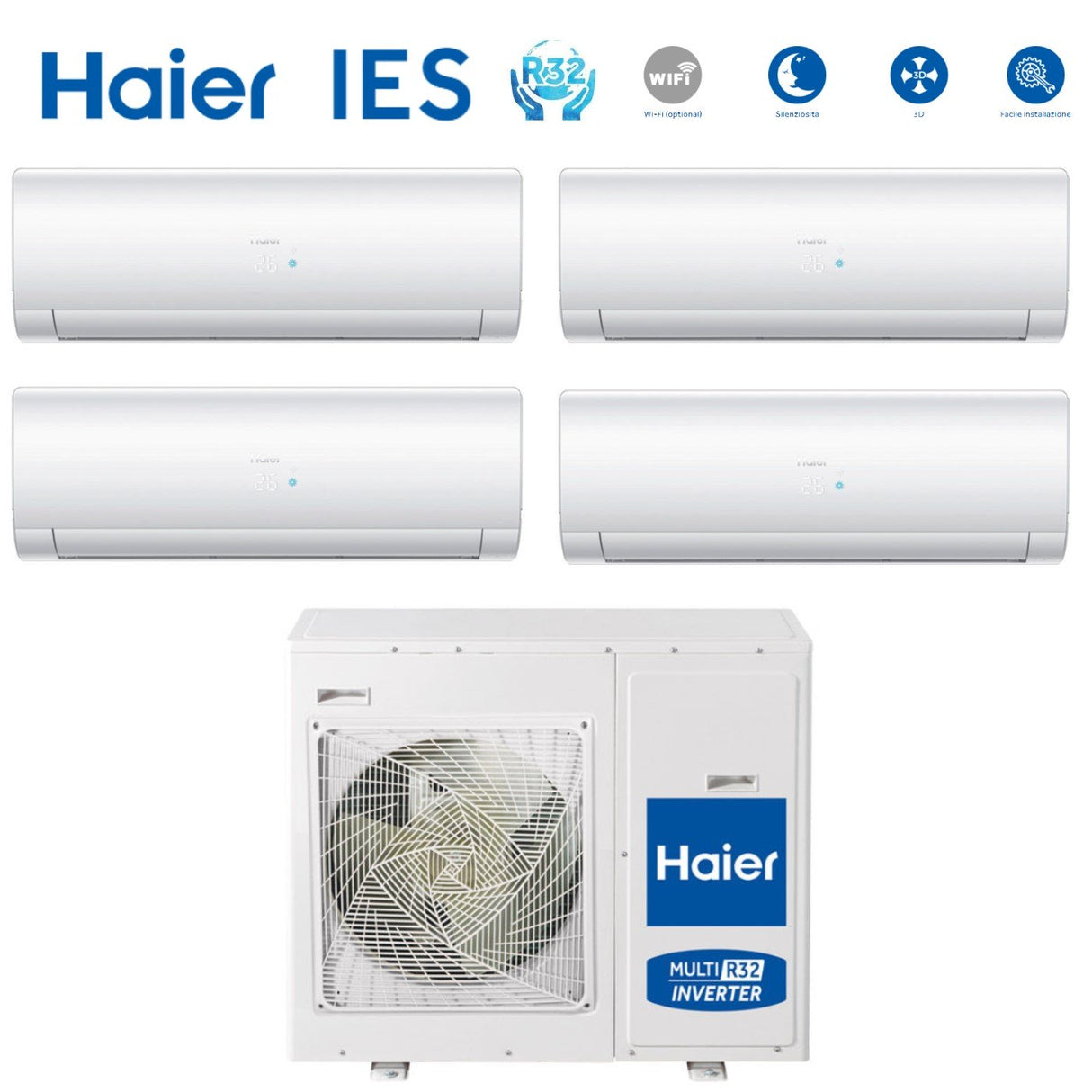

HAIER IES Air Conditioner 7000+9000+9000+18000 BTU with 4U85S2SR2FA
with optional wi-fi
Technical features:

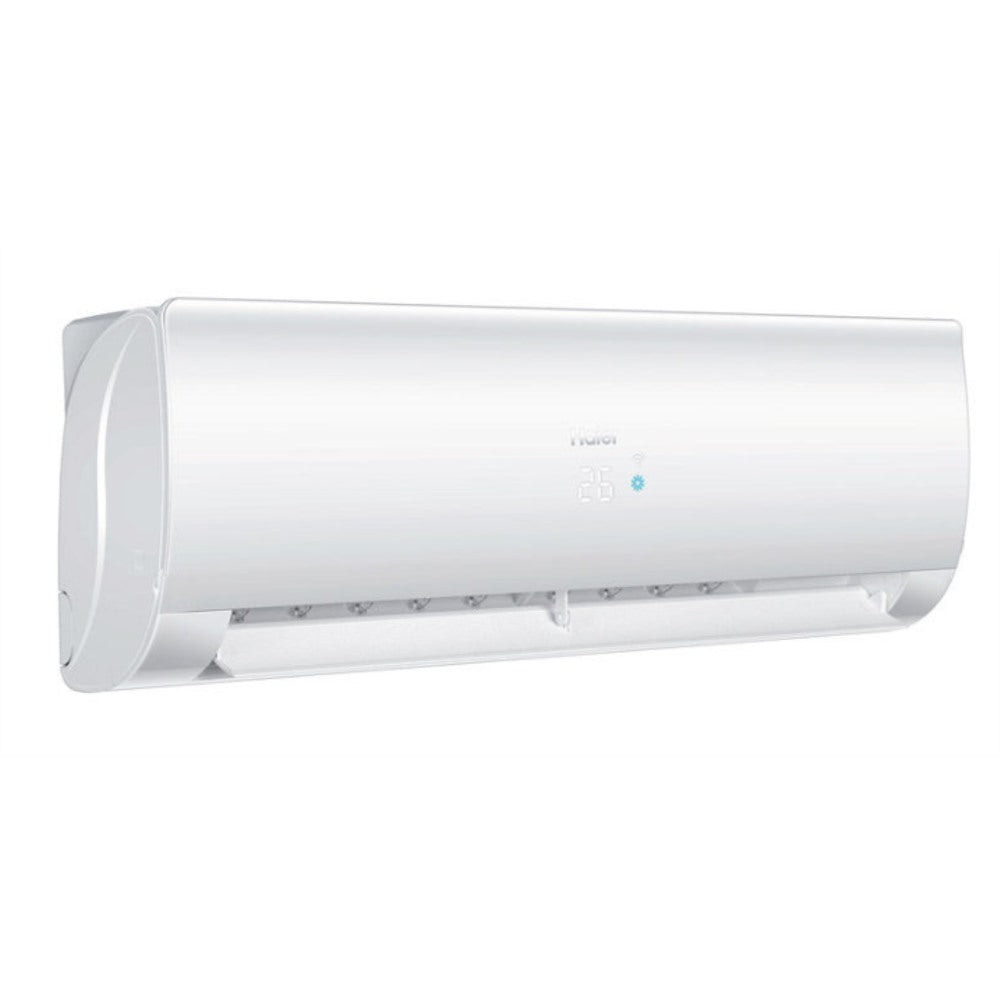

Indoor Unit:
1) Model :
-
1x indoor unit catalog code : AS20S2SF2FA
- Technology: INVERTER
- Btu/h :7000
- Dimensions WxDxH: 870x196x301 mm
- Net weight: 9.5 Kg
2)Model:
- Indoor unit catalog code 2x:AS25S2SF2FA
- Technology: INVERTER
- Btu/hr:9000
- Dimensions WxDxH:870x196x301 mm
- Net weight: 9,5Kg
3)Model:
- 1x indoor unit catalog code: AS50S2SF2FA
- Technology: INVERTER
- Btu/h: 18000
- Dimensions WxDxH: 1009x223x327mm
- Net weight: 12.0Kg

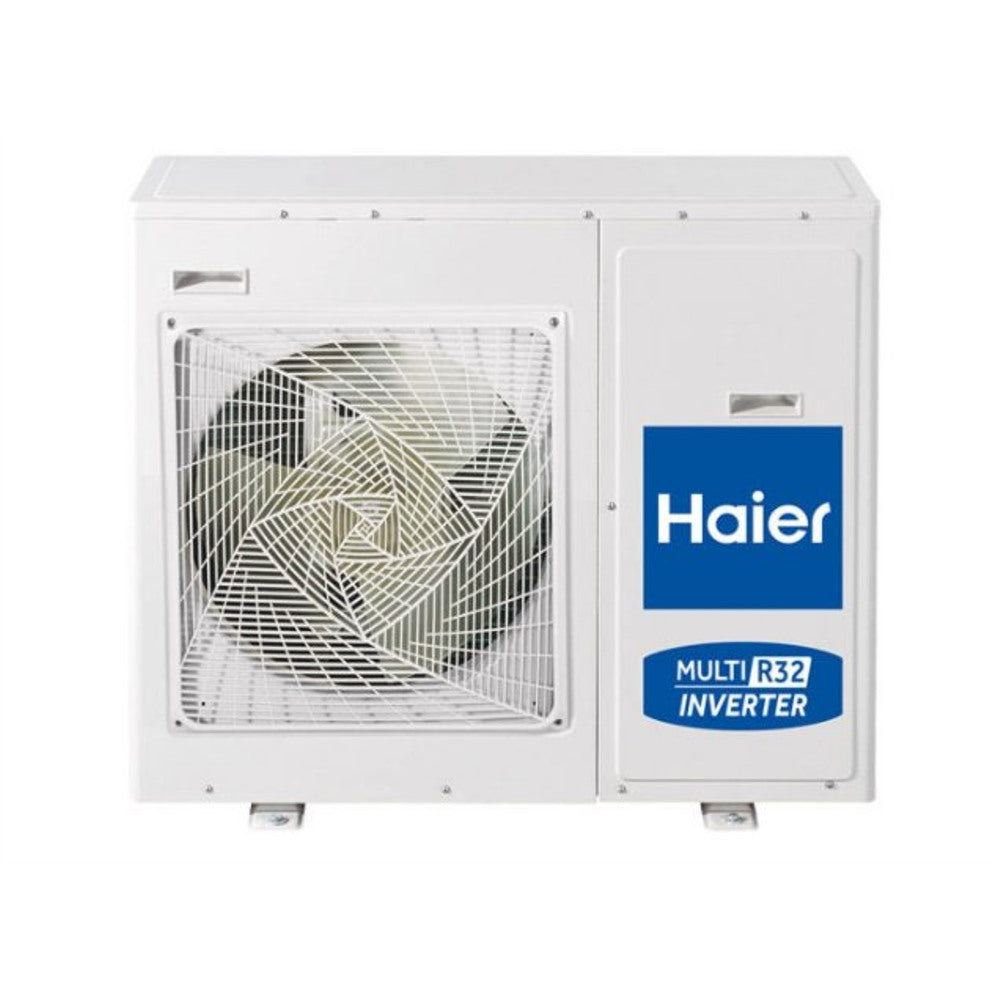

Outdoor unit:
- 4U85S2SR2FA
- Max indoor units:4
Dimensions :
- WxDxH: 890x340x700
- Net weight:61Kg
Energy efficiency
-
Energy class RAFF.SEER: 7.0 (A++)
- Energy class RISC.SCOP: 4.0 (A+)
- Annual energy consumption (RAFF): 456kw
-
Annual energy consumption (RISC): 2503 Kw
Hydraulic data
- Gas:R-32
- Liquid tubing: 4x6.35mm
- Gas pipe: 3x9.52+1x12.7 mm
- Total pipe length max: 70m
- Max piping length of single EU-UI line: 25m
- Max height difference UI - UE:15m
- Max height difference UI - UI: 7.5m
- Function limits:
- COOL - 10÷46°C
- HEATING: -15÷24°C
General characteristics:
Quietness
The use of DC Inverter fans and design optimization decrease the noise level of the indoor units.
The optimized air flow guarantees the maximum silence of the air conditioner. Does the noise caused by your air conditioner bother you? Haier air conditioners have an advanced noise control system with an optimized design of the air ducts and cross-flow fan.
Easy installation:
Reduction of installation time, more work space in the phase of connecting the pipes
Development of advanced component, system and control technologies to ensure greater comfort for customers and professional users.
3D
The 3D airflow offers better air distribution inside the room, thanks to the synchronized movement of the horizontal and vertical deflectors.
Wi-Fi (option)
Allows you to set the air conditioner remotely even when you are away
Imagine that you are running home in the middle of summer or you are lying on the sofa, but you cannot find the remote control. What you want is to be able to easily control your air conditioner wherever you are and at any time with "Haier Smart Air 2" directly from your phone or tablet.
Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
