icon Haier Air Conditioner Quadri Split Inverter Expert Series 9+9+12+12 With 4u85s2sr5fa R-32 Integrated Wi-Fi 9000+9000+12000+12000 | CaldaieMurali

Haier Air Conditioner Quadri Split Inverter Expert Series 9+9+12+12 With 4u85s2sr5fa R-32 Integrated Wi-Fi 9000+9000+12000+12000

Important Notice on Regulations for Fluorinated Gases IN ITALY

In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018, equipment containing fluorinated gases that is not hermetically sealed can only be sold if installed by a certified company.

By law, each sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer ensuring that the installation complies with the regulations. Therefore, before completing the order, it will be necessary to provide this mandatory declaration.

Description

Technical features

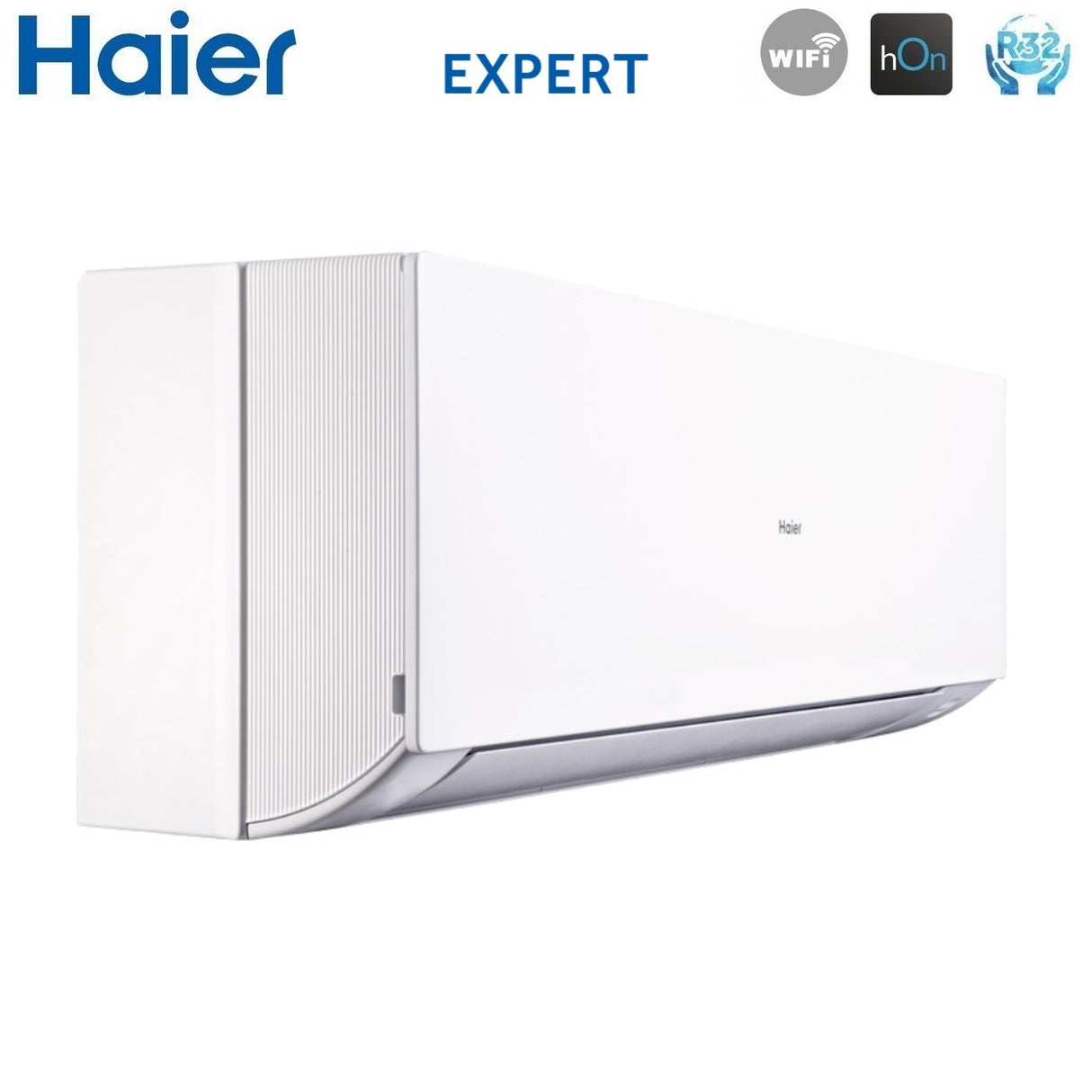

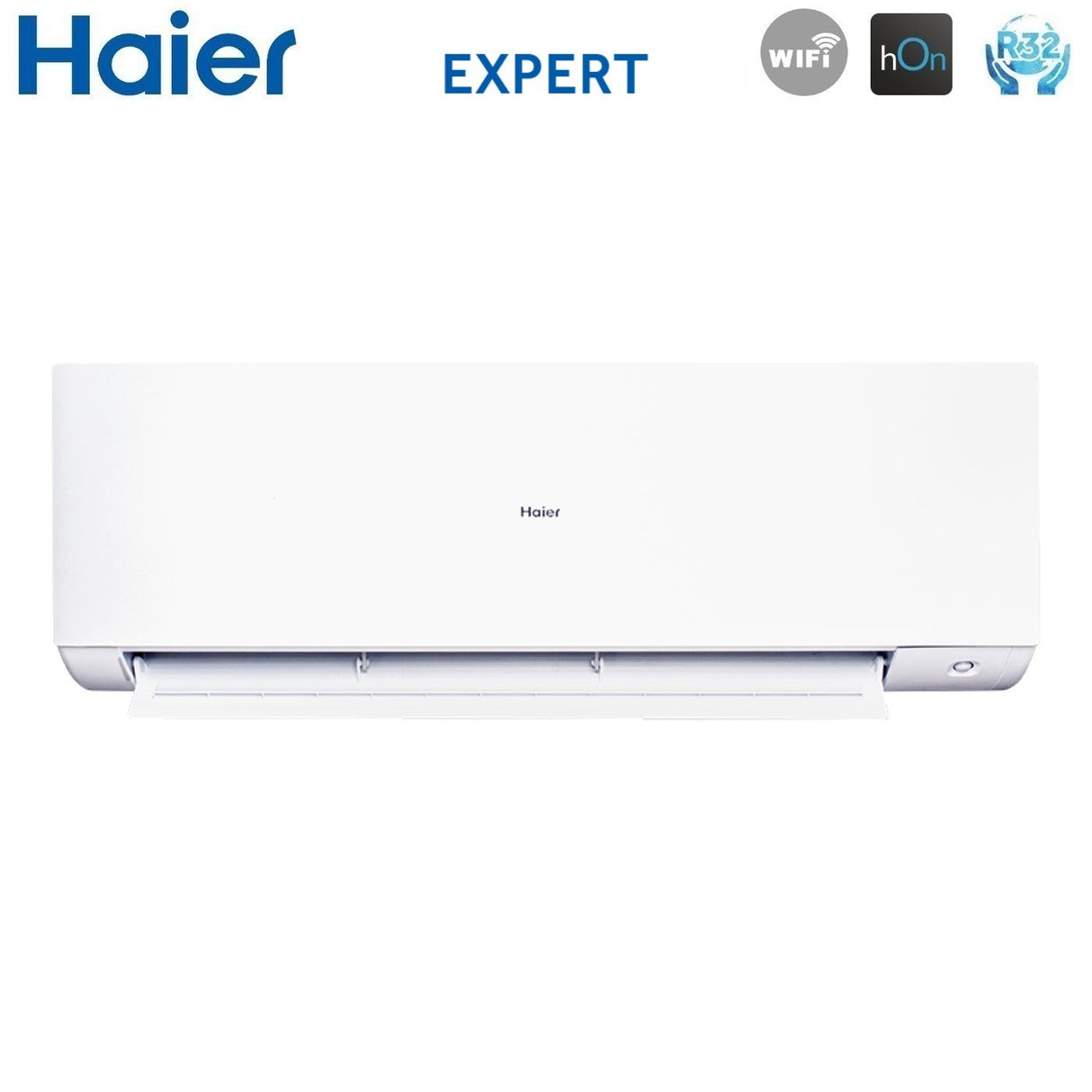

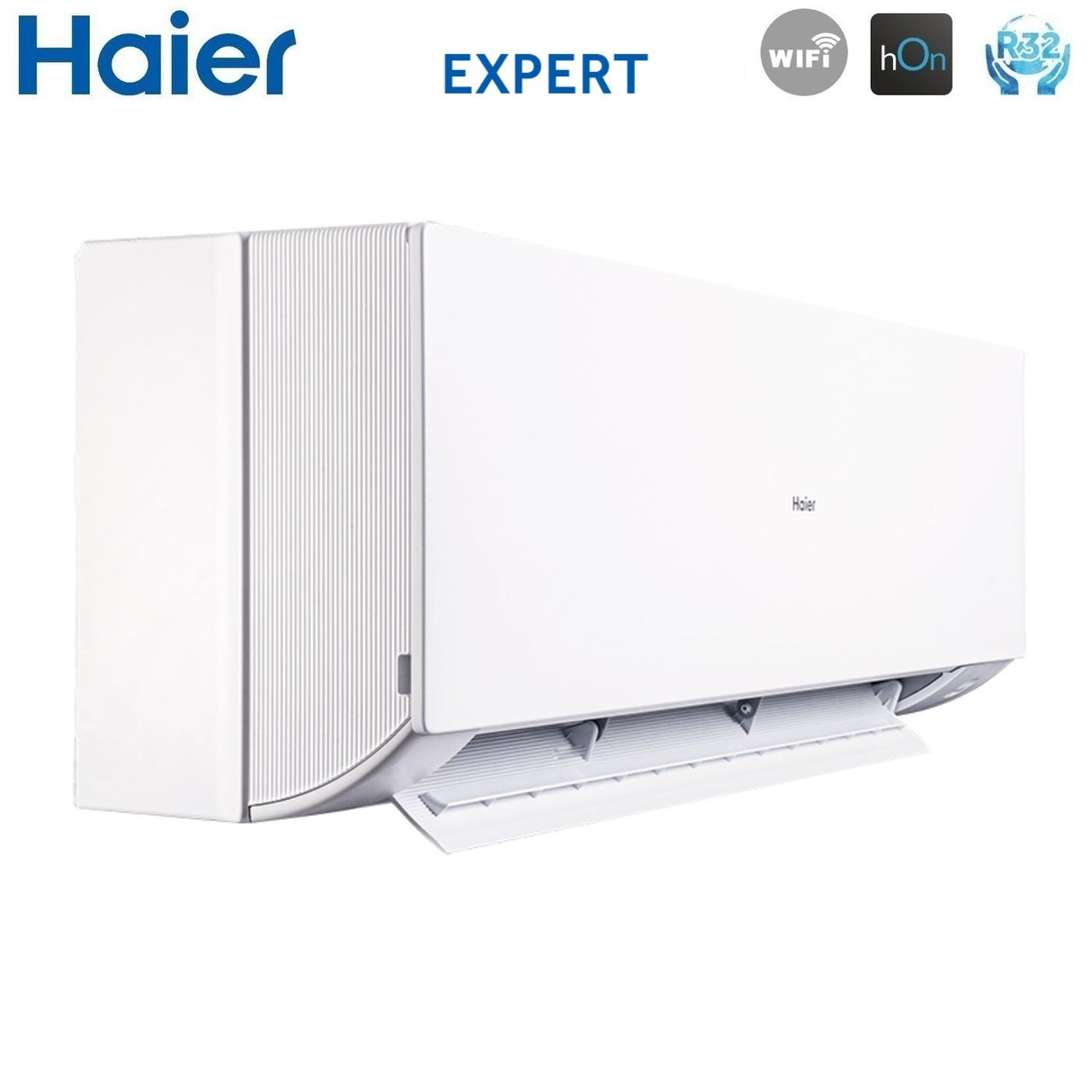

Indoor units

1) Model

  • Internal Unit Catalog Code: 2x AS25XCAHRA
  • Indoor Unit Commercial Code: 2501301D2
  • Power: 9000 btu/h
  • Cooling Capacity : 2.6 kW
  • Heating Capacity : 3.2 kW
  • Treated Air : 730 m 3 /h
  • Sound Power Level : 56 dB(A)
  • Sound pressure level : 16~39 dB(A)
  • Pipe diameter Liquid : 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (LxPxH): 895x313x236 mm
  • Indoor Unit Weight: 11.3 Kg
  • Integrated Wi-Fi

2) Model

  • Internal Unit Catalog Code: 2x AS35XCAHRA
  • Indoor Unit Commercial Code: 2501302D2
  • Power: 12000 btu/h
  • Cooling Capacity : 3.5 kW
  • Heating Capacity : 4.2 kW
  • Treated Air: 800 m 3 /h
  • Sound Power Level : 57 dB(A)
  • Sound pressure level : 17~40 dB(A)
  • Pipe diameter Liquid : 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (LxPxH): 895x313x236 mm
  • Indoor Unit Weight: 11.3 Kg
  • Integrated Wi-Fi

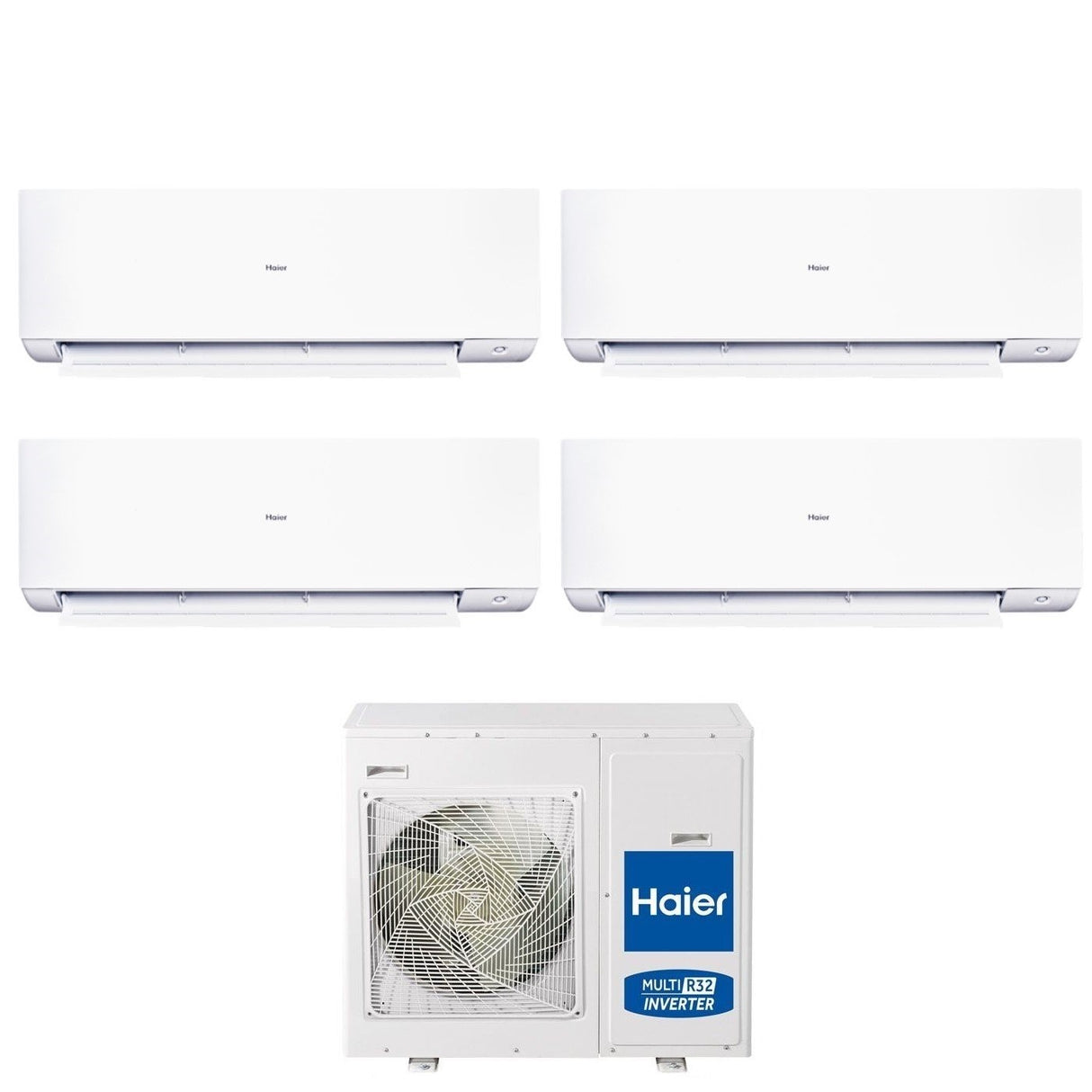

Outdoor Unit

Model:

  • Catalog code Outdoor Unit: 4U75S2SR5FA
  • Outdoor Unit Commercial Code: 2502326D2
  • Max indoor units: up to 4 indoor units

Energy efficiency:

  • SEER : 7.0
  • SCOP : 4.0
  • Cooling Energy Efficiency Class: A++
  • Heating Energy Efficiency Class: A+
  • Annual energy consumption in Cooling : 379 kWh/a
  • Annual energy consumption in Heating : 2179 kWh/a

Performance:

  • Cooling Capacity: 7.5 kW
  • Heating Capacity: 8.6 kW
  • Std cooling absorption: 1.97 kW
  • Std heating absorption: 2.15 kW
  • Sound power level : 68 dB(A)
  • Sound pressure level : 55 dB(A)

Characteristics:

  • Power (V/Hz/Φ) : 220~240/50/1
  • Refrigerant gas : R-32
  • Guaranteed temperature range:
  • - Cooling: -10° ~ 46°C
  • - Heating: -15° ~ 24° C
Installation data
  • Pipe diameter Liquid : 6.35 mm (1/4") x4
  • Gas pipe diameter : 9.52 mm (3/8") x3 + 12.70 mm (1/2") x1
  • Maximum Piping Length: 70 m
  • Maximum height difference Indoor Unit / Outdoor Unit: 15 m

Dimensions:

  • External Unit Dimensions (LxPxH): 890x340x700 mm
  • Weight of Outdoor Unit: 61.0 Kg

5 years of peace of mind with the Haier Plus 5 Guarantee

Register your new air conditioner and activate the Haier Warranty in just a few steps

Garanzia

To do this, keep at hand:
  • The serial numbers to register
  • Your personal and login details
  • The data of the technician contacted

Models from years prior to 2019 and the following lines are not covered by the Plus 5 Guarantee: Geos +, Hec, Portable, Water heaters, Air barriers, MRV, Chillers, heat recovery units


R-32 Multisplit Haier

The earth, everyone's home. Let's protect it!

Compared to 100 years ago, the global temperature has increased by almost 0.5°C (from 1981 to 1990 +0.48°C). Global warming has attracted the attention of all countries, the main cause of the temperature increase is the release of greenhouse gases into the atmosphere. To remedy the situation, the Montreal Protocol was signed in 1987 and the Kyoto Protocol in 1997. In 2009, the European Union introduced the F-Gas regulation and it was approved in December 2013. The new rules came into force in May 2014 and January 2015. Without the rules indicated by the F-Gas regulation, we would produce 150,000 tons of CO2 per year.

Very low environmental impact refrigerant

Haier offers products that comply with the requirements of the European Union's environmental protection standards. To avoid dangerous damage to the environment, Europe is working to reduce greenhouse gas emissions and improve energy efficiency. Units with R32 refrigerant contain less gas and having a lower GWP than R410A units have a lower impact on global warming.

GWP = Global Warming Potential

The global warming potential (GWP, in Italian global warming potential) is the measure of how much a molecule of a certain greenhouse gas impacts on the greenhouse effect; the index is based on a relative scale which compares each gas with carbon dioxide, whose GWP has the value 1 by definition. Each GWP value is calculated for a specific time interval.

In terms of comparison, the GWP of the R32 refrigerant is equivalent to a value of 675, while the GWP of the R410A refrigerant corresponds to a value of 2088.


Haier Expert

Purification

UVC Pro is a technology that works in the UV spectrum and, in particular, on two lengths

UVC rays which inhibit the viruses and bacteria present in the air that passes through the rays produced by the lamp

Vacuum UV rays which generate hydroxyl radicals which are released into the environment and which increase the effectiveness of inhibiting viruses and bacteria present in the air

Purification


Extreme Cleaning and Ease of disassembly

The indoor unit is designed to allow the internal components of the air conditioner to be cleaned quickly and thoroughly and to simplify the disassembly of the main components such as the electronic board, the motor and the fan. Deep cleaning thus ensures the removal of bacteria, dust and mold that deposit inside the unit over time and during its use

Extreme Cleaning


Maximum comfort

With a sound level of only 16 dB(A) , Expert is silent and unobtrusive

The Coanda effect ensures comfortable air distribution throughout the room

• In cooling mode , cold air travels parallel to the ceiling and is directed evenly from the ceiling to the floor of the room, avoiding a direct cold draft on people

• In heating mode , hot air is directed directly to the floor, then circulated throughout the space and ensure a constant temperature distribution in every corner of the room

Coanda effect


Easy installation

1. Easy installation of the mounting template Thanks to detailed instructions, the mounting template can be installed quickly and easily.

2. Easy clip Easier to install due to the additional support clip, which increases the working space.

3. More space for piping reduces installation time by increasing the operating space for easy access to piping and electrical connection area.


Smart

With the " hOn " application by Haier you can control from your smartphone or tablet, with a single app, all the appliances of the Haier group of your Smart Home, including the new Pearl air conditioner and purifier .

The management of the basic and purification functions of the air conditioner are easily manageable, thanks to a really simple and intuitive interface

Furthermore, through hOn, all the basic functions , purification functions and much more can be managed. The app allows the use of voice commands because it is compatible with Google Assistant and Alexa and therefore also allows voice control

Smart Ies Plus

New hOn App

With the Haier "hOn" application, you can control all the appliances of the Haier group in your Smart Home from your smartphone or tablet with a single app. The app allows the use of voice commands because it is compatible with Google Assistant and Alexa.

Why download it :

  • Centralized control of all Haier appliances
  • Standard equipment for all products
  • Advanced features
  • Intuitive interface and controls
  • Compatible with Google Home and Alexa

Main features

• UV-C Pro purification

• Self Clean

• Steri-Clean 56°C

• Wi-Fi control with hOn App to remotely control the air conditioner

• Coanda Air Flow

• Low sound level

• Extreme Cleaning

• I-Feel

• Easy installation


Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
