icon Haier Inverter Ducted Slim Low Prevalence Air Conditioner 24000 Btu AD71S2SS1FA + 1U71S2SR2FA R-32 Integrated Wi-Fi A++/A | CaldaieMurali

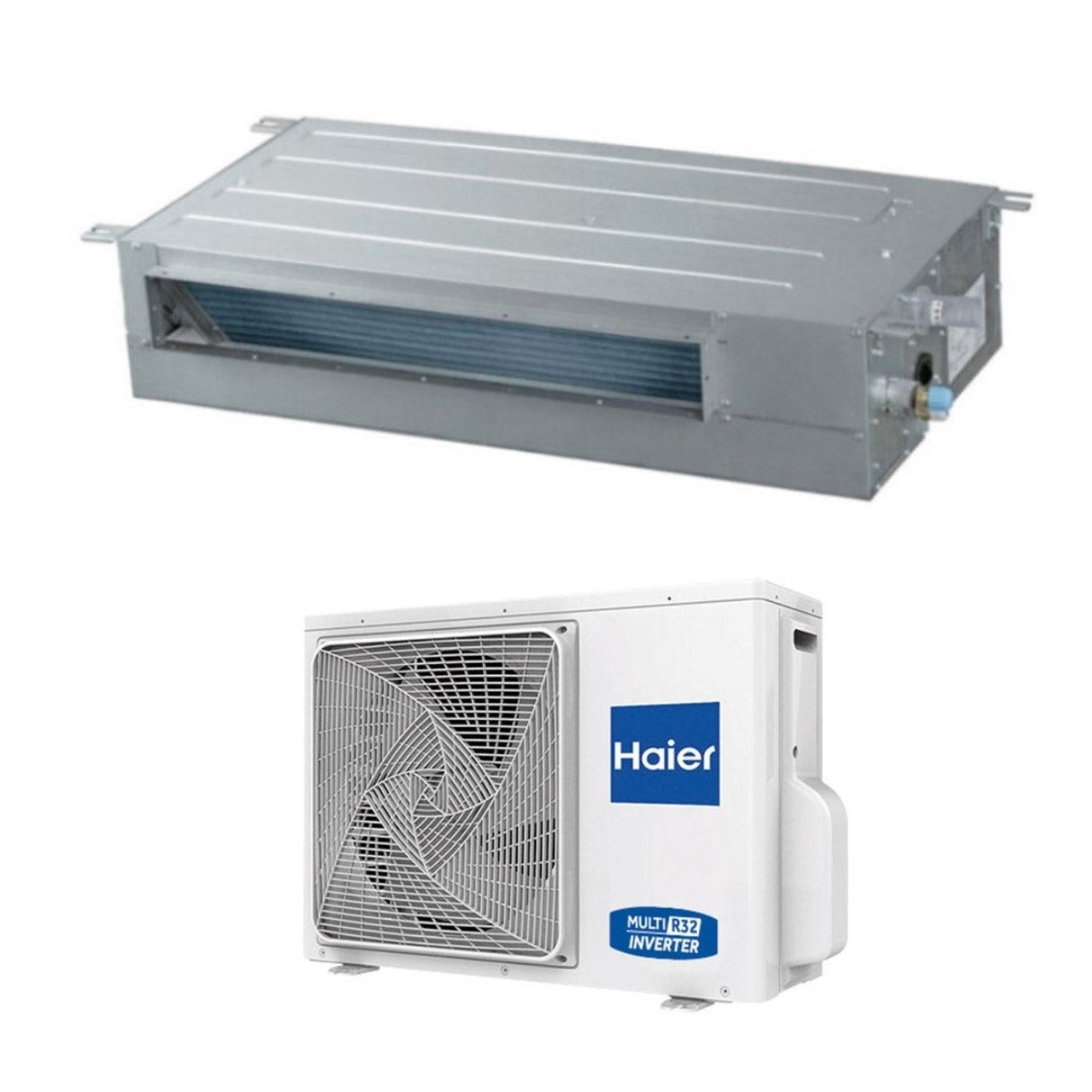

Haier Inverter Ducted Slim Low Prevalence Air Conditioner 24000 Btu AD71S2SS1FA + 1U71S2SR2FA R-32 Integrated Wi-Fi A++/A

Important Notice on Regulations for Fluorinated Gases IN ITALY

In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018, equipment containing fluorinated gases that is not hermetically sealed can only be sold if installed by a certified company.

By law, each sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer ensuring that the installation complies with the regulations. Therefore, before completing the order, it will be necessary to provide this mandatory declaration.

Description

Technical features

  • Indoor unit catalog code: AD71S2SS1FA
  • Commercial code: 2504656C2
  • Outdoor unit catalog code: 1U71S2SR2FA
  • Commercial code: 2502306T2
  • Power: 24000 Btu
  • Built-in Wi-Fi

Optional accessories that must be combined for the correct functioning of the unit

  • YR-E17A Daily Timer Wired Controller
  • White wired control HW-BA116ABK
  • Black wired remote control HW-BA101ABT
  • Infrared remote control YR-HQS01 + receiver RE-02

Energy efficiency

  • SEER : 6.1
  • SCOP : 3.8
  • Energy efficiency class in cooling: A++
  • Energy efficiency class in heating: A
  • Annual energy consumption in cooling: 406 kWh/a
  • Annual energy consumption in heating: 1836 kWh/a

Performance

  • Heating capacity: 7.1 kW
  • Heating capacity: 7.5 kW
  • Cooling absorption: 2.20 kW
  • Heating absorption: 2.01 kW
  • Indoor unit treated air: 750 ~ 1000 m³/h
  • Dehumidification capacity: 2.5 l/h
  • Sound power level indoor unit: 59 dB(A)
  • Sound power level of outdoor unit: 70 dB(A)
  • Indoor unit sound pressure level : 42 ~ 46 dB(A)
  • Sound pressure level outdoor unit: 57 dB(A)

Electrical data

  • Power supply (V,Hz,Ø) : 220~240/50/1
  • Refrigerant gas: R32
  • Operating range
  • - Cooling: -20° ~ 46° C
  • - Heating: -20° ~ 24° C

Installation data

  • Liquid pipe diameter: 9.52 mm (3/8")
  • Gas pipe diameter: 15.88 mm (5/8")
  • Maximum pipe length: 50 m
  • Maximum height difference between internal unit and external unit: 30 m

Dimensions and weight

  • Internal unit dimensions (WxDxH): 1170x420x185 mm
  • Internal unit weight: 25.2 Kg
  • External unit dimensions (LxDxH): 890x353x697 mm
  • External unit weight: 45.0 Kg

Haier slim low pressure ducted

Low pressure ducted air conditioner , suitable for residential and commercial use. Silent and compact in design , it adapts to any type of environment, from home to office, from hotels to shops. Thanks to the UV-C lamp , Haier's low pressure ducted air conditioner is able to inhibit viruses and bacteria , thus reducing their proliferation and spread in the environment. It is equipped with a standard condensate drain pump and can be completed with the optional panel kit with grille and air expulsion and return display.

Antibacterial filter with silver ions

Antibacterial filter with silver ions capable of filtering and purifying the air that passes through the unit and keeping its internal components clean and protected. The filter's ability to keep the internal components of the air conditioner clean, such as filters, fan and exchanger, allows the unit's efficiency to be kept high , thus ensuring electricity savings with a consequent saving on the bill.

Antibacterial filter.jpg Air purification

The Low Pressure Ducted unit is equipped with a “ UVC Generator Module ”, a module that generates ultraviolet rays. Subjected to laboratory tests, the module has been shown to be able to inhibit the Sars-Cov-2 (Covid-19) virus with an efficiency of up to 99.998% . The tests were carried out by Texcell, a contract research organization that operates on a global scale. From the informative study, it is clear that, inside a 45L container (0.045m3), the module installed on Haier air conditioners is able to inactivate and reduce the concentration of the Sars-Cov-2 virus by 99.998% in 1 hour.

Air purification.jpg Design

The low-pressure ducted air conditioner uses grilles embedded in the ceiling or false ceiling to distribute air in the various rooms. For this reason, the ducted air conditioner is ideal for those who do not want to give up style and elegance, even when it comes to air conditioning : its compact design allows it to be hidden in the false ceiling or technical room, adapting to any environment, from the home to the office, shops, hotel rooms and more, also leaving the rooms clearer.

Design.jpg Silence

Haier's slim low-pressure ducted air conditioner guarantees silence and uniform air distribution . It has an advanced noise control system, with an optimised design of the air ducts and cross-flow fan, for maximum comfort and tranquility.

Optional panel kit

The low pressure slim ducted air conditioner can be completed with the Panel Kit not included. The kit includes:

  • An air outlet grille , equipped with motorised vertical and horizontal 3D effect blades
  • Air intake grille , equipped with filter
  • Display with receiver , which allows the use of infrared remote control

Panel Kit.jpg New hOn App

With the Haier "hOn" application you can control all the Haier group appliances of your Smart Home from your smartphone or tablet, with a single app. The app allows the use of voice commands because it is compatible with Google Assistant and Alexa.

Why download it?

  • Centralized control of all Haier appliances
  • Standard equipment for all products
  • Advanced Features
  • Intuitive interface and controls
  • Compatible with Google Home and Alexa

App hOn.jpg



Product Warranty: All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

Haier Inverter Ducted Slim Low Prevalence Air Conditioner 24000 Btu AD71S2SS1FA + 1U71S2SR2FA R-32 Integrated Wi-Fi A++/A

Product form

Technical features Indoor unit catalog code: AD71S2SS1FA Commercial code: 2504656C2 Outdoor unit catalog code: 1U71S2SR2FA Commercial code: 2502306T2 Power: 24000... Read more

€1.664,00 Incl. VAT

    Description

    Technical features

    • Indoor unit catalog code: AD71S2SS1FA
    • Commercial code: 2504656C2
    • Outdoor unit catalog code: 1U71S2SR2FA
    • Commercial code: 2502306T2
    • Power: 24000 Btu
    • Built-in Wi-Fi

    Optional accessories that must be combined for the correct functioning of the unit

    • YR-E17A Daily Timer Wired Controller
    • White wired control HW-BA116ABK
    • Black wired remote control HW-BA101ABT
    • Infrared remote control YR-HQS01 + receiver RE-02

    Energy efficiency

    • SEER : 6.1
    • SCOP : 3.8
    • Energy efficiency class in cooling: A++
    • Energy efficiency class in heating: A
    • Annual energy consumption in cooling: 406 kWh/a
    • Annual energy consumption in heating: 1836 kWh/a

    Performance

    • Heating capacity: 7.1 kW
    • Heating capacity: 7.5 kW
    • Cooling absorption: 2.20 kW
    • Heating absorption: 2.01 kW
    • Indoor unit treated air: 750 ~ 1000 m³/h
    • Dehumidification capacity: 2.5 l/h
    • Sound power level indoor unit: 59 dB(A)
    • Sound power level of outdoor unit: 70 dB(A)
    • Indoor unit sound pressure level : 42 ~ 46 dB(A)
    • Sound pressure level outdoor unit: 57 dB(A)

    Electrical data

    • Power supply (V,Hz,Ø) : 220~240/50/1
    • Refrigerant gas: R32
    • Operating range
    • - Cooling: -20° ~ 46° C
    • - Heating: -20° ~ 24° C

    Installation data

    • Liquid pipe diameter: 9.52 mm (3/8")
    • Gas pipe diameter: 15.88 mm (5/8")
    • Maximum pipe length: 50 m
    • Maximum height difference between internal unit and external unit: 30 m

    Dimensions and weight

    • Internal unit dimensions (WxDxH): 1170x420x185 mm
    • Internal unit weight: 25.2 Kg
    • External unit dimensions (LxDxH): 890x353x697 mm
    • External unit weight: 45.0 Kg

    Haier slim low pressure ducted

    Low pressure ducted air conditioner , suitable for residential and commercial use. Silent and compact in design , it adapts to any type of environment, from home to office, from hotels to shops. Thanks to the UV-C lamp , Haier's low pressure ducted air conditioner is able to inhibit viruses and bacteria , thus reducing their proliferation and spread in the environment. It is equipped with a standard condensate drain pump and can be completed with the optional panel kit with grille and air expulsion and return display.

    Antibacterial filter with silver ions

    Antibacterial filter with silver ions capable of filtering and purifying the air that passes through the unit and keeping its internal components clean and protected. The filter's ability to keep the internal components of the air conditioner clean, such as filters, fan and exchanger, allows the unit's efficiency to be kept high , thus ensuring electricity savings with a consequent saving on the bill.

    Antibacterial filter.jpg Air purification

    The Low Pressure Ducted unit is equipped with a “ UVC Generator Module ”, a module that generates ultraviolet rays. Subjected to laboratory tests, the module has been shown to be able to inhibit the Sars-Cov-2 (Covid-19) virus with an efficiency of up to 99.998% . The tests were carried out by Texcell, a contract research organization that operates on a global scale. From the informative study, it is clear that, inside a 45L container (0.045m3), the module installed on Haier air conditioners is able to inactivate and reduce the concentration of the Sars-Cov-2 virus by 99.998% in 1 hour.

    Air purification.jpg Design

    The low-pressure ducted air conditioner uses grilles embedded in the ceiling or false ceiling to distribute air in the various rooms. For this reason, the ducted air conditioner is ideal for those who do not want to give up style and elegance, even when it comes to air conditioning : its compact design allows it to be hidden in the false ceiling or technical room, adapting to any environment, from the home to the office, shops, hotel rooms and more, also leaving the rooms clearer.

    Design.jpg Silence

    Haier's slim low-pressure ducted air conditioner guarantees silence and uniform air distribution . It has an advanced noise control system, with an optimised design of the air ducts and cross-flow fan, for maximum comfort and tranquility.

    Optional panel kit

    The low pressure slim ducted air conditioner can be completed with the Panel Kit not included. The kit includes:

    • An air outlet grille , equipped with motorised vertical and horizontal 3D effect blades
    • Air intake grille , equipped with filter
    • Display with receiver , which allows the use of infrared remote control

    Panel Kit.jpg New hOn App

    With the Haier "hOn" application you can control all the Haier group appliances of your Smart Home from your smartphone or tablet, with a single app. The app allows the use of voice commands because it is compatible with Google Assistant and Alexa.

    Why download it?

    • Centralized control of all Haier appliances
    • Standard equipment for all products
    • Advanced Features
    • Intuitive interface and controls
    • Compatible with Google Home and Alexa

    App hOn.jpg



    Product Warranty: All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

    Data sheetData sheet
    • peso: 702.0 kg
    • classe energetica raffreddamento: A++
    • classe energetica riscaldamento: A
    • gas: R-32
    • marca: HAIER
    • metri quadri : 60 - 80 m2
    • modello: AD71S2SS1FA
    • potenza btu: 24000
    • superficie riscaldabile mq: 70
