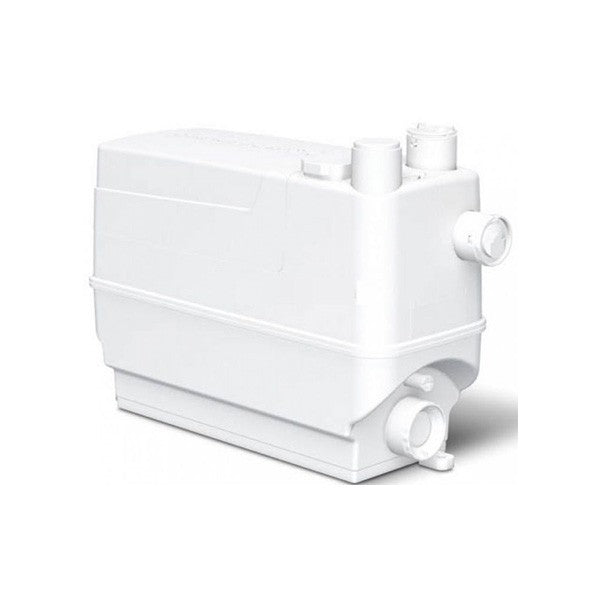

Grinder Lifting Station Grundfos Sololift2 C-3 (3 outlets) for gray water 97775317

GRUNDFOS LIFTING STATION SHREDDER SOLOLIFT2 C-3 (3 discharges) for gray water

• Model: SOLOLIFT2 C-3
• Possible connections washing machine, dishwasher, shower, bathtub, kitchen sink, bidet, washbasin
• Power Consumption Max. 640W
• Power supply 1 x 220-240V - 10%/+6%, 50Hz
• Net weight 6.6kg
• Liquid temperature 75°C constantly (90°C for 30 min.)
• Rated current 3.1A
• Flow rate Max. Max. 204 l/min.
• Pump head Max. 8.5 m
• Power cable 1.2 m, 0.75 mm2
• Start/stop levels
• - Start: 65 mm above the bottom
• - Stop: 35 mm above the bottom
• S3 operation - 50% - 1 min. (30 sec on; 30 sec off)
• Inlet pipes Diameter of 32/36/40/50 mm
• Exhaust pipe Diameter of 22/25/28/32/36/40 mm

SOLOLIFT 2

SOLOLIFT2 is an exclusive range of compact lifting stations which allows the drainage of any domestic sanitary device where required, independent of the gravity drainage system system. The units collect and pump the waste water via a thin pipe (> 23mm) to the next downpipe - height up to 6m or 100m away. With SOLOLIFT2 an extra toilet or full bathroom in the attic or basement will no longer be just a wish.

The range includes 5 variants of compact lifting stations for the disposal of domestic wastewater.

• 3 units called WC-1, WC-3 and CWC-3 have been designed to take waste water from a toilet and other sanitary fixtures.
• Two units called C-2 and D-2 were designed to remove (hot) waste water from a toilet, shower, washbasin, sink, washing machine and dishwasher.

SOLOFIT2 has been designed according to the needs of professionals according to characteristics of high reliability and easy and clean maintenance. The units are plugged in, ready for use and their operation is fully automatic from the moment water enters the tank .

The Grundfos SOLOLIFT2 range of lifting stations offer the most reliable wastewater management for any combination of toilet, bidet, sink, shower and washing machine regardless of the placement of the sanitary fixture within a building. Get flexibility, adaptability and improved performance with SOLOLIFT2.

Due to its independence from the main sewer, SOLOLIFT2 only needs a simple 20mm delivery pipe, making it ideal for modern life. With its unique features, such as the integrated float switch unit with two start level options*, it is possible to control the volume adjustment according to the connected sanitary device, without the need for additional accessories. Simply choose a low start level for slimline contemporary shower trays, or increase pump volume for scrubbing or tub draining applications.

• 1- Welded, pressure-tight tank design, essential for washing machine and dishwasher connections.
• 2 - Vortex impeller with 20mm free passage to increase reliability. It manages a water temperature up to 90°C without limitations.

Easy maintenance

• 3 - Dry engine design for easy and clean maintenance. Motor, pump and controller unit are integrated in one body for easier maintenance & replacement. SOLOLIFT2 will remain in place for the entire service.
• 4 - The self-adjusting automatic joint simplifies assembly in case of maintenance.
• 5 - The important screws are of the captive type.
• 6 - Manual anti-clogging function.
• 7 - Drainage function separated by drainage socket and hose.
• 8 - Contains a float switch solution with two start levels as well as a protective tube and bayonet lock for single maintenance without the need to disassemble the entire pump unit.

Substitutability

• 9 - More compact design. It can easily replace other lifting stations on the market. It has adjustable connectors.
• 10 - Selectable outlet direction for easy replacement.

Low maintenance

• 11 - Innovative bottom design with strong bevel and self-cleaning function to prevent sedimentation.

Easy installation

• 12 - The lifting fastening with clips makes the SOLOLIFT2 easy to install.
• 13 - Possibility of self-supporting or wall installation.

• peso: 10.0 kg
• marca: Grundfos
• modello: SOLOLIFT2 C-3
• numero collegamenti possibili: 2
