icon Self-priming Grundfos booster set with Bluetooth connection Scala1 3-45 99530405 | CaldaieMurali

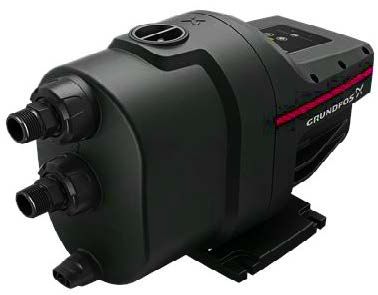

Self-priming Grundfos booster set with Bluetooth connection Scala1 3-45 99530405

Description

Self-priming grundfos booster set with bluetooth connection SCALA1 3-45 99530405


General characteristics

  • Brand: Grundfos
  • Supplied model: SCALE1 3-45
  • Supplied model number: 99530405

Data sheet

  • Nominal flow rate: 3.59 m³/h
  • Head: 25 m
  • Max head: 44 m
  • Mechanical seal type: BVBP
  • Approvals: CE, EAC, AAA
  • Potable Water Approvals: WRAS,ACS
  • Curve tolerance: ISO9906:2012 3B
  • Model: A
  • Starting pressure: 2.2 bar

Material

  • Pump body: Composite
  • Impeller: Composite

Installation

  • Ambient temperature limit: 0 .. 55 °C
  • Max operating pressure: 8 bar
  • Max suction pressure: 3 bar
  • Input connection type: R
  • Send type: R
  • Input connection size: 1 inch
  • Size of the outlet connection: 1 inch
  • Nominal pressure of the connection: PN 8

Liquid

  • Pumped liquid: Water
  • Liquid temperature range: 0 .. 45 °C
  • Liquid temperature during operation: 20°C
  • Density: 998.2 kg/m³

Electrical data

  • Max P1: 910W
  • Rated power - P2: 0.58 kW
  • Network frequency: 50Hz
  • Rated Voltage: 1 x 230V
  • Maximum current consumption: 4.1A
  • Protection class (IEC 34-5): X4D
  • Insulation class (IEC 85): F
  • Cable length: Electric: 1.5m
  • Socket Type E/F (CEE7/7)
  • Power plug: Schuko

Other

  • Net weight: 12kg
  • Gross weight: 14kg
  • Packaging volume: 0.046 m³
  • Storage temperature range: -40 .. 70 °C

Description

Useful to

  1. Pressure Boost - Commercial Buildings
  2. Collection of groundwater for domestic use
  3. Increased water pressure for domestic use

Rainwater harvesting for domestic buildings
Grundfos SCALA1 is a compact, self-priming, fully integrated, all-in-one water system designed for pressure boosting in domestic and light commercial applications, such as garden irrigation or pressure boosting for detached and detached houses and flats .


Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 12 months from the date of purchase.

Self-priming Grundfos booster set with Bluetooth connection Scala1 3-45 99530405

Product form

Self-priming grundfos booster set with bluetooth connection SCALA1 3-45 99530405 General characteristics Brand: Grundfos Supplied model: SCALE1 3-45 Supplied model... Read more

€445,00 Incl. VAT

    Description

    Self-priming grundfos booster set with bluetooth connection SCALA1 3-45 99530405


    General characteristics

    • Brand: Grundfos
    • Supplied model: SCALE1 3-45
    • Supplied model number: 99530405

    Data sheet

    • Nominal flow rate: 3.59 m³/h
    • Head: 25 m
    • Max head: 44 m
    • Mechanical seal type: BVBP
    • Approvals: CE, EAC, AAA
    • Potable Water Approvals: WRAS,ACS
    • Curve tolerance: ISO9906:2012 3B
    • Model: A
    • Starting pressure: 2.2 bar

    Material

    • Pump body: Composite
    • Impeller: Composite

    Installation

    • Ambient temperature limit: 0 .. 55 °C
    • Max operating pressure: 8 bar
    • Max suction pressure: 3 bar
    • Input connection type: R
    • Send type: R
    • Input connection size: 1 inch
    • Size of the outlet connection: 1 inch
    • Nominal pressure of the connection: PN 8

    Liquid

    • Pumped liquid: Water
    • Liquid temperature range: 0 .. 45 °C
    • Liquid temperature during operation: 20°C
    • Density: 998.2 kg/m³

    Electrical data

    • Max P1: 910W
    • Rated power - P2: 0.58 kW
    • Network frequency: 50Hz
    • Rated Voltage: 1 x 230V
    • Maximum current consumption: 4.1A
    • Protection class (IEC 34-5): X4D
    • Insulation class (IEC 85): F
    • Cable length: Electric: 1.5m
    • Socket Type E/F (CEE7/7)
    • Power plug: Schuko

    Other

    • Net weight: 12kg
    • Gross weight: 14kg
    • Packaging volume: 0.046 m³
    • Storage temperature range: -40 .. 70 °C

    Description

    Useful to

    1. Pressure Boost - Commercial Buildings
    2. Collection of groundwater for domestic use
    3. Increased water pressure for domestic use

    Rainwater harvesting for domestic buildings
    Grundfos SCALA1 is a compact, self-priming, fully integrated, all-in-one water system designed for pressure boosting in domestic and light commercial applications, such as garden irrigation or pressure boosting for detached and detached houses and flats .


    Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 12 months from the date of purchase.
