- Pipe diameter Liquid : 9.52 mm (3/8")
- Gas pipe diameter: 15.88 mm (5/8")
- Maximum piping length: 75 m
- Maximum height difference Indoor Unit / Outdoor Unit: 30 m
Dimensions and weight
- Internal Unit Dimensions (HxWxD): 235x1570x665 mm
- Indoor Unit Weight: 42 Kg
- External Unit Dimensions (WxHxD): 1345x900x340 mm
- Weight of Outdoor Unit: 112 Kg

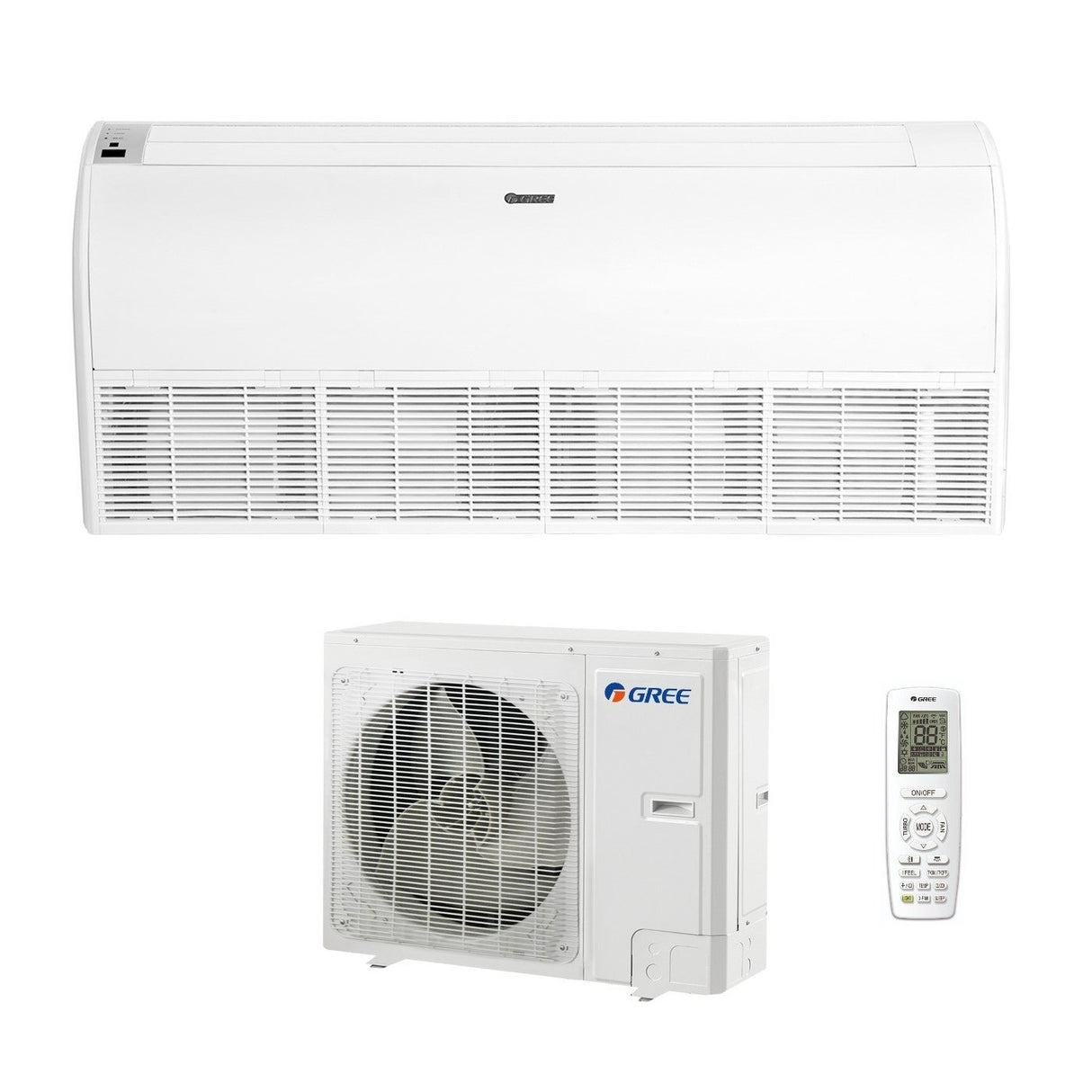

Gree Ceiling/Floor
• Units that can be installed on the floor or ceiling for applications in the small-commercial / tertiary sector
• Suitable for shops, offices, meeting rooms, hotels, restaurants, clubs, gyms and open space areas
• Compact structure: only 235 mm thick
• Double flap: when the unit is off, the air inlet can be completely closed to prevent dust from entering
• The wide swing angle of the flap allows for horizontal air flow (ceiling application): this excludes direct air flows on the people present in the room
• There are 11 selectable fan speeds
• There are 3 outlet possibilities for the connection pipes, to facilitate installation in any circumstance
• The design of the electrical box side does not affect the air return and makes maintenance easier
• They are equipped with a double room temperature sensor for customizable comfort: possibility of selecting the return air temperature sensor on the unit or the temperature sensor on the wired controller
• High energy efficiency, at all powers expressed, both in cooling and in heating, especially with a view to operation 365 days a year (seasonal efficiency)
• The special closing system of the refrigerant valve prevents and excludes the risk of gas leaks due to inappropriate maintenance
Wi-Fi Optional
By integrating the kit, which can be purchased separately, it will be possible to remotely control the unit, via the APP installed on your smartphone, on/off, mode, temperature, etc. to program your own comfort at any time, even when you are away from home
Outdoor Unit
Characteristics
• Energy class up to A++ in cooling mode and up to A+ in heating mode
• Intelligent regulation of compressor frequency, accurate temperature control
• Reliable cooling and heating down to -20°C outside temperature
• Minimization of the sound level thanks to the axial fan
• Quick achievement of comfort conditions: the unit allows rapid cooling and heating and is able to quickly reach the temperature set by the user
• Intelligent defrost: the unit is able to correctly evaluate the presence of frost on the outdoor unit through a temperature sensor. The goal is to "defrost only when needed", optimizing the heating effect for high environmental comfort
Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
