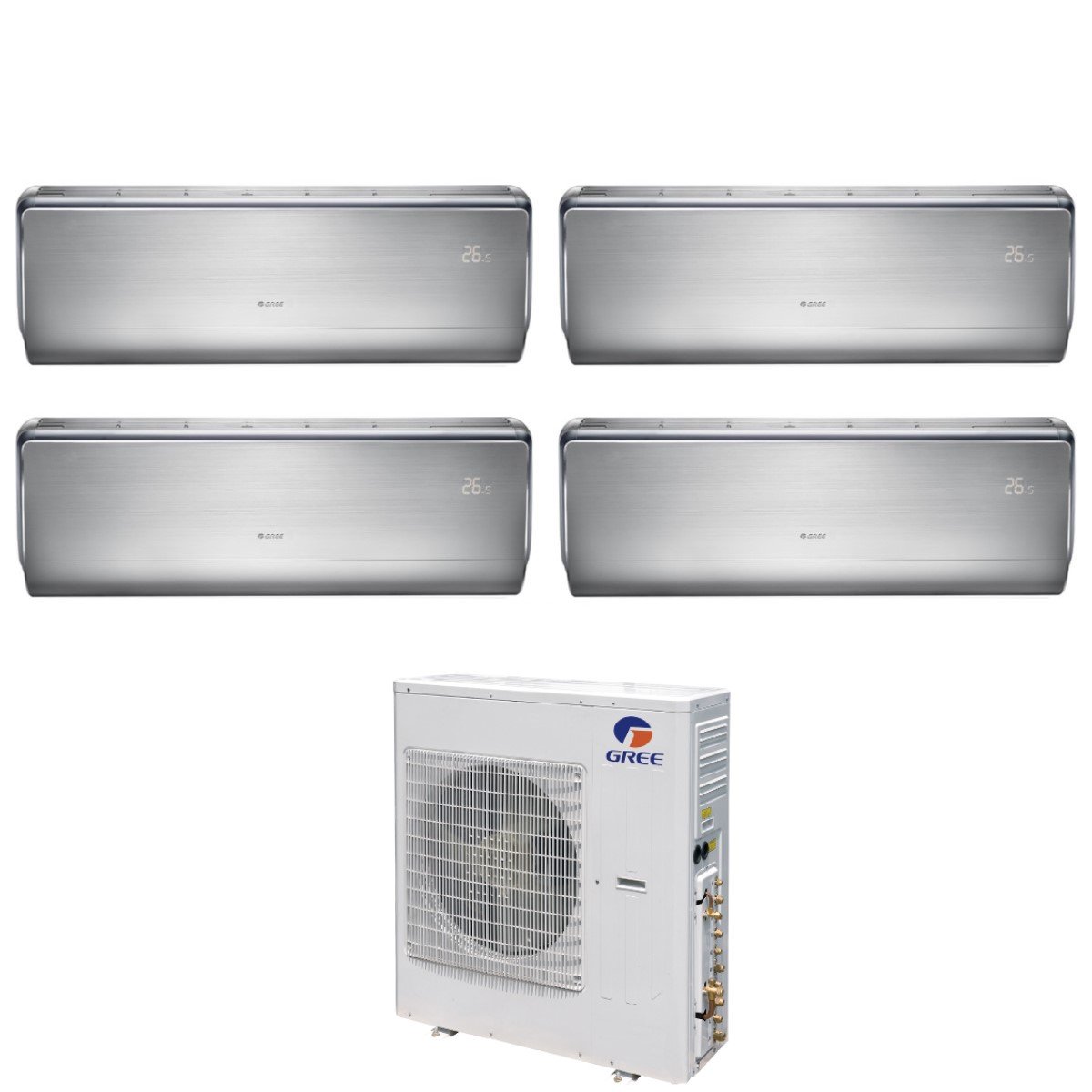

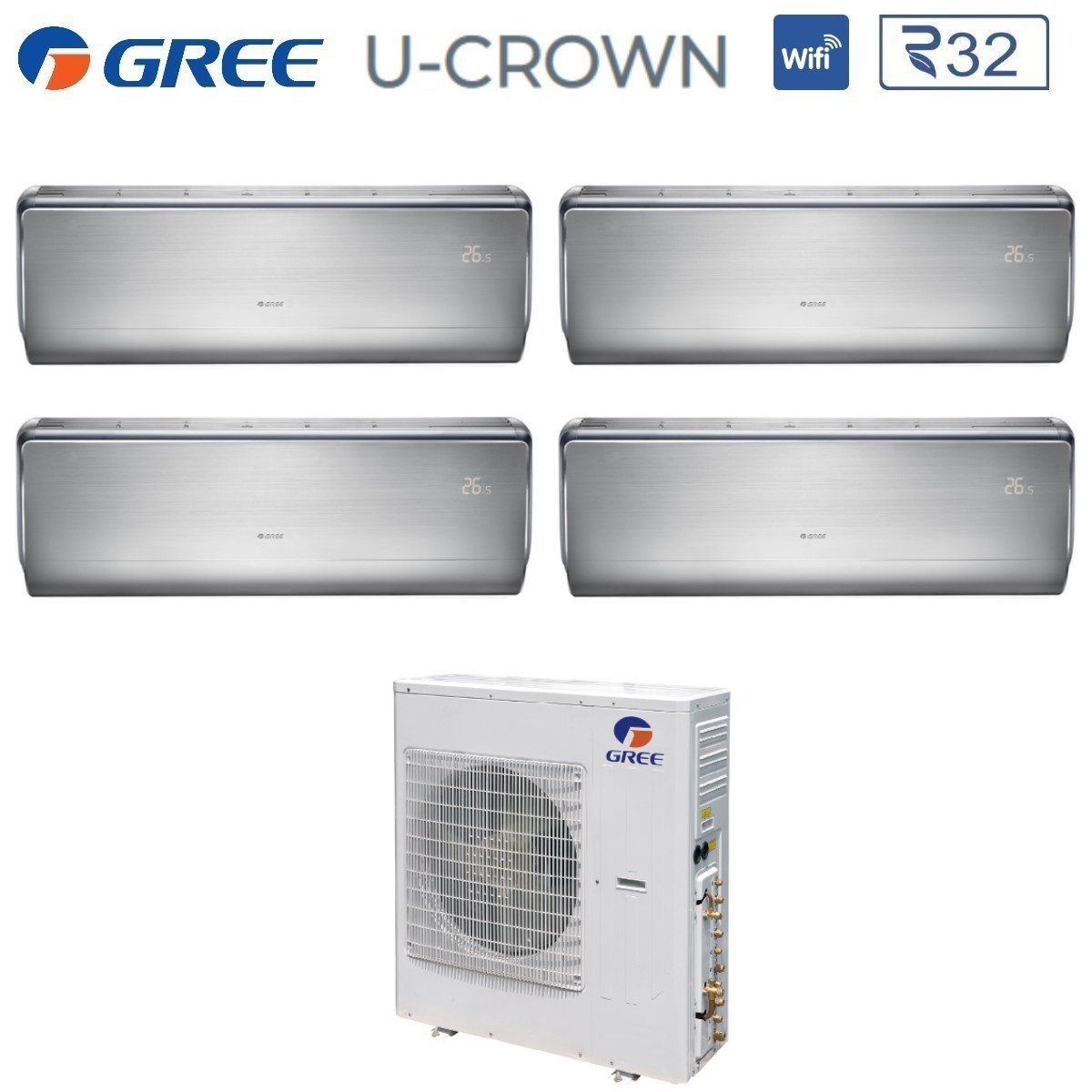

Gree Air Conditioner Quad Split Inverter U-Crown Series 12+12+12+18 With Gwhd(36)Nk6lo R-32 Integrated Wi-Fi 12000+12000+12000+18000

Description

Technical features

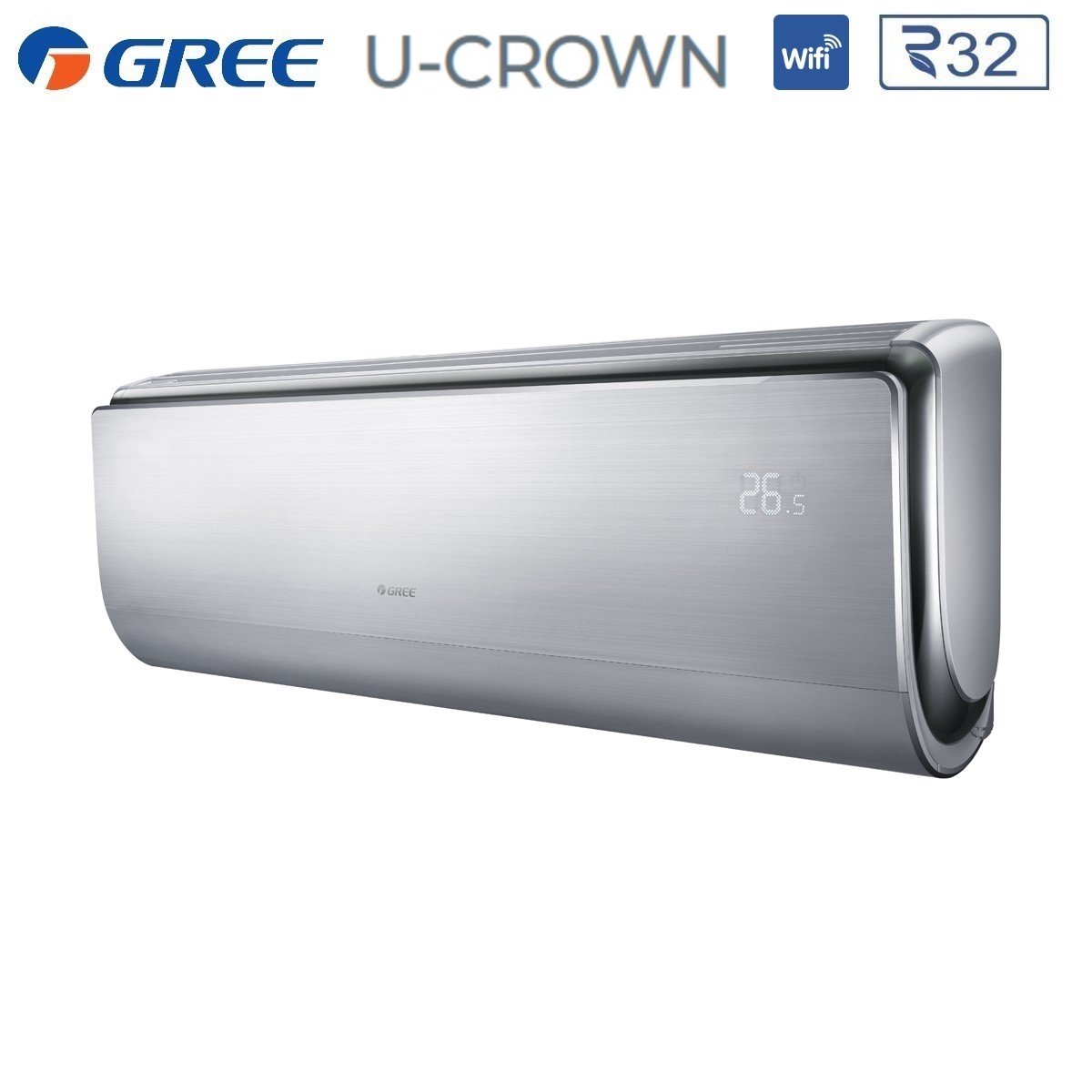

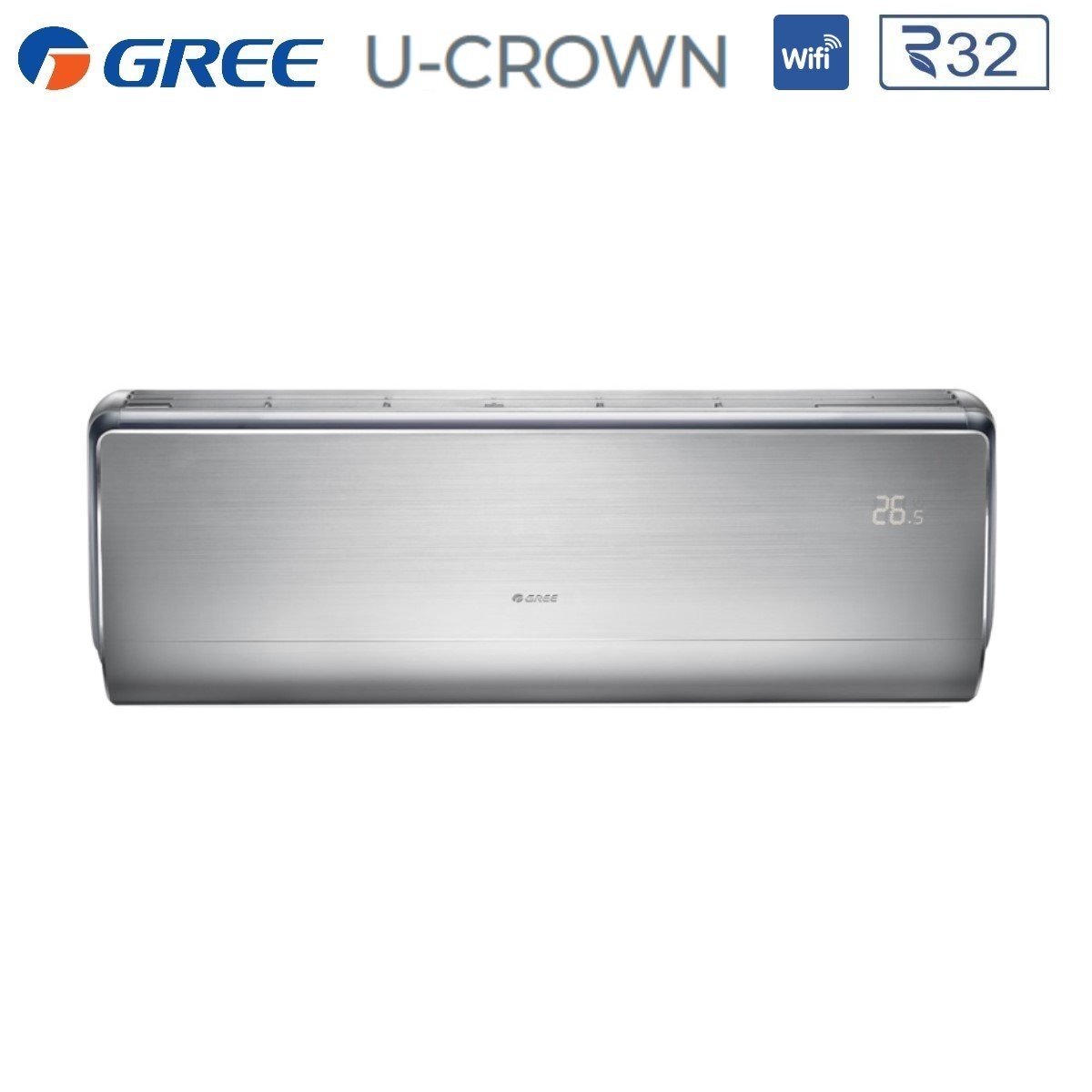

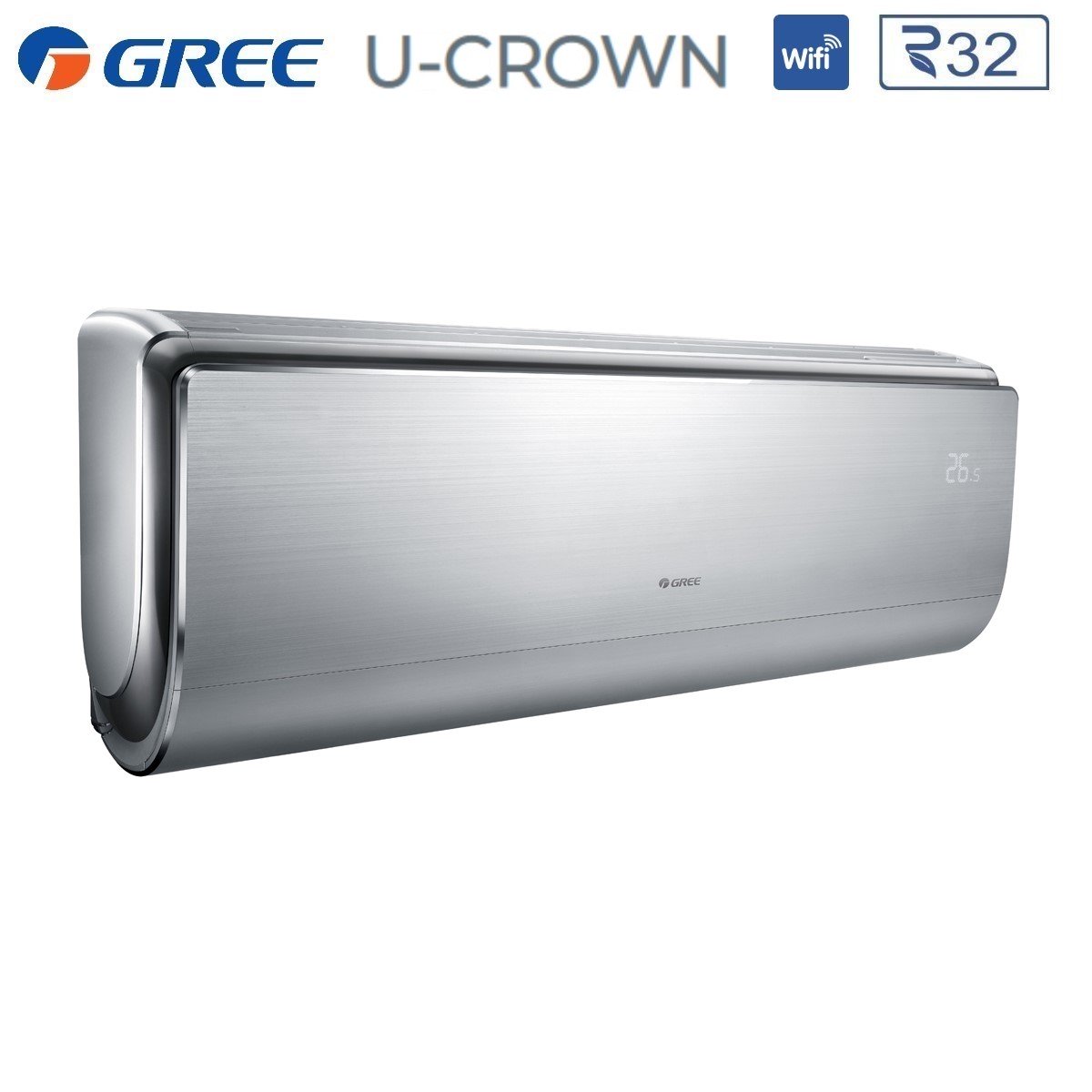

Indoor Units

1) Model:

  • Indoor unit catalog code : 3x GWH12UB-K6DNA4A/I
  • Power : 12000 Btu
  • Cooling Capacity: 3.53 kW
  • Heating Capacity: 4.0 kW
  • Treated Air Indoor Unit : 250~650 m 3 /h
  • Sound Power Level : 35~58 dB(A)
  • Sound Pressure Level : 23~42 dB(A)
  • Pipe diameter Liquid : 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (HxWxD): 305x860x170 mm
  • Indoor Unit Weight: 11.5 Kg
  • Integrated Wi-Fi

2) Model:

  • Indoor unit catalog code : 1x GWH18UC-K6DNA4A/I
  • Power : 18000 Btu
  • Cooling Capacity: 5.3 kW
  • Heating Capacity: 5.3 kW
  • Treated Air Indoor Unit : 340~850 m 3 /h
  • Sound Power Level : 32~56 dB(A)
  • Sound Pressure Level : 22~46 dB(A)
  • Pipe diameter Liquid : 6.35 mm (1/4")
  • Gas pipe diameter: 12.70 mm (1/2")
  • Internal Unit Dimensions (AxLxP): 320x960x2005 mm
  • Indoor Unit Weight: 14.0 Kg
  • Integrated Wi-Fi
Outdoor unit

Model:

  • Outdoor Unit catalog code: GWHD(36)NK6LO
  • Max indoor units: up to 4 indoor units

Energy efficiency:

  • SEER : 6.1
  • SCOP : 4.0
  • Energy Efficiency Class in Cooling : A++
  • Heating Energy Efficiency Class: A+
  • Annual energy consumption in Cooling : 602 kWh/a
  • Annual energy consumption in Heating : 3675 kWh/a

Performance:

  • Cooling Capacity: 10.5 kW
  • Heating Capacity: 12.0 kW
  • Absorption in cooling: 3.10 kW
  • Heating absorption: 3.20 kW
  • Sound power level : 67 dB(A)
  • Sound pressure level : 57 dB(A)

Characteristics:

  • Power (V/Hz/F) : 220~240/50/1
  • Refrigerant gas : R-32
  • Guaranteed temperature range:
  • - Cooling: -15° ~ 43°C
  • - Heating: -15° ~ 24° C
Installation data:
  • Pipe diameter Liquid : 6.35 mm (1/4") x4
  • Gas pipe diameter : 9.52 mm (3/8") x4
  • Maximum piping length: 40 m
  • Maximum piping length with additional charge: 75 m
  • Maximum difference in height indoor unit / outdoor unit: 15 m
Dimensions:
  • External Unit Dimensions (HxWxD): 1103x1087x440 mm
  • Weight of Outdoor Unit: 90.0 Kg

Gree U Crown

U-Crown


Unique Design, Exclusive Finish

The seamless design of the air outlet is designed to ensure unrestricted comfort. The finish is exclusive in terms of material and effect


Cold Plasma Air Purification System

It releases ions capable of neutralizing bacteria, fungi, viruses, pollen, mites and pollutants present in the air in general, making the environment healthy and the air pleasant. It guarantees effective sterilization of the air, killing over 90% of bacteria. Removes over 400 kinds of odors. Improves air quality, enriching it with negative ions

Purificazione


Energy Saving 2-Stage Compressor

It guarantees exceptional performances in a very wide range of external temperatures, from -30°C to +54°C

Caratteristiche U-Crown


Large Amplitude 3D Airflow

Horizontal swing angle up to 130°, vertical swing angle up to 180°


Wi-Fi Remotely
Thanks to the integrated WIFI module, it is possible to control the operation of the unit remotely via the APP on your smartphone, turn the unit on or off, select the desired mode and temperature, etc., to program your comfort at any time, even when you are away from home
Wi-Fi

Caratteristiche Gree U-Crown


Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Gree Air Conditioner Quad Split Inverter U-Crown Series 12+12+12+18 With Gwhd(36)Nk6lo R-32 Integrated Wi-Fi 12000+12000+12000+18000
