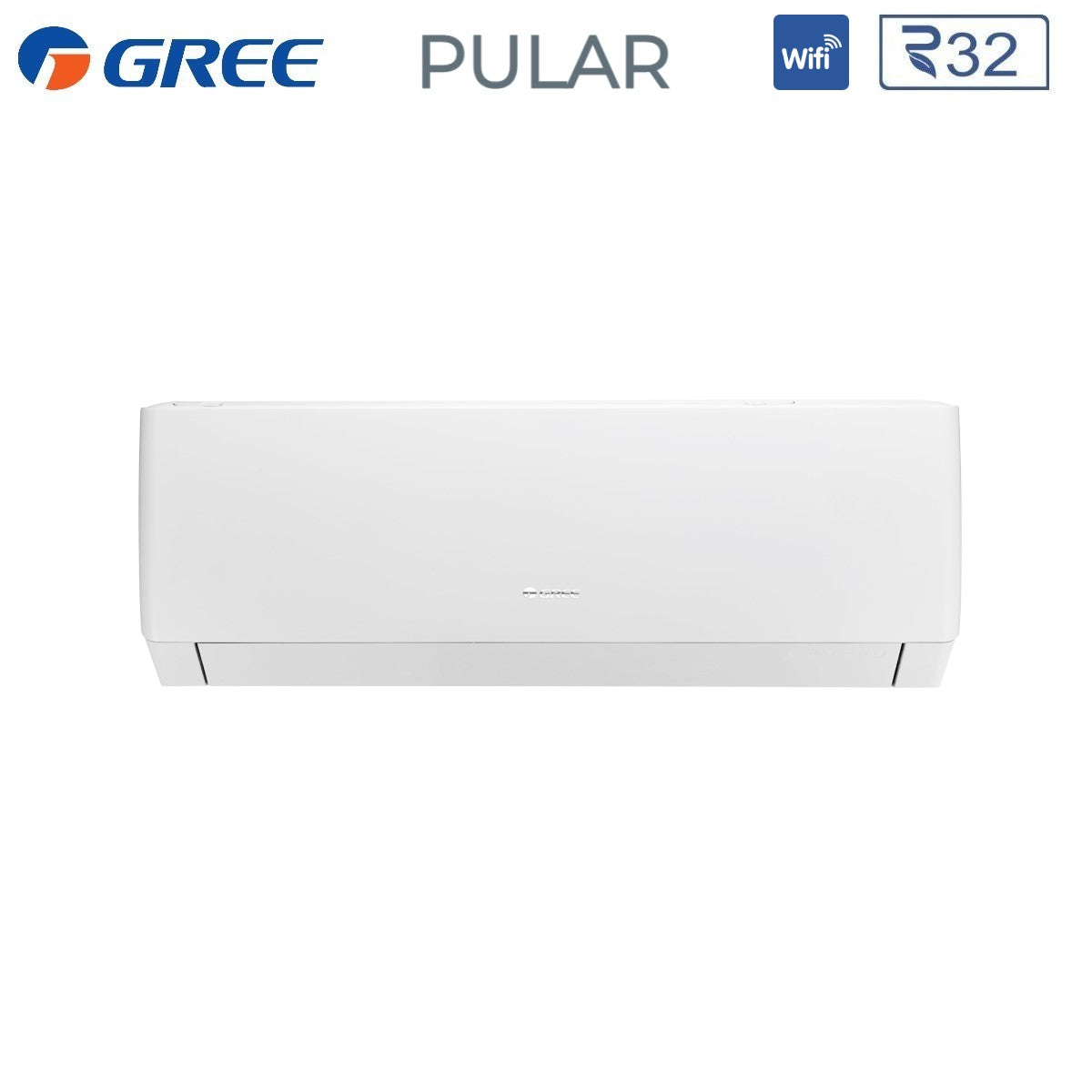

icon Gree Dual Split Inverter Air Conditioner Pular 9+12 Series With Gwhd(14)Nk6oo R-32 Integrated Wi-Fi 9000+12000 | CaldaieMurali

Gree Dual Split Inverter Air Conditioner Pular 9+12 Series With Gwhd(14)Nk6oo R-32 Integrated Wi-Fi 9000+12000

Description

Technical features

Indoor Units

1) Model:

  • Indoor unit catalog code : 1x GWH09AGB-K6DNA1B/I
  • Power : 9000 Btu
  • Cooling Capacity: 2.7 kW
  • Heating Capacity: 2.80 kW
  • Treated Air Indoor Unit : 280~550 m 3 /h
  • Sound Power Level : 34~55 dB(A)
  • Sound Pressure Level : 21~40 dB(A)
  • Pipe diameter Liquid : 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (HxWxD): 260x779x185 mm
  • Indoor Unit Weight: 8 Kg
  • Integrated Wi-Fi

2) Model:

  • Indoor unit catalog code : 1x GWH12AGC-K6DNA1A/I
  • Power : 12000 Btu
  • Cooling Capacity: 3.20 kW
  • Heating Capacity: 3.40 kW
  • Treated Air Indoor Unit : 390~680 m 3 /h
  • Sound power level : 36~57 dB(A)
  • Sound Pressure Level : 22~41 dB(A)
  • Pipe diameter Liquid : 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (HxWxD): 293x825x196 mm
  • Indoor Unit Weight: 10 Kg
  • Integrated Wi-Fi

Model:

  • Indoor Unit catalog code: GWHD(14)NK6OO
  • Max indoor units: up to 2 indoor units

Energy efficiency:

  • SEER: 6.5
  • SCOP : 4.0
  • Energy Efficiency Class in Cooling : A++
  • Heating Energy Efficiency Class: A+
  • Annual energy consumption in Cooling : 220 kWh/a
  • Annual energy consumption in Heating: 1330 kWh/a

Performance:

  • Cooling Capacity: 4.1 kW
  • Heating Capacity: 4.4 kW
  • Absorption in cooling: 1.1 kW
  • Heating absorption: 0.98 kW
  • Sound power level : 62 dB(A)
  • Sound Pressure Level : 50~52 dB(A)

Characteristics:

  • Power (V/Hz/Φ) : 220~240/50/1
  • Refrigerant gas : R-32
  • Guaranteed temperature range:
  • - Cooling: -15°~48°C
  • - Heating: -15°~24°C
Installation data:
  • Pipe diameter Liquid : 6.35 mm (1/4") x2
  • Gas pipe diameter : 9.52 mm (3/8") x2
  • Maximum piping length: 10 m
  • Maximum piping length with additional charge: 40 m
  • Maximum height difference between indoor units: 15 m
Dimensions:
  • External Unit Dimensions (HxWxD): 550x745x300 mm
  • Weight of Outdoor Unit: 30.0 Kg

Gree Pular Purity in Design and Comfort

The finish is matte, velvet effect, the color is pure white

Thanks to the use of opaque, simple and easy-to-match injection molding techniques, for a contemporary, captivating style

The design is seamless

The integrated double flap, completely closed, has no joints, because the details make the difference

Cleanliness and linearity are the distinguishing features of the design

Flowing curves and transitions, maximum simplicity, for a minimal approach, ideal for any environment


Superior Comfort Advanced functions of Pular, capable of giving unprecedented comfort

i-FEEL Plus The sensor on the remote control, which measures the room temperature and sends inputs to the unit to ensure the desired temperature where the remote control is placed, now has an even higher frequency of sending inputs. Every 10 minutes it connects with the unit, ensuring maximum comfort

Ad hoc technology for each mode Cooling with shower air flow. Heating with flow from bottom to top. Air flow increased by 17% compared to previous ranges. Very long air throw, up to 10 m. High precision in the air delivery thanks to the double flap

3D airflow Customize your comfort thanks to the 3D SWING function. Both horizontal and vertical flaps can be individually directed via the remote control. It is possible to select the oscillation angle for both flaps

Multi-speed airflow Up to 7 fan speeds from Quiet to Turbo Auto manages ventilation intelligently

Sleep function with 3 options

  • Silent modifies the set point in the following two hours
  • Smart intelligently adjusts the set point
  • DIY choose your personalized Sleep schedule

Turbo in cold and in heat For instant comfort, bring the compressor and fans to maximum power

Intelligent car mode Relax and let the climate control decide how to behave to achieve the desired comfort. For the first time, even in Auto mode it is possible to select the desired room temperature

Cold air prevention In Heating, a special intelligent function allows the conditioned air to enter the room only if and when it is sufficiently heated, for maximum comfort.

Save Energy Dedicated to those who want to save as much as possible, it decides the temperature independently, according to the default settings. Operation is managed automatically

Intelligent auto-restart It guarantees continuity of your comfort because after a black-out the unit restarts automatically when the power is restored, keeping the last settings.

Low Voltage Startup In an intelligent way, the unit starts with minimal starting, so as not to interfere with the use of other appliances

Intelligent Defrosting If the cold external temperature causes the formation of ice on the condenser coil, the correct functioning of the air conditioner in hot mode requires that there is a stop of the introduction of hot air into the room to allow defrosting of the external exchanger. In this specific case, these stops are not programmed at regular intervals, but take place only if and when really necessary, guaranteeing continuity of hot air flow into the room

Maximum silence With Pular you can sleep peacefully it is SUPER QUIET its sound level is record-breaking! 3 dB(A) below standard values: in Sleep mode it does not exceed 21 dB(A)


TOP air quality with the COLD PLASMA PLUS Purification System

Its sterilization effectiveness against bacteria is the best ever: it reaches 93%, against an average value of 80% for similar systems. It releases ions capable of neutralizing bacteria, fungi, pollen, mites and, in general, pollutants present in indoor air. Removes over 400 kinds of odors. It makes the air lighter by enriching it with negative ions

Cold Plasma Plus


Single filter accessible without any disassembly for cleaning

The dust filter is external, integrated in the structure, easy to reach and to clean frequently, without having to disassemble it. The fully enclosed double flap has no joints and thus prevents dust and other pollutants from entering the unit

Optional Filters Even purer air with the new optional filters, which you can apply to the standard Pular filter

Anti-Bacterial Filter The structure is realized by adding the biological anti-bacterial agent on the filter net. Effectively eliminate Escherichia coli and staphylococcus, etc

Tio 2 anti-bacterial deodorant filter Takes activated carbon as a carrier, mixed with titanium dioxide

Mite Clear Anti-Mite Filter New anti-mite and antibacterial material and can defend or prevent the mite, to improve indoor air quality

Composite filter Silver Ions, Catechin, Mite Clear

  • Silver ions: Effectively eliminate carcinogens, such as staphylococcus, streptococcus, salmonella, etc.
  • Catechin : Effectively sterilizes bacteria and other pollutants; prevents the causes of unpleasant odors
  • Mite Clear : Defends against mites and effectively prevents their formation

Auto-Clean Manage the cleaning of your internal drive with Pular

Auto Clean

Condensate, frost, defrost, dry You can decide to activate evaporator cleaning when you wish: with the unit off, just press two buttons on the remote control. The function will see phases of condensation, ice formation, defrosting and drying take place in sequence aimed at eliminating all residues of dust and pollutants and all traces of condensation. This will allow clean air to be introduced into the room at all times and to preserve the efficiency of the heat exchanger


X-Fans

The prevention of mold formation is also guaranteed by this function, which is activated simply by holding down the speed button for 2 seconds: the indoor unit fan will continue to operate, even with the unit off, for a few minutes, in order to dry perfectly the evaporator

X-Fans


User Friendly and Smart Controlling Pular's features is a breeze .

From Remote Control to Infrared Easy to use

It has a minimal but technological design, a pure white, high gloss finish and is characterized by a large LCD display and easy-to-use buttons. The integrated temperature sensor is activated by pressing the IFeel key and the Light key turns off the backlighting of the LED display of the indoor unit. The wifi button allows immediate activation of the function on the remote control

From a Smartphone, thanks to the integrated Wi-Fi as standard across the entire range

Thanks to the very intuitive G+ App, available for download in the versions for Android and iOS systems in Google play or the App store, you can control all the functions remotely. Downloading and installing the app, connecting to the home wifi and adding the unit are very simple operations: from your office or sofa at home you can thus easily control all the air conditioning parameters. With the same app you can manage multiple units.


Advanced controls

It is possible to centrally manage, via BACNET (BMS) or CENTRALIZED CONTROL or SMART ZONE in combination with wired controls (1 for split units), even several units within the same building (up to 16 with SMART CONTROL - up to 36 with CENTRALIZED CONTROL, up to 255 with BACNET), as if it were a small system

Programmable Wired Control Pular can also be controlled with a wired control, to be installed on the wall. It allows you to program switching on and off, select the operating mode and speed, flap position, daily timer and weekly programs

Door Control Contact The on/off contact on the unit allows you to manage the switching on and off of the unit with the magnetic card for opening the entrance door (for example of a hotel room). By inserting the card, the air conditioner is activated; by removing the card, the unit switches off: in this way energy waste is avoided. Wired controller is required for this application


Easy Installation Pular is built with features that facilitate installation, as well as access to parts for maintenance

Easy Maintenance The electrical box and the electronic board are easy to open and remove. The self-diagnosis function, which shows errors on the indoor unit display, facilitates the identification of any malfunctions and speeds up their solution. The special design of the outdoor unit's valve cover makes it easier to access the connections.

Versatility of Application Up to 5 indoor units that can be combined with multi-split outdoor units


Green technology

Choose the GREEN technology of GREE air conditioners: renewable energy, which therefore captures the thermal energy present in the air and transfers it where it is needed. The use of R32 refrigerant, with a low impact on global warming, makes environmental comfort even greener: there is no impact on the ozone layer and the quantity of gas required to ensure good performance is 30% lower than that of earlier gases such as R410A, due to its higher yield


High Energy Efficiency and Low Consumption

Inverter G10 is the latest generation DC Inverter technology that allows you to optimize performance and consumption thanks to the modulation of the compressor and fans according to the real comfort needs. In fact, as the desired temperature approaches, both the compressor and the fans of the outdoor and indoor units modulate capacity and consumption, ensuring:

• rapid achievement of the desired comfort

• constant maintenance of comfort conditions

• precise temperature control

• containment of consumption

• minimization of the sound level


Mono and Multi Compatible

The Pular indoor unit is available for single and multi applications with nominal cooling capacity from 2.7 to 6.5 kW. The indoor unit with a capacity of 2.1 kW is dedicated to Dual, Trial and Quadri applications: possible matchings and related data will be available shortly


Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
