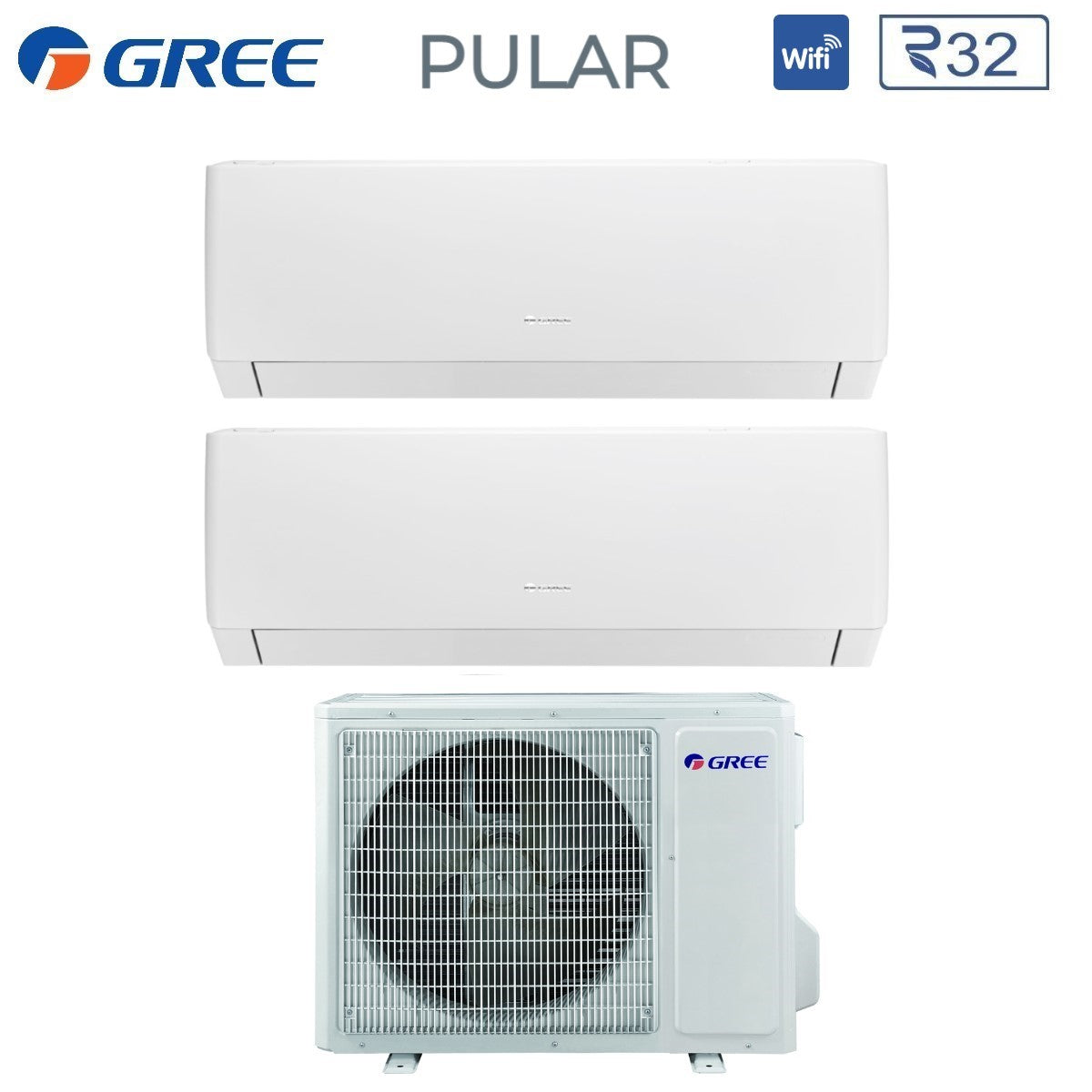

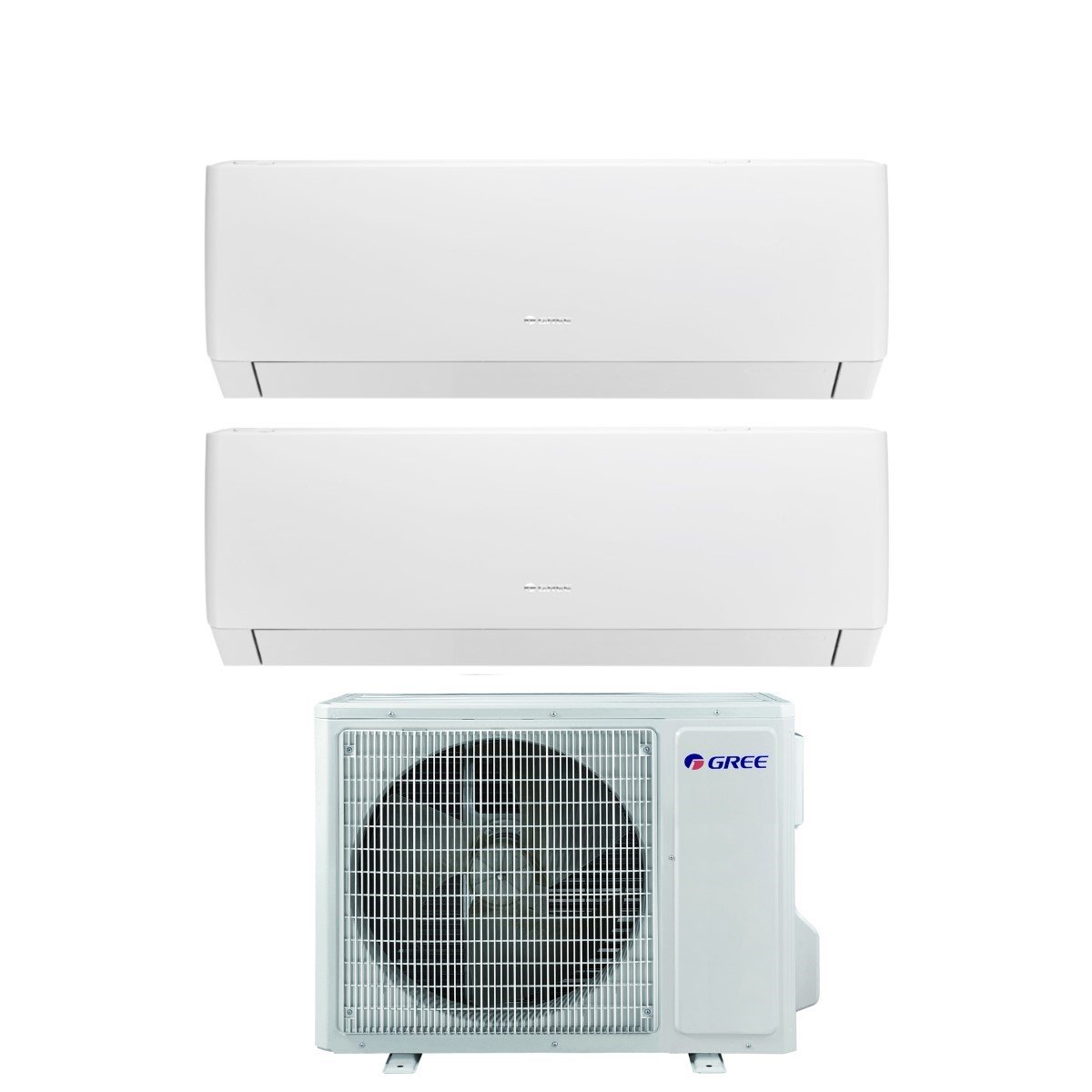

External unit
Model:
- Indoor Unit Catalog Code: GWHD(18)NK6OO
- Max indoor units: up to 2 indoor units
Energy Efficiency:
- SEER : 6.6
- SCOP : 4.0
- Energy Efficiency Class in Cooling: A++
- Energy Efficiency Class in Heating: A+
- Annual energy consumption in Cooling: 281 kWh/a
- Annual energy consumption in heating: 1505 kWh/a
Performance:
- Cooling capacity: 5.3 kW
- Heating capacity: 5.65 kW
- Cooling power consumption: 1.48 kW
- Heating power consumption: 1.25 kW
- Sound power level: 64 dB(A)
- Sound pressure level : 50~54 dB(A)
Characteristics:
- Power supply (V/Hz/Φ) : 220~240/50/1
- Refrigerant gas: R-32
- Guaranteed temperature range:
- - Cooling: -15° ~ 48° C
- - Heating: -15° ~24° C
Installation Data:
- Liquid Pipe Diameter: 6.35mm (1/4") x2
- Gas pipe diameter: 9.52 mm (3/8") x2
- Maximum pipe length: 10 m
- Maximum length of pipes with additional charge: 40 m
- Maximum height difference between internal units: 15 m
Dimensions:
- External Unit Dimensions (HxWxD): 550x745x300 mm
- External Unit Weight: 32.0 Kg

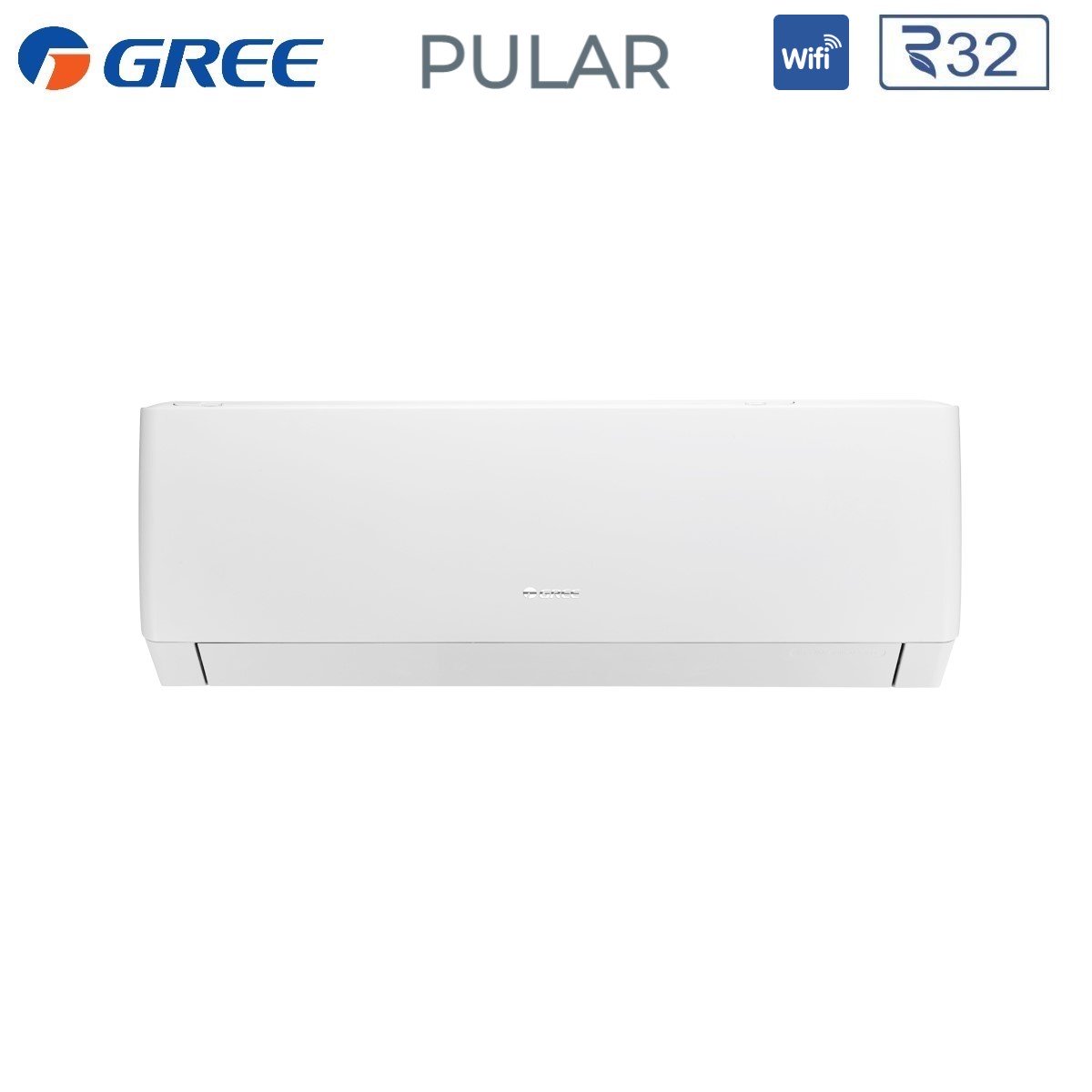

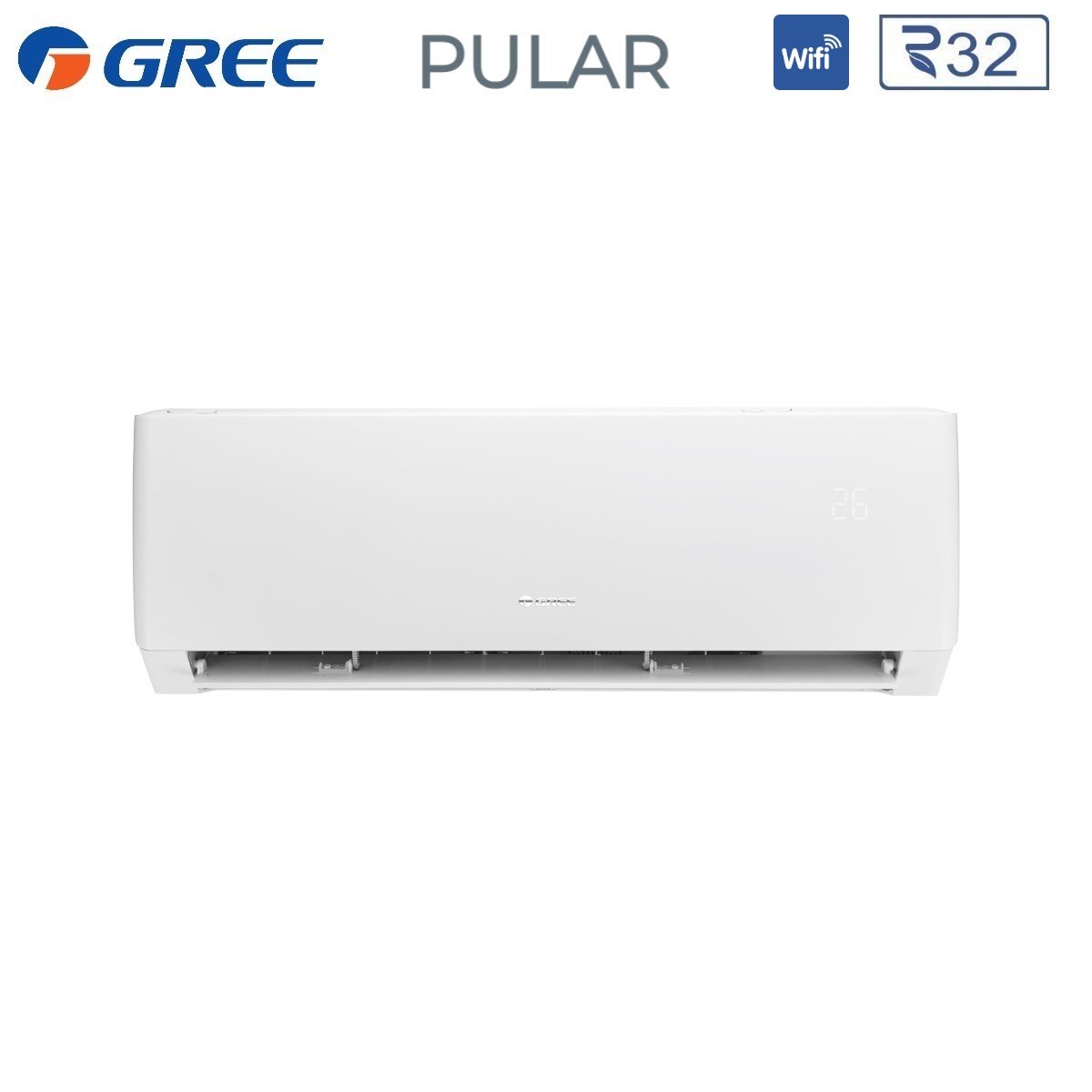

Gree Pular Purity in design and comfort
The finish is matte, velvet effect, the color is pure white
Using simple, easy-to-match matte injection molding techniques for a contemporary, eye-catching style
The design is seamless
The integrated double flap, completely closed, has no joints, because the details make the difference
Cleanliness and linearity are the characterising elements of the design
Curves and fluid transitions, maximum simplicity, for a minimal approach, ideal for any environment
Superior Comfort Advanced Pular functions, capable of providing unprecedented comfort
i-FEEL Plus Now the sensor on the remote control, which measures the room temperature and sends inputs to the unit to ensure the desired temperature where the remote control is positioned, has an even higher input sending frequency. Every 10 minutes it communicates with the unit, ensuring maximum comfort
Ad HOC technology for each mode Cooling with shower air flow. Heating with bottom-up flow. Air flow increased by 17% compared to previous ranges. Very long air throw, up to 10 m. High precision in air delivery thanks to the double flap
3D airflow Customize your comfort with the 3D SWING function. Both horizontal and vertical flaps can be directed in a personalized way via the remote control. It is possible to select the swing angle for both flaps
Multi-speed airflow Up to 7 fan speeds from Quiet to Turbo Auto intelligently manages ventilation
Sleep function with 3 options
-
Silent changes the set point in the next two hours
-
Smart intelligently adjusts the set point
-
DIY choose your personalized Sleep program
Turbo in cold and hot For instant comfort, bring the compressor and fans to maximum power
Intelligent Auto Mode Relax and let the air conditioning decide how to behave to achieve the desired comfort. For the first time, even in Auto mode it is possible to select the desired room temperature.
Cold air prevention In Heating, a special intelligent function allows the air conditioned air to enter the room only if and when sufficiently heated, for maximum comfort.
Save Energy Dedicated to those who want to save as much as possible, it decides the temperature autonomously, according to the default settings. The operation is managed automatically
Intelligent Auto-restart Ensures continuity of your comfort because after a blackout the unit automatically restarts when the power returns, maintaining the last settings.
Low Voltage Startup Intelligently, the unit starts with minimal starting voltage, so as not to interfere with the use of other appliances
Intelligent Defrosting If the cold outside temperature causes ice to form on the condensing coil, the correct operation of the air conditioner in hot conditions requires a stop in the hot air supply to the room to allow the external exchanger to defrost. In this specific case, these stops are not programmed at regular intervals, but only take place if and when truly necessary, ensuring continuity of hot air flow into the room
Maximum Silence With Pular you can sleep peacefully and SUPER QUIET its noise level is record-breaking! A good 3 dB(A) below standard values: in Sleep mode it does not exceed 21 dB(A)
TOP air quality with the COLD PLASMA PLUS Purification System
Its sterilization efficiency against bacteria is the best ever: it reaches 93%, against an average value of similar systems of 80%. It releases ions capable of neutralizing bacteria, fungi, pollen, mites and, in general, pollutants present in indoor air. It removes over 400 types of odors. It makes the air lighter by enriching it with negative ions.
Single filter accessible without any disassembly for cleaning
The dust filter is external, integrated into the structure, easy to reach and clean with high frequency, without having to disassemble it. The double flap completely closed, has no joints and therefore prevents dust and other pollutants from entering the unit
Optional Filters Even purer air with the new optional filters, which you can apply to the standard Pular filter
Anti-bacterial Filter The structure is made by adding the biological antibacterial agent on the filter mesh. Effectively eliminates Escherichia coli and staphylococcus, etc.
Tio 2 anti-bacterial deodorant filter Takes activated carbon as a carrier, mixed with titanium dioxide
Mite Clear Anti-Mite Filter New anti-mite and antibacterial material and can defend or prevent mite, to improve indoor air quality
Composite filter Silver Ions, Catechin, Mite Clear
-
Silver Ions: Effectively eliminate carcinogens, such as staphylococcus, streptococcus, salmonella, etc.
-
Catechin: Effectively sterilizes bacteria and other pollutants; prevents the causes of unpleasant odors
-
Mite Clear: Defends against mites and effectively prevents their formation
Auto-Clean Manage the cleaning of your indoor unit with Pular
Condensation, frost, defrost, dry You can decide to activate the evaporator cleaning whenever you want: with the unit off, just press two buttons on the remote control. The function will see a sequence of condensation, ice formation, defrosting and drying phases aimed at eliminating all dust and pollutant residues and any trace of condensation. This will allow you to always introduce clean air into the environment and preserve the efficiency of the heat exchanger
X-Fan
The prevention of mould formation is also guaranteed by this function, which is activated simply by holding down the speed button for 2 seconds: the internal unit's fan will continue to operate, even when the unit is switched off, for a few minutes, in order to dry the evaporator perfectly.
User Friendly and Smart Controlling Pular's features is a breeze .
From Infrared Remote Control Easy to use
It has a minimal but technological design, pure white finish, high gloss and is characterized by a large LCD display and easy-to-use buttons. The integrated temperature sensor is activated by pressing the IFeel button and the Light button allows you to turn off the backlighting of the LED display of the internal unit. The wifi button allows immediate activation of the function on the remote control
From your smartphone, thanks to the integrated Wi-Fi that comes as standard across the entire range
Thanks to the very intuitive G+ App, available for download in versions for Android and iOS systems in Google play or App store, you can control all the functions remotely. Downloading and installing the app, connecting to your home wifi and adding the unit are very simple operations: from your office or from the sofa at home you can easily control all the parameters of the air conditioner. With the same app you can manage multiple units.
Advanced controls
It is possible to centrally manage, via BACNET (BMS) or CENTRALIZED CONTROL or SMART ZONE in combination with wired controls (1 per split unit), even multiple units within the same building (up to 16 with SMART CONTROL - up to 36 with CENTRALIZED CONTROL, up to 255 with BACNET), as if it were a small system.
Programmable Wired Control Pular can also be controlled with a wired control, to be installed on the wall. It allows you to program switching on, switching off, selecting the operating mode and speed, flap position, daily timer and weekly programs
Door Control Contact The on/off contact on the unit allows you to manage the switching on and off of the unit with the magnetic card that opens the entrance door (for example, a hotel room). By inserting the card, the air conditioner is activated; by removing the card, the unit is switched off: this avoids wasting energy. For this application, the wired control is required
Easy Installation Pular is built with features that make installation easier, as well as access to parts for maintenance.
Easy Maintenance The electrical box and the electronic board are easy to open and remove. The self-diagnosis function, which shows the errors on the display of the indoor unit, makes it easy to identify any malfunctions and speeds up their resolution. The special design of the valve cover of the outdoor unit makes it easier to access the connections.
Application Versatility Up to 5 indoor units can be combined with multi-split outdoor units
Green Technology
Choose the GREEN technology of GREE air conditioners: renewable energy, which therefore captures the thermal energy present in the air and transfers it where it is needed. The use of R32 refrigerant, with low impact on global warming, makes environmental comfort even greener: there is no impact on the ozone layer and the quantity of gas needed to ensure good performance is 30% lower than that of previous gases such as R410A, thanks to its higher performance.
High Energy Efficiency and Low Consumption
Inverter G10 is the latest generation DC Inverter technology that allows you to optimize performance and consumption thanks to the modulation of the compressor and fans based on real comfort needs. In fact, as the desired temperature approaches, both the compressor and the fans of the external and internal units modulate capacity and consumption, ensuring:
• rapid achievement of the desired comfort
• constant maintenance of comfort conditions
• precise temperature control
• containment of consumption
• minimization of the noise level
Mono and Multi Compatible
The Pular indoor unit is available for mono and multi applications with nominal cooling capacity from 2.7 to 6.5 kW. The indoor unit with a capacity of 2.1 kW is dedicated to Dual, Trial and Quadri applications: possible matching and related data will be available soon
