- Pipe diameter Liquid : 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Maximum piping length: 30 m
- Maximum height difference Indoor Unit / Outdoor Unit: 15 m
Dimensions and weight
- Internal Unit Dimensions (HxWxD): 200x700x450 mm
- Indoor Unit Weight: 20 Kg
- External Unit Dimensions (WxHxD): 596x818x302 mm
- Weight of Outdoor Unit: 37 Kg

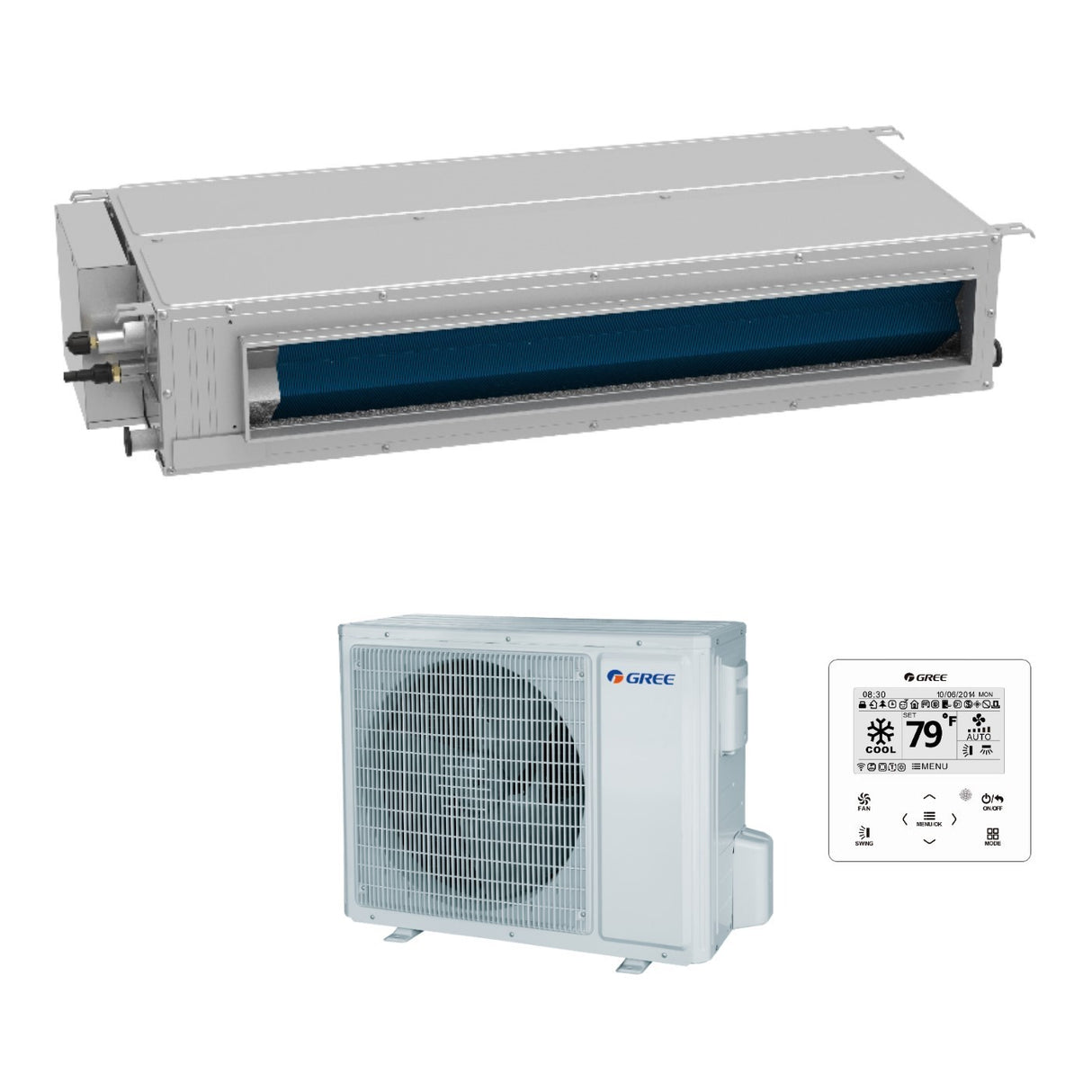

Gree Ducted Ultra-Thin
• Ductable units for mono applications in the small-commercial / tertiary sectors
• Suitable for shops, offices, meeting rooms, hotels, restaurants, clubs, gyms and open space areas
• Ultra-thin, these units feature optimized air outlet design to minimize sound level and improve performance
• The height is in fact only 200 mm for the 3.5 and 5.0 kW models and 220 mm for the 7 and 8.5 kW models: these units are among the slimmest on the market
• The special design of the evaporating coil (V shape), covered by a patent, favors a more effective exchange of air
• The centrifugal fan is also characterized by a patented design and allows a higher air flow rate and greater silence
• Head reaches 75 Pa, ensuring maximum adaptability to different types of installation
• The combination with the wired controller allows optimizing the head according to the different technical installation requirements
• The condensate drain pump is integrated for a height difference of up to 1000 mm
• You can choose between rear or bottom air intake
• There are 11 selectable fan speeds
• DC motor ensures energy saving and high efficiency
• Indoor units are equipped with dual ambient temperature sensors for customizable comfort: option to select either return air temperature sensor on the unit or temperature sensor on the wired controller
• Connection to an external fresh air intake is possible
• High energy efficiency, at all powers expressed, both in cooling and in heating, especially with a view to operation 365 days a year (seasonal efficiency)
• The special closing system of the refrigerant valve prevents and excludes the risk of gas leaks due to inappropriate maintenance
Wi-Fi Optional
By integrating the kit, which can be purchased separately, it will be possible to remotely control the unit, via the APP installed on your smartphone, on/off, mode, temperature, etc. to program your own comfort at any time, even when you are away from home
Outdoor Unit
Characteristics
• Energy class up to A++ in cooling mode and up to A+ in heating mode
• Intelligent regulation of compressor frequency, accurate temperature control
• Reliable cooling and heating down to -20°C outside temperature
• Minimization of the sound level thanks to the axial fan
• Quick achievement of comfort conditions: the unit allows rapid cooling and heating and is able to quickly reach the temperature set by the user
• Intelligent defrost: the unit is able to correctly evaluate the presence of frost on the outdoor unit through a temperature sensor. The goal is to "defrost only when needed", optimizing the heating effect for high environmental comfort
Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
