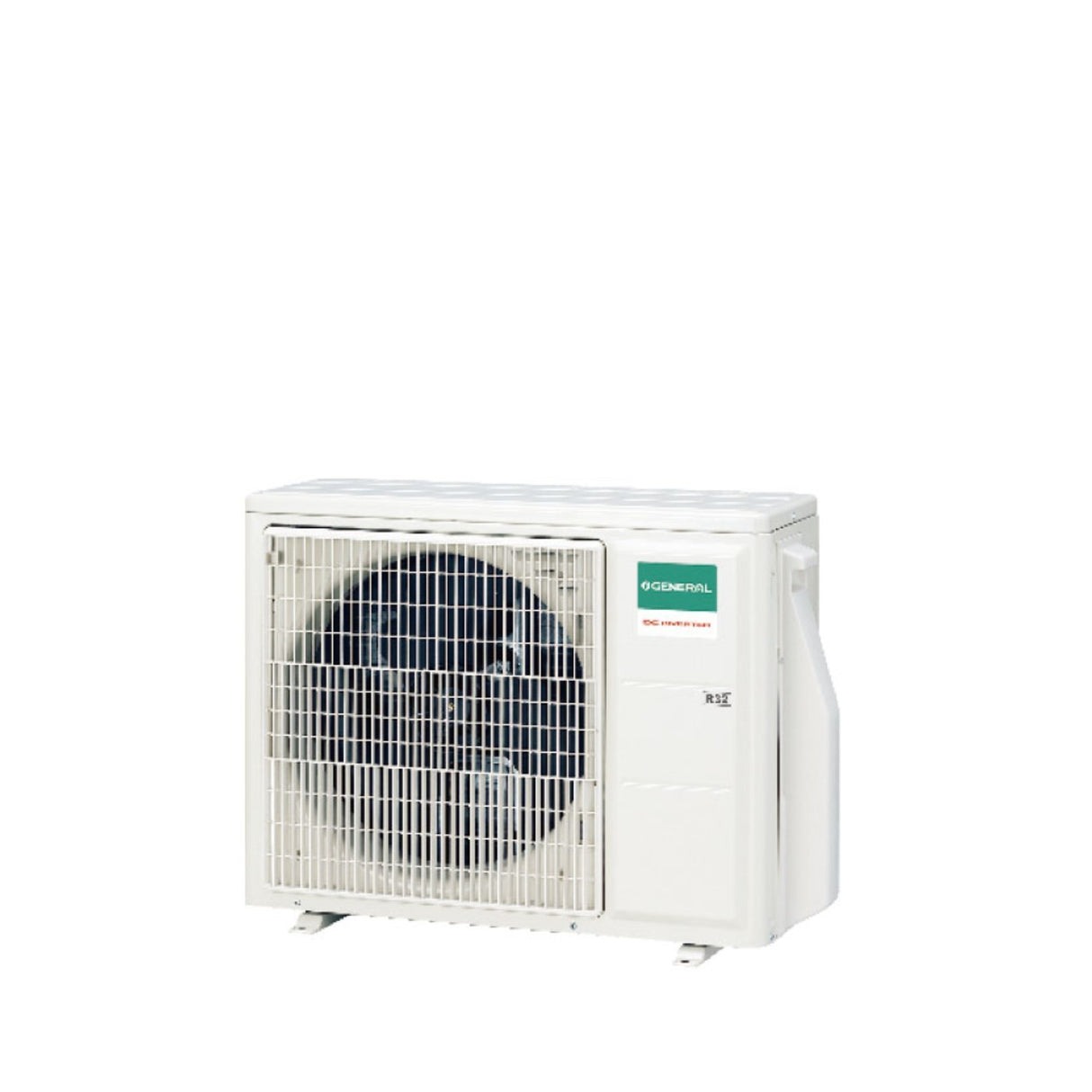

General Fujitsu Outdoor Unit Mutisplit Motor Aohg18kbta2 Dual Split R-32 Class A++/A+
General Fujitsu Outdoor Unit Mutisplit Motor Aohg18kbta2 Dual Split R-32 Class A++/A+ is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Come funziona la spedizione
Come funziona la spedizione
I costi di spedizione variano a seconda del peso e della modalità di spedizione dell'ordine.
I nostri servizi di spedizione:
- Spedizione standard: consegna stimata dai 2 ai 5 giorni lavorativi
- Spedizione Premium: consegna garantita in 24 ore lavorative
- Spedizione Premium + Consegna al piano: consegna garantita in 24 ore lavorative
Consulta le tabelle per i prezzi della spedizione standard per l'Italia e per le Isole Minori e Zone Disagiate.
Per ulteriori dettagli sulla Spedizione Premium, consulta la pagina di spedizione premium.
Servizio clienti
Servizio clienti
Il nostro servizio di assistenza è dedicato a fornire supporto ai nostri clienti per qualsiasi problema o domanda che possano avere prima o dopo l’acquisto dei nostri prodotti.
Utilizza il canale di comunicazione diretta per parlare con un nostro operatore, oppure inviaci una mail ad uno degli indirizzi elencati nella pagina contattaci.
Il nostro team di assistenza clienti è composto da professionisti altamente qualificati e sempre pronti ad aiutare i clienti a risolvere qualsiasi problema o rispondere a qualsiasi domanda in modo rapido ed efficiente. Ci impegniamo a garantire la massima soddisfazione del cliente e a fornire un servizio di assistenza post-vendita di altissima qualità. Quindi, se hai bisogno di assistenza, non esitare a contattarci; saremo lieti di aiutarti in ogni modo possibile.
Description
Description
Technical features
Outdoor Unit
Model:
- External Unit Catalog Code: AOHG18KBTA2
- Max indoor units: up to 2 indoor units
Energy efficiency:
- SEER : 8.6 (W/W)
- SCOP : 4.7 (W/W)
- Energy Efficiency Class in Cooling : A++
- Heating Energy Efficiency Class: A+
- Annual energy consumption Cooling : 263 kWh/a
- Annual energy consumption Heating : 1434 kWh/a
Performance:
- Cooling Capacity: 5.0 kW
- Heating Capacity: 5.6 kW
- Absorption in cooling: 1.38 kW
- Heating absorption: 1.43 kW
- Sound power level : 60 ~ 62 dB(A)
- Sound pressure level : 47 ~ 50 dB(A)
Characteristics:
- Power (V/Hz/Φ) : 220~240/50/1
- Refrigerant gas : R-32
- Guaranteed temperature range:
- - Cooling: -10° ~ 46°C
- - Heating: -15° ~ 24° C
- Pipe diameter Liquid : 6.35 mm (1/4") x2
- Gas pipe diameter : 9.52 mm (3/8") x2
- Maximum Total Pipe Length: 30 m
- Maximum height difference Indoor Unit / Outdoor Unit: 15 m
Dimensions:
- External Unit Dimensions (HxLxP): 632×799×290 mm
- Weight of Outdoor Unit: 37 Kg
Attention, only the external unit will be supplied
5 year warranty
Fujitsu General Air Conditioning SPA Offers the Possibility to Freely Extend the Legal Warranty on Its Products by an Additional 3 Years . The warranty extension is offered to the installer who maintains the air conditioner, who will offer it to his customer.
The warranty can be activated at https://g-it.fujitsu-general.com/warranty
Multisplit system
The GENERAL Inverter Multisplit systems today represent a range of products that ranks at the top of the category in terms of performance and energy efficiency, especially when they are called upon to operate in heat pump mode, which is why they are also widely used as a primary heating system. The technology of Multisplit Inverter systems is now applied both in the residential sector but also in the commercial and service sector where the variations in the thermal load are continuous and sudden. Thanks to the technology of the new DC inverter compressors, the desired temperature in the room is reached more quickly than conventional models and is maintained with a difference of just 0.5°C.
High Energy Saving
DC technology is used for the compressor, indoor/outdoor fan motor and inverter control
R-32 gas
The extremely high efficiency is achieved thanks to the Lamba heat exchanger, the tangential fan and the new R32 refrigerant.
Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
Scheda Tecnica
Scheda Tecnica
- peso: 35.0 kg
- marca: General Fujitsu
- modello: AOHG18KBTA2
