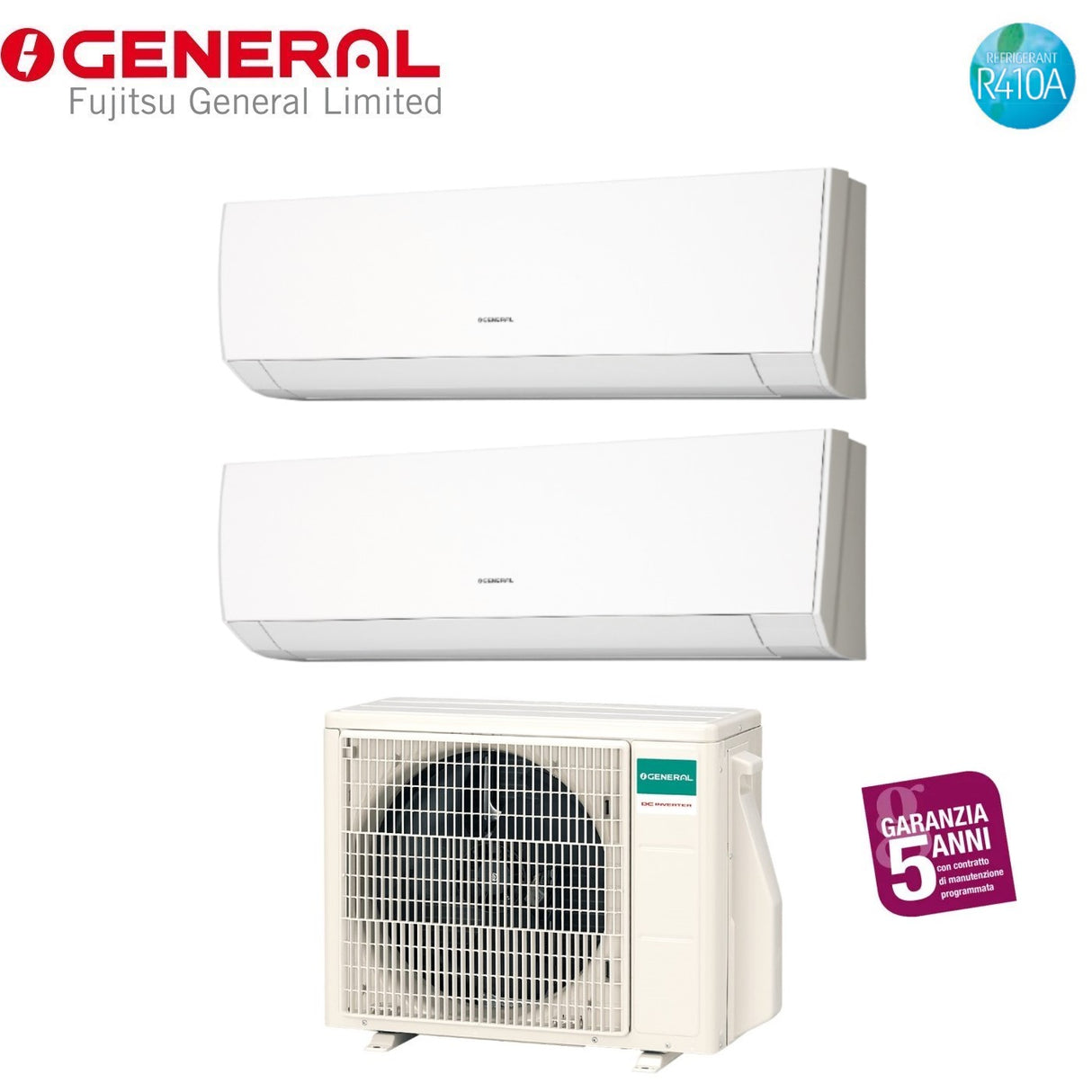

General Fujitsu Air Conditioner Dual Split Inverter Series Lmca 7 + 9 With Aohg14lac2 R-410 7000 + 9000

Description

Technical features

Indoor Units

1) Model

  • Product code: 1 x ASHG07LMCA
  • Power 7000 btu
  • Cooling Capacity: 2.0 kW
  • Heating Capacity: 3.0 kW
  • Internal Unit Dimensions (HxWxD): 268 x 840 x 203 mm
  • Indoor Unit Weight: 8.5 Kg

2) Model

  • Product code: 1 x ASHG09LMCA
  • Power 9000 btu
  • Cooling Capacity: 2.5 kW
  • Heating Capacity: 3.2 kW
  • Internal Unit Dimensions (HxWxD): 268 x 840 x 203 mm
  • Indoor Unit Weight: 8.5 Kg
Outdoor Unit

Model:
  • Catalog code : AOHG14LAC2
  • Max indoor units: up to 2 indoor units

Energy Efficiency :

  • SEER (W/W) : 6.6
  • SCOP (W/W) : 4.0
  • Energy Efficiency Class (Cooling) : A++
  • Energy Efficiency Class (Heating) : A+
  • annual energy consumption Cooling/Heating [kWh/a] 209/1296

Performance:

  • Nominal cooling power (kW) : 4.0
  • Absorbed cooling power (kW): 1,090
  • Nominal heating power (kW) : 4.4
  • Absorbed heating power (kW): 1,030
  • Noise level (Sound pressure) Hi dB: 47
  • Noise level (sound power) Hi dB: 61

Characteristics:

  • Power (V/Hz/Φ) : 220~240/50/1
  • Refrigerant gas : R410A
  • Maximum piping length m: 30
  • Maximum pipe height difference m :15
  • operating level [C°]:
    - Cooling from -10 to 46
    - Heating from -15 to 24

Dimensions:

  • External Unit Dimensions (HxWxD): 540 x 790 x 290 mm
  • Weight of Outdoor Unit: 37 Kg

MULTI-PLIT system

The GENERAL Inverter Multisplit systems today represent a range of products that ranks at the top of the category in terms of performance and energy efficiency, especially when they are called upon to operate in heat pump mode, which is why they are also widely used as a primary heating system. The technology of Multisplit Inverter systems is now applied both in the residential sector but also in the commercial and service sector where the variations in the thermal load are continuous and sudden. Thanks to the technology of the new DC inverter compressors, the desired temperature in the room is reached more quickly than conventional models and is maintained with a difference of just 0.5°C.


ASHG__LMCA SERIES

Lmca

The ASHG_LMCA series is part of the range as a product characterized by an elegant design with a flat and thin panel and high energy efficiency.

Compact design with high efficiency

Lmca

Increased heat exchanger volume due to high density and adoption of secondary heat exchanger.


More comfortable airflow

Lmca

Heating

Vertical airflow provides powerful floor-level heating.

Cooling down

The horizontal airflow dose not blow fresh air directly to the occupants in the room.


5 year guarantee

Garanzia

General has developed a FREE online service that allows you to obtain a 5-year warranty certificate for one or more devices installed in the same place in just a few seconds


Energy saving function

When energy saving mode is activated, the room temperature is slightly higher than the set temperature for cooling mode and slightly lower than the set temperature for heating mode. Energy saving mode therefore saves more energy than normal mode


Economy function

The Economy function automatically varies the temperature by 1°C with respect to the set temperature

Maximum power function

To reach room comfort more quickly in both cooling and heating, the fan of the indoor unit and the compressor will run at maximum speed for 20 continuous minutes.

Super quiet function

The super quiet function allows you to reduce the sound level emitted by the indoor unit by 21dB, making your stay in the room more pleasant


Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase
