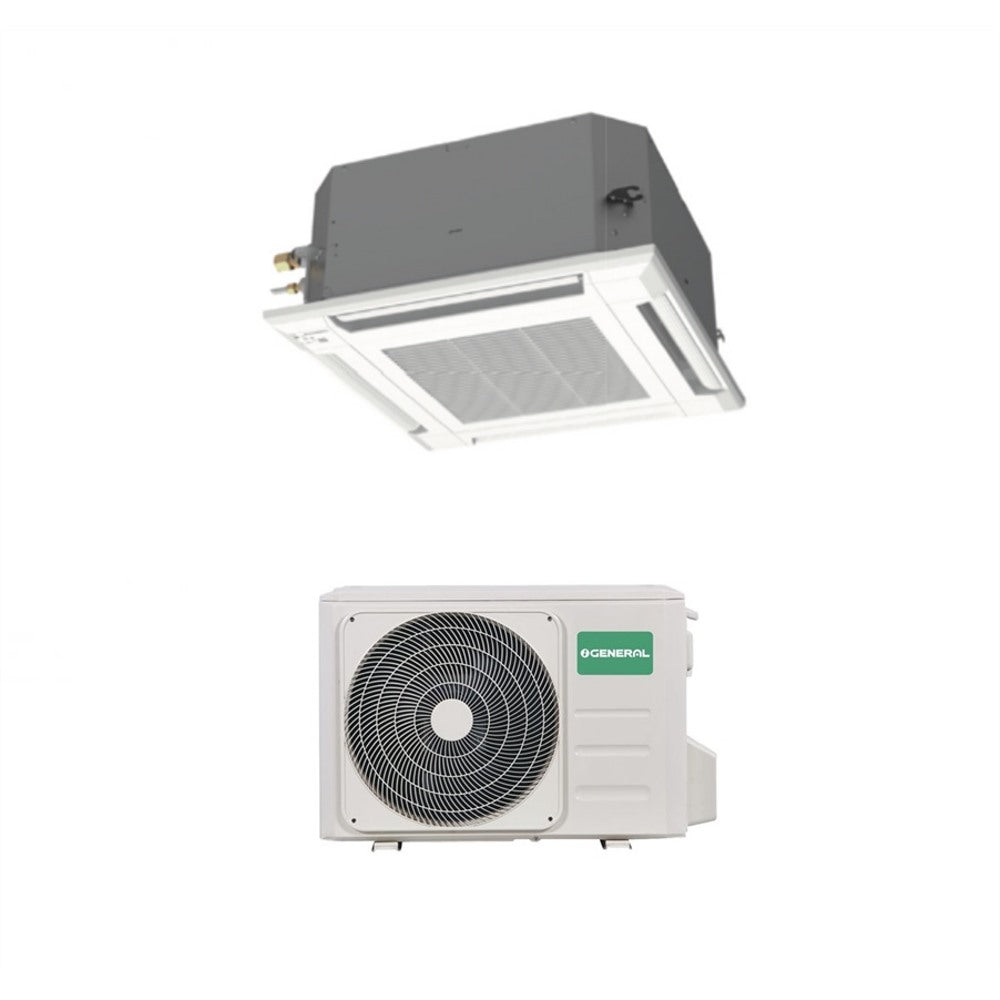

Fujitsu Air Conditioner General Cassette 4 Way Inverter 22000 Btu Auxg22kvla

Important Notice on Regulations for Fluorinated Gases IN ITALY

In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018, equipment containing fluorinated gases that is not hermetically sealed can only be sold if installed by a certified company.

By law, each sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer ensuring that the installation complies with the regulations. Therefore, before completing the order, it will be necessary to provide this mandatory declaration.

Description

PRODUCT AVAILABLE TO ORDER!


Technical features

Model

  • Indoor unit catalog code : AUXG22KVLA
  • Outdoor unit catalog code : AUXG22KBTB
  • Typology : Compact Cassette, 4-way Flow
  • Power: 22000 btu/h

Energy efficiency

  • SEER : 6.60
  • SCOP : 4.30
  • Seasonal Energy Efficiency Class in Cooling: A++
  • Seasonal Energy Efficiency Class in Heating: A+
  • Annual energy consumption Cooling : 318 kWh/a
  • Annual energy consumption Heating : 1562 kWh/a

Performance

  • Dehumidification : 2.6 l/h
  • Nominal cooling capacity : 6.0 kW
  • Nominal heating capacity : 7.0 kW
  • Power absorbed in cooling: 1.82 kW
  • Power absorbed in heating: 1.87 kW
  • Sound pressure Indoor unit Cooling : 44/42/36/30 dB(A)
  • Internal Heating unit sound pressure : 45/43/36/30 dB(A)
  • Indoor unit sound power : 51 dB(A)
  • External unit sound pressure : 56/57 dB(A)
  • External unit sound power : 63 dB(A)

Characteristics

  • Power supply (V/Hz/Φ) : 230/50/1
  • Refrigerant gas : R-32
  • Liquid Pipe Diameter : 6.35 mm (1/4")
  • Gas Pipe Diameter: 12.70 mm (1/2")
  • Condensate drain diameter (int./ext.): 25/32
  • Max piping length: 30m
  • Maximum height difference: 25m

Dimensions and weight

  • Internal Unit Dimensions (HxLxP): 245x570x570 mm
  • Indoor Unit Weight: 15 kg
  • External Unit Dimensions (HxLxP) 632x799x290 mm
  • Weight of Outdoor Unit: 38 kg
Dimensioni
Warranty
FUJITSU GENERAL COMMERCIAL AIR CONDITIONING SPA OFFERS THE POSSIBILITY OF FREE EXTENDING THE LEGAL WARRANTY ON ITS PRODUCTS IN THE RAC AND PAC RANGE FOR A FURTHER 3 YEARS
Garanzia

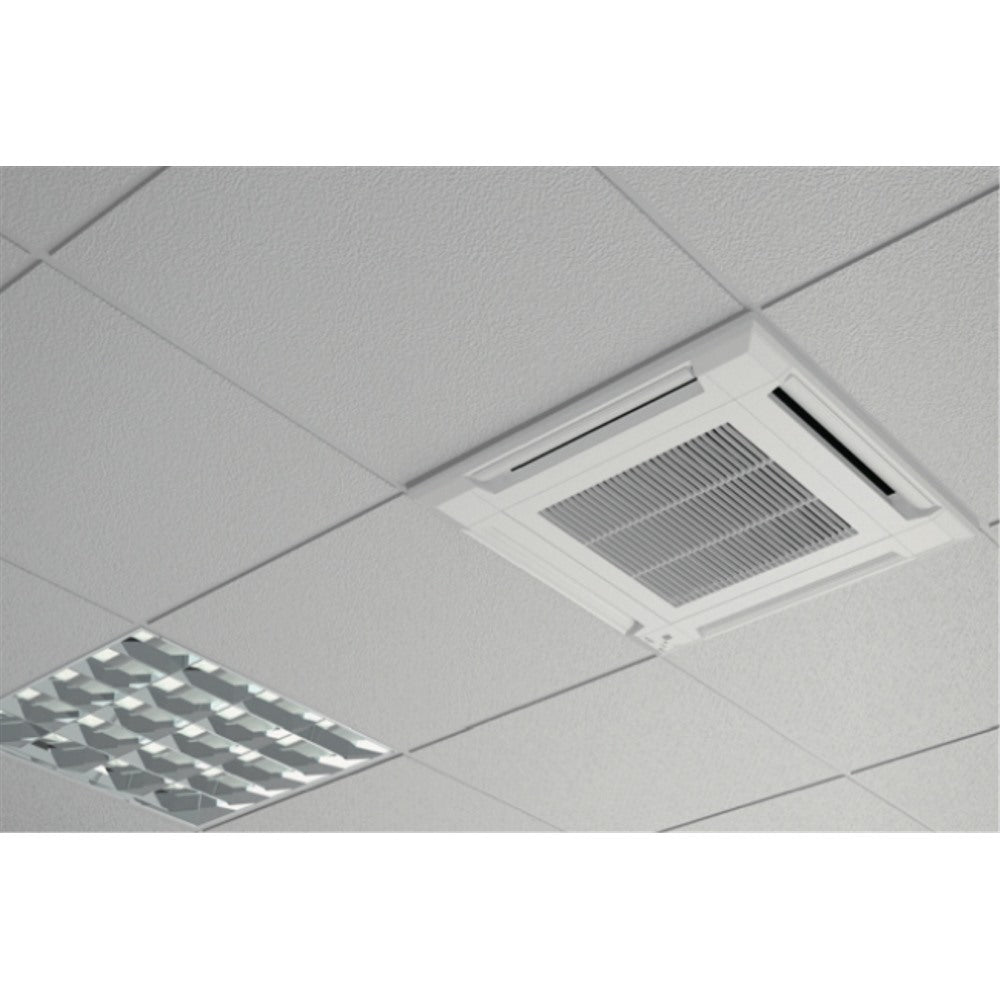

CASSETTE SYSTEM


The range of compact series cassette units ranges from a minimum capacity of 9,000 BTU/h up to 24,000 BTU/h in the compact version, INVERTER version in direct current. The compact series, contained in the dimensions, is perfectly suited for installation in false ceilings with standard 620x620 mm panels. The grille fits into the compact and elegant ceiling panel design.


NEW GENERATION COMPACT CASSETTE UNITS

has developed in its research laboratories new concept dual stage fans, to obtain unique performances in terms of energy saving, with better air distribution and extraordinarily low sound levels for the product category, all for a perfect comfort in the environment.

KVLA SERIES

Easy Maintenance

For maintenance, simply remove the ceiling panel near the grille. Maintenance can therefore be performed without the need for an inspection hole.

Manutenzione

Installation flexibility

It is suitable for panel-type ceilings, allows great freedom of installation and can be installed next to the lighting and ventilation opening.

Operation at low ambient temperature

Temperature


Product Warranty All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Fujitsu Air Conditioner General Cassette 4 Way Inverter 22000 Btu Auxg22kvla

Product form

PRODUCT AVAILABLE TO ORDER! Technical features Model Indoor unit catalog code : AUXG22KVLA Outdoor unit catalog code : AUXG22KBTB Typology... Read more

€1.920,00 Incl. VAT

    Description

    PRODUCT AVAILABLE TO ORDER!


    Technical features

    Model

    • Indoor unit catalog code : AUXG22KVLA
    • Outdoor unit catalog code : AUXG22KBTB
    • Typology : Compact Cassette, 4-way Flow
    • Power: 22000 btu/h

    Energy efficiency

    • SEER : 6.60
    • SCOP : 4.30
    • Seasonal Energy Efficiency Class in Cooling: A++
    • Seasonal Energy Efficiency Class in Heating: A+
    • Annual energy consumption Cooling : 318 kWh/a
    • Annual energy consumption Heating : 1562 kWh/a

    Performance

    • Dehumidification : 2.6 l/h
    • Nominal cooling capacity : 6.0 kW
    • Nominal heating capacity : 7.0 kW
    • Power absorbed in cooling: 1.82 kW
    • Power absorbed in heating: 1.87 kW
    • Sound pressure Indoor unit Cooling : 44/42/36/30 dB(A)
    • Internal Heating unit sound pressure : 45/43/36/30 dB(A)
    • Indoor unit sound power : 51 dB(A)
    • External unit sound pressure : 56/57 dB(A)
    • External unit sound power : 63 dB(A)

    Characteristics

    • Power supply (V/Hz/Φ) : 230/50/1
    • Refrigerant gas : R-32
    • Liquid Pipe Diameter : 6.35 mm (1/4")
    • Gas Pipe Diameter: 12.70 mm (1/2")
    • Condensate drain diameter (int./ext.): 25/32
    • Max piping length: 30m
    • Maximum height difference: 25m

    Dimensions and weight

    • Internal Unit Dimensions (HxLxP): 245x570x570 mm
    • Indoor Unit Weight: 15 kg
    • External Unit Dimensions (HxLxP) 632x799x290 mm
    • Weight of Outdoor Unit: 38 kg
    Dimensioni
    Warranty
    FUJITSU GENERAL COMMERCIAL AIR CONDITIONING SPA OFFERS THE POSSIBILITY OF FREE EXTENDING THE LEGAL WARRANTY ON ITS PRODUCTS IN THE RAC AND PAC RANGE FOR A FURTHER 3 YEARS
    Garanzia

    CASSETTE SYSTEM


    The range of compact series cassette units ranges from a minimum capacity of 9,000 BTU/h up to 24,000 BTU/h in the compact version, INVERTER version in direct current. The compact series, contained in the dimensions, is perfectly suited for installation in false ceilings with standard 620x620 mm panels. The grille fits into the compact and elegant ceiling panel design.


    NEW GENERATION COMPACT CASSETTE UNITS

    has developed in its research laboratories new concept dual stage fans, to obtain unique performances in terms of energy saving, with better air distribution and extraordinarily low sound levels for the product category, all for a perfect comfort in the environment.

    KVLA SERIES

    Easy Maintenance

    For maintenance, simply remove the ceiling panel near the grille. Maintenance can therefore be performed without the need for an inspection hole.

    Manutenzione

    Installation flexibility

    It is suitable for panel-type ceilings, allows great freedom of installation and can be installed next to the lighting and ventilation opening.

    Operation at low ambient temperature

    Temperature


    Product Warranty All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

    Data sheetData sheet
    • peso: 80.0 kg
    • classe energetica raffreddamento: A++
    • classe energetica riscaldamento: A+
    • marca: General Fujitsu
    • metri quadri : 60 - 80 m2
    • modello: AUXG22KVLA
    • potenza btu: 21000
