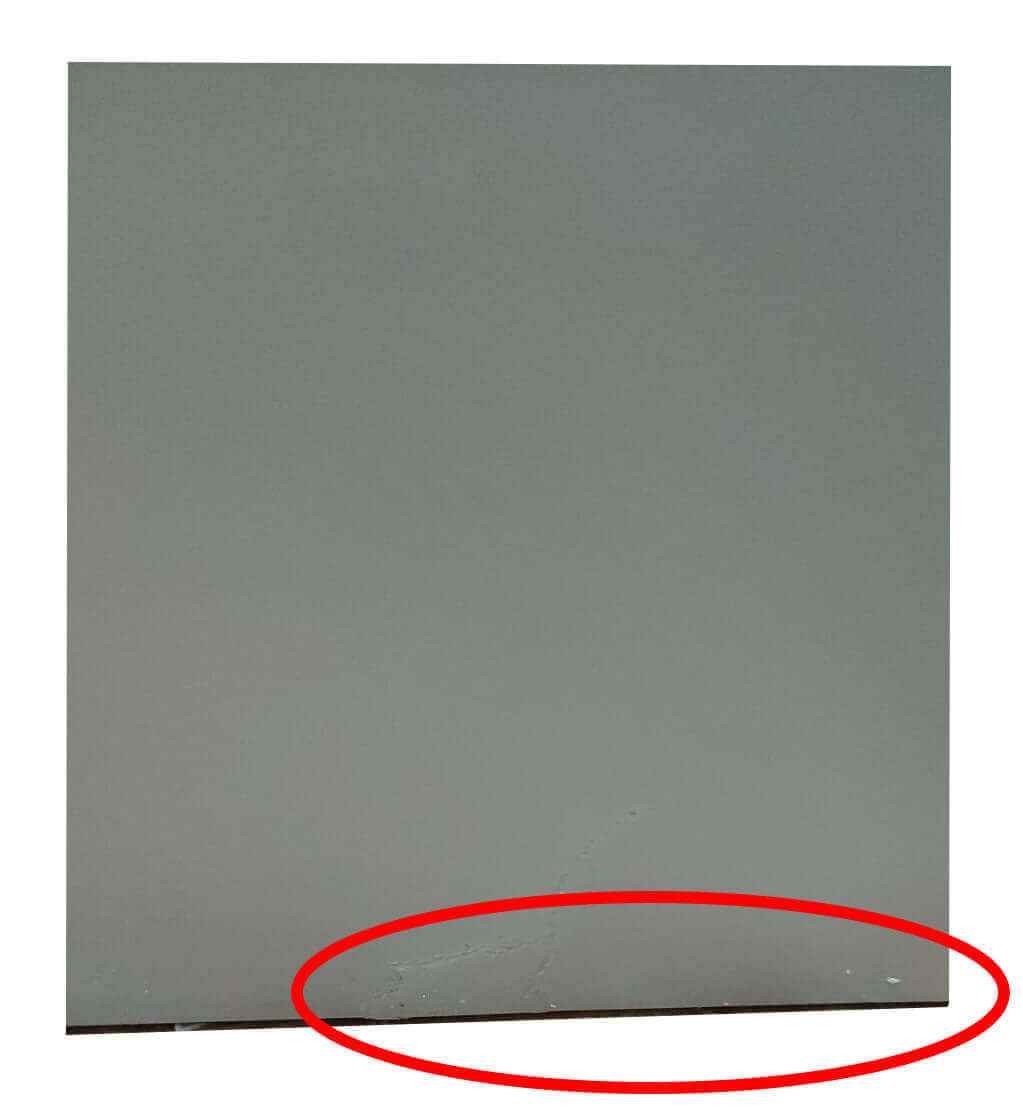

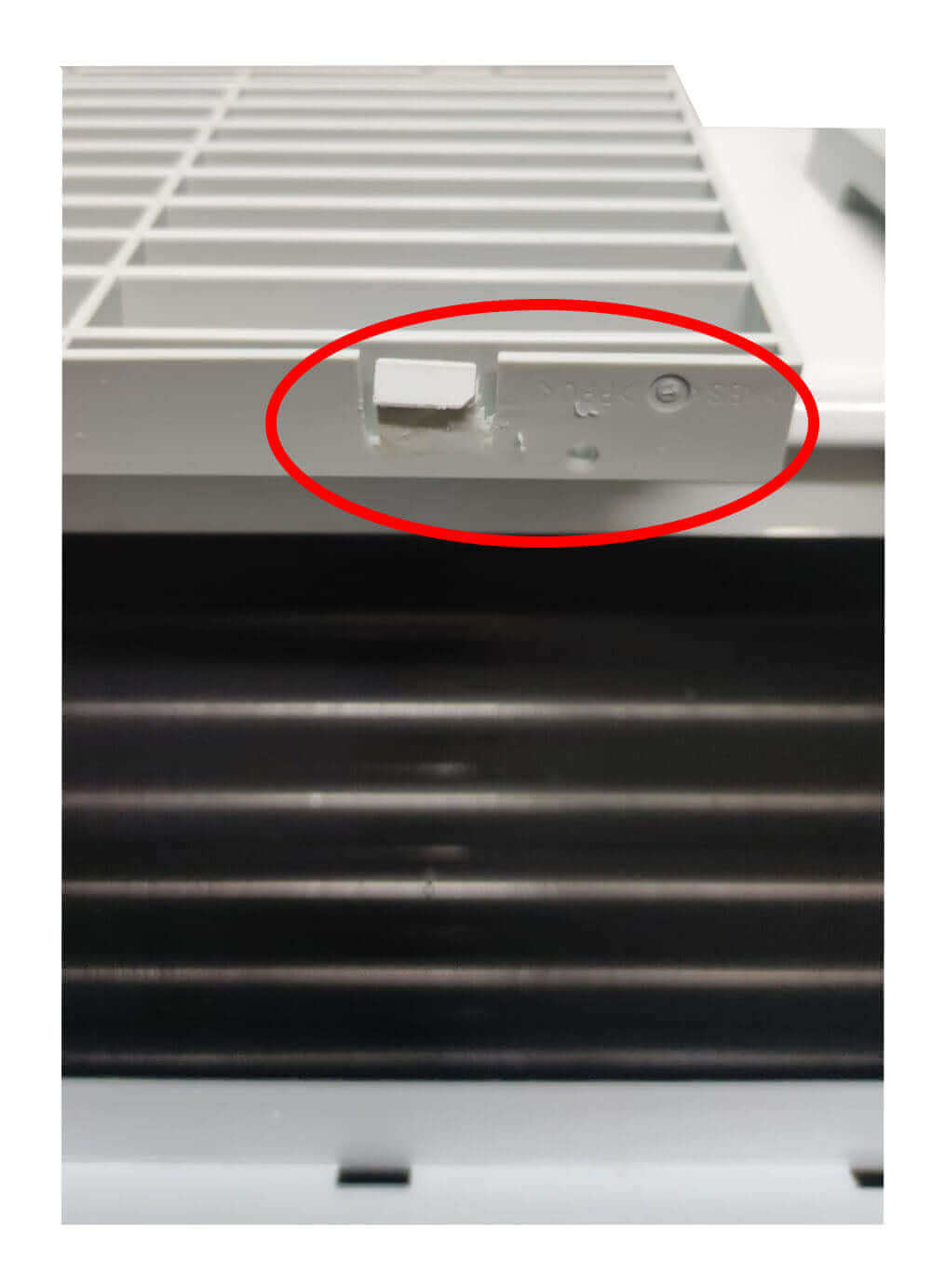

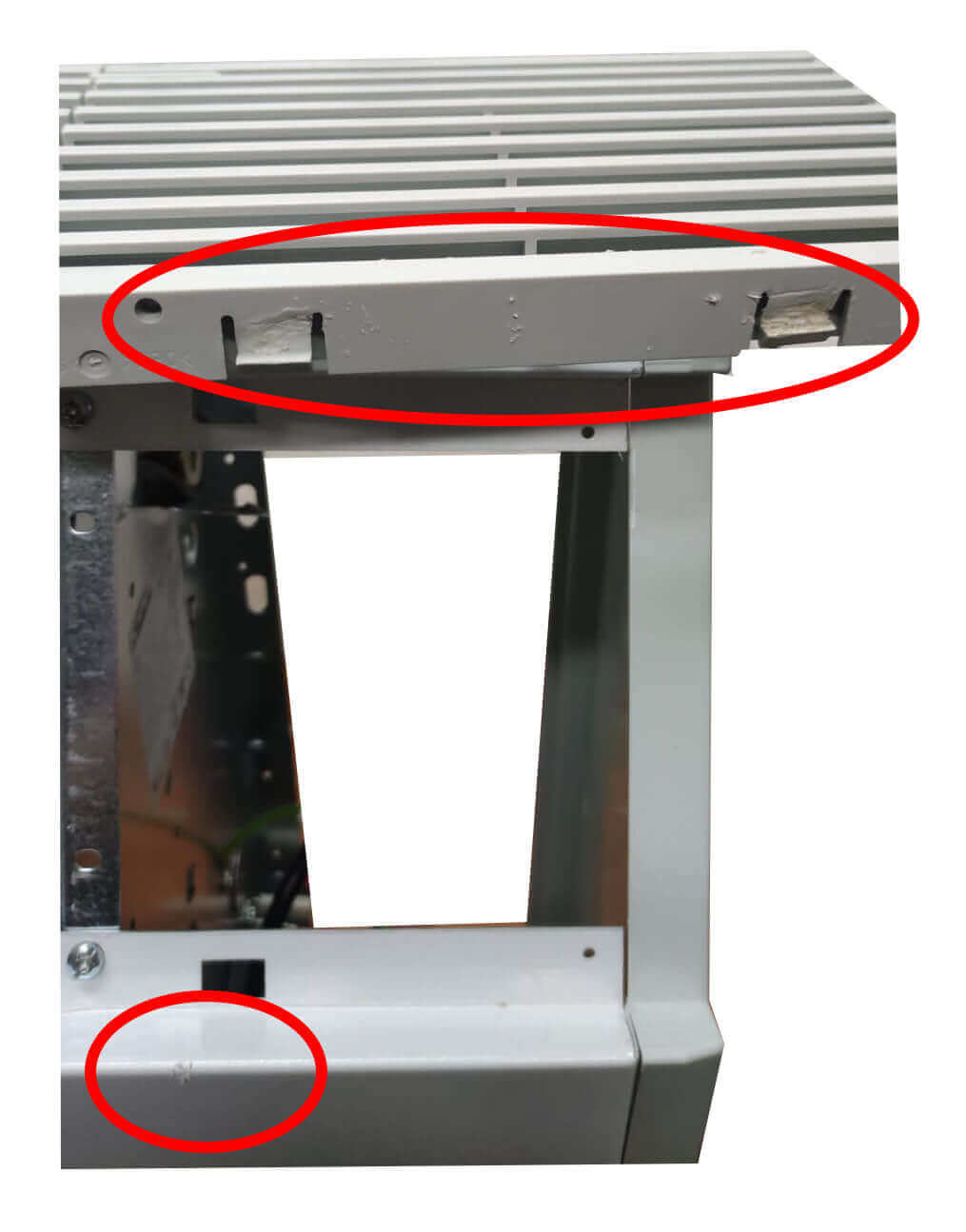

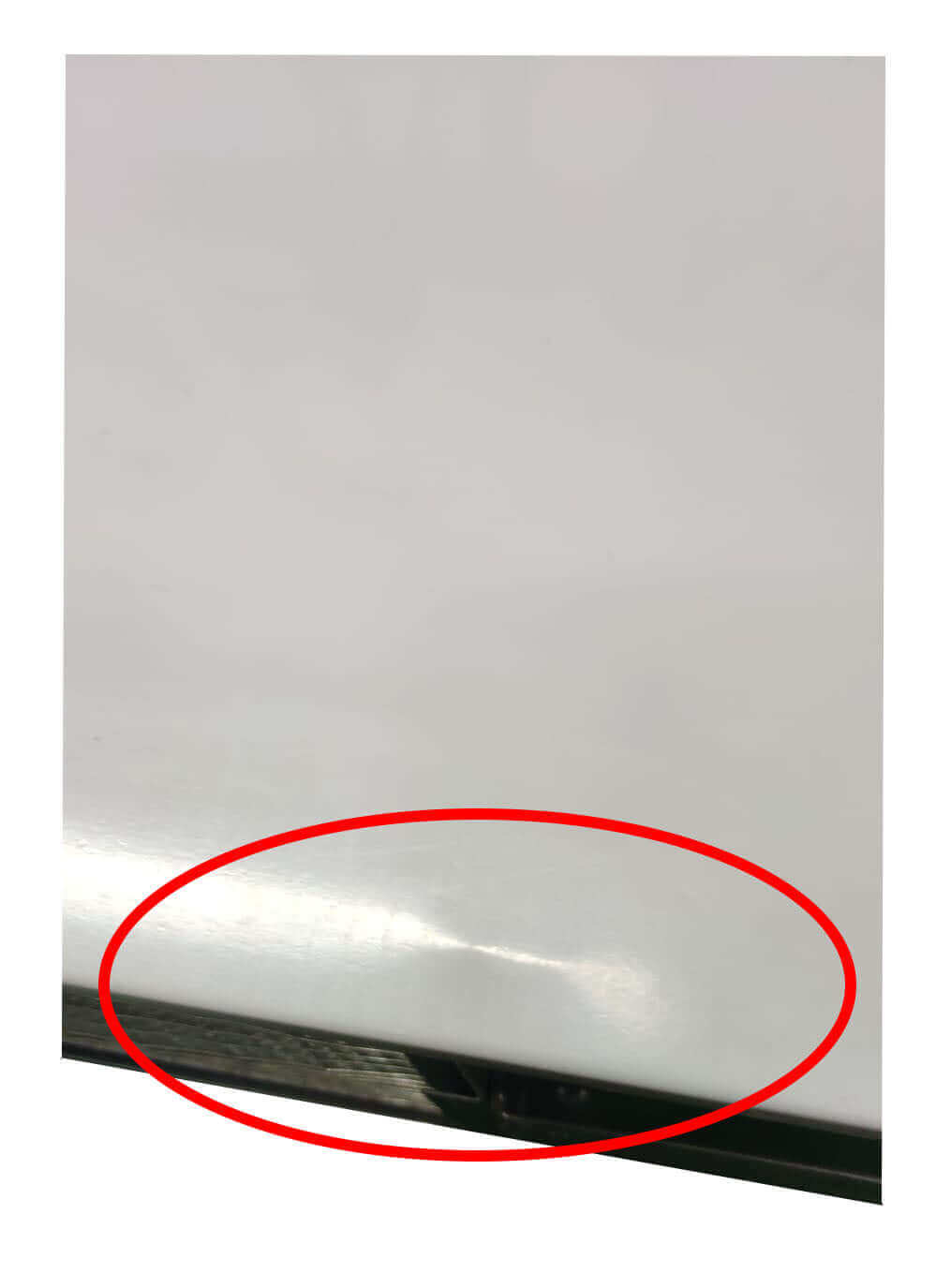

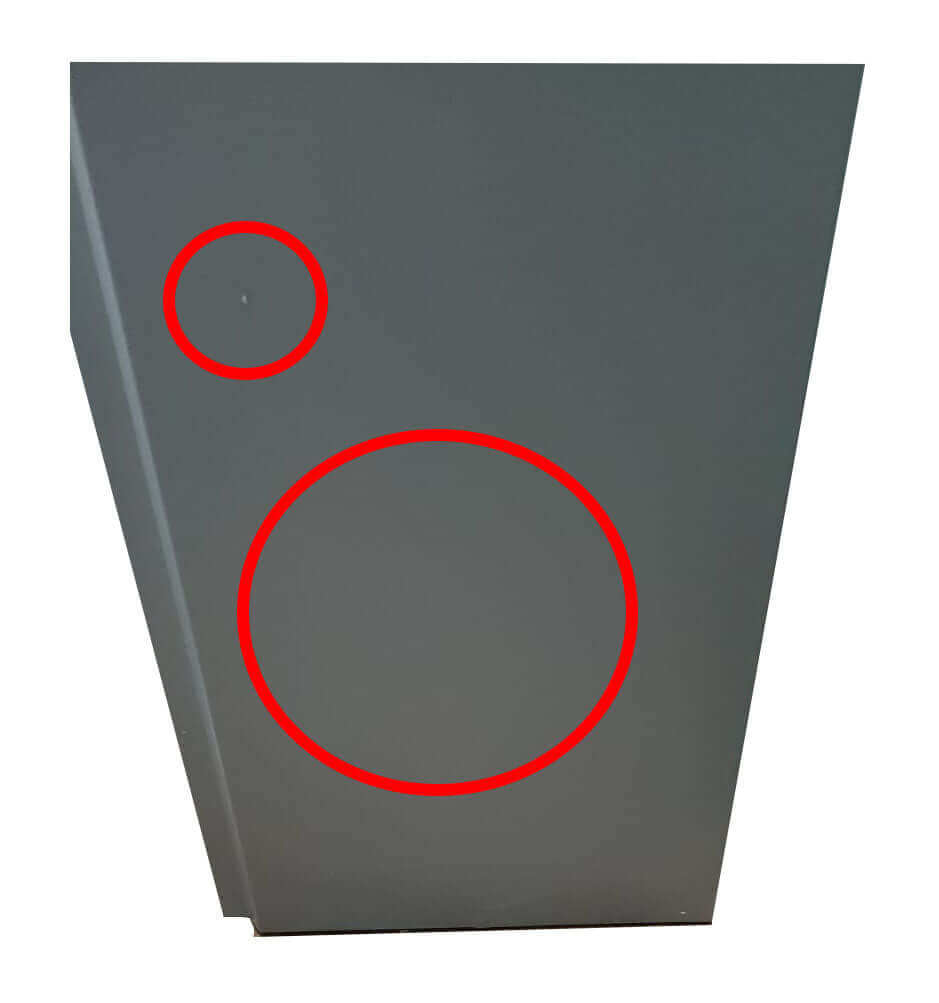

ATTENTION THE PRODUCT IS NEW AND 100% WORKING, BUT IT HAS VARIOUS PLASTIC PARTS AND THE FIN HOOKS ARE REPAIRED AND THE PACKAGING IS WORN (SEE PHOTO NEXT TO THE MAIN IMAGE)

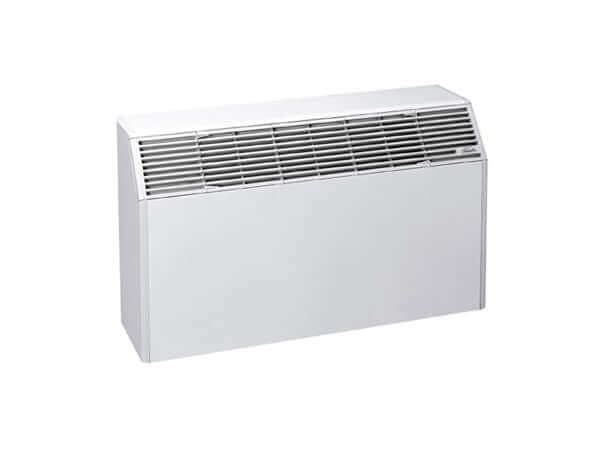

GALLETTI ESTRO F4A FAN COIL FAN COIL 2,16 kW

• Model : ESTRO F4A
• Fan coils for exposed wall installation with cover cabinet with inclined air outlet.
• Dimensions: 774 x 556 x 228mm

Cockerels Estro

ESTRO is the widest range of Fan Coils on the market. In carrying out the project for the ESTRO fan coils, high quality materials were chosen which, together with the great care and attention given to the assembly of the main construction components, qualify ESTRO in the field of performance reliability and acoustic comfort. The cover cabinet is made up of a sheet steel panel, side panels and delivery grille in ABS. Inclined air outlet for wall niche installation. High efficiency heat exchange coil, in copper tube and aluminum fins.

• Double intake centrifugal fans, made of antistatic ABS with airfoil blades and staggered modules.
• Electric motor with 3 or 6 speeds, mounted on anti-vibration supports.
• Regenerable air filter that can be easily removed for maintenance operations.
• Control panels, available as an accessory.

Estrus FA

Visible wall installation with cover cabinet. The inclined air outlet on the front makes the ESTRO FA version particularly suitable for insertion in recesses up to 150 mm deep. ESTRO FA is available in 19 models.

• Centrifugal fan
• Supervision ergo
• Vertical installation
• 4-pipe system
• 2-pipe system

Technical characteristics of the main components:

• Mobile Of coverage composed of a thick steel sheet panel (10/10 mm); side panels and delivery grille (adjustable by 180°) are made of ABS . The side doors allow access to the technical compartments.
• Inclined air outlet for wall niche installation.
• Structure in thick galvanized steel sheet (up to 15/10 mm), insulated with class 1 self-extinguishing thermal insulating panels. The FU – FB – FC – FF and FBC versions are equipped with a double tray for collecting the condensate.
• High efficiency heat exchange coil , in copper pipe and aluminum fins locked to the pipes by mechanical expansion, it is equipped with brass manifolds and vent valve. The battery, normally mounted with connections on the left, can be rotated by 180°.
• Motor electric with three or six speeds mounted on anti-vibration supports, with permanently inserted capacitor and thermal protection of the windings.
• Fans centrifuges double suction, statically and dynamically balanced and coupled directly to the electric motor, made of antistatic ABS with airfoil blades and staggered modules
• Filter air regenerable in honeycomb polypropylene, mounted on a galvanized sheet frame with a safety net, which can be easily removed for maintenance operations. The filter is locked to the cover cabinet by means of 1/4 turn screws (model 12 excluded).
• Panels control , available as an accessory, for controlling and regulating the temperature by means of a microprocessor system, which automatically adjusts the operation of the fan coil as the ambient conditions change.

Product Warranty All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

• peso: 50.0 kg
• marca: Cockerels
• modello: AO783_1
