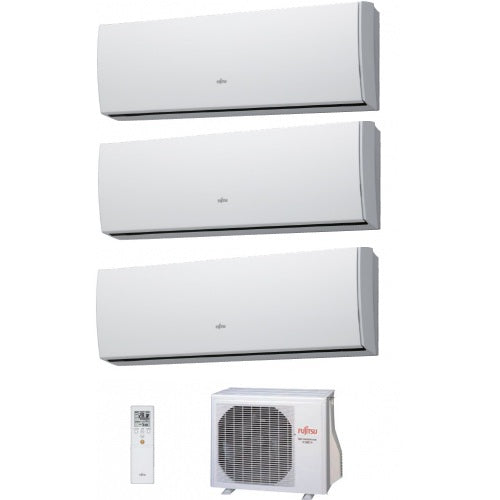

Fujitsu Trial Split Air Conditioner Inverter Wall Series Slide Lu 9 + 9 + 12 With Aoyg24lac3 9000 + 9000 + 12000 Slyde

Overview

FUJITSU TRIAL SPLIT WALL AIR CONDITIONER INVERTER SLYDE LU 9+9+12 BTU: Fujitsu multi split inverter consisting of 2 x ASYG09LUC + ASYG12LUC with AOYG24LAC3 outdoor unit.

Technical specifications

INDOOR UNITS:

1) Model:

Internal Unit catalog code: 2 x ASYG09LUC

Typology : Wall - Inverter

Power: 9000 btu/h

Characteristics:

kW category: 2.5

Air flow (maximum) mü/h: 600

Sound pressure (QLMH) (dB(A)) : 21-28-32-36

Refrigerant lines (liquid-gas) mm: 6.35-9.52

Dimensions (ALP) (mm) : 282x870x185; 9.5 Kg

2) Model:

Internal Unit catalog code: ASYG12LUC

Typology : Wall - Inverter

Power: 12000 btu/h

Characteristics:

kW category: 3.5

Air flow (maximum) mü/h: 660

Sound pressure (QLMH) (dB(A)) : 21-31-34-37

Refrigerant lines (liquid-gas) mm: 6.35-9.52

Dimensions (ALP) (mm) : 282x870x185 ; 9.5 Kg

OUTDOOR UNIT:

Model:

Catalog code : AOYG24LAC3

Max indoor units: up to 3 indoor units

Energy efficiency:

SEER (W/W) : 6.2

SCOP (W/W) : 4.2

Energy Efficiency Class (Cool) : A++

Energy Efficiency Class (Heating) : A+

Performance:

Nominal cooling power (kW) : 6.8

Absorbed cooling power (kW): 1.94

Nominal heating power (kW) : 8.0

Absorbed heating power (kW): 1.97

Noise level (Sound pressure) Hi dB: 48

Noise level (sound power) Hi dB: 68

Characteristics:

Power supply (V/Hz/?) : 220~240/50/1

Refrigerant gas : R410A

Maximum piping length m: 50

Masssimdislevelpipes m :15

Dimensions:

Outdoor Unit (ALP) (mm) : 700x900x330 ; 55 kgs

Main features

Inverter Wall Multisplit Technology

Optimal performance, cleaning and disinfection of the environment, low energy consumption... Thanks to its advanced technology, Fujitsu Inverter Split Wall equipment offers multiple and varied benefits to help the user enjoy the greatest comfort at home.

Energy saving Inverter technology eliminates peaks during compressor start-up by modulating the number of revolutions. In this way, a 50% higher energy saving is obtained compared to conventional models.

DC Inverter System It allows the room temperature to be reached 15% faster than conventional models and avoids temperature fluctuations, improving the feeling of comfort.

Centralized command UTY-DMMYM (solper multi 8)

The centralized control allows the control of 8 indoor units. Functions such as: temperature, fan speed, timer, etc. can be selected for each individual indoor unit.

Courtesy functions:

Large backlit LED screen.

Easy-to-understand image stat icons.

9 languages ​​available.

Wellness in all rooms respecting the design of the house

By distributing different indoor units in the various areas of the house, the desired temperature is reached evenly. The Fujitsu Multi Split Inverter systems can combine from 2 to 8 indoor units with a single outdoor unit, which, in addition to offering great placement versatility, prevents the external aesthetics of the house from being modified.

Clean Air

The wall-mounted appliances in the Multisplit Inverter range come standard with an ion deodorizing filter to eliminate dirt and bad odours. They also have a bacterial filter which absorbs dust, spores and other organisms dangerous to health.

Wide range of outdoor units

The Fujitsu Multi Split Inverter range is one of the most complete on the market, with a total of 6 outdoor units to suit all users' air conditioning needs: 2x1 outdoor units, 3x1 outdoor units, 4x1 and 8x1 outdoor units.

New F II Series

High efficiency heat exchanger

This range, equipped with the latest Inverter technology, makes it possible to achieve high energy efficiency values, among the best on the market, and to obtain greater comfort and cost savings.

Maximum Flexibility

Indoor units can work individually at the same time. Combinations of 2 large capacity indoor units can also be achieved with 3 and 4x1 outdoor units.

Easy Installation

Thanks to the possibility of reaching considerable lengths for the pipes, the outdoor units can be installed almost anywhere. Up to a maximum of 70m in overall length and 15m of height difference supported by AOY30L model pipes.

Slide LU wall unit

Slide is a new furnishing element thanks to its elegant design and its ultra-compact dimensions. Furthermore, it will make it possible to obtain an incomparable level of comfort together with the lowest energy consumption.

Warranty

All products for sale on our site are new and packed. The guarantee on this item is 24 months from the date of purchase.
