Technical features
Indoor units
- Internal Unit Catalog Code : 3x ASYG12LMCE ( 3NGF8292 )
- Power: 12000 btu/h
- Treated air : 560 m 3 /h
- Sound Power Level : 54 dB(A)
- Sound pressure level : 21~40 dB(A)
- Pipe diameter Liquid : 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Internal Unit Dimensions (HxWxD): 270x870x204 mm
- Indoor Unit Weight: 8.5 Kg
Outdoor Unit
Model:
- Outdoor Unit catalog code: AOYG24LAT3 ( 3NGF8280 )
- Max indoor units: up to 3 indoor units
Energy efficiency:
- SEER : 6.1 (W/W)
- SCOP : 4.2 (W/W)
- Energy Efficiency Class in Cooling : A++
- Heating Energy Efficiency Class: A+
Performance:
- Cooling Capacity: 6.8 kW
- Heating Capacity: 8.0 kW
- Std cooling absorption: 1.94 kW
- Std heating absorption: 1.95 kW
- Sound power level : 68 dB(A)
- Sound pressure level : 48 dB(A)
Characteristics:
- Power (V/Hz/Φ) : 220~240/50/1
- Refrigerant gas : R-410
- Pipe diameter Liquid : 6.35 mm (1/4") x3
- Gas pipe diameter: 9.52 mm (3/8") x2 + 12.70 mm (1/2")
- Guaranteed temperature range:
- - Cooling: -10° ~ 46°C
- - Heating: -15° ~ 24° C
Dimensions:
- External Unit Dimensions (HxWxD): 700x900x330 mm
- Weight of Outdoor Unit: 55 Kg

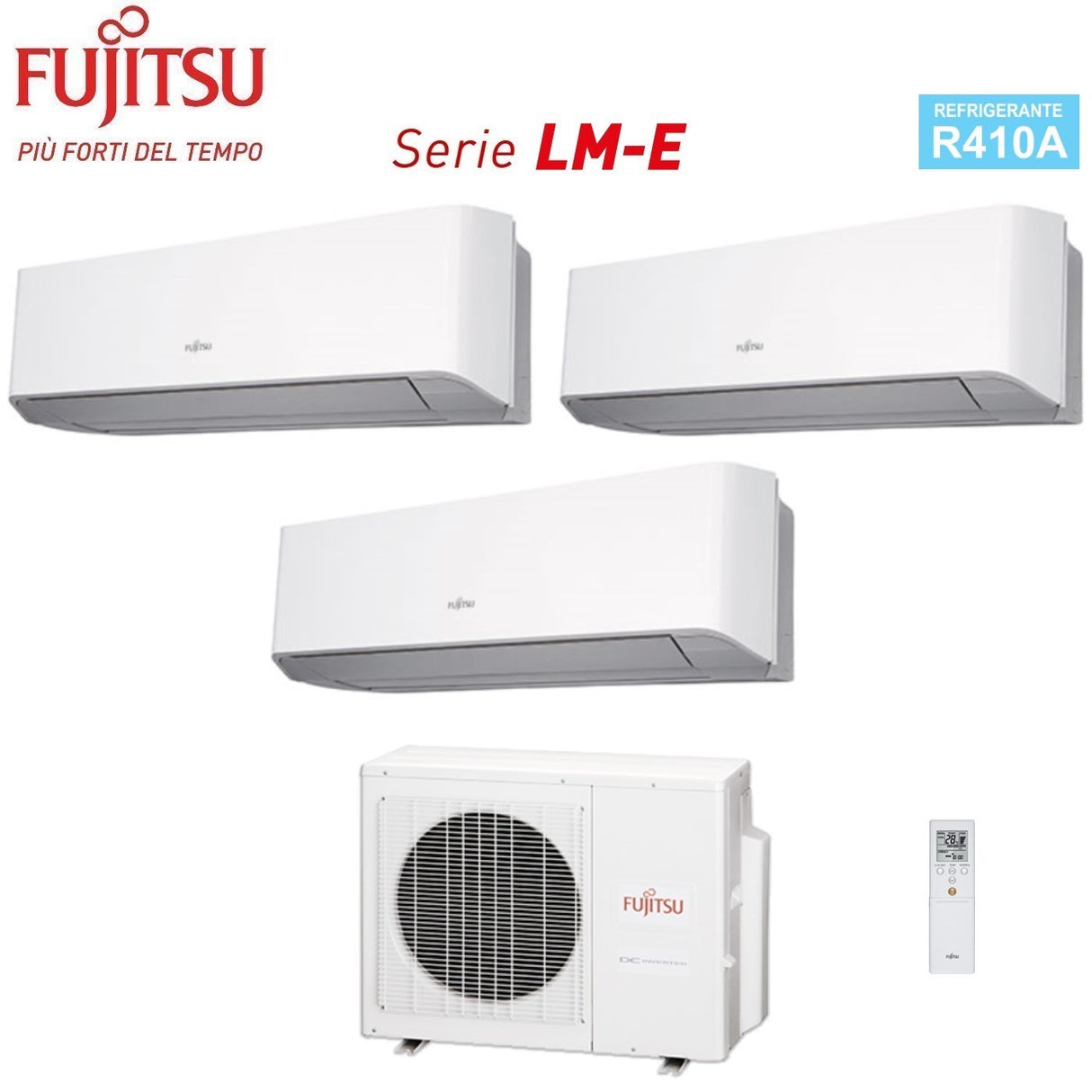

Fujitsu LM-E series
Compact design with high efficiency
Its refined shape has been obtained thanks to a particular multi-pass high-density heat exchanger and a powerful ventilation system
More airflow, more comfort
Power diffuser
Warm air thrust towards the floor for greater winter comfort. Blowing fresh air towards the ceiling so as not to disturb the occupants of the room
Daily timer
The daily timer and night timer are easy to set
Functions
• Up and down movement of the flaps Automatic opening and closing of the flaps
• Automatic ventilation speed Automatic modification of the ventilation speed according to the temperature required in the room
• Automatic Restart In the event of a momentary power failure, the air conditioner restarts automatically when the power returns
• 10°C HEAT 10°C is the minimum attenuation temperature that can be set in heating
• Maximum Power Function that allows you to activate the climate control system at maximum power for rapid achievement of comfort
• Automatic cold/heat switching By comparing the room temperature and the set temperature, the air conditioner automatically activates in heating or cooling mode
• Energy saving Control system for energy saving
• Diffuser Cools horizontally avoiding that the air reaches the occupants of the room directly and heats vertically creating a pleasant feeling of comfort
• Automatic shutdown Sleep Night comfort is guaranteed by the gradual regulation of the temperature before the programmed shutdown of the air conditioner
• Daily Timer Four possible selections within 24 hours ON, OFF, ON OFF or OFF ON
• Filter status indicator Allows you to check the cleanliness of the filters
• Deodorizing filter The filter is made up of ultra-fine ceramic particles which decompose the absorbed odors by reducing the oxidizing effects of the generated ions
• Catechin filter The filter exploits the electrostatic effect of the catechin to retain the finest polluting particles
• Washable front
• i-PAM control system
Holding temperature 10°C
The 10°C temperature maintenance mode prevents the temperature in unoccupied rooms from dropping excessively
Space-saving installation
Multiple indoor units can be connected to a single outdoor unit, with great freedom of placement. With the same internal machines, the Multisplit external unit allows you to save much more space in the installation
Wide range of indoor units with various models
Eight types and 25 models for a power range from 2 to 7 kW. They are designed to meet multiple needs: from rooms in private homes to large shops and hotels
Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
