Technical features

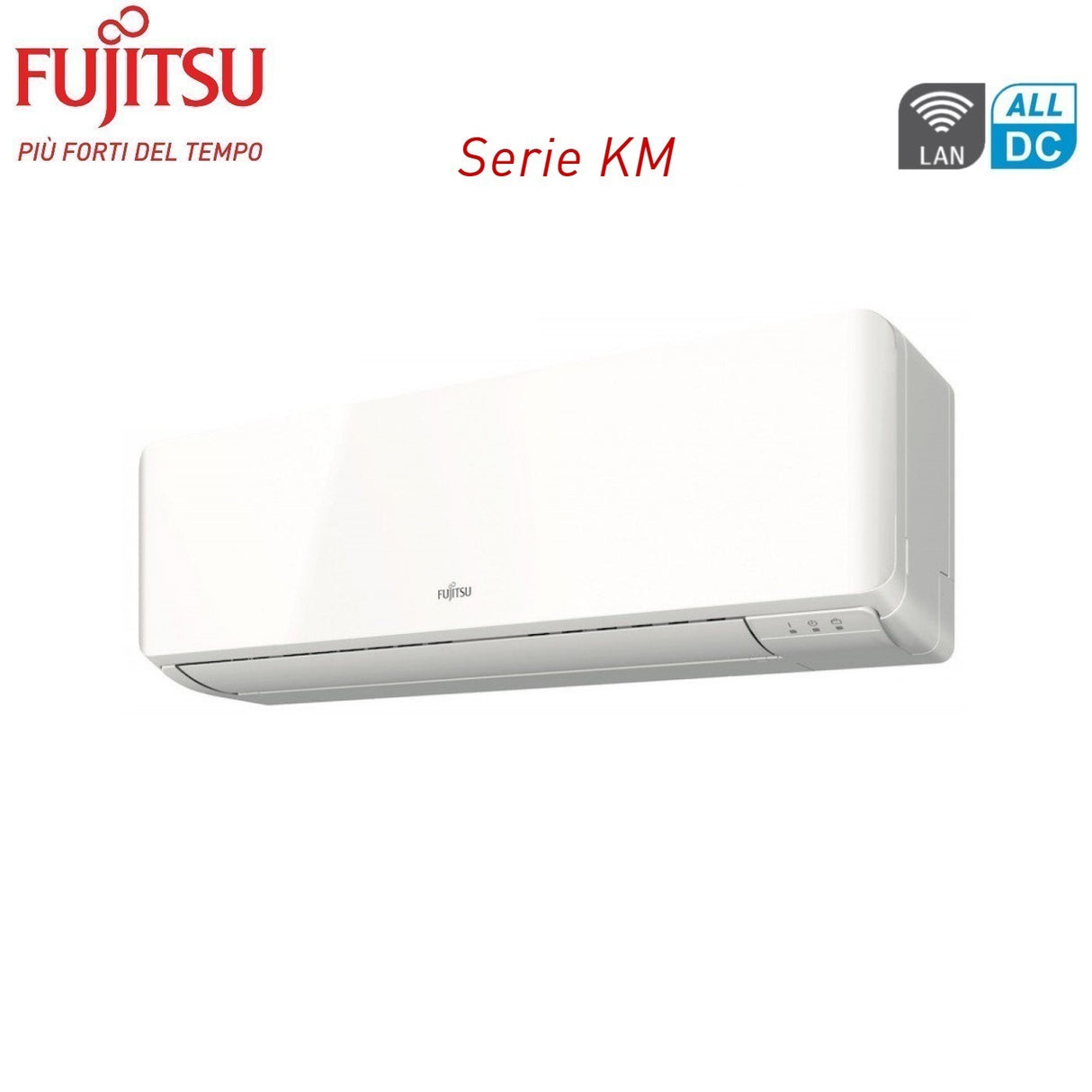

Indoor units
1) Model
- Internal Unit Catalog Code: 2x ASYG09KMCC
- Internal Unit Code: 3NGF8297
- Power : 9000 Btu
- Cooling Capacity : 2.5 kW
- Heating Capacity : 2.8 kW
- Air flow : 700 m 3 /h
- Sound pressure level : 22~40 dB(A)
- Sound power level : 56~57 dB(A)
- Pipe diameter Liquid : 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Internal Unit Dimensions (HxWxD): 270x834x222 mm
- Indoor Unit Weight: 10 Kg
- Wi-Fi Optional ( Code : UTY-TFSXW1 )
2) Model
- Internal Unit Catalog Code: 1x ASYG18KMTB
- Internal Unit Code: 3NGF82083
- Power : 18000 Btu
- Cooling Capacity : 5.2 kW
- Heating Capacity : 6.3 kW
- Air flow : 980 m 3 /h
- Sound pressure level : 26~46 dB(A)
- Sound power level : 60~61 dB(A)
- Pipe diameter Liquid : 6.35 mm (1/4")
- Gas pipe diameter: 12.70 mm (1/2")
- Internal Unit Dimensions (HxWxD): 280x980x240 mm
- Indoor Unit Weight: 12.5 Kg
- Wi-Fi Optional ( Code : UTY-TFSXW1 )
Outdoor Unit
Model:
- Indoor Unit catalog code: AOYG30KBTA4
- Max indoor units: up to 4 indoor units
Energy efficiency:
Performance:
- Cooling Capacity : 8.0 (2.4-10.1) kW
- Heating Capacity: 9.6 (3.0-11.2) kW
- Sound power level : 66 dB(A)
- Sound pressure level : 55 dB(A)
Characteristics:
- Power supply (V/Hz/F) : 230/50/1
- Refrigerant gas : R-32
- Guaranteed temperature range:
- - Cooling: -15° ~ 46°C
- - Heating: -15° ~ 24°C
Dimensions:
- External Unit Dimensions (HxWxD): 884x820x315 mm
- Weight of Outdoor Unit: 59Kg

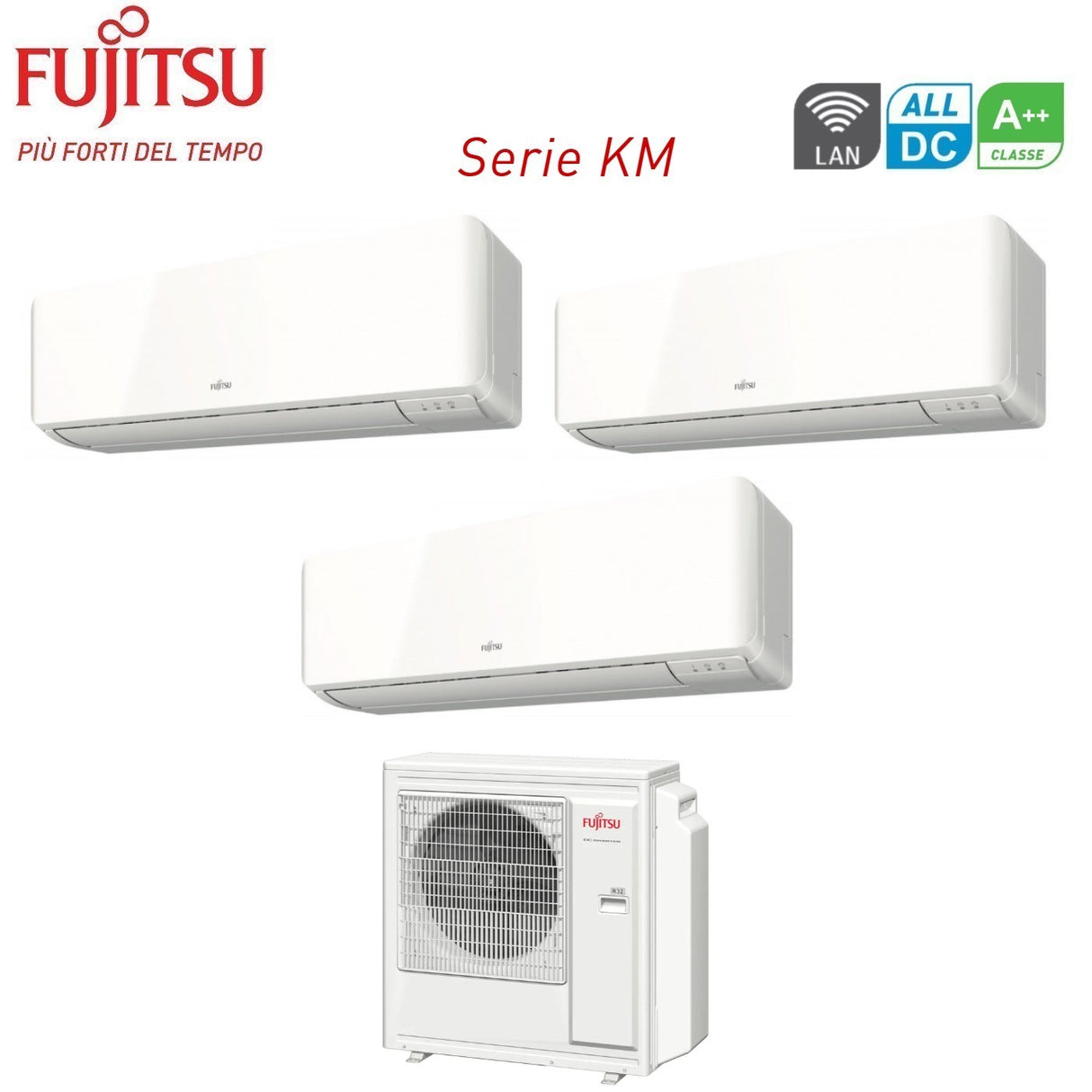

Fujitsu KM Series
Other pluses of the KM range are noiselessness and small dimensions: split only 222 mm deep. The air conditioner can in fact operate at just 20 decibels in the cooling phase. Thanks to a particular high-density multi-passage heat exchanger and a powerful ventilation system, it has been possible to combine high performance with a reduction in overall dimensions to obtain an aesthetic capable of harmoniously fitting into any type of residential environment.
The air conditioners of the entire KM range can also be controlled remotely via smartphone and tablet: simply download the free FGLair application, also available in Italian, and install the UTY-TFSXW1 interface.
The design is characterized by the essentiality of the elegant linear edges: a minimal conception that has allowed Fujitsu Climatizzatori to win the "Good Design Award", in whose evaluation for the assignment of the recognition criteria such as ease of use, basis of product development, functionality and new technologies used.
Slim and elegant design
The slim and elegant shape is achieved thanks to the multi-pass high-density heat exchanger and the high-efficiency fan
Smartphone Control (Optional)
Easy and intuitive App for air conditioning control both from inside and outside the home or office via smartphone, tablet and PC. Wireless LAN interface The exclusive Wi-Fi adapter allows you to control the air conditioner from your smartphone, tablet and PC
Comfortable ventilation and silent operation
The large baffle and the new diffusion structure allow for a comfortable airflow that spreads wider to the user's feet and silent operation.
Functions
• Up and down movement of the flaps Automatic opening and closing of the flaps
• Automatic ventilation speed Automatic modification of the ventilation speed according to the temperature required in the room
• Automatic Restart In the event of a momentary power failure, the air conditioner restarts automatically when the power returns
• 10°C HEAT 10°C is the minimum attenuation temperature that can be set in heating
• Automatic shutdown Sleep Night comfort is guaranteed by the gradual regulation of the temperature before the programmed shutdown of the air conditioner
• Daily Timer Four possible selections within 24 hours ON, OFF, ON OFF or OFF ON
• Maximum Power Function that allows you to activate the climate control system at maximum power for rapid achievement of comfort
• Automatic cold/heat switching By comparing the room temperature and the set temperature, the air conditioner automatically activates in heating or cooling mode
• Energy saving Control system for energy saving
• Filter status indicator Allows you to check the cleanliness of the filters
