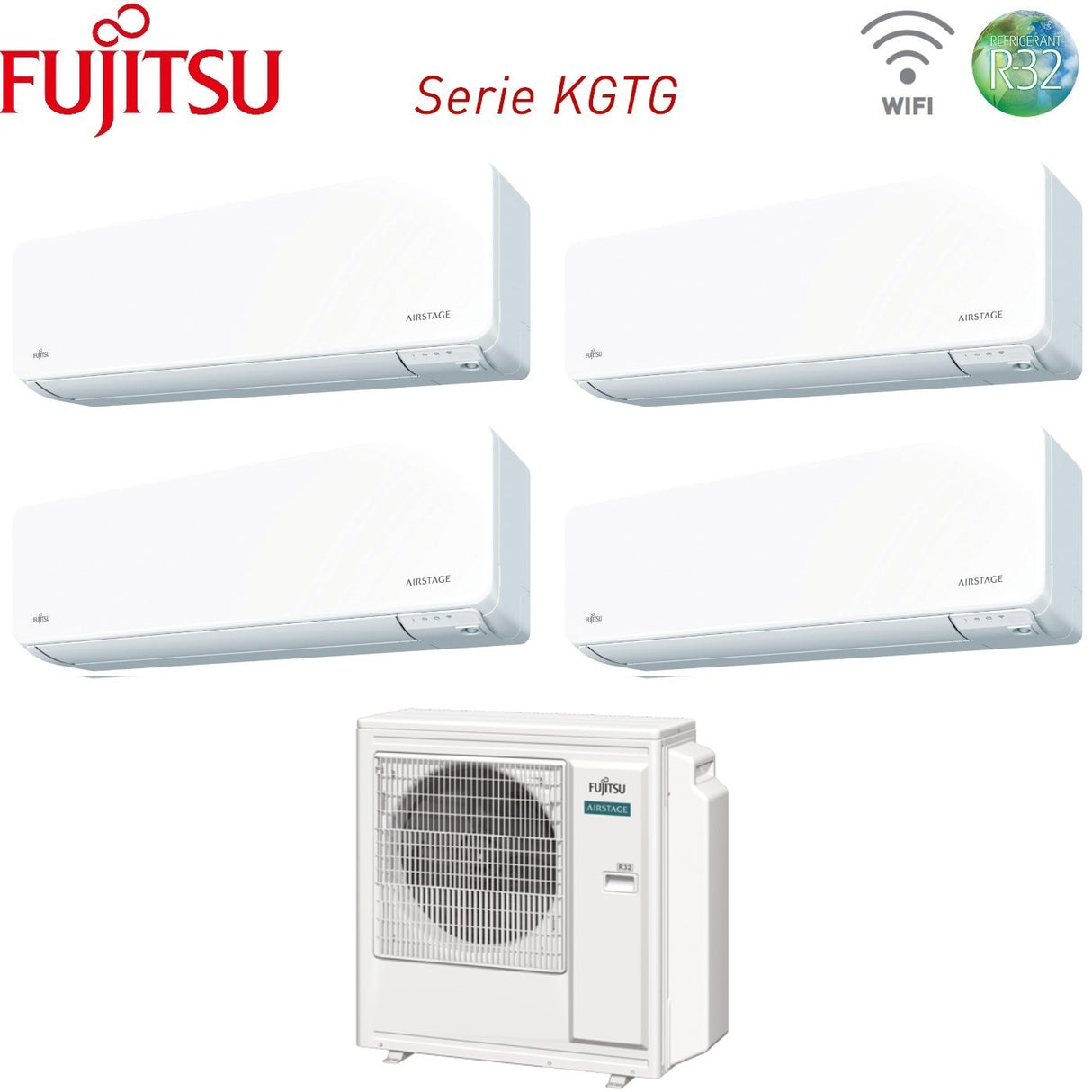

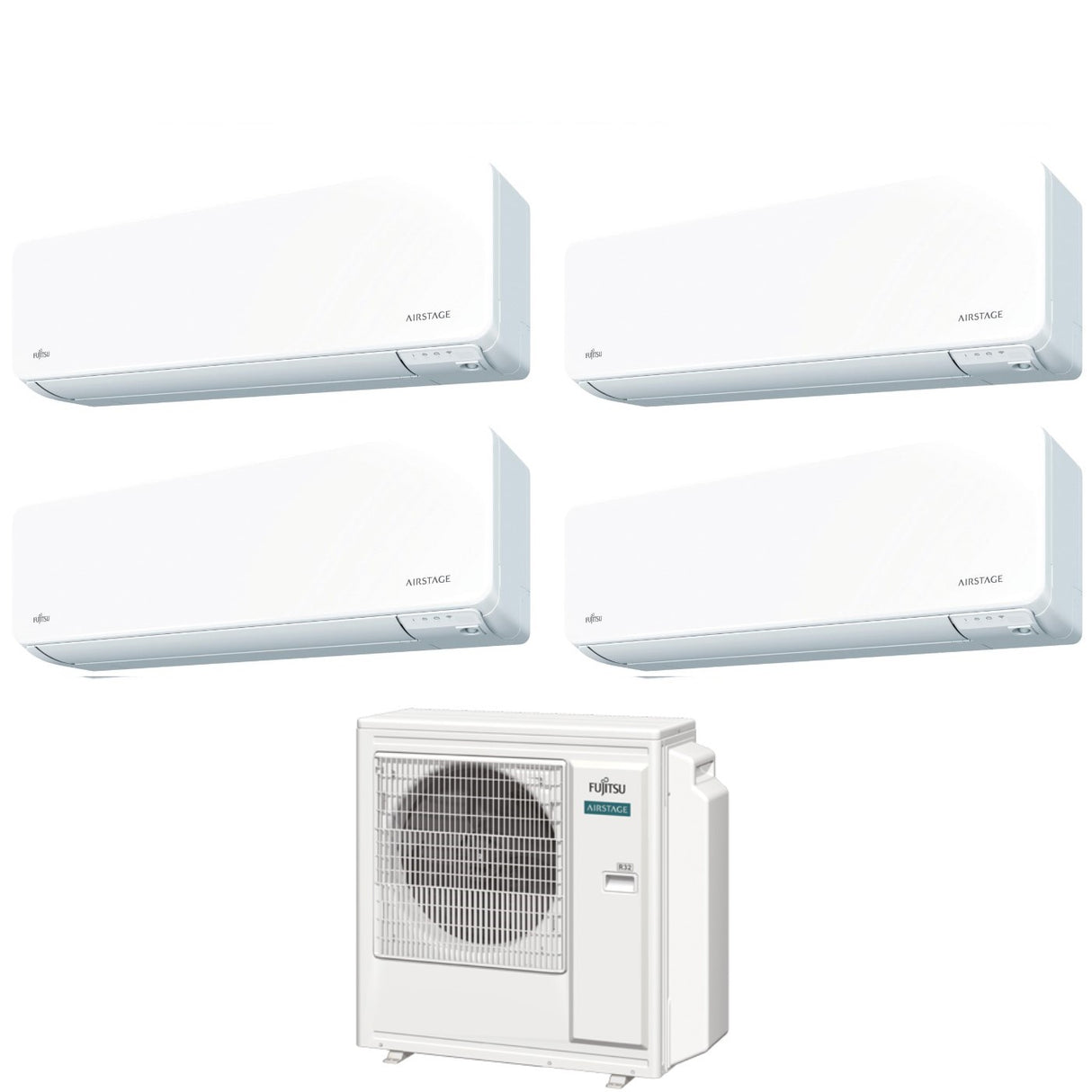

icon Fujitsu Air Conditioner Quadri Split Inverter Series Kg 9+12+14+14 With Aoyg30kbta4 R-32 Integrated Wi-Fi 9000+12000+14000+14000 | CaldaieMurali

Fujitsu Air Conditioner Quadri Split Inverter Series Kg 9+12+14+14 With Aoyg30kbta4 R-32 Integrated Wi-Fi 9000+12000+14000+14000

Important Notice on Regulations for Fluorinated Gases IN ITALY

In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018, equipment containing fluorinated gases that is not hermetically sealed can only be sold if installed by a certified company.

By law, each sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer ensuring that the installation complies with the regulations. Therefore, before completing the order, it will be necessary to provide this mandatory declaration.

Description

Technical features

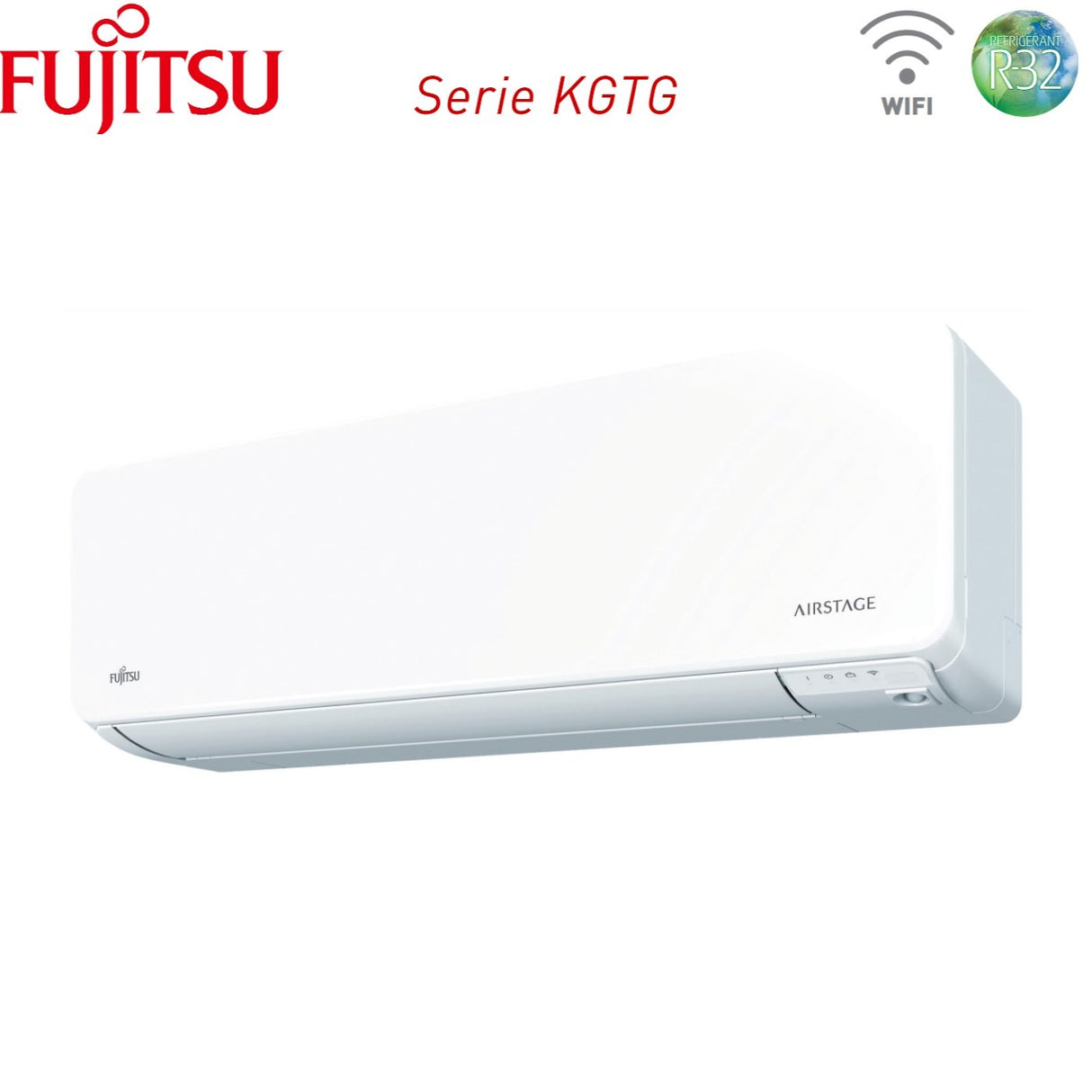

Indoor units

1) Model

  • Indoor unit catalog code : 1x ASYG09KGTF
  • Indoor unit code: 3NGF82101
  • Power: 9000 btu/h
  • Cooling capacity : 2.5 kW
  • Heating capacity : 2.8 kW
  • Air flow : 700 m 3 /h
  • Sound power level : 55~57 dB(A)
  • Sound pressure level : 19~42 dB(A)
  • Liquid piping diameter : 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Dimensions (HxWxD): 270x834x215 mm
  • Weight : 10.0 Kg
  • Built-in Wi-Fi

2) Model

  • Indoor unit catalog code : 1x ASYG12KGTF
  • Indoor unit code: 3NGF82102
  • Power: 12000 btu/h
  • Cooling capacity : 3.4 kW
  • Heating capacity : 4.0 kW
  • Air flow : 700 m 3 /h
  • Sound power level : 56~58 dB(A)
  • Sound pressure level : 19~42 dB(A)
  • Liquid piping diameter : 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Dimensions (HxWxD): 270x834x215 mm
  • Weight : 10.0 Kg
  • Built-in Wi-Fi

3) Model

  • Indoor unit catalog code : 2x ASYG14KGTF
  • Indoor unit code: 3NGF82103
  • Power: 14000 btu/h
  • Cooling capacity : 4.2 kW
  • Heating capacity : 5.4 kW
  • Air flow : 770 m 3 /h
  • Sound power level : 57~59 dB(A)
  • Sound pressure level : 20~44 dB(A)
  • Liquid piping diameter : 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Dimensions (HxWxD): 270x834x215 mm
  • Weight : 10.0 Kg
  • Built-in Wi-Fi

Outdoor unit

  • Outdoor unit catalog code : AOYG30KBTA4
  • Outdoor unit code: 3NGF82003
  • Number of connectable indoor units : Up to 4 indoor units

Energy efficiency

  • SEER: 8.5
  • SCOP: 4.6
  • Energy efficiency class in cooling: A+++
  • Energy efficiency class in heating: A++

Performance

  • Cooling capacity : 8.0 kW
  • Heating capacity: 9.6 kW
  • Sound power level : 63~66 dB(A)
  • Sound pressure level : 50~54dB(A)

Electrical data

  • Power supply (V/Hz/F) : 230/50/1
  • Refrigerant gas : R-32
  • Guaranteed temperature range:
  • - Cooling: -10° ~ 46°C
  • - Heating: -15° ~ 24°C

Installation data

  • Liquid Pipe Diameter : 6.35mm (1/4") x4
  • Gas pipe diameter : 9.52 mm (3/8") x2 + 12.70 mm (1/2") x2
  • Maximum piping length: 70 m
  • Maximum height difference between indoor unit and outdoor unit: 15 m

Dimensions and weight

  • External unit dimensions (HxWxD): 884x820x315 mm
  • Outdoor unit weight: 55.0 Kg

High energy saving

High-Tech Components: DC technology is used for the compressor, indoor/outdoor fan motor and inverter control. High efficiency is ensured by a highly efficient heat exchanger, a large fan and a new refrigerant.

Motore

New R32 refrigerant

Its low global warming potential (GWP) of one third of the most common refrigerant used for air conditioning, is an advantage for the environment

Refrigerante R32


Fujitsu KG series


Comfortable ventilation and silent operation

The large baffle and the new diffusion structure allow for a comfortable airflow that spreads wider to the user's feet and silent operation.

Comfortable ventilation


Ø 107 large fan

Thanks to the large diameter fan, it is possible to obtain an efficient air volume even at low powers.


Motion sensor

The motion sensor detects the presence of people in a room by reducing the power of the air conditioner when people leave the room. When people return to the room, the air conditioner automatically returns to the previous operating mode.

Motion sensor


Smart control device included

The air conditioner can be controlled from anywhere using the built-in wireless LAN interface. The wireless LAN interface is installed in the indoor unit.

Thanks to the AIRSTAGE Mobile App, you can control the air conditioner anytime, anywhere.

Dispositivo di Controllo Intelligente


Functions

  • Presence sensor The sensor detects the presence of people inside the room
  • Automatic ventilation speed Automatic modification of the ventilation speed according to the temperature required in the room
  • Automatic Restart In the event of a momentary power failure, the air conditioner restarts automatically when the power returns
  • 10°C HEAT 10°C is the minimum attenuation temperature that can be set in heating
  • Automatic cold/heat switching By comparing the room temperature and the set temperature, the air conditioner automatically activates in heating or cooling
  • Maximum power Function that allows you to activate the climate control system at maximum power for rapid achievement of comfort
  • Daily timer Four possible selections within 24 hours ON, OFF, ON OFF or OFF ON
  • Automatic switch-off Sleep Night comfort is guaranteed by the gradual regulation of the temperature before the programmed switch-off of the air conditioner
  • Weekly timer ON-OFF functions can be set freely on a daily and weekly basis Filter status indicator Allows filter cleaning control

Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
